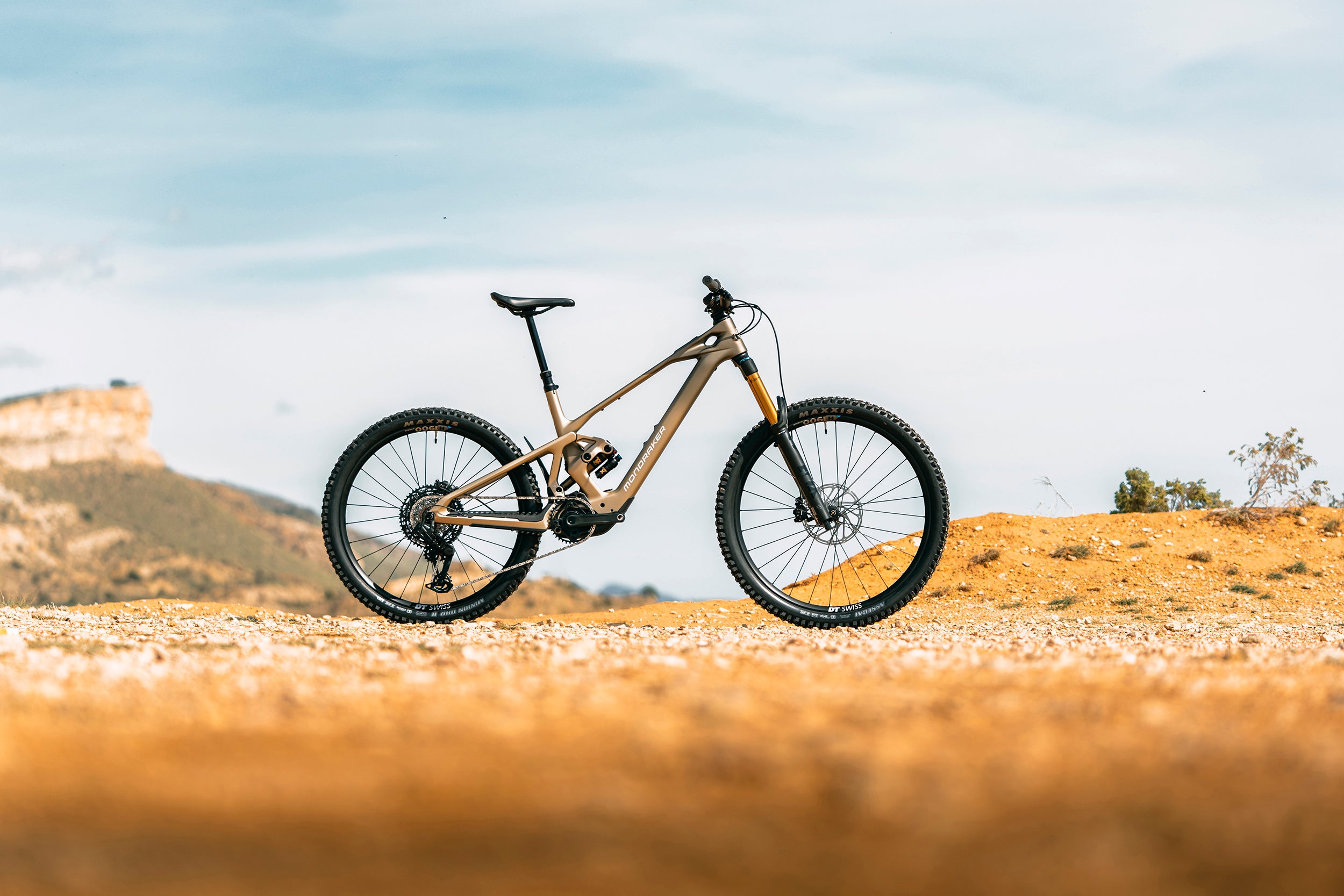

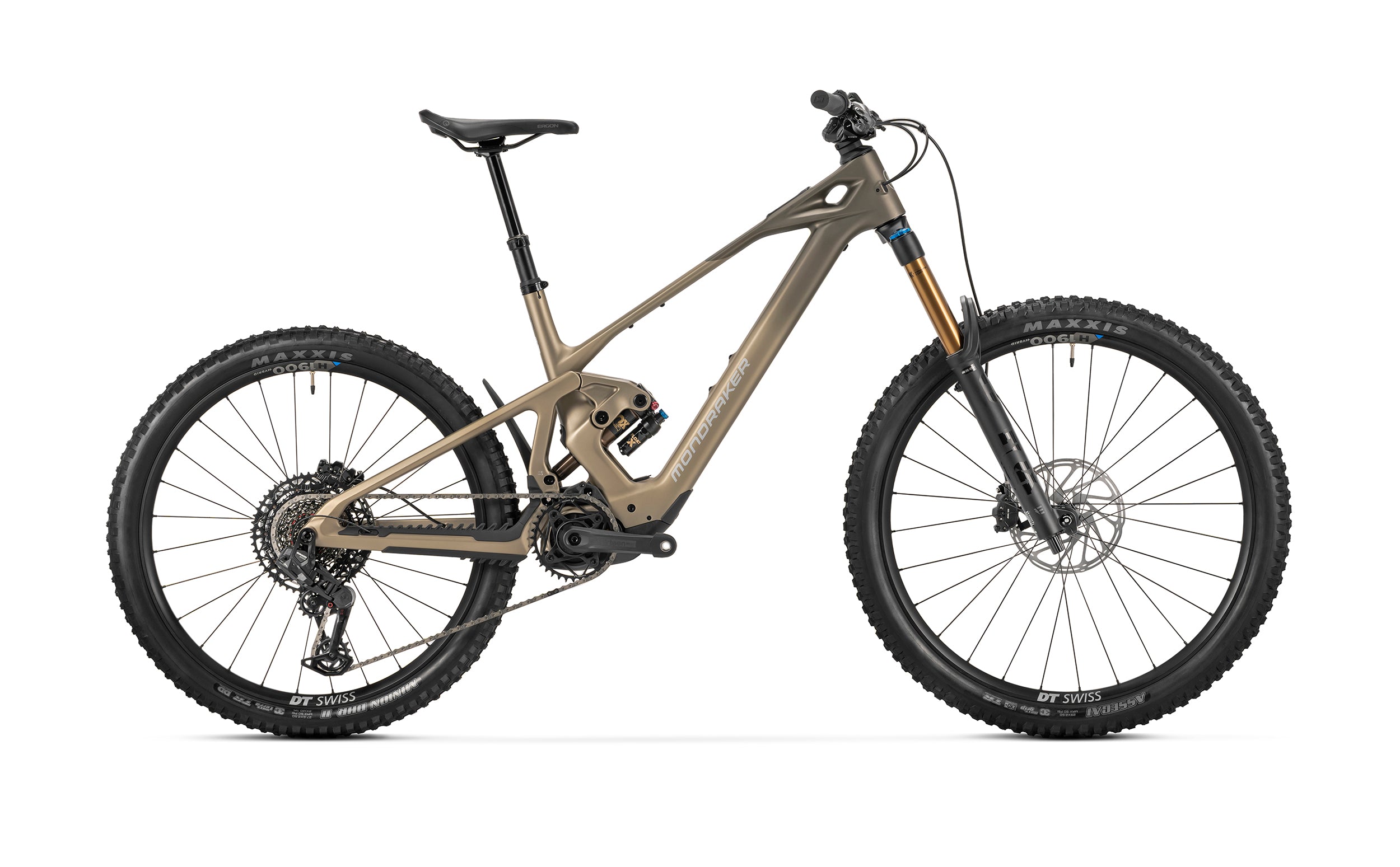

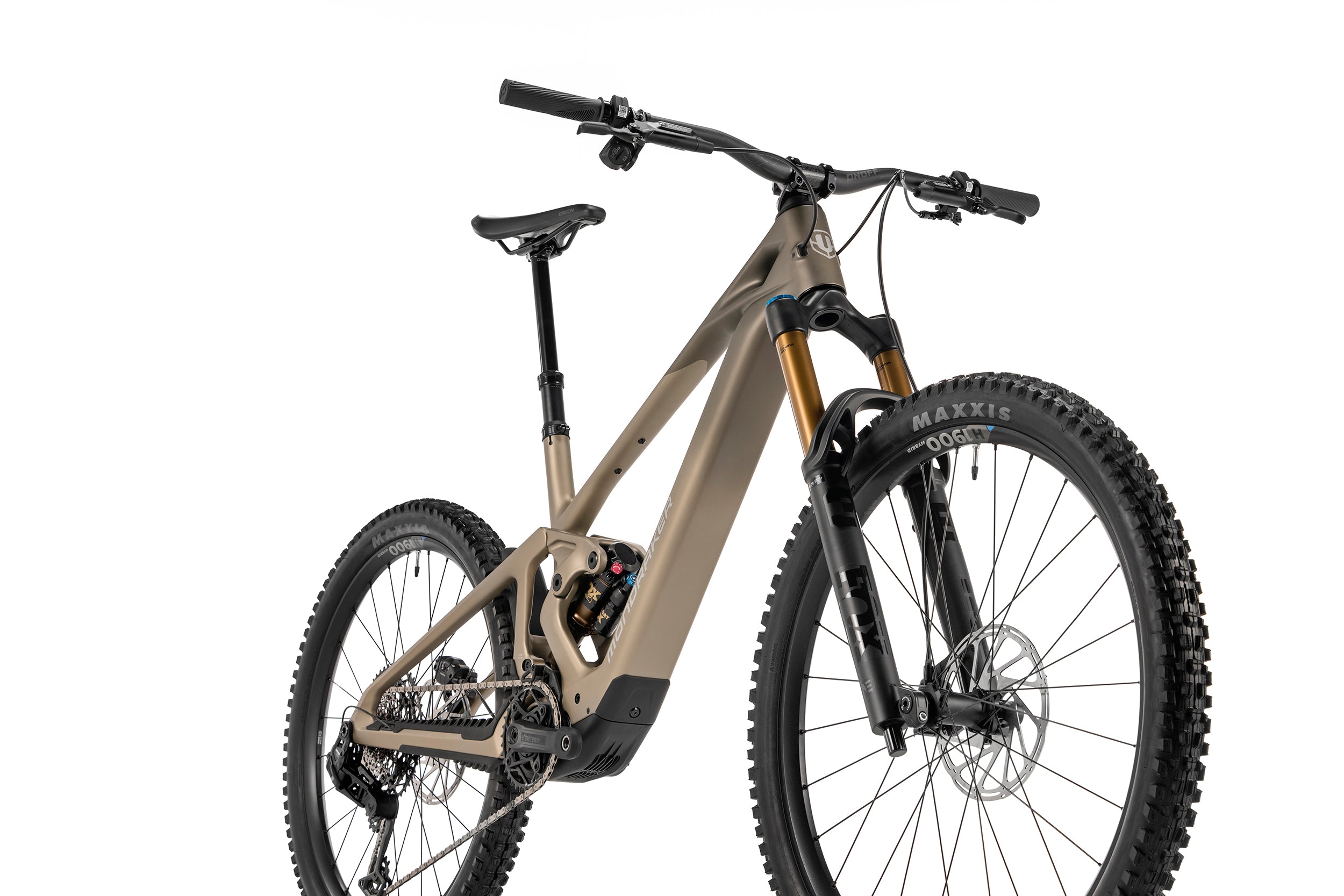

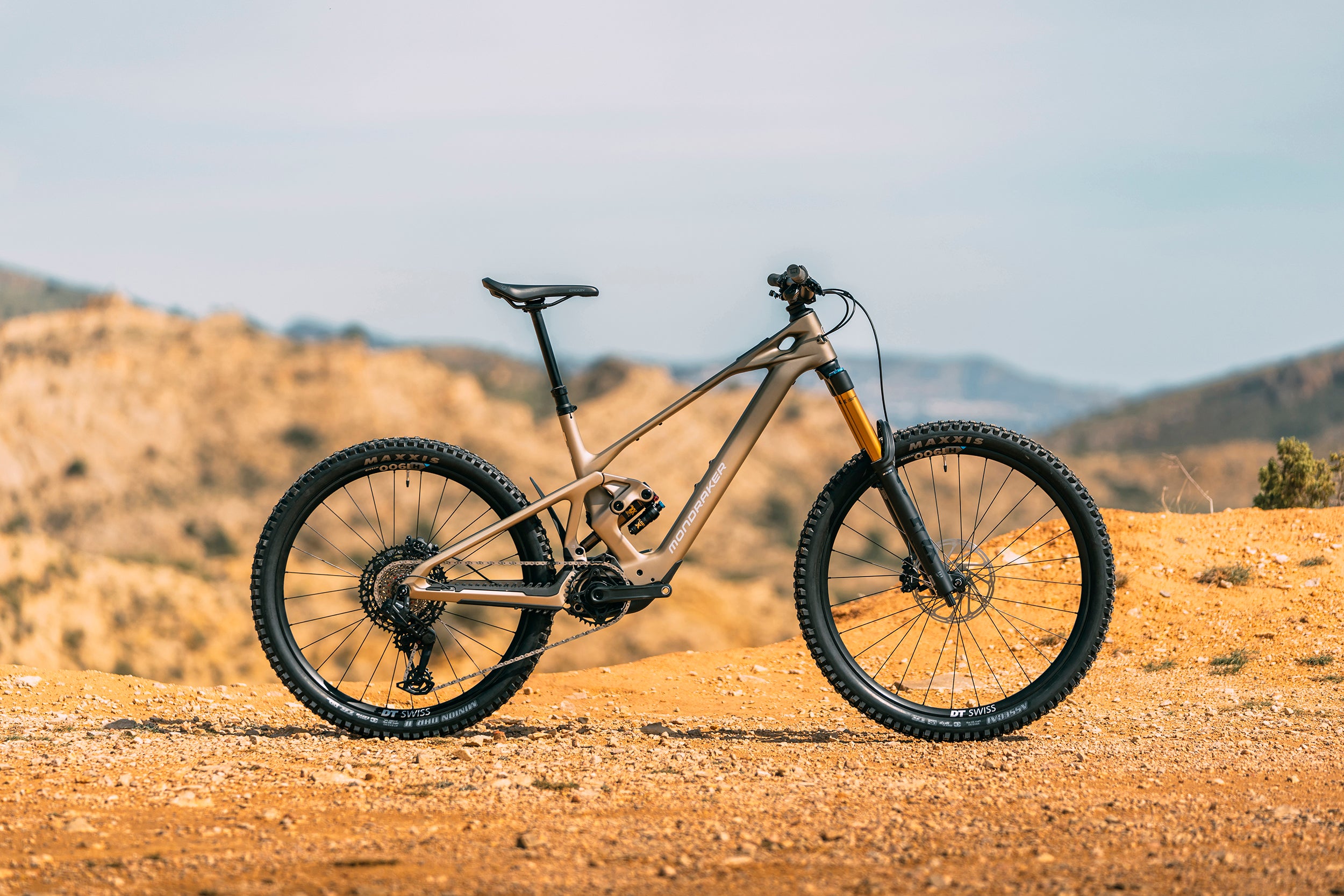

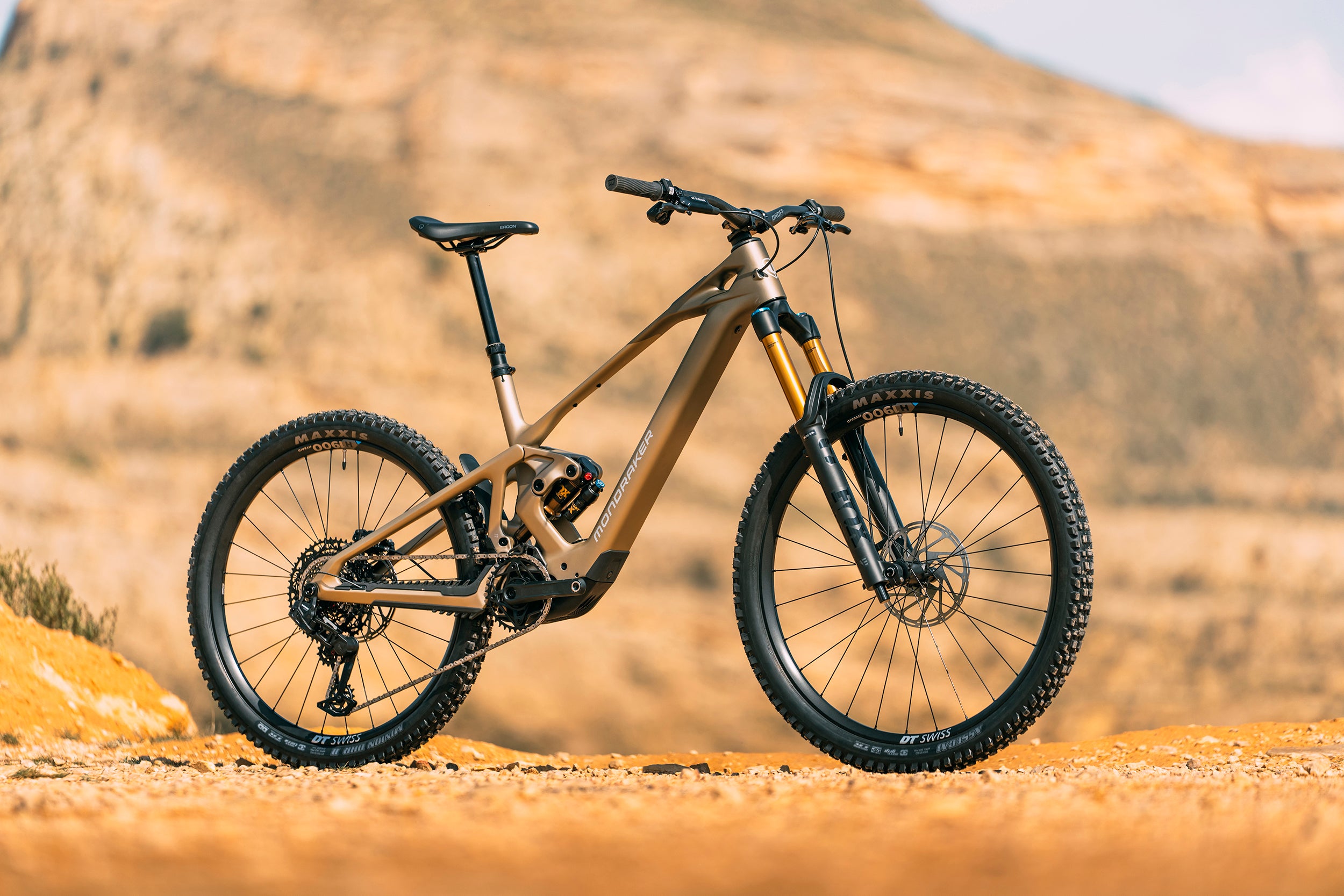

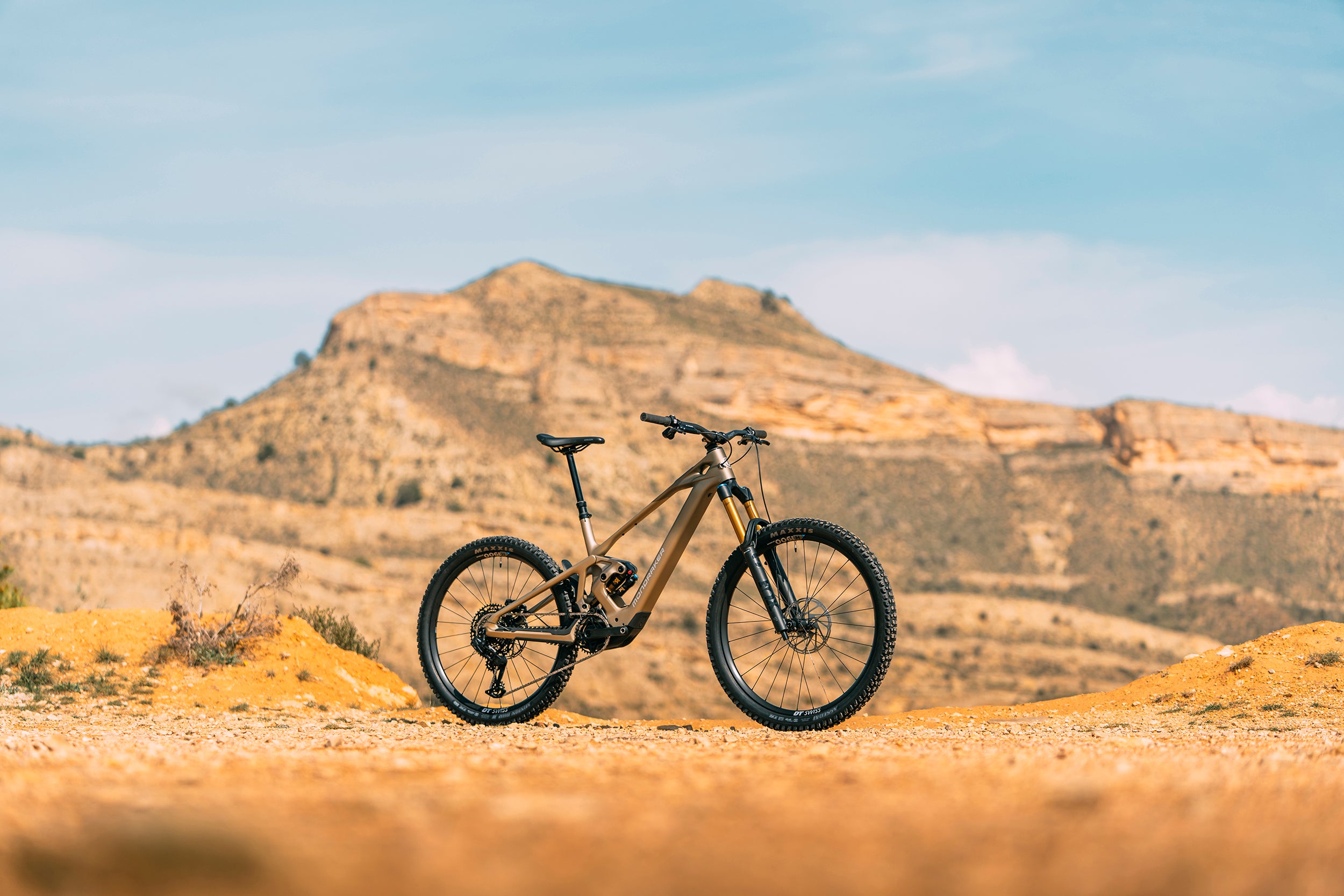

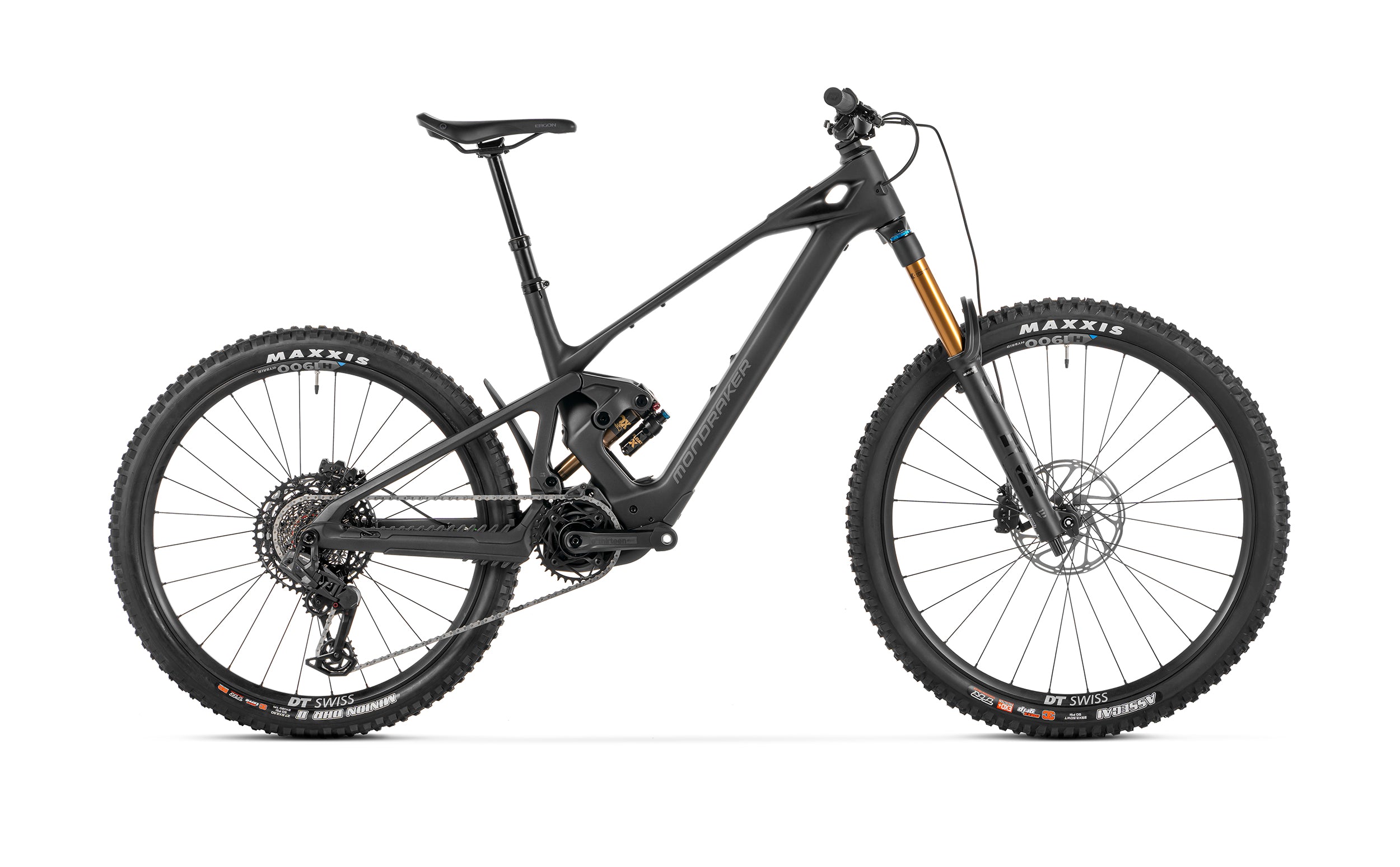

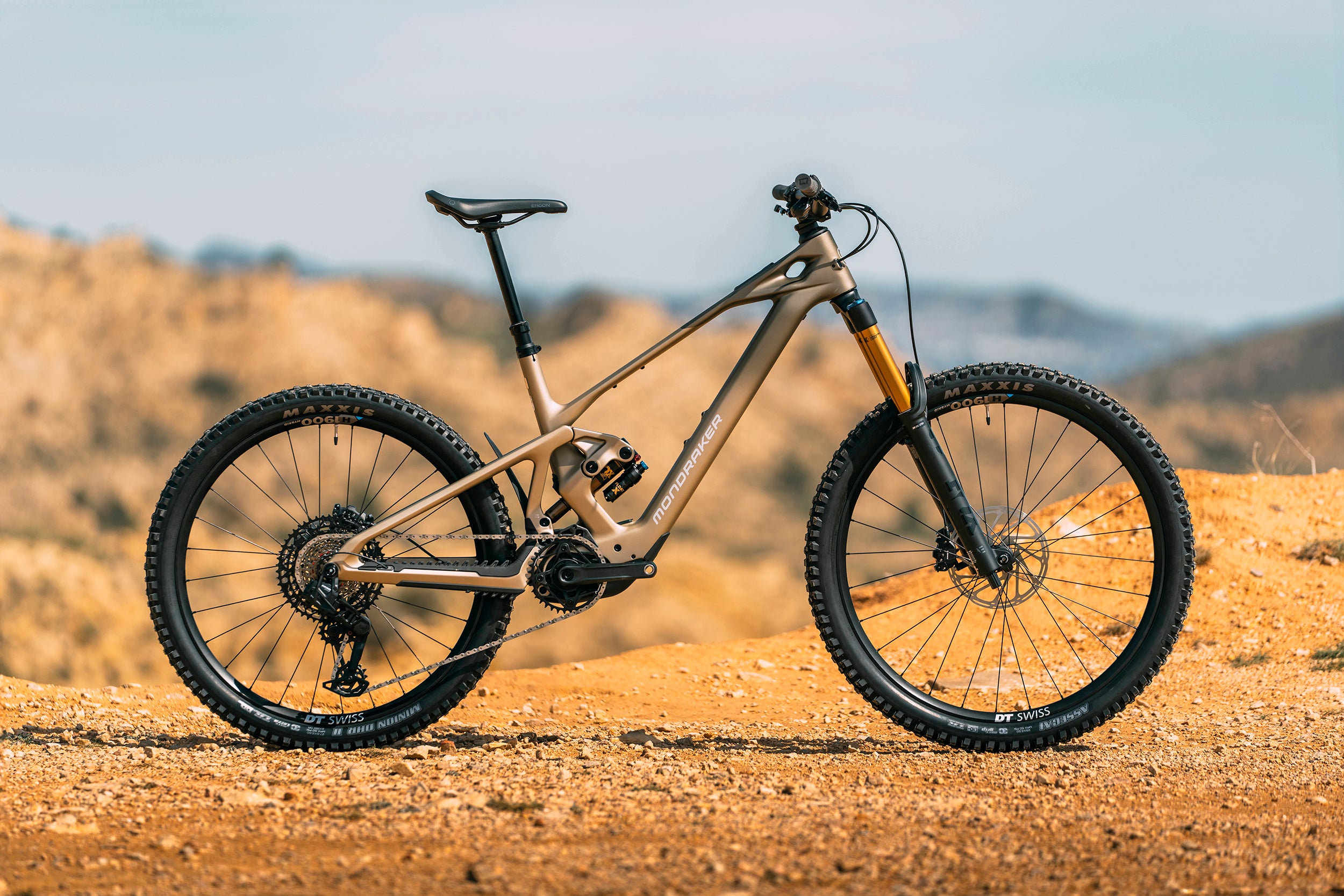

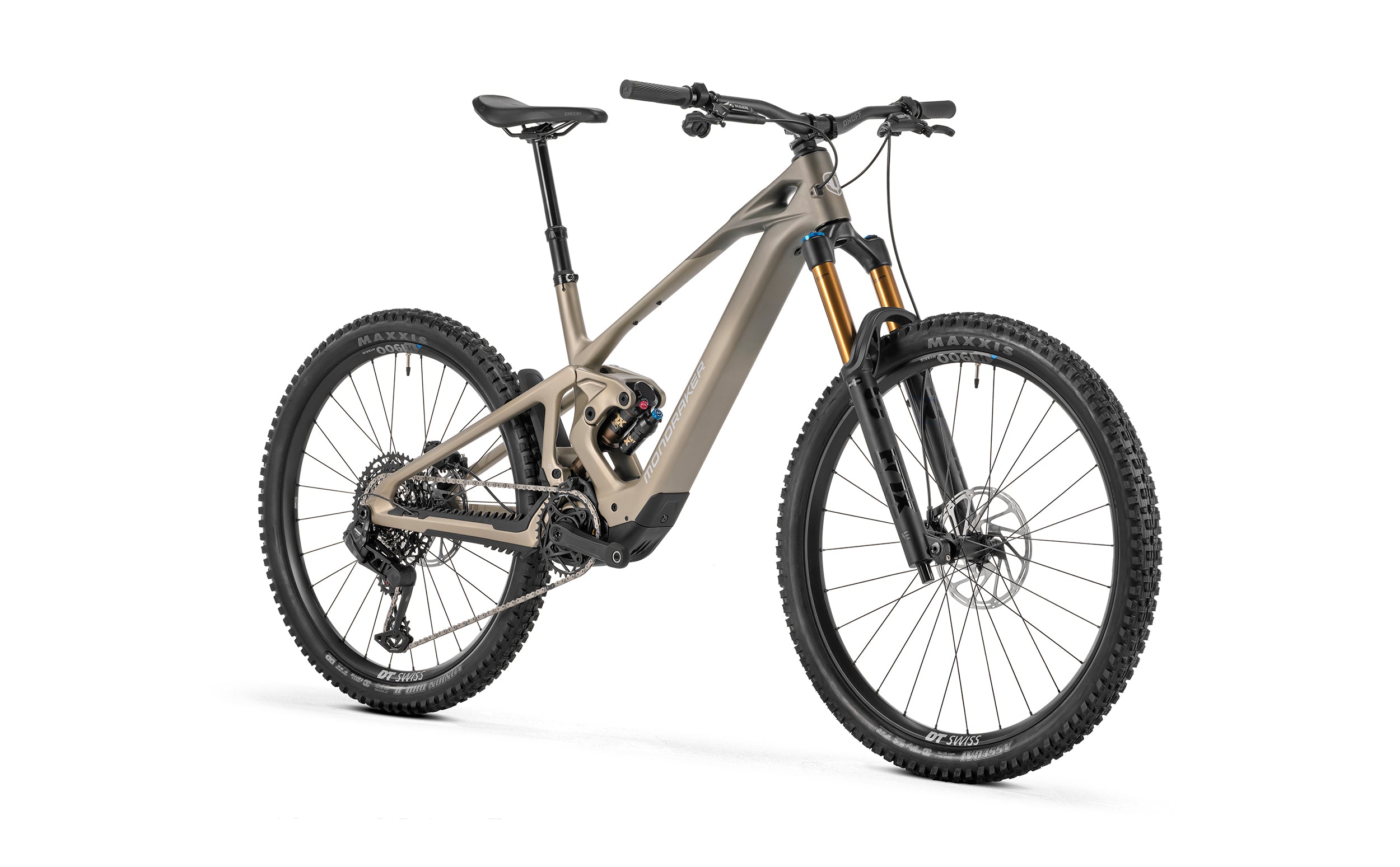

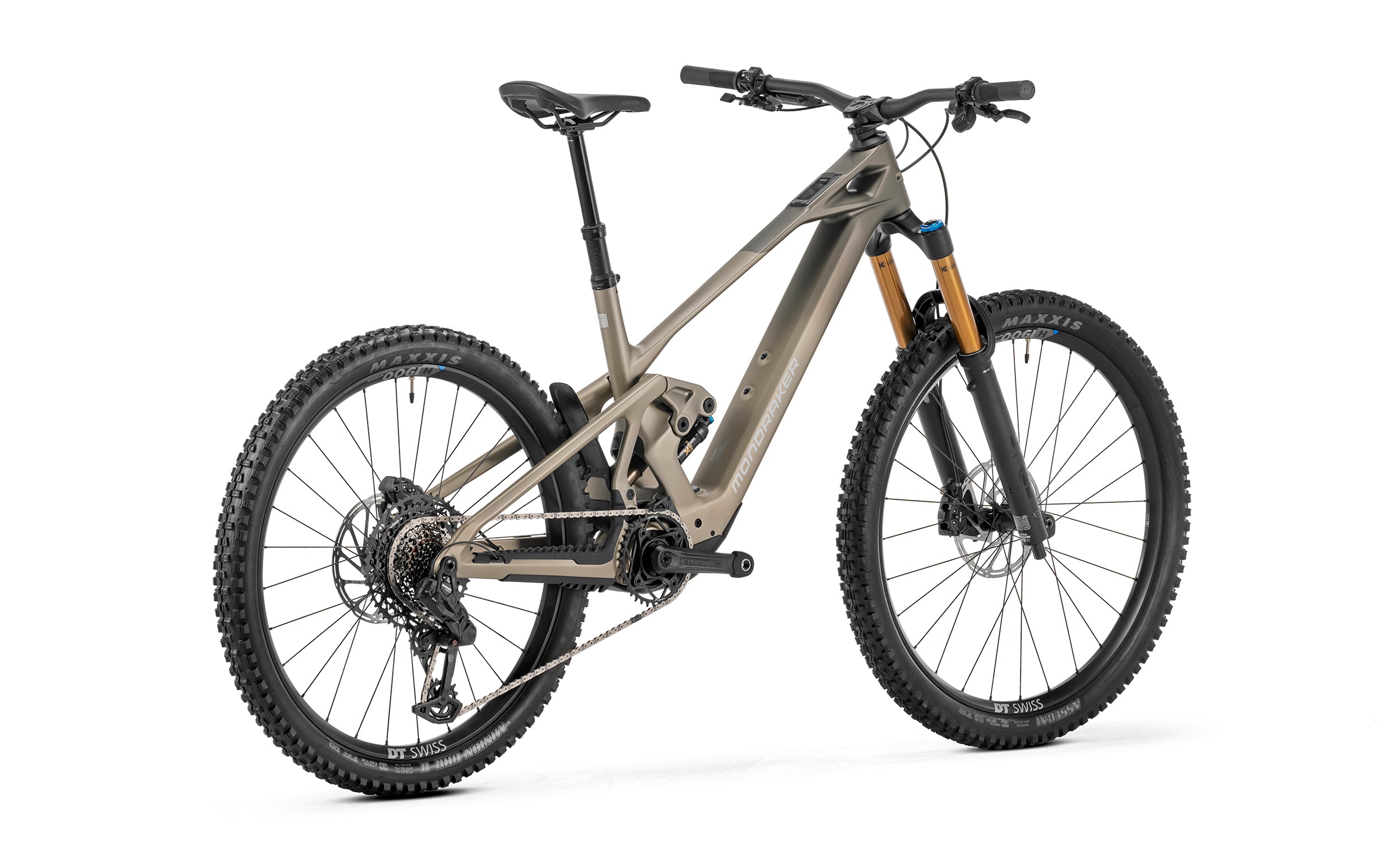

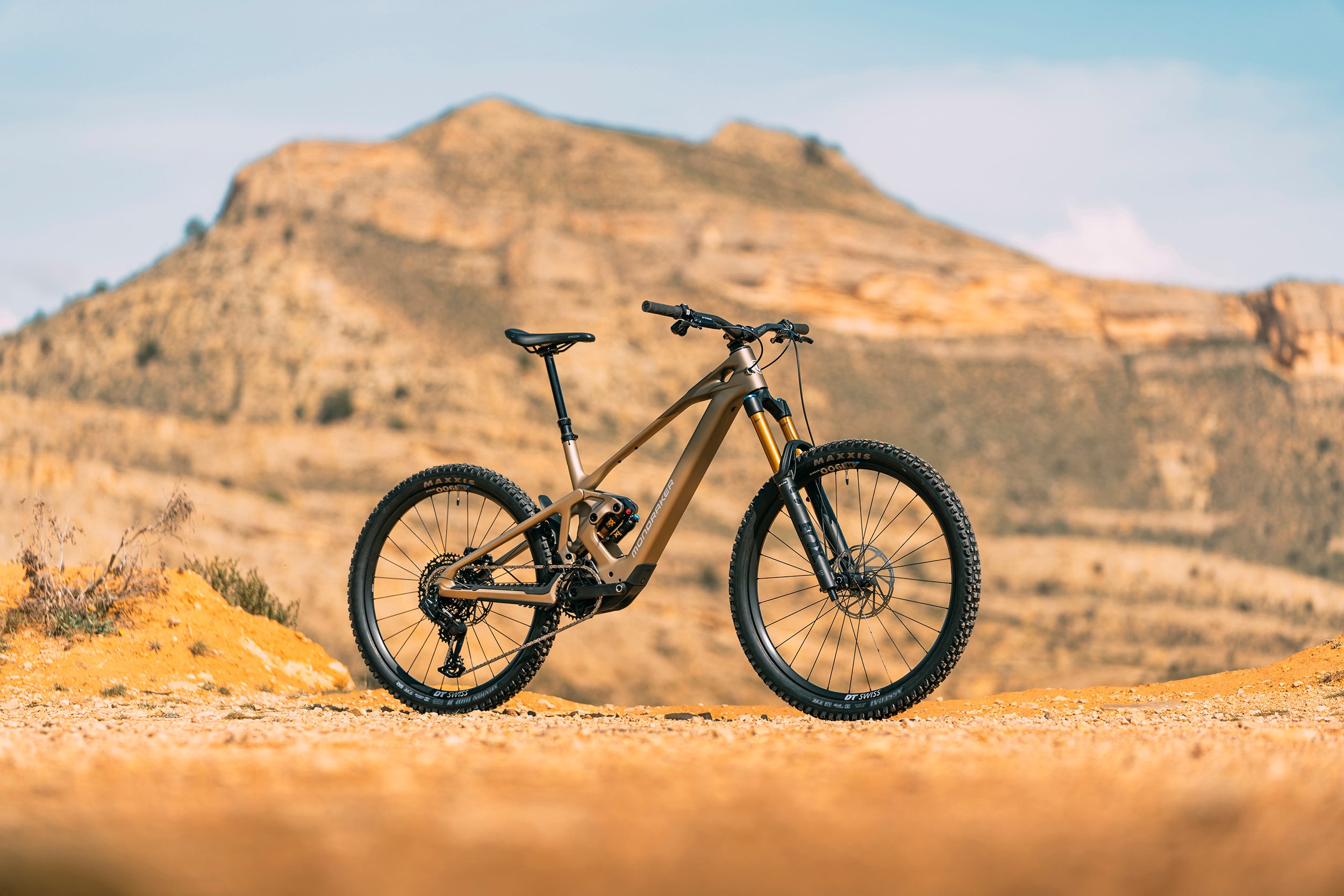

the flagship Mondraker e-MTB that boasts a new level of performance, achieved from the latest frame design and ZERO suspension kinematics, with seamless integration of the powerful new Avinox drive system.
Mullet
170mm
165mm
Avinox
800 Wh
Carbon
With 165mm of rear wheel travel, a mixed wheel configuration as standard and the next evolution of the ZERO suspension platform, ZENDIT is by far the most capable Mondraker bike to date.
Components

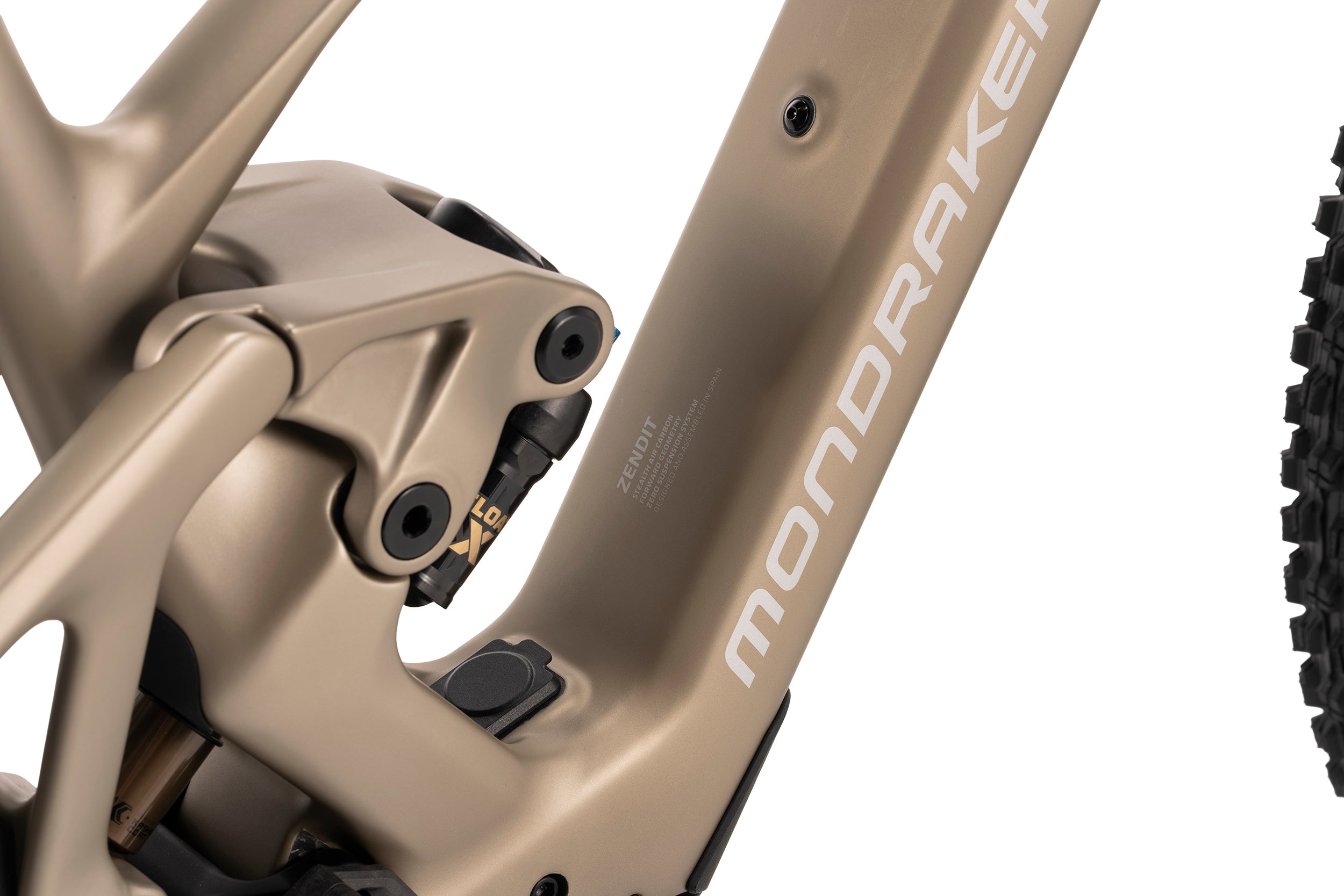

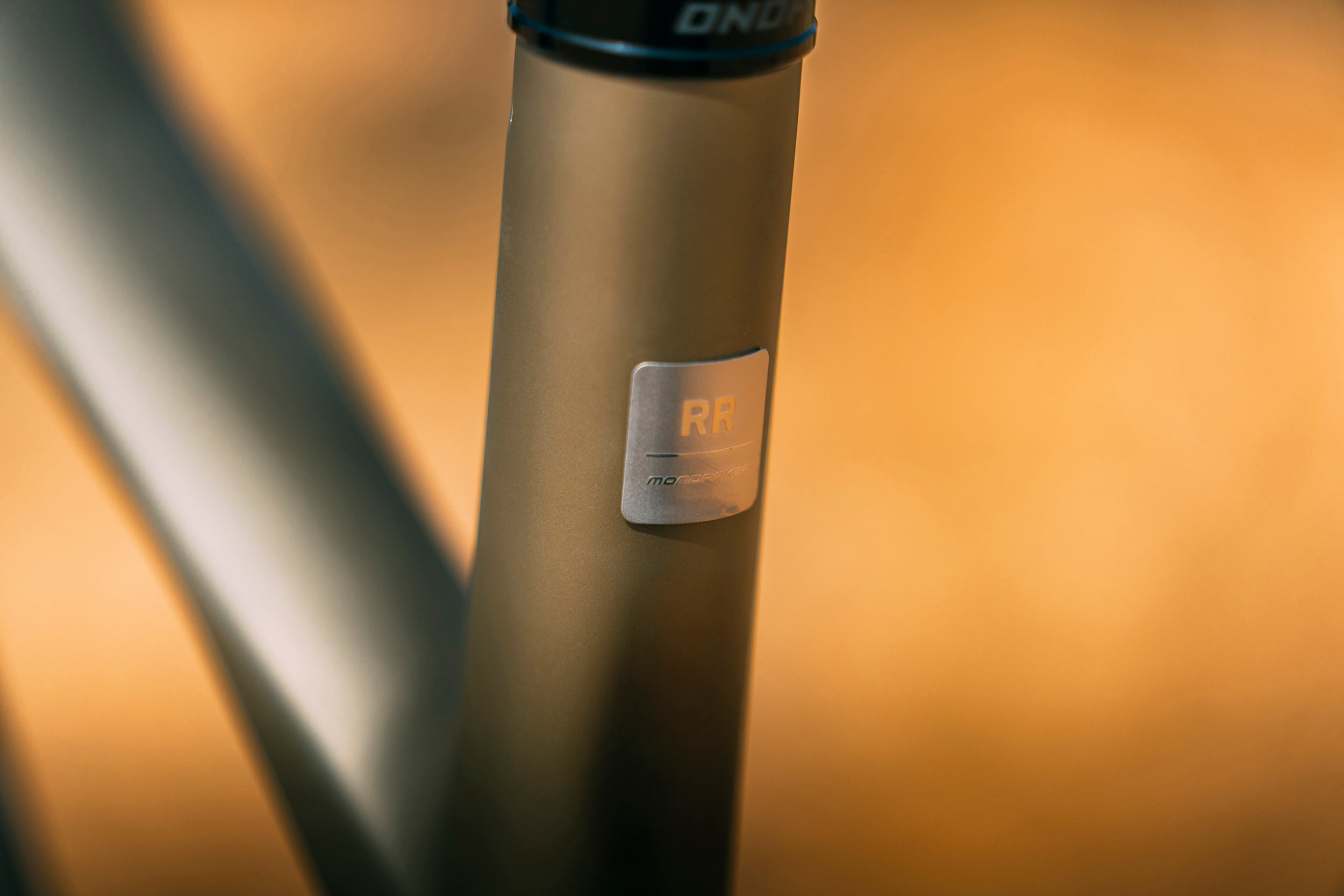

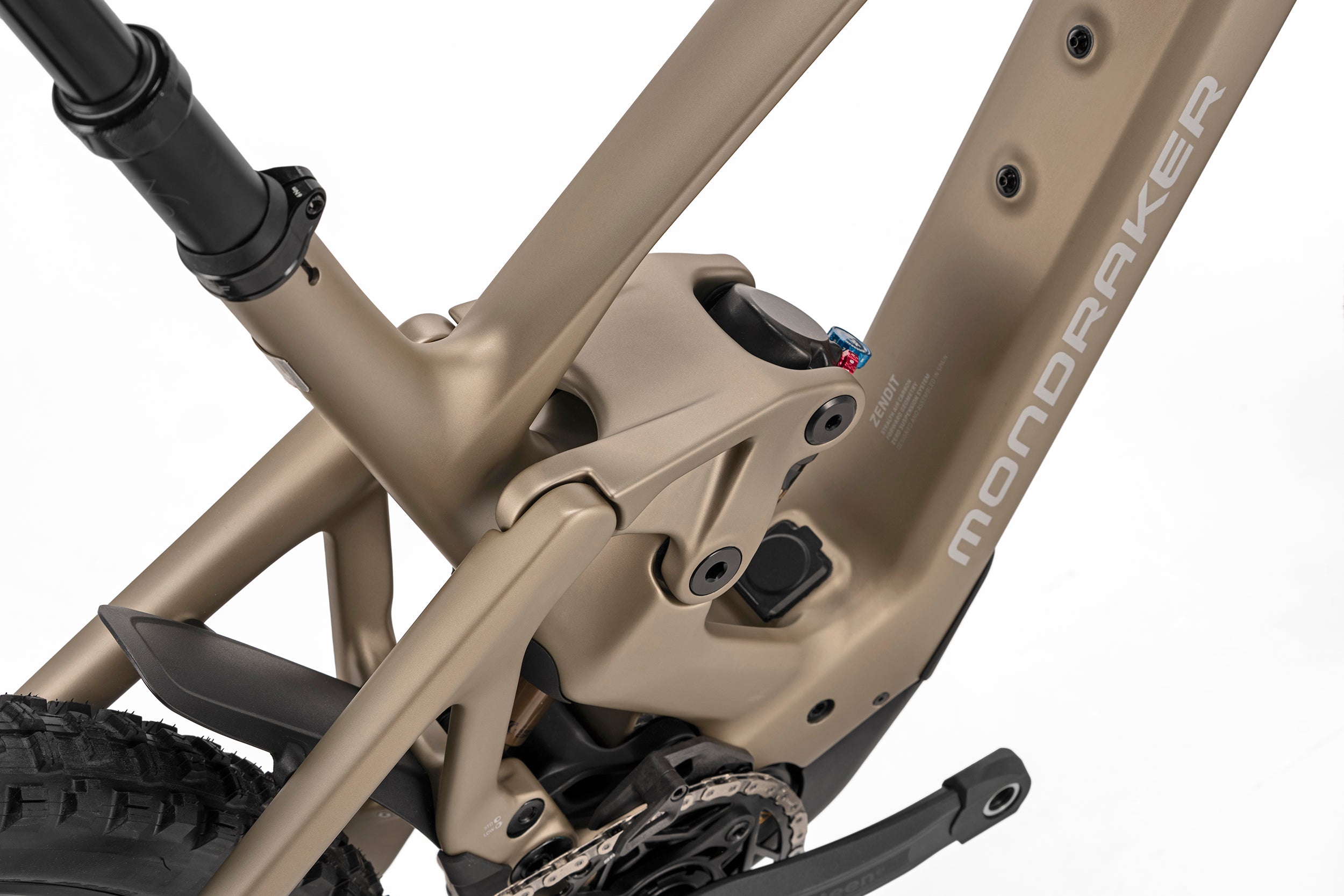

Frame

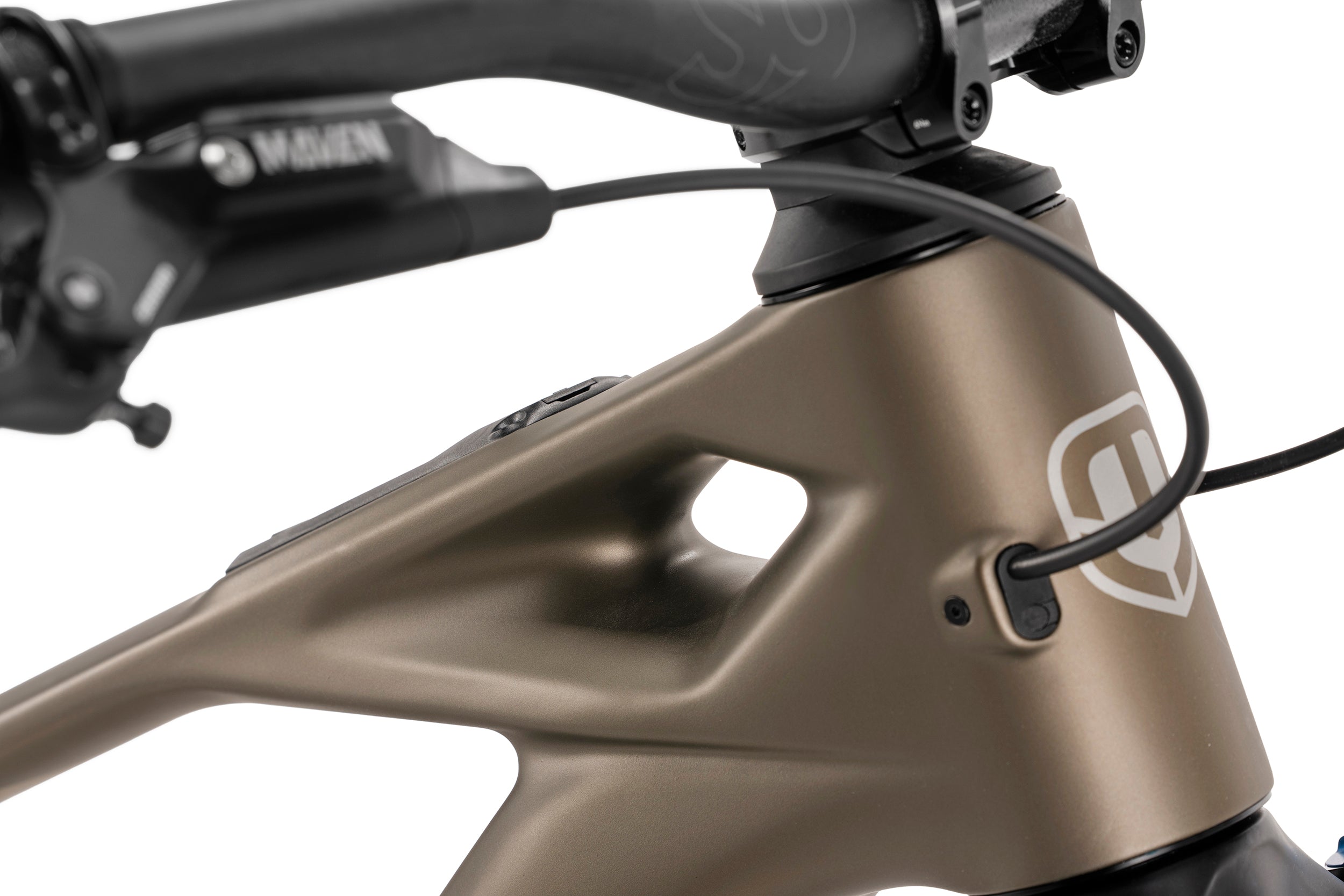

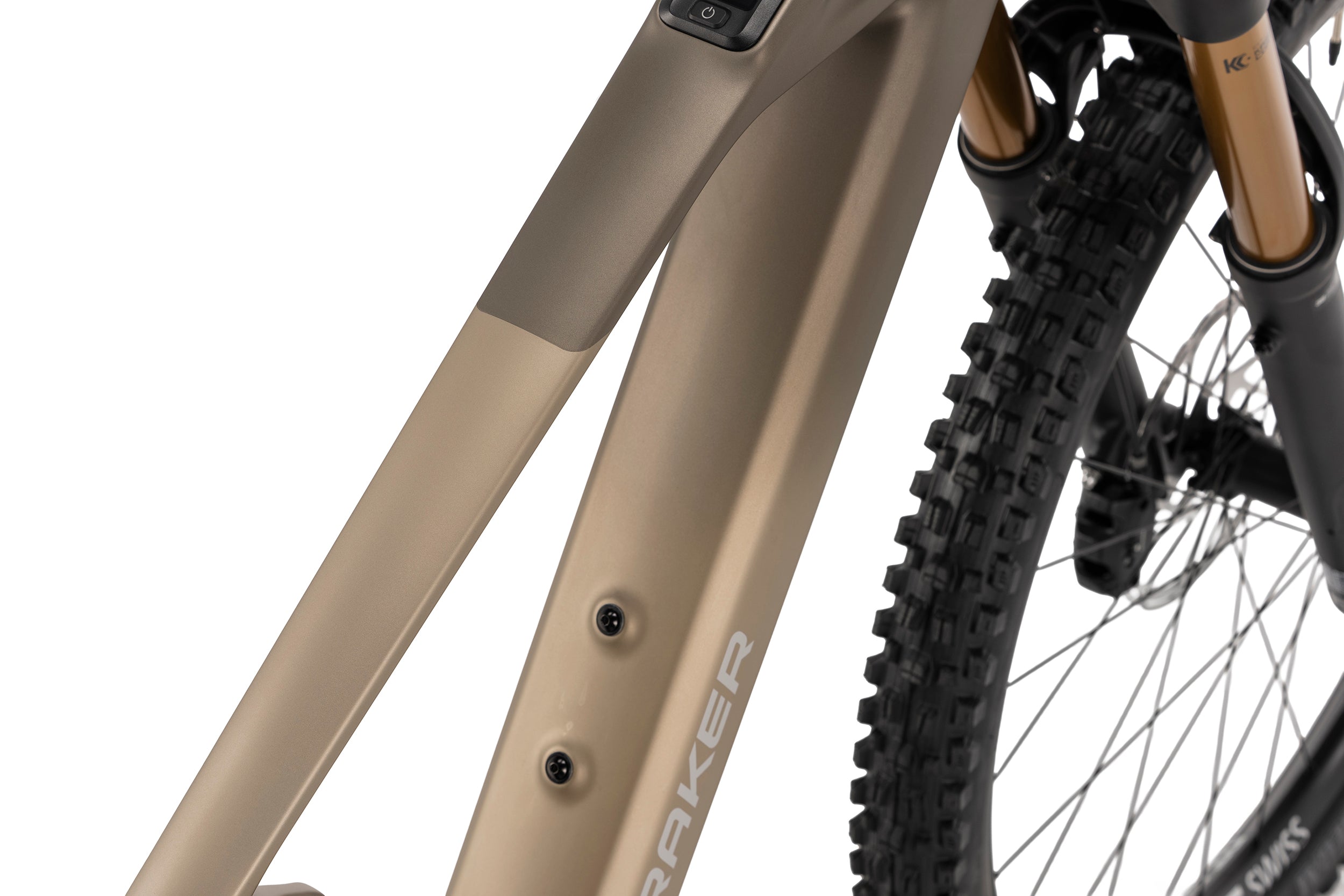

Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

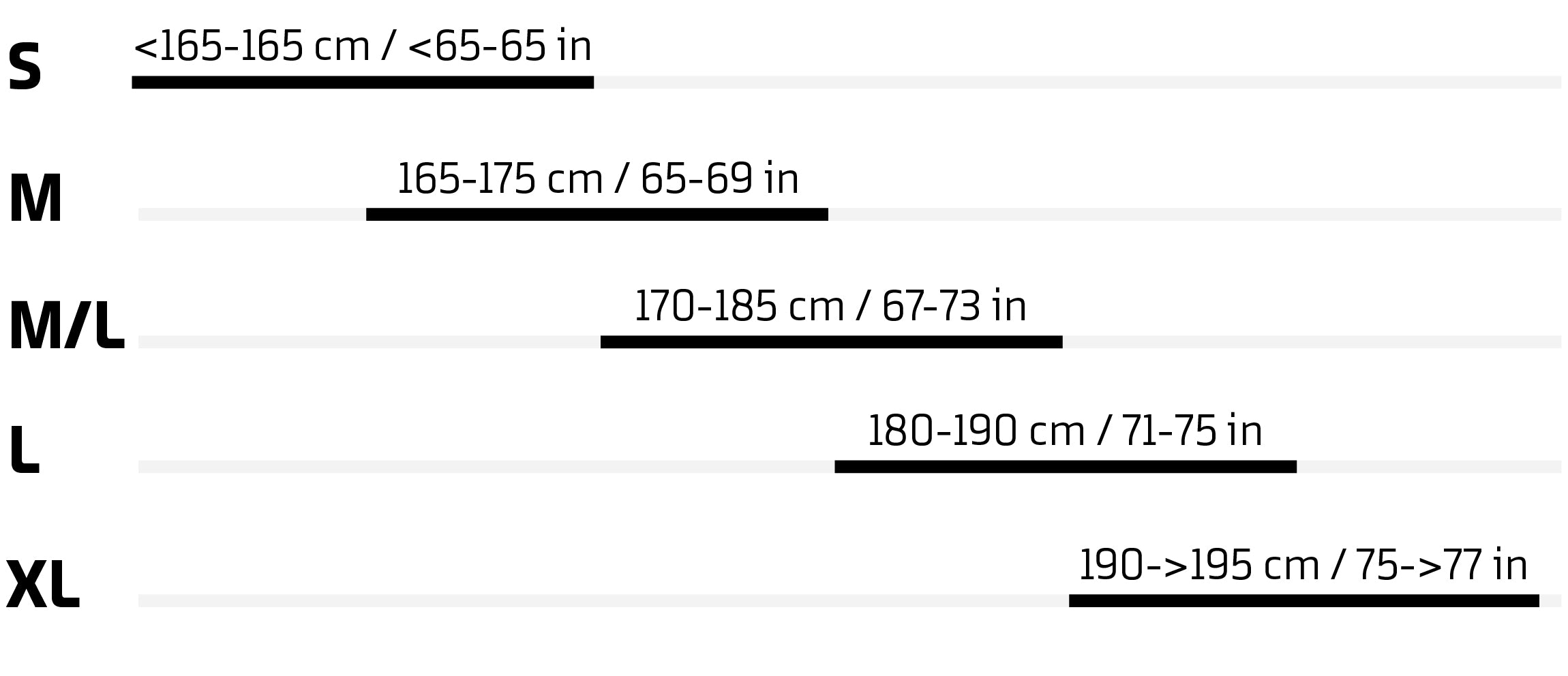

Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

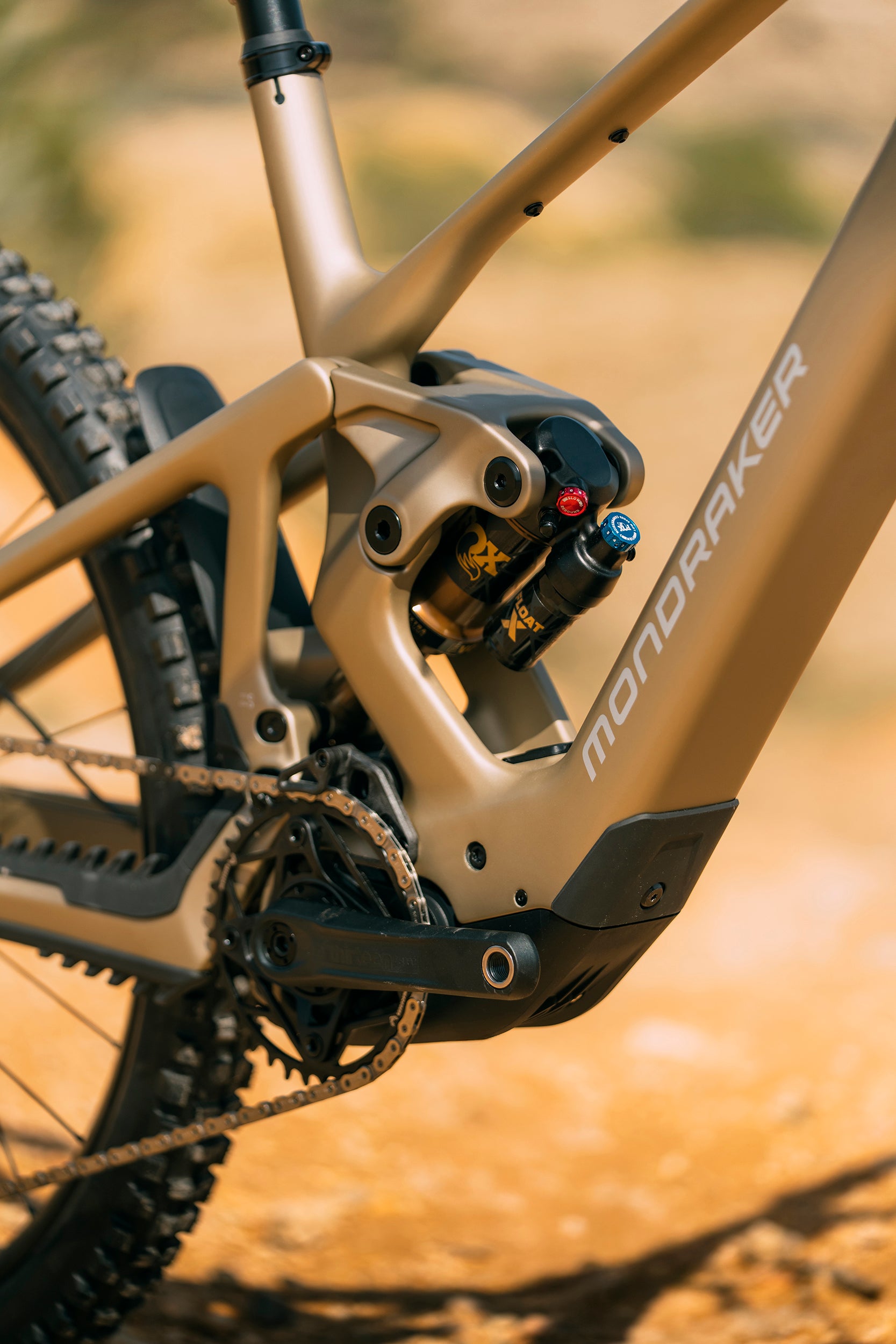

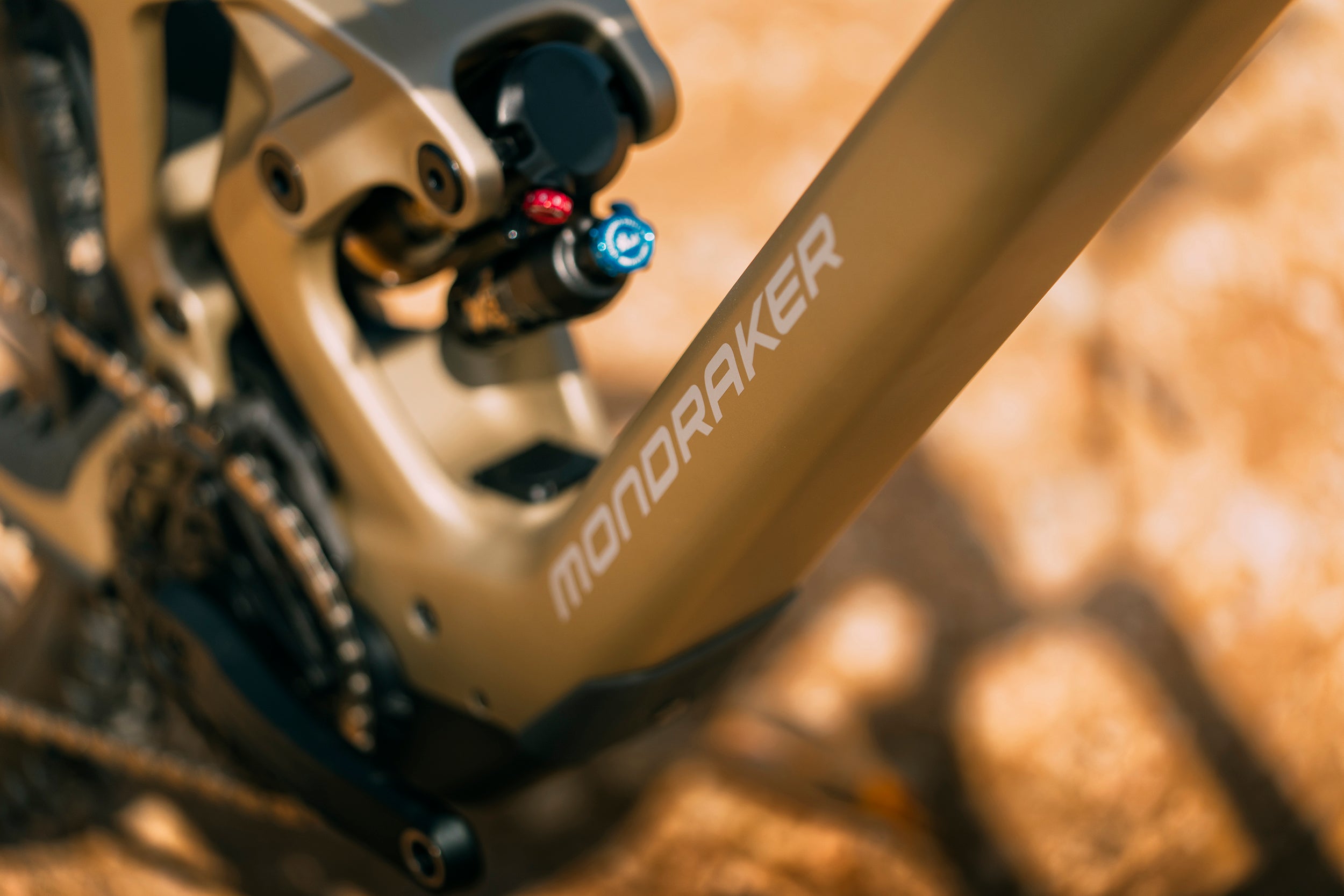

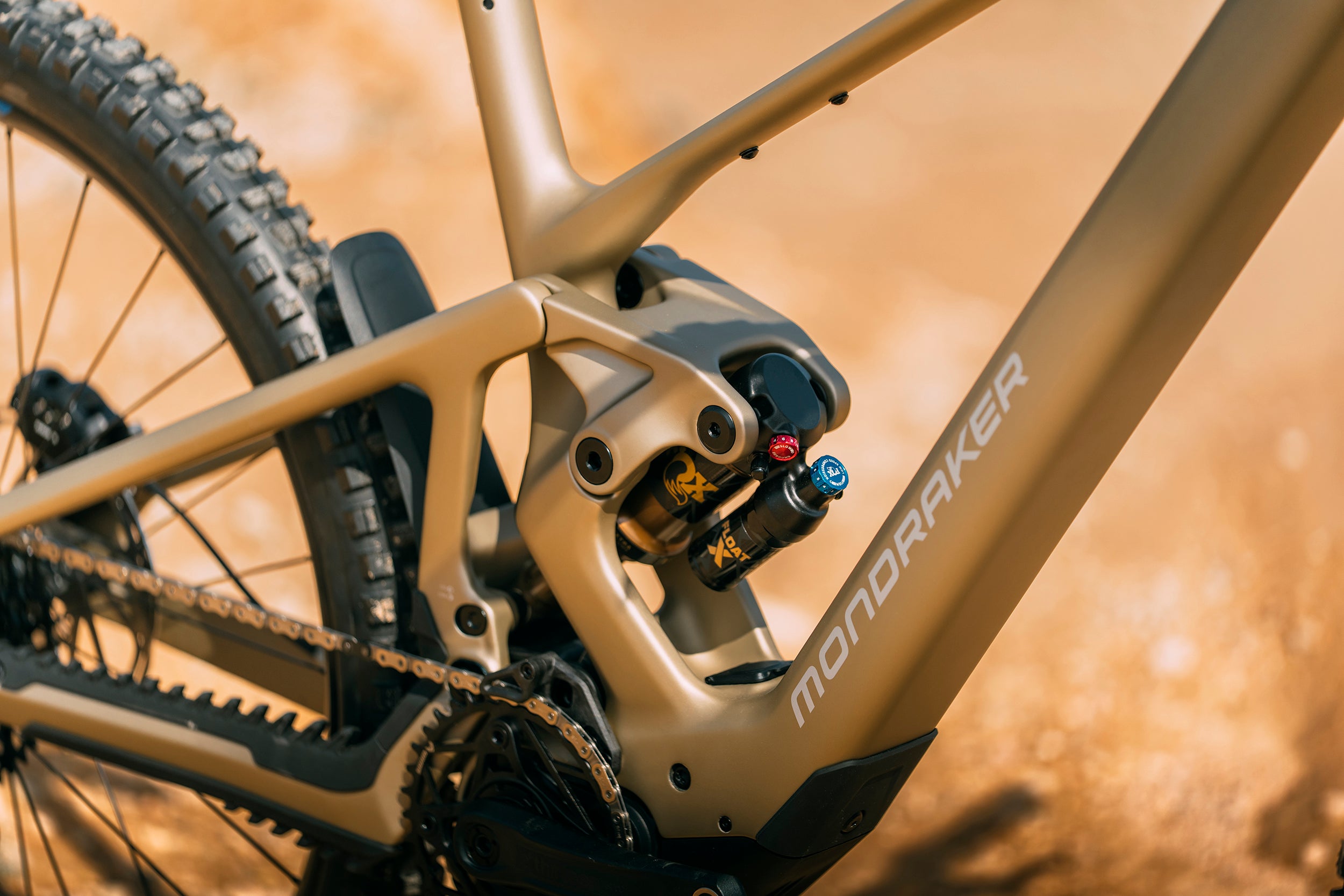

Rear shock
Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
Shock settings
CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers
Fork
Fox 38 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.
Fork remote
N/A
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock.
Stem
Onoff S9 30mm 0º, Full CNC, 31.8mm barbore.

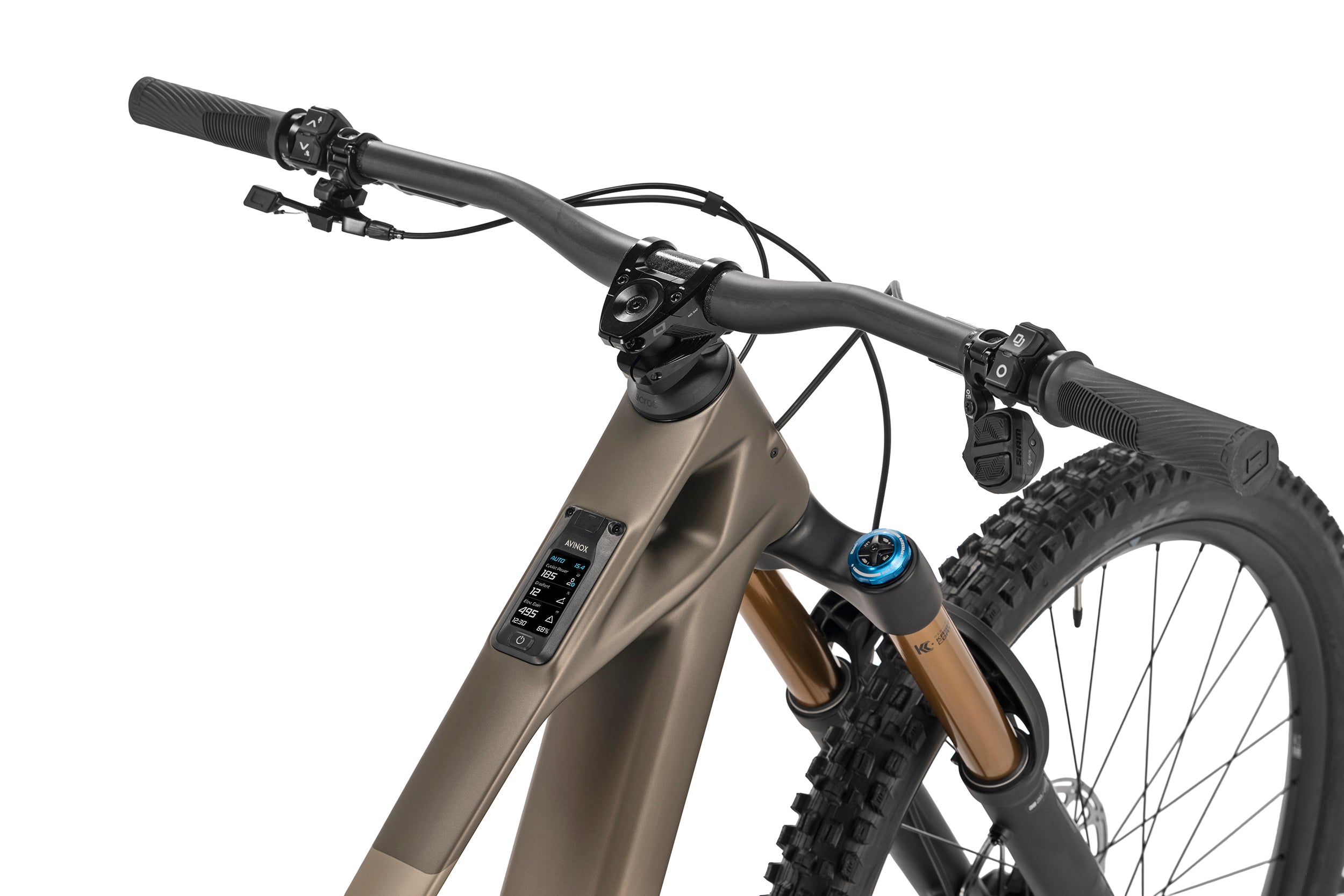

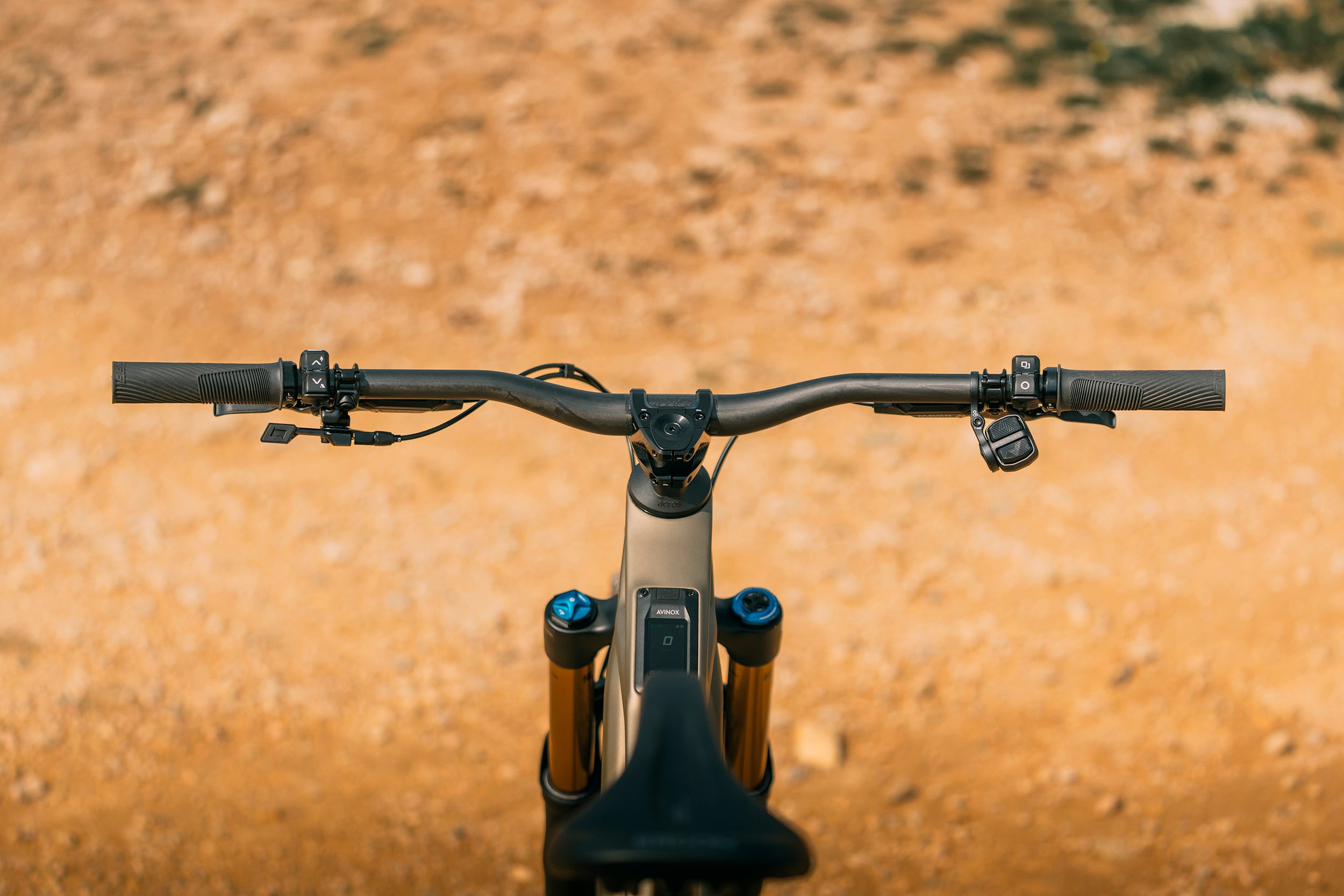

Handlebar
Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size.
Seatpost

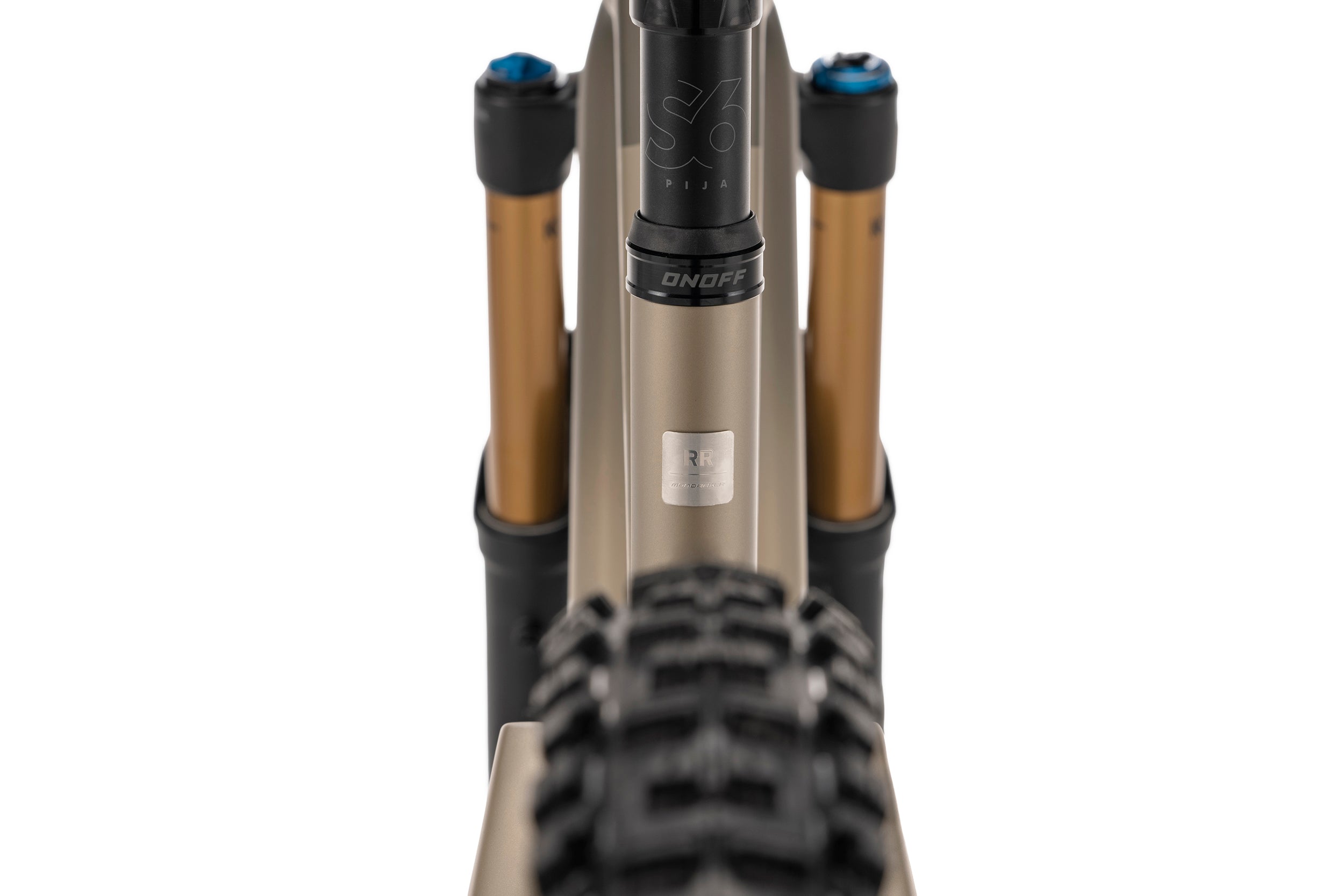

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm).
Saddle
Ergon SM10 E-Mountain Black.
Front brake
Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
Rear brake
Sram Maven Base, 18-millimeter 4 piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads.
Brake lever
Sram Maven Base stealth lever architecture, tools-free reach adjust
Rims
DT Swiss Hybrid H 1900 SPLINE, aluminum, hooked / crotchet tubeless TC, 30mm internal width, tubeless ready, 28 spokes.
Spokes
DT Hybrid I Straightpull, w/DT ProLock Squorx ProHead aluminum nipples, Three-cross (1:1) pattern.
Front hub
DT Swiss 370, 15x110mm Boost, Disc IS (6-bolt).
Rear hub
DT Swiss 370, 12x148mm Boost, Disc IS (6-bolt), Sram XD Steel (SSRAM) freehub body, Ratchet LN 18 freehub system.
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear tire
Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead

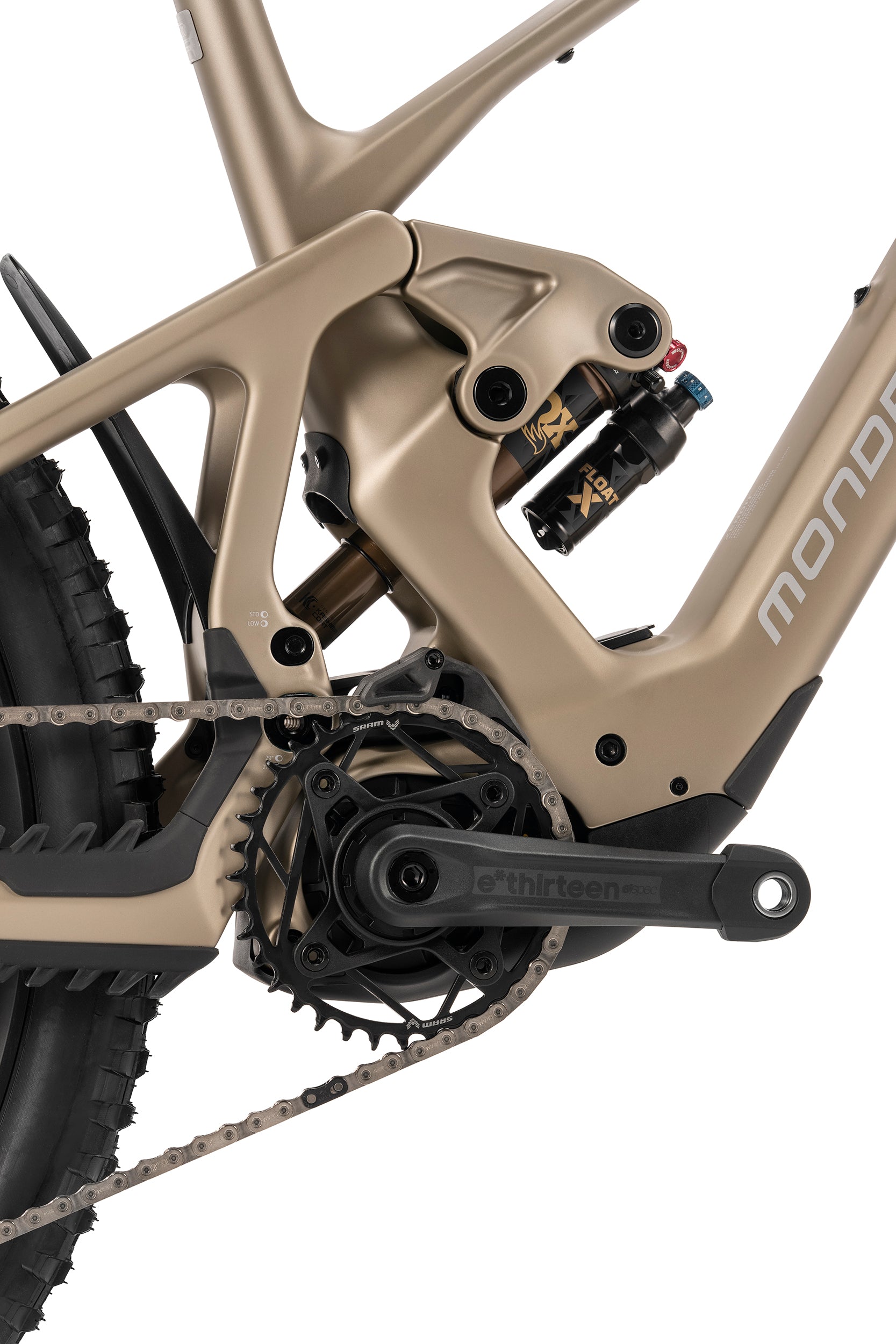

Crankset
e*thirteen Helix Core e*spec alloy. All sizes: 155mm
Rings
Sram XX Eagle 36T T-Type, 104BCD, steel, CL55
Bottom bracket
N/A
Pedals
N/A
Chain
Sram GX Eagle T-Type, 12s, w/Powerlock
Front derrailleur
N/A
Rear derrailleur
Sram S1000 Eagle AXS, T-Type, 12s
Shift levers
Sram Eagle AXS Pod Controller w/discrete clamp, 12s
Casette
Sram XS 1270, 10-52T, T-Type, 12s
Derailleur hanger
Not included - UDH compatible
Weight
22.8 Kg

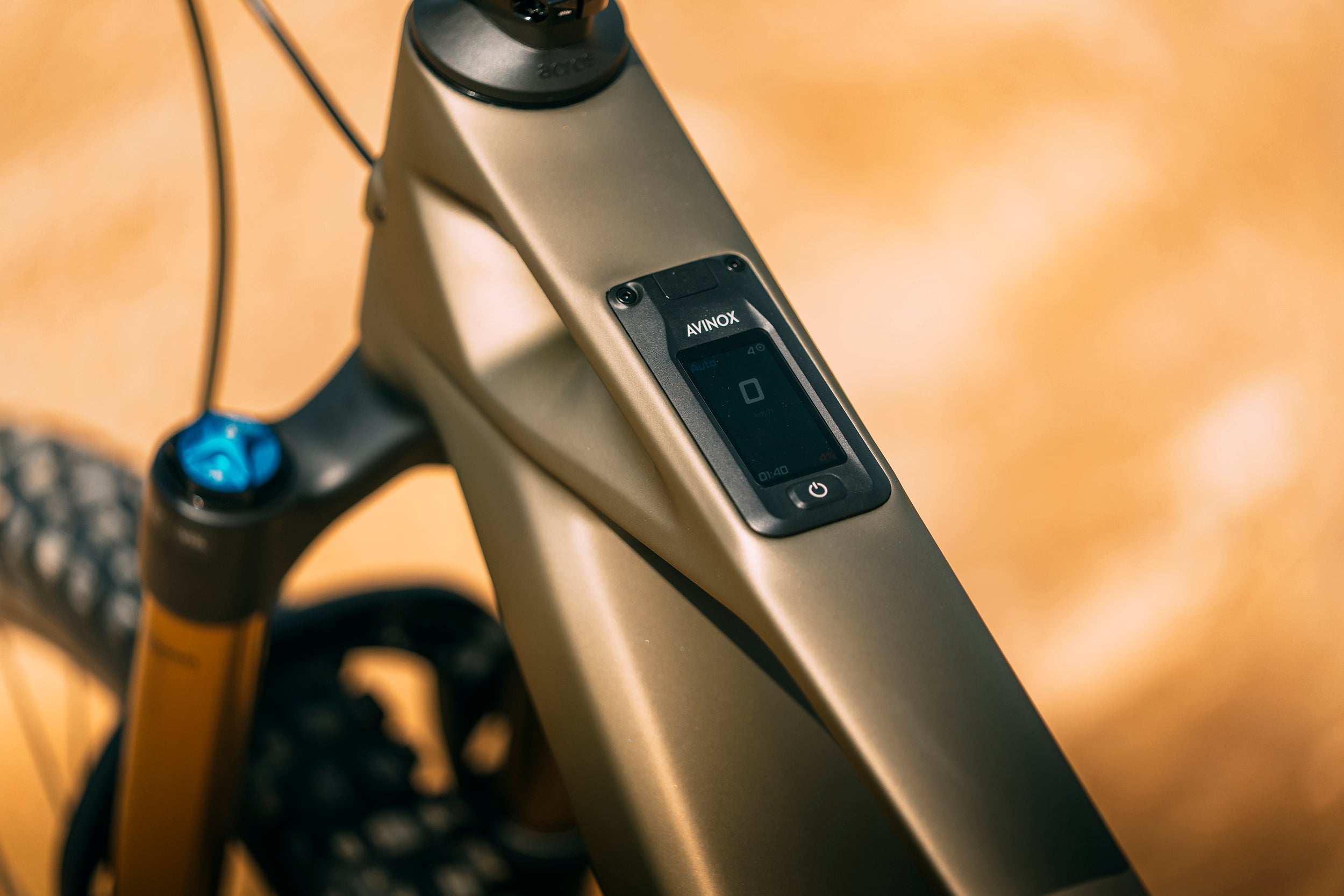

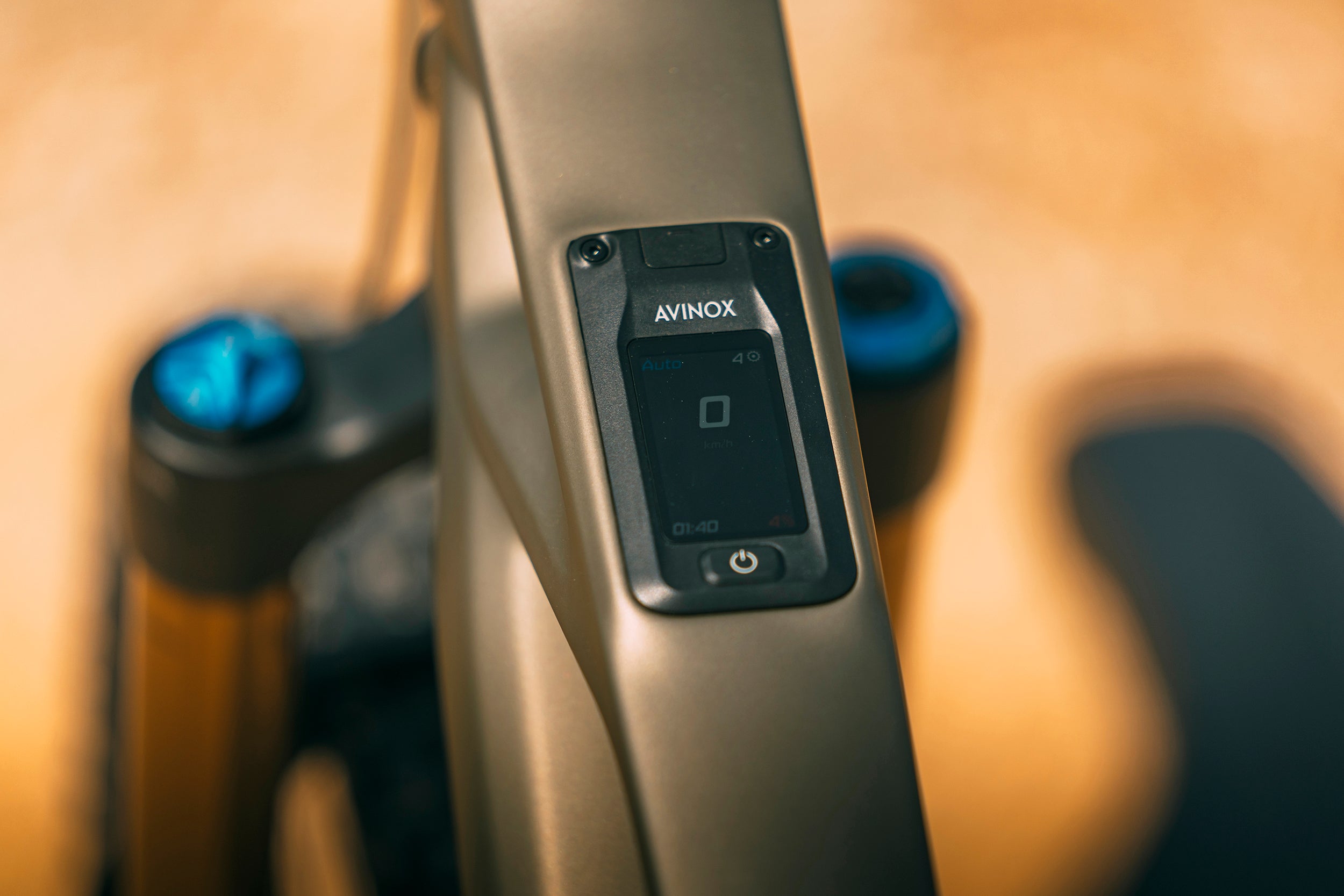

Display
Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)
Motor
Avinox Drive Unit
Battery
Avinox 800Wh Battery / Avinox 4A Charger
