Mondraker Zendit S Avinox eMTB
The Mondraker Zendit S brings the Zendit platform to more riders, combining a Stealth Air Carbon front triangle with a dedicated Stealth Alloy 27.5-inch rear triangle. Built for demanding climbs and descents, it pairs an Avinox M2S motor and 800Wh battery with 170mm front and 165mm rear suspension travel.
A 29-inch front wheel and 27.5-inch rear wheel give this full-suspension electric mountain bike its mullet setup. RockShox suspension, SRAM Maven Base four-piston brakes and SRAM 70 Eagle T-Type 12-speed gearing complete an enduro-focused build.
Call Guardhouse Sports to reserve yours.
Key Specifications

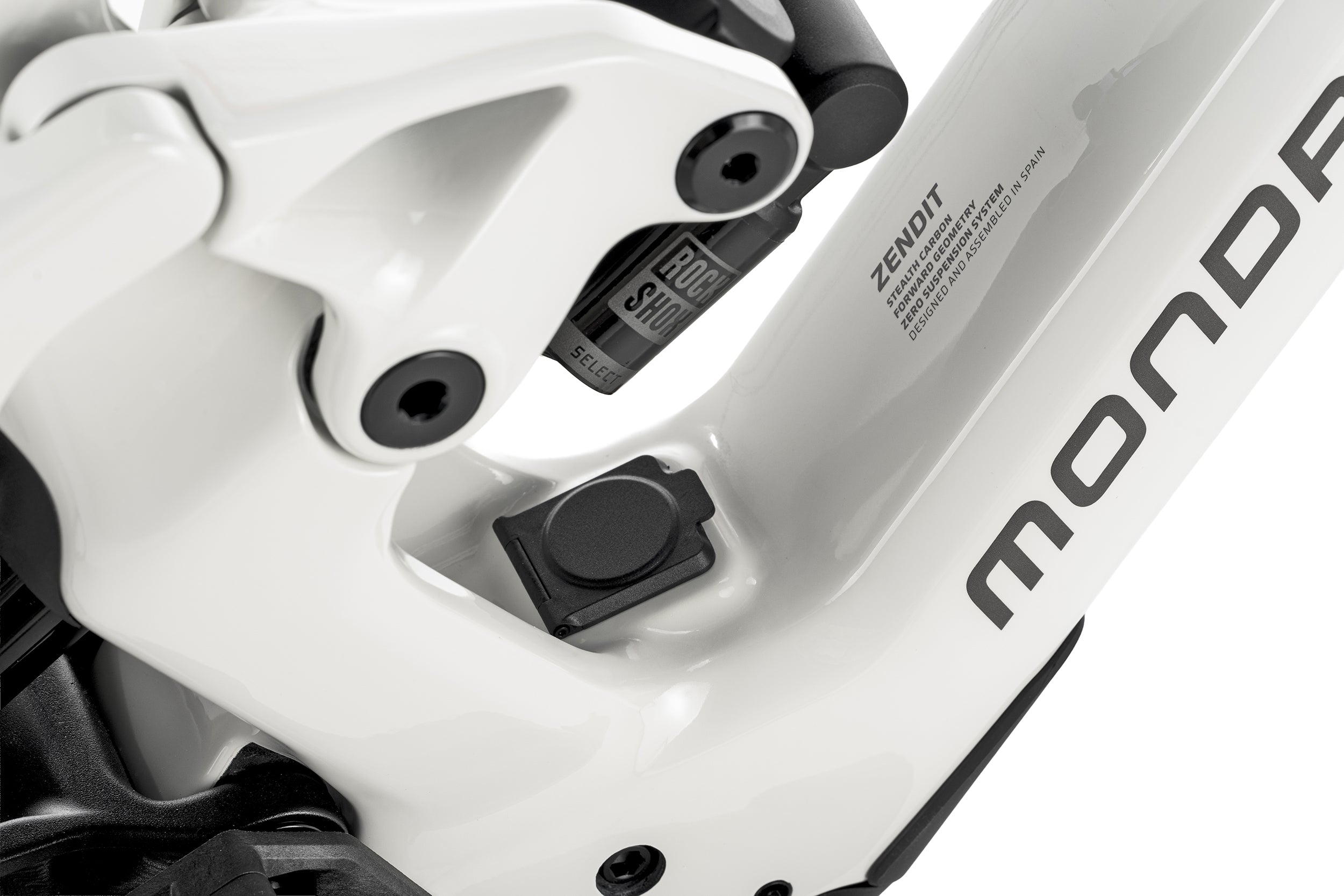

- Frame: Stealth Air Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System with 165mm travel, Forward Geometry and internal battery.
- Frame details: Boost 12x148mm rear axle, UDH, one-piece Monoblock upper link, HHG internal cable routing, sealed bearings and exclusive plastic motor covers.
- Fork: RockShox ZEB Base 29, Delta RC, 170mm travel, Boost 15x110mm axle and 44mm offset; low-speed compression, external rebound and air preload adjustment.

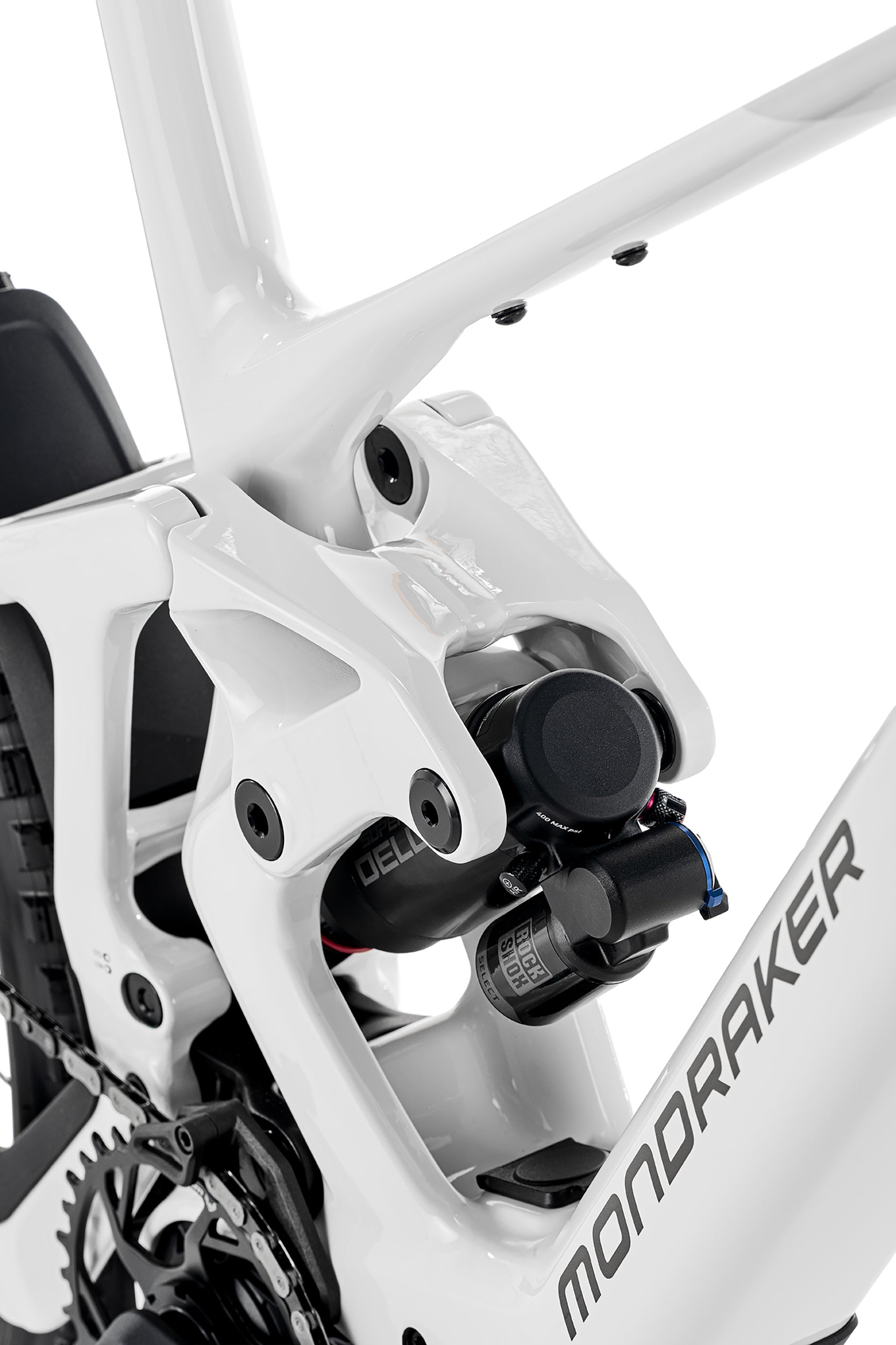

- Rear shock: RockShox Super Deluxe Select, 205x65mm, Trunnion top mount and 30x8mm bottom bushings. Settings: C34 compression, R55 rebound, 4 tokens and X25 lockout force.
- Motor: Avinox M2S.
- Battery and charger: Avinox 800Wh battery and Avinox 4A charger.

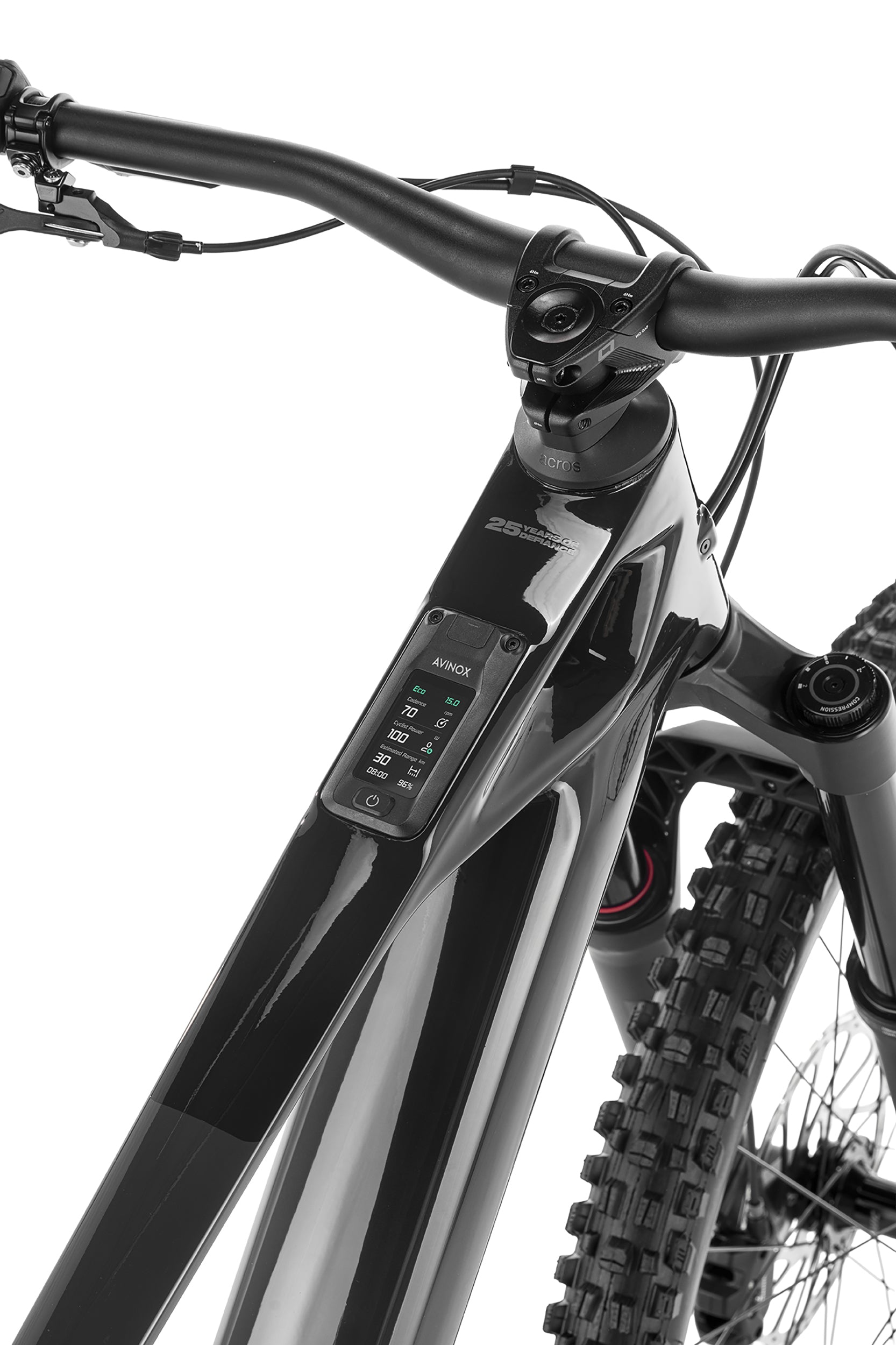

- Display and controller: Avinox DP100 display and BC100 wireless controller.
- Drivetrain: SRAM 70 Eagle T-Type 12-speed rear derailleur, SRAM Trigger 70 shifter, XS-1270 10–52T cassette and SRAM 70 T-Type Flattop chain with PowerLock.

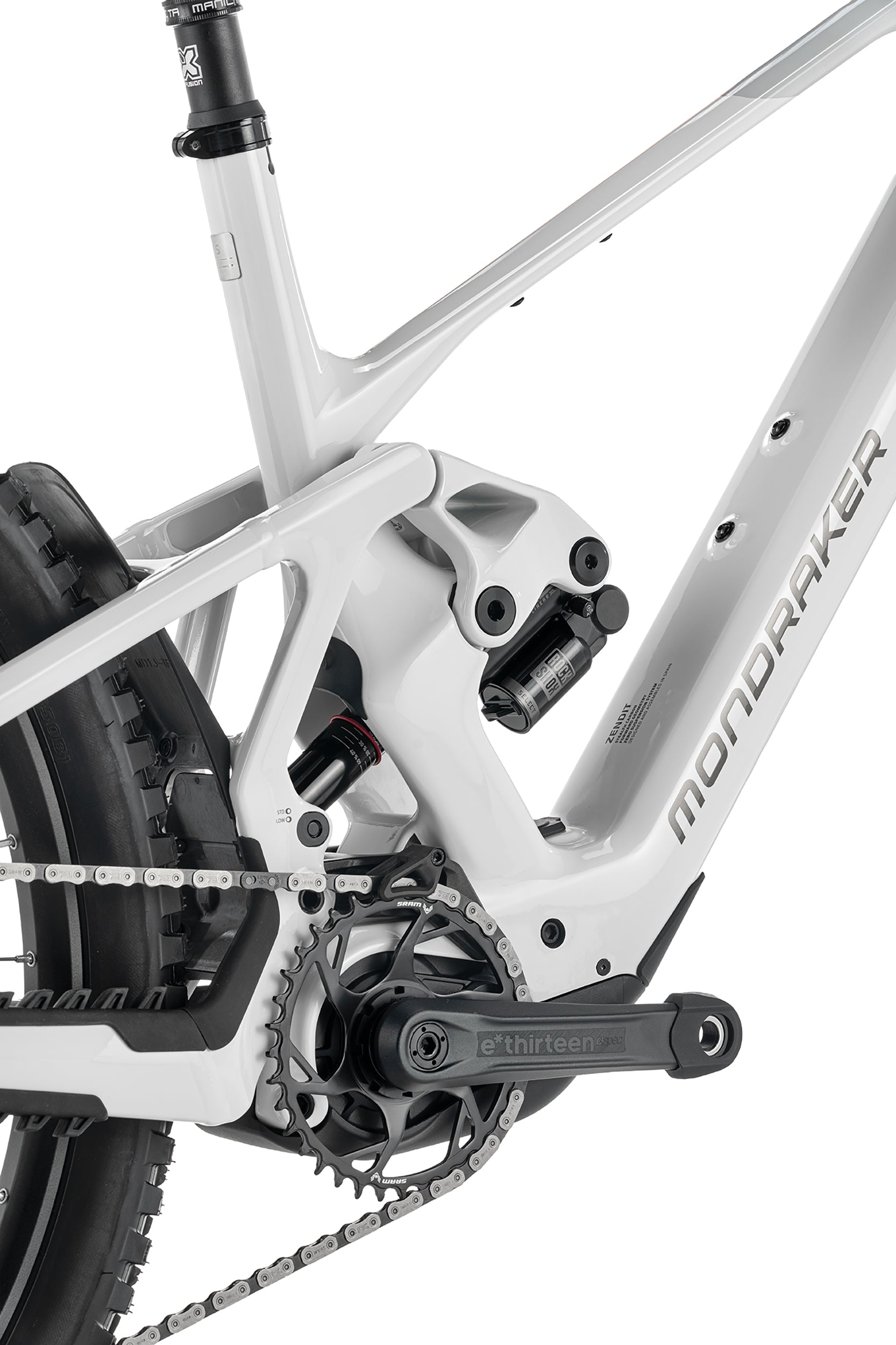

- Crankset and chainring: E.13 Helix Core E*Spec Plus, 155mm cranks across all sizes, 26mm offset; SRAM Eagle 36T T-Type steel direct-mount chainring, CL55.
- Brakes: SRAM Maven Base four-piston brakes front and rear, with 200mm Centerline six-bolt rotors, steel-backed organic pads and tool-free reach adjustment.
- Wheels: Mavic E-Access XR30 aluminium rims, 30mm internal width, tubeless ready, 32 spokes with Mavic reinforced spoke lacing.
- Hubs: Mavic Boost 15x110mm front and Boost 12x148mm rear, six-bolt disc mounts; rear hub with ID360 freewheel technology and reinforced HG freehub.
- Front tyre: Maxxis Assegai 29x2.5 WT, tubeless ready, 3C MaxxGrip, EXO+, 60 TPI and folding bead.
- Rear tyre: Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra, DoubleDown, 120x2 TPI and folding bead.
- Headset: Acros custom ZS56/ZS56 with internal cable routing and sealing plugs.
- Stem: Onoff S6, 30mm, 0°, forged and CNC-machined 6061 alloy, 31.8mm clamp.
- Handlebar: Onoff S6 1.0 7050 alloy, 800mm wide, 8° backsweep, 5° upsweep and 31.8mm clamp. Rise: 25mm on S, M and ML; 38mm on L and XL.
- Grips: Onoff Desert Pro CNC lock-on, 135mm; thicker grips on L and XL.
- Seatpost: X-Fusion Manic TA travel-adjust dropper, 31.6mm diameter with 1X remote. Travel: S 125mm, M 150mm, ML 170mm, L and XL 200mm.
- Saddle: Ergon SM10 E-Mountain Black.
Sizes and Colours

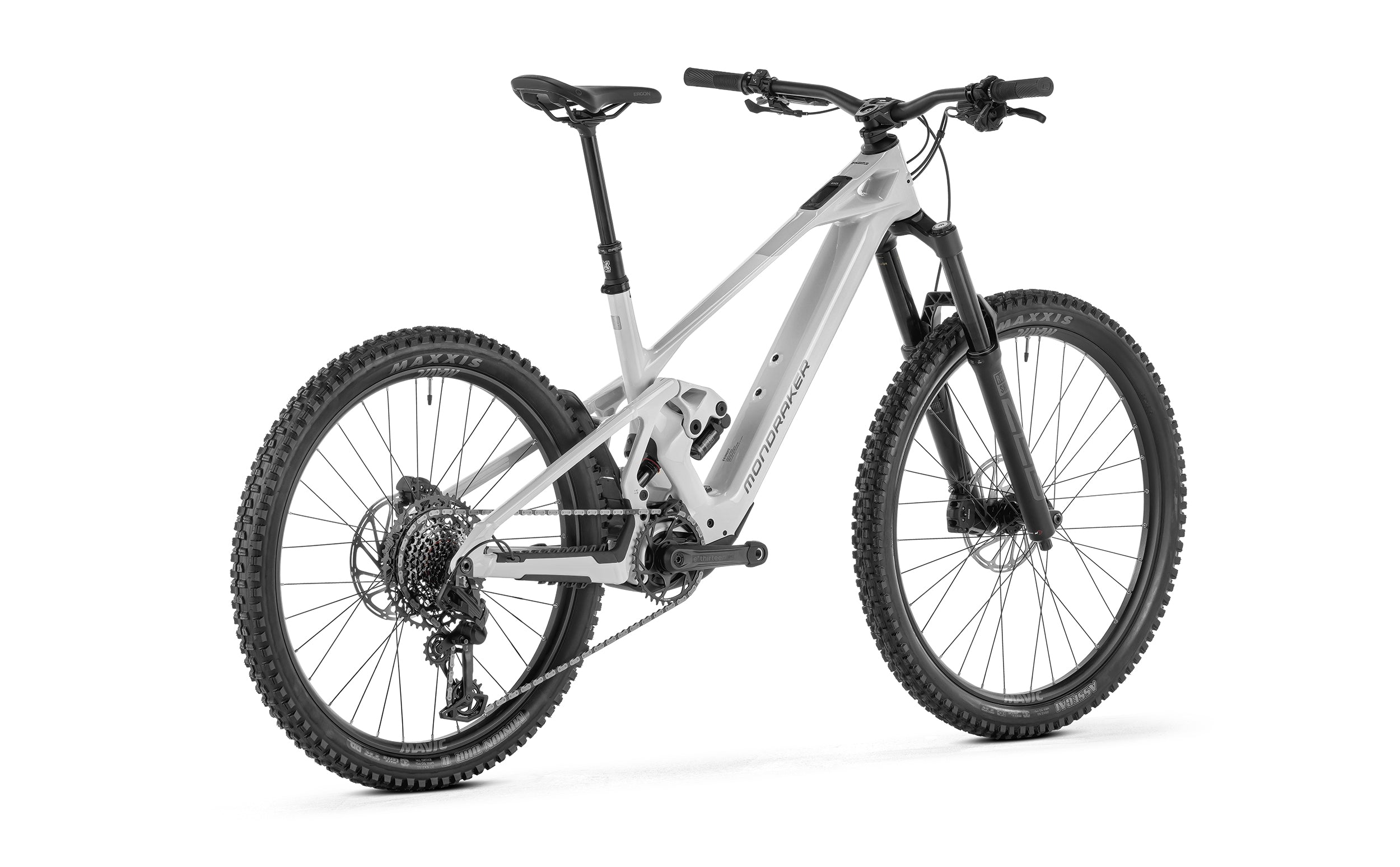

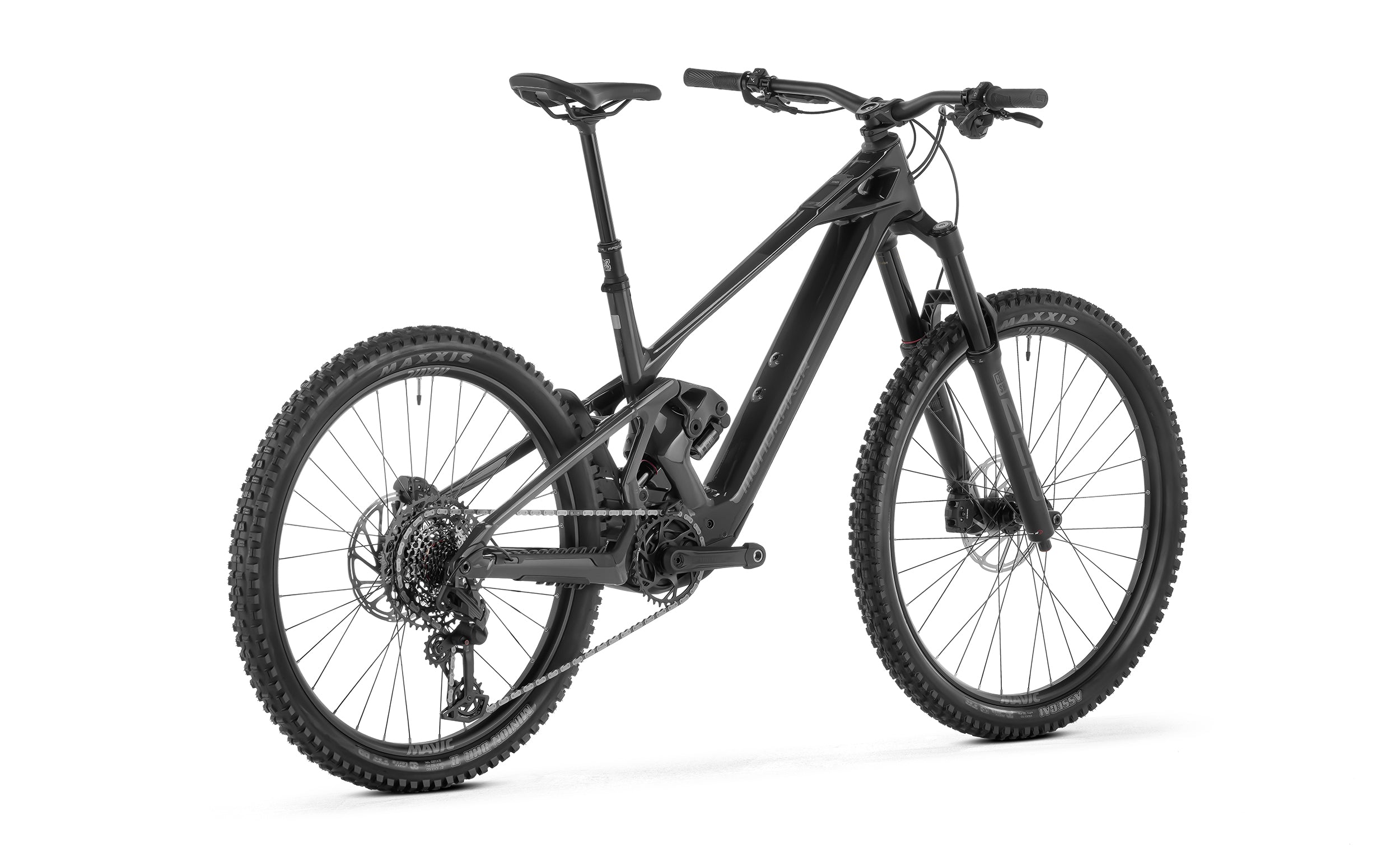

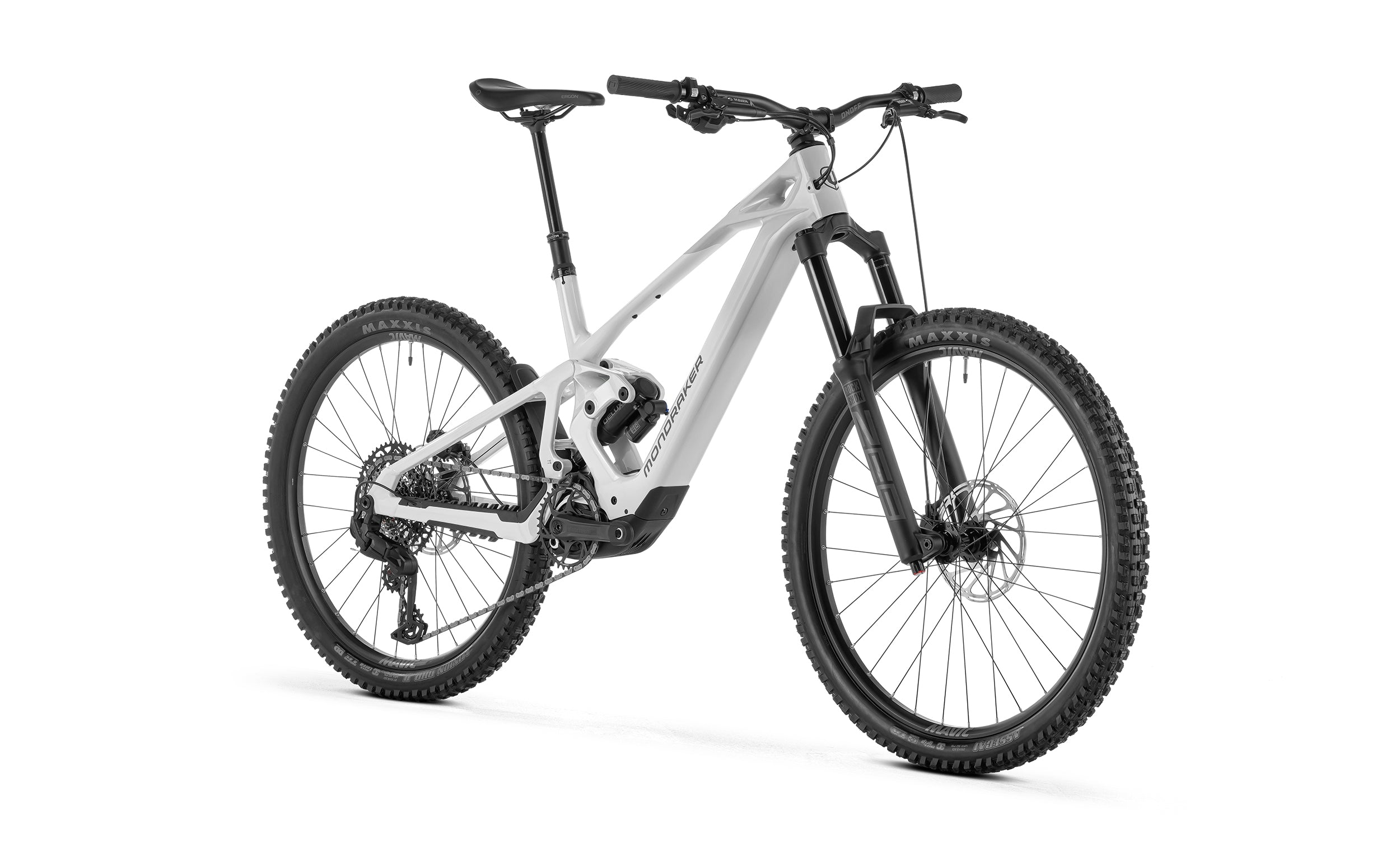

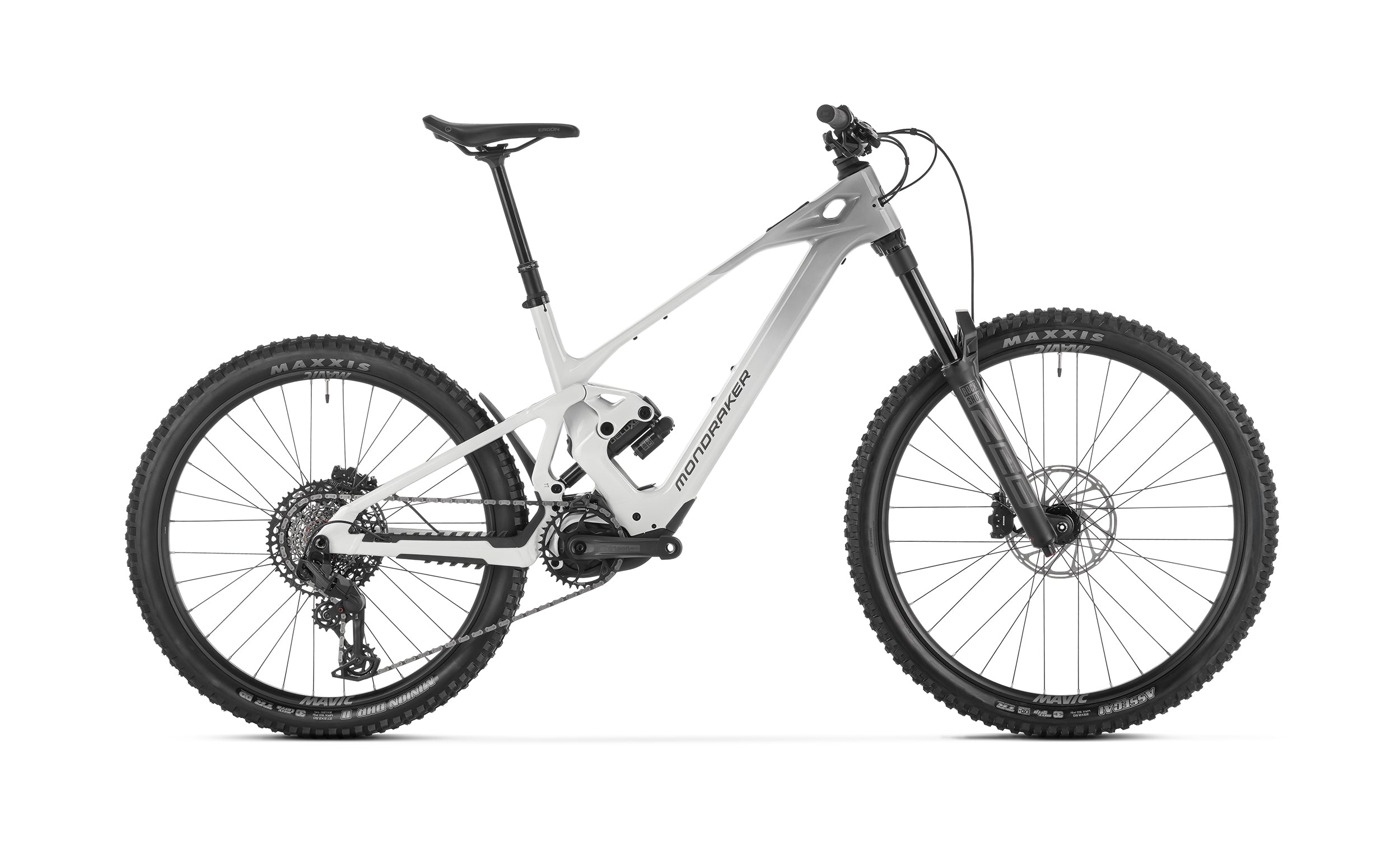

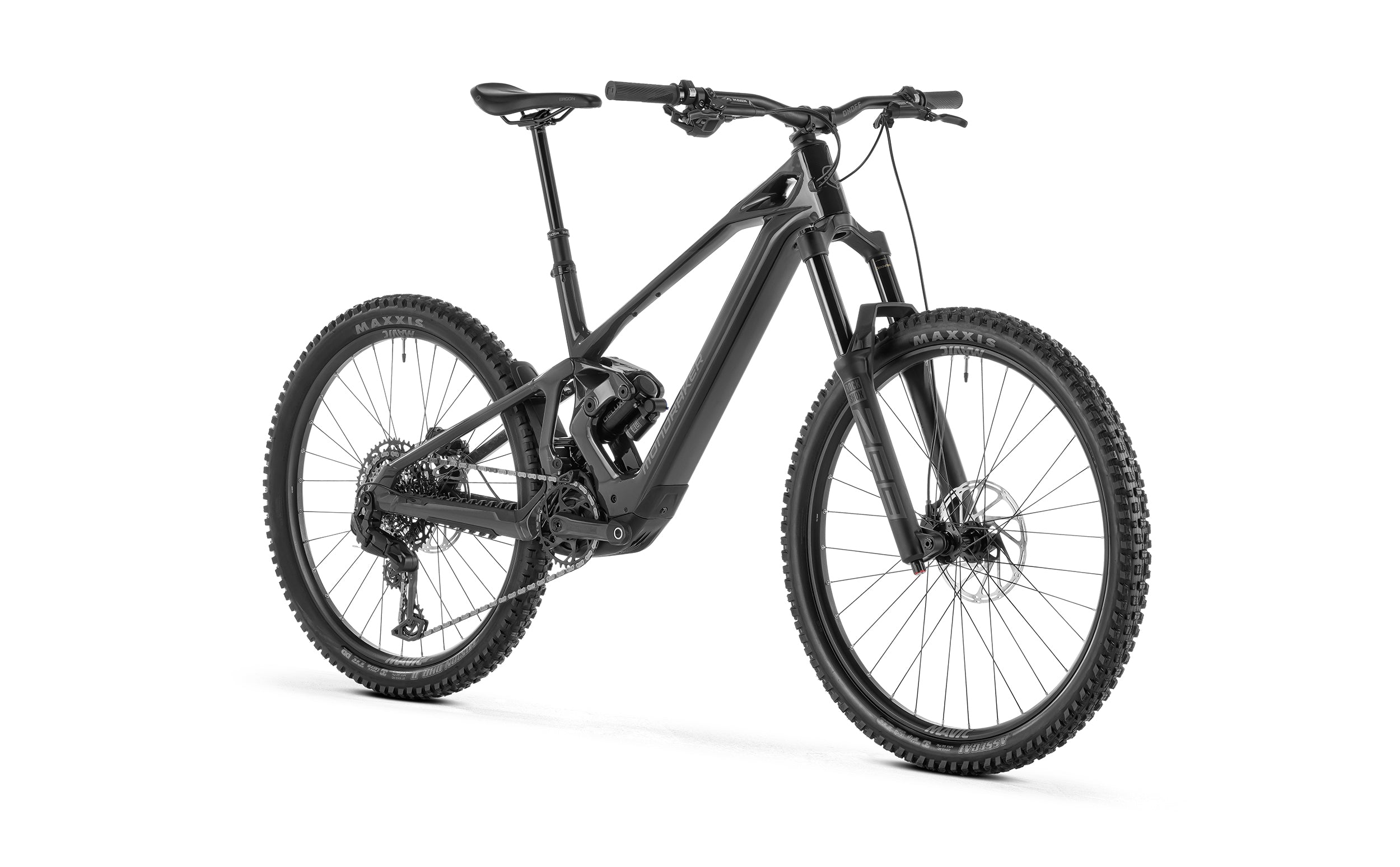

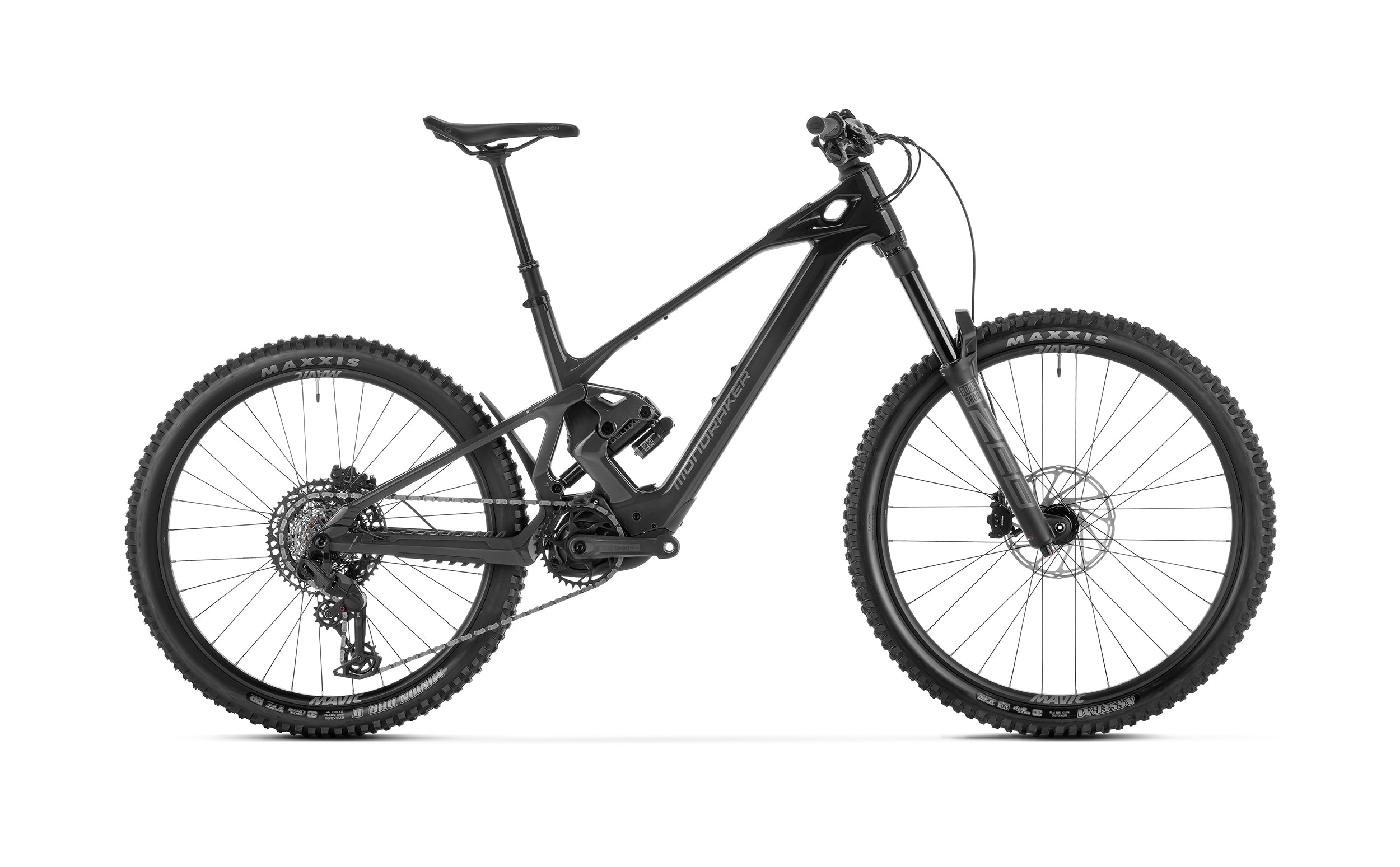

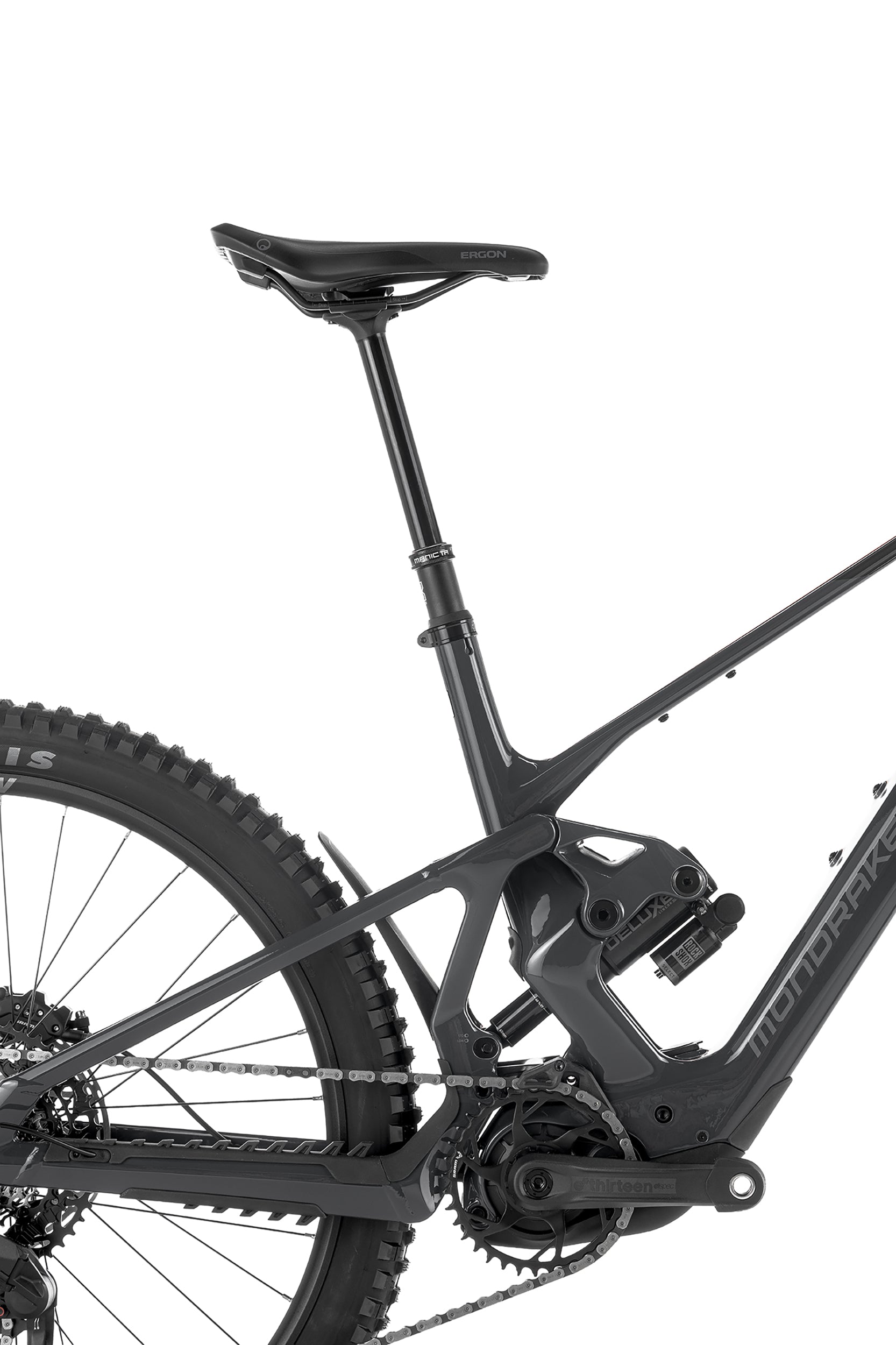

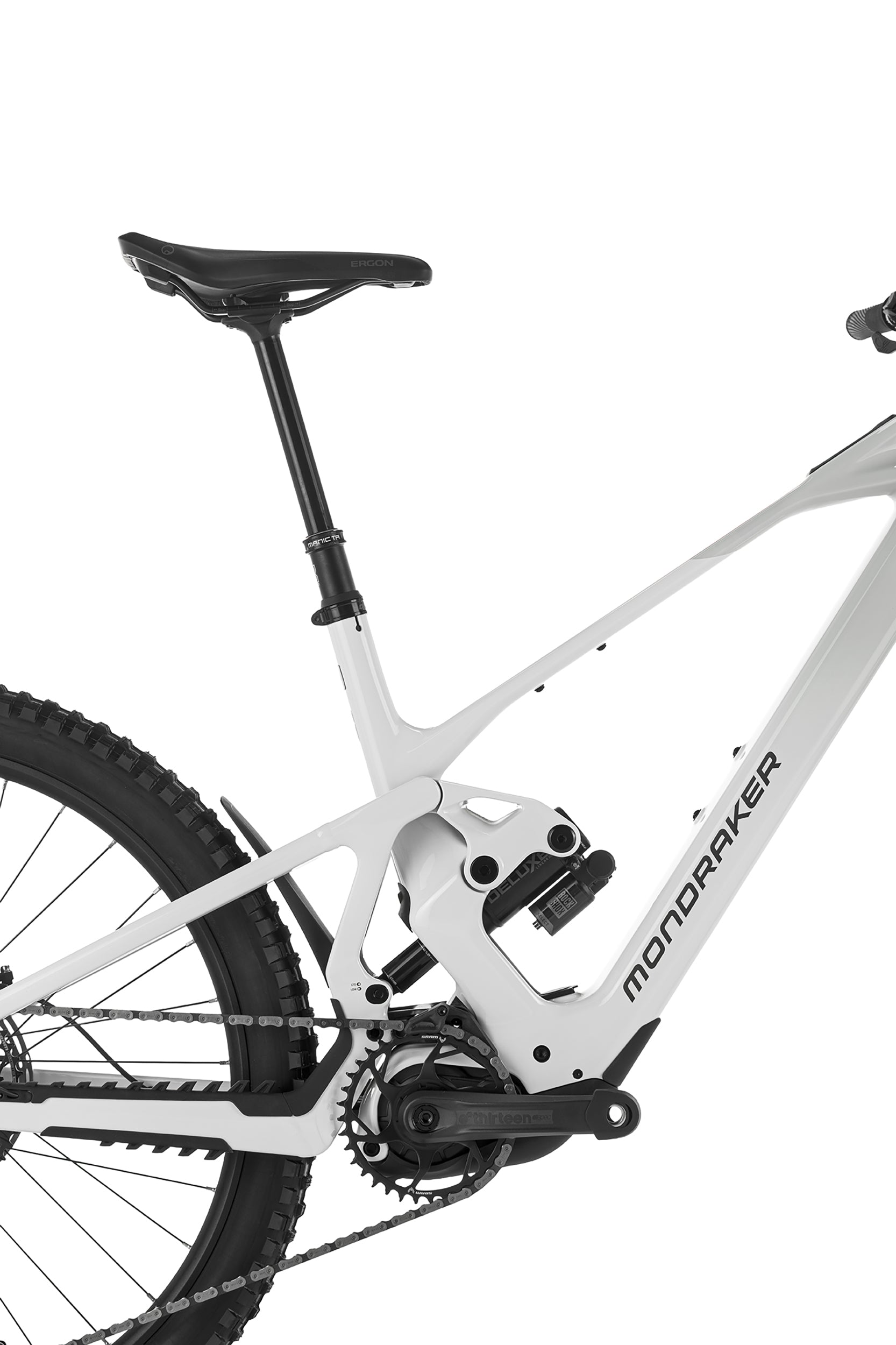

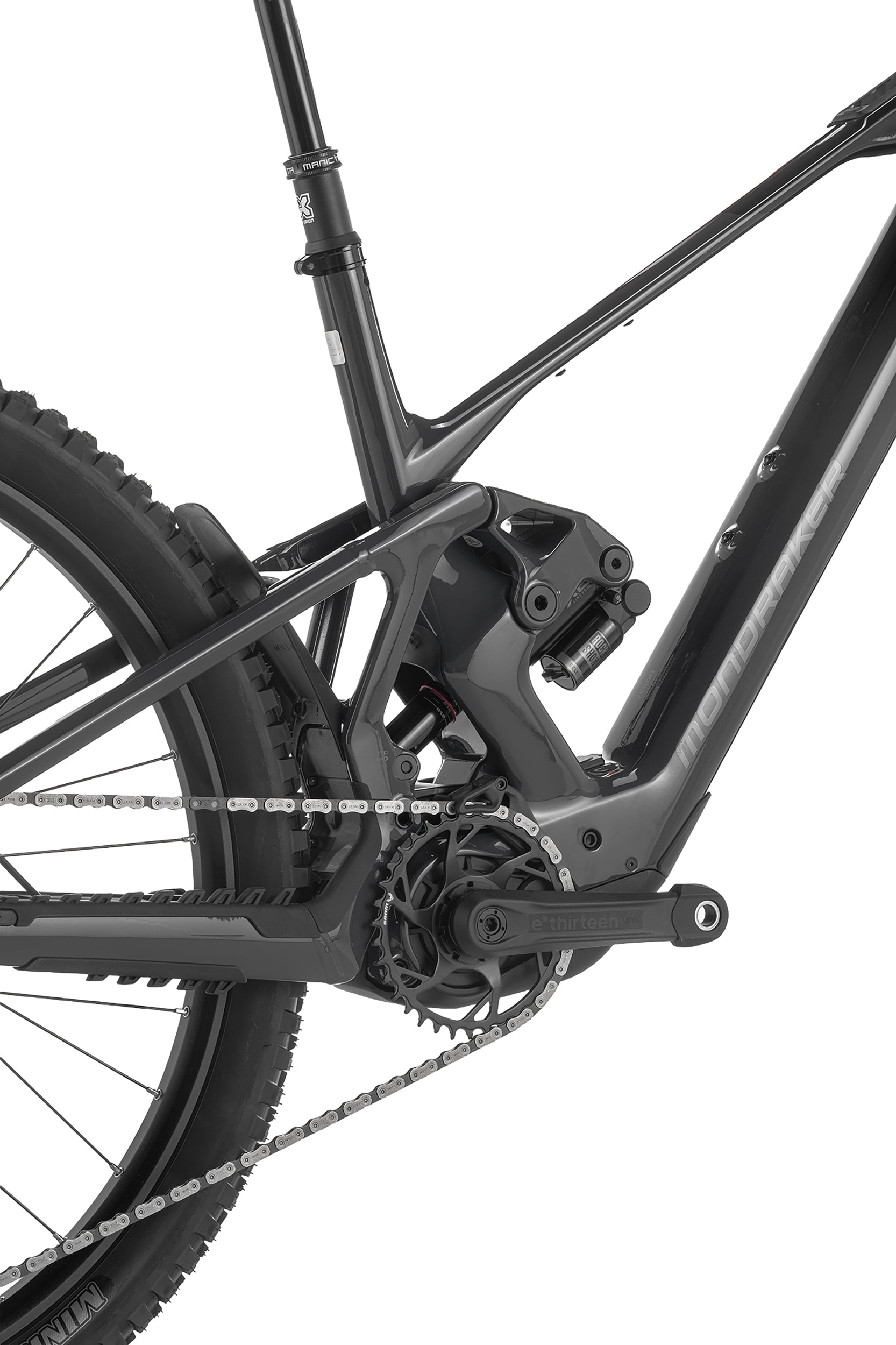

Available in Optic White and Obsidian Grey, with Small, Medium, Medium/Large, Large and X-Large size options.
Frame size measurements: S 380mm, M 410mm, ML 435mm, L 460mm and XL 490mm.
