Mondraker Zendit R Avinox eMTB
The Mondraker Zendit R combines a Stealth Air Carbon front triangle with a dedicated Stealth Alloy rear triangle, pairing an Avinox M2S motor and 800Wh battery with 170mm front and 165mm rear suspension travel. Built for demanding climbs and descents, this full-suspension electric mountain bike brings together Mondraker Forward Geometry and the Updated Zero Suspension System.
Point the 29-inch front wheel into rough terrain and let the 27.5-inch rear wheel follow through tight turns. Fox Performance suspension, SRAM Maven Base four-piston brakes, wireless SRAM S1000 Eagle AXS shifting and DT Swiss Hybrid wheels complete an enduro-focused mullet build.
Call Guardhouse Sports to reserve yours.
Key Specifications
- Frame: Zendit Stealth Air Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System with 165mm travel, Forward Geometry and internal battery.

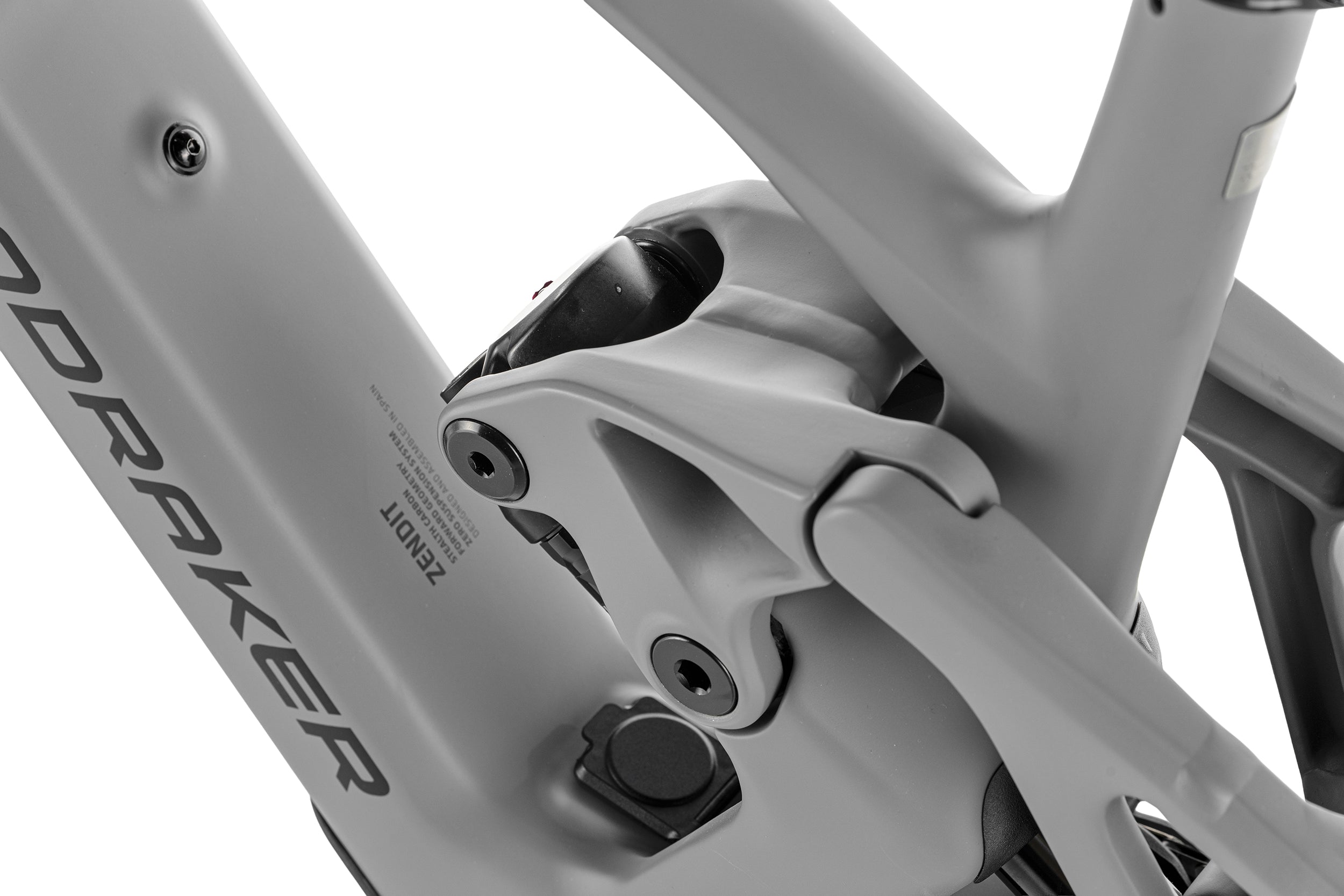

- Frame details: Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles and exclusive plastic motor covers.
- Fork: Fox 38 29 Float GRIP Performance, 170mm travel, e-bike tuned, tapered steerer, Boost 15x110mm axle and 44mm offset. Three-position compression with micro adjustment, low-speed rebound and air preload adjustment.

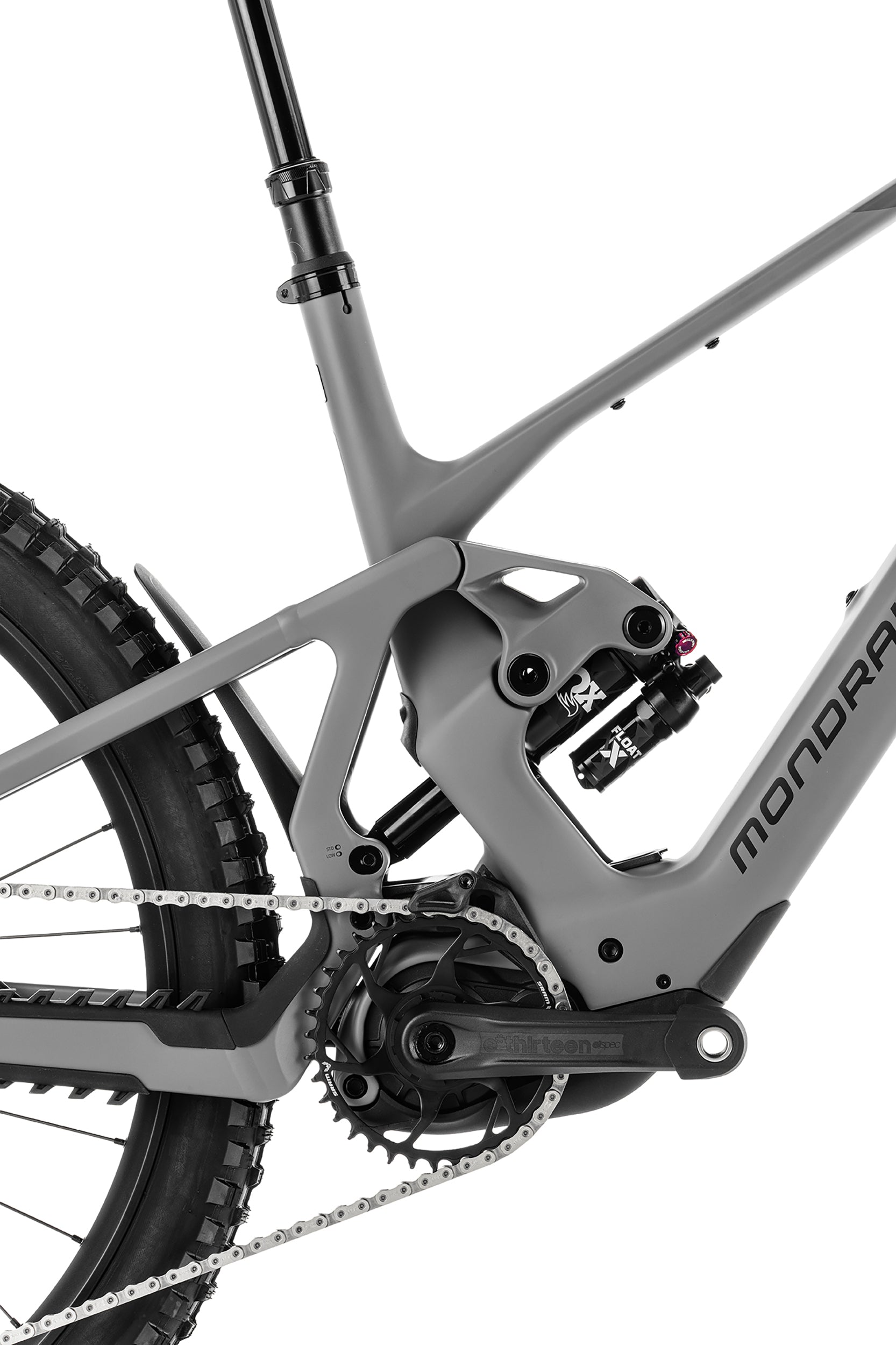

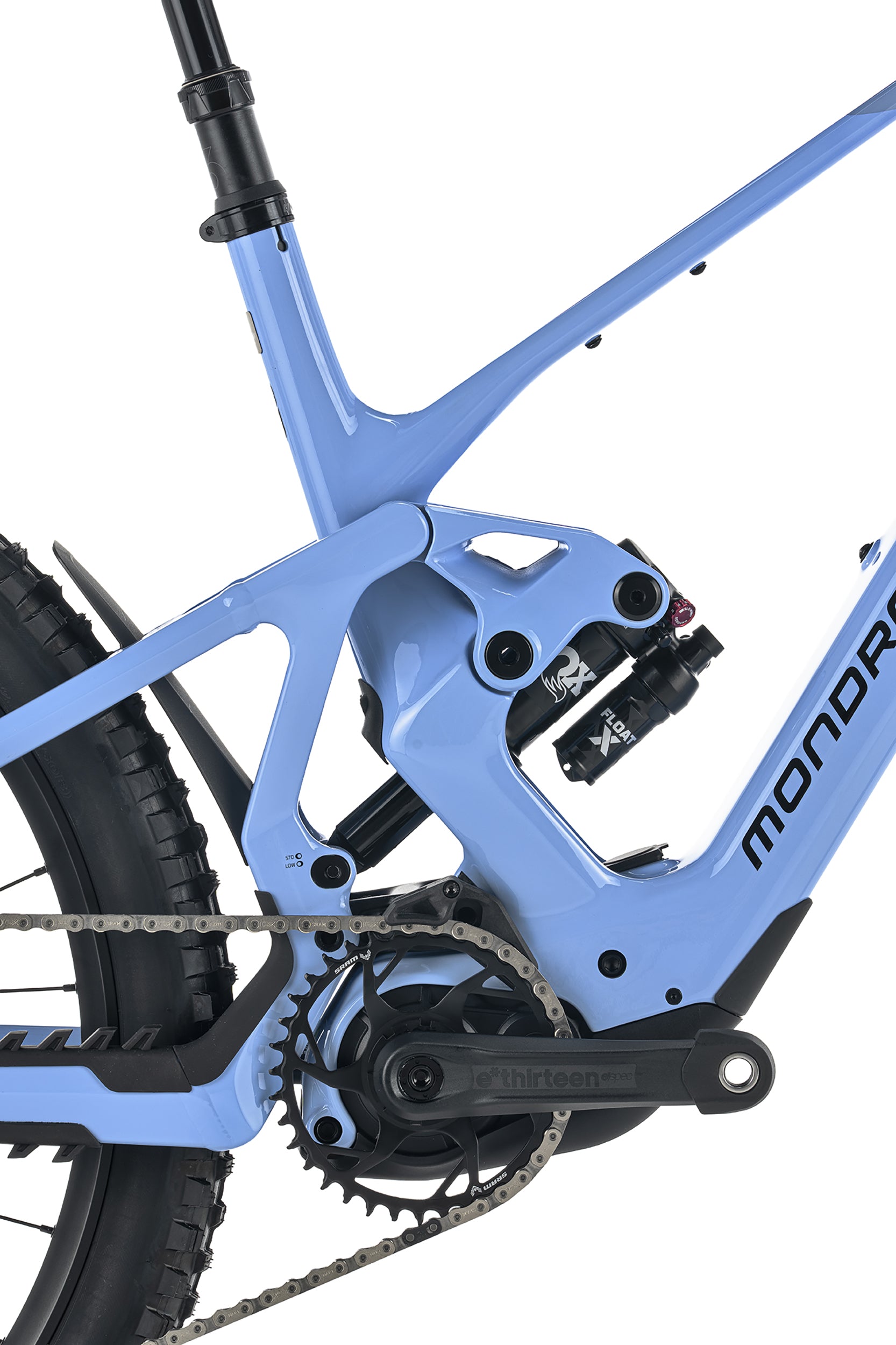

- Rear shock: Fox Float-X LV Performance, 205x65mm, two-position compression lever, low-speed rebound and air preload adjustment. Trunnion top mount and 30x8mm bottom bushings.
- Shock settings: CS30 compression, 1.1 bleed, RL50 rebound, Rezi B40, LML, standard MCU and 0 volume spacers.

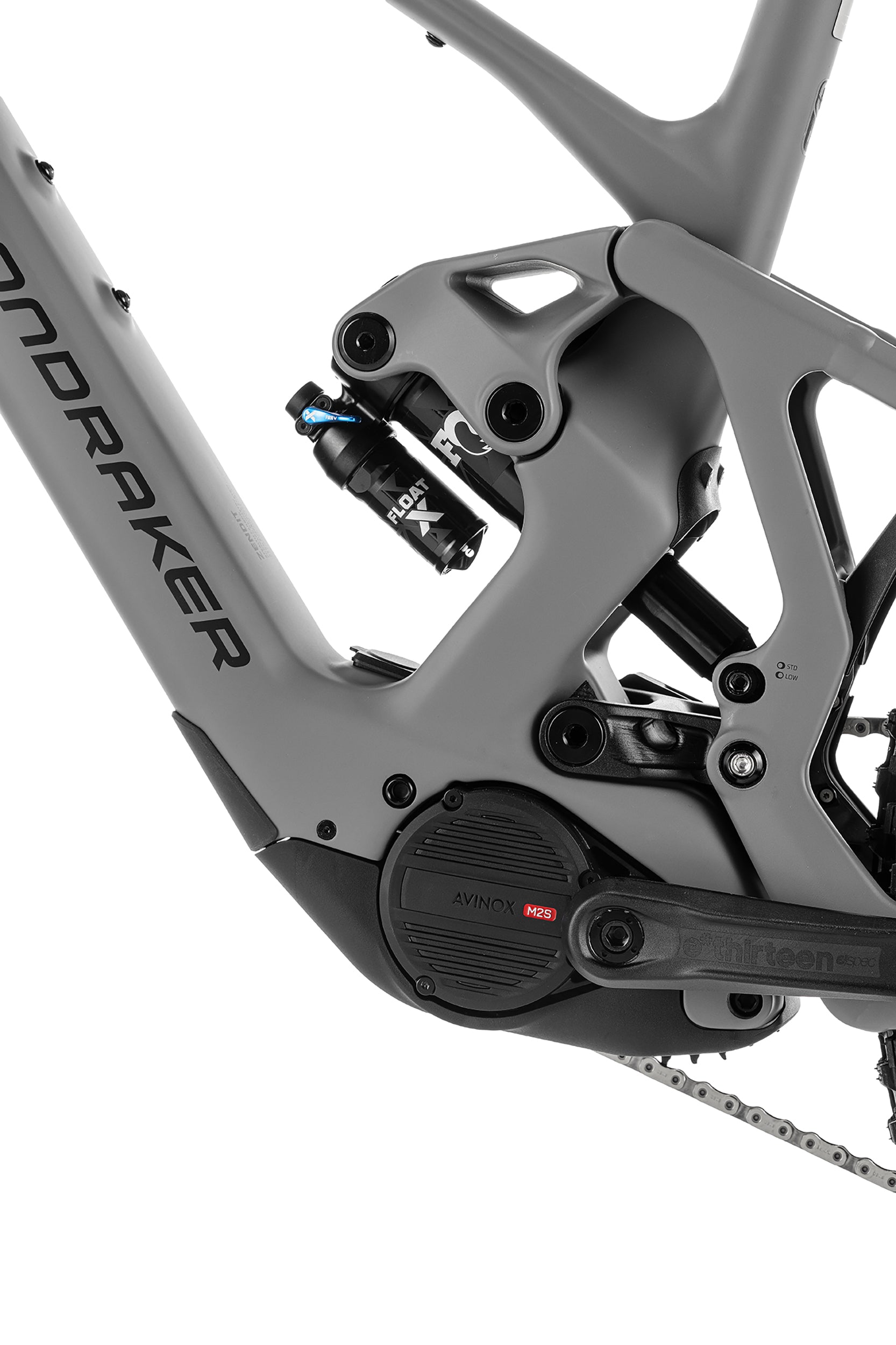

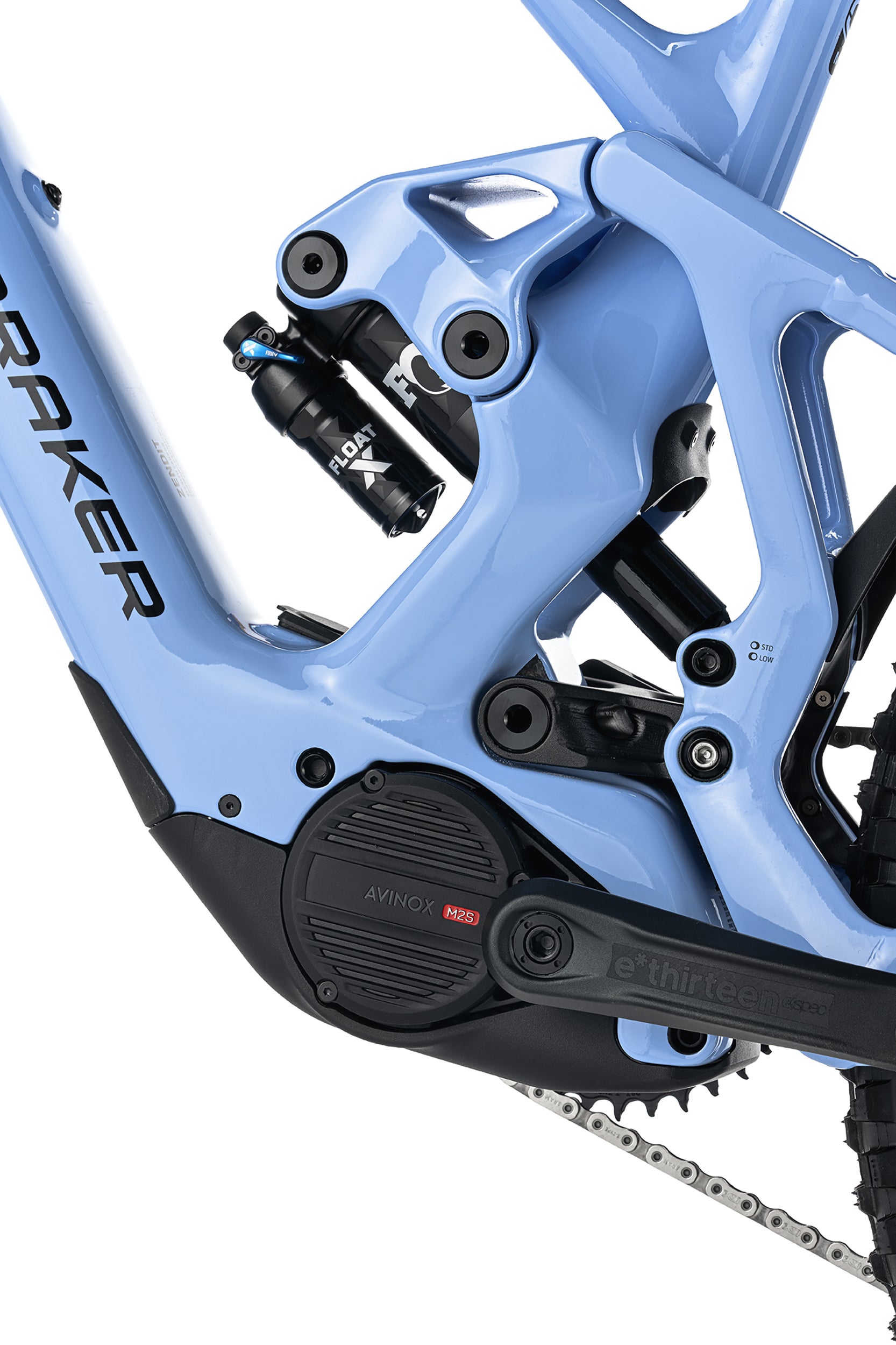

- Motor: Avinox M2S.
- Battery and charger: Avinox 800Wh battery and Avinox 4A charger.

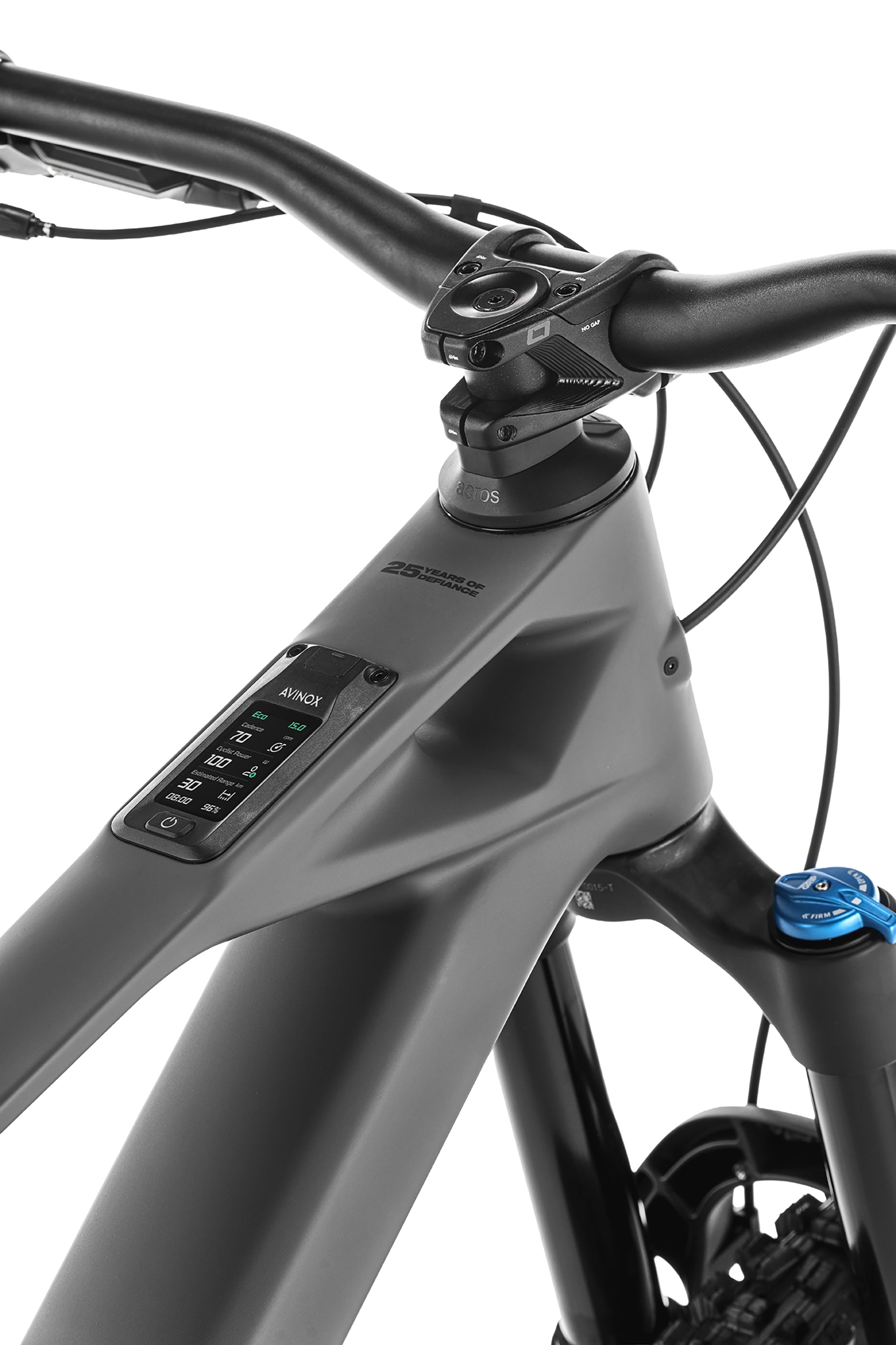

- Display and controllers: Avinox DP100 display and Avinox BC100 wireless controllers, left and right.
- Drivetrain: SRAM S1000 Eagle AXS T-Type 12-speed rear derailleur, Eagle AXS Pod Controller with discrete clamp, XS-1270 10–52T T-Type cassette and GX Eagle T-Type Flattop chain with PowerLock.
- Crankset and chainring: E.13 Helix Core E*Spec Plus, 155mm cranks across all sizes; SRAM Eagle 36T T-Type steel chainring, 104BCD and CL55.
- Brakes: SRAM Maven Base four-piston brakes front and rear, 200mm Centerline six-bolt one-piece rotors and steel-backed organic pads. Maven Base levers with DirectLink, lever pivot bushings and tool-free reach adjustment.
- Wheels: DT Swiss Hybrid H 1900 SPLINE aluminium rims, 30mm internal width, tubeless ready and 28 spokes. DT Swiss Straightpull DT Hybrid I spokes in black.
- Hubs: DT Swiss 370, Boost 15x110mm front and Boost 12x148mm rear, six-bolt disc mounts; rear hub with 18T Ratchet LN System and HG freehub.
- Front tyre: Maxxis Assegai 29x2.5 WT, tubeless ready, 3C MaxxGrip compound, EXO+ protection, 60 TPI and folding bead.
- Rear tyre: Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DoubleDown protection, 120x2 TPI and folding bead.
- Headset: Acros custom ZS56/ZS56, 1-1/8 to 1.5-inch, internal cable routing and sealing plugs, without BlockLock.
- Stem: Onoff S6, 30mm, 0°, forged and CNC-machined 6061 alloy, 31.8mm clamp.
- Handlebar: Onoff S6 1.0 7050 alloy, 800mm wide, 8° backsweep, 5° upsweep and 31.8mm clamp. Rise: 25mm on S, M and ML; 38mm on L and XL.
- Grips: Onoff Desert Pro CNC lock-on, 135mm; thicker grips on L and XL.
- Seatpost: Onoff Pija internal dropper, 31.6mm diameter, with 1X remote lever with bearing. Travel ranges: S 140–115mm, M 160–135mm, ML 180–155mm, L and XL 210–185mm.
- Saddle: Ergon SM10 E-Mountain Black.
- Additional equipment: SRAM AXS Extension Cord.
- Listed bike weight: 23.95kg.
Sizes and Colours

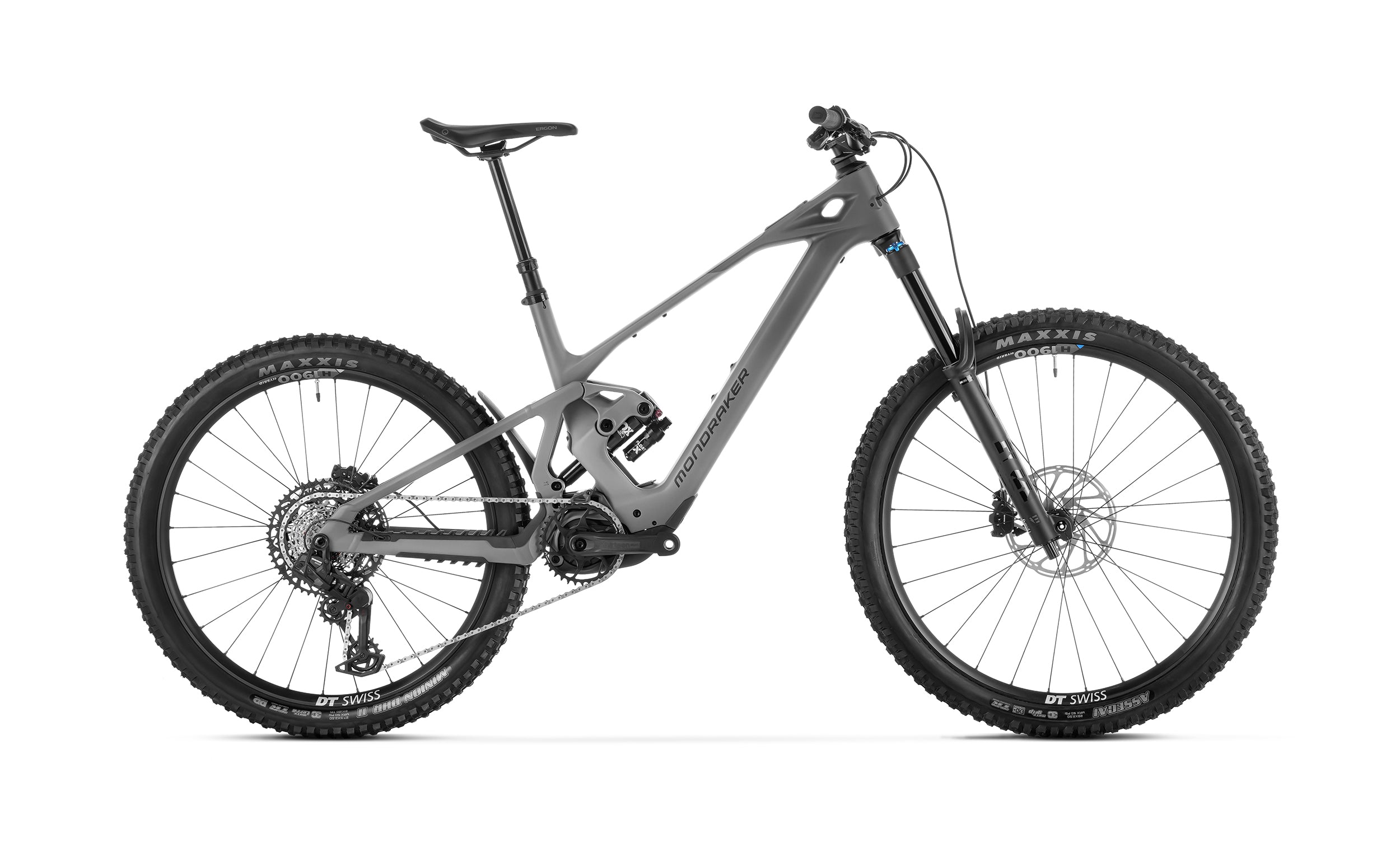

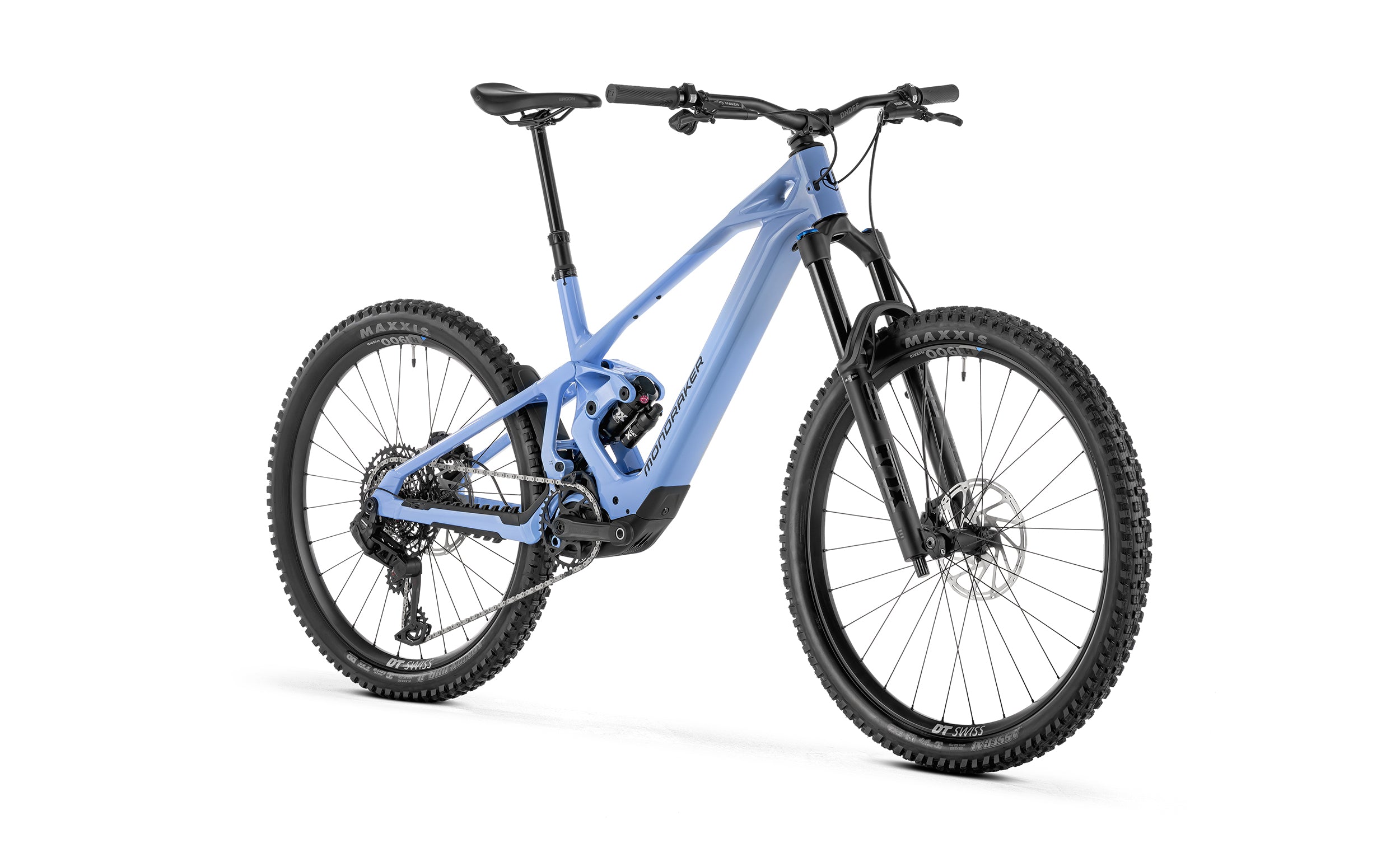

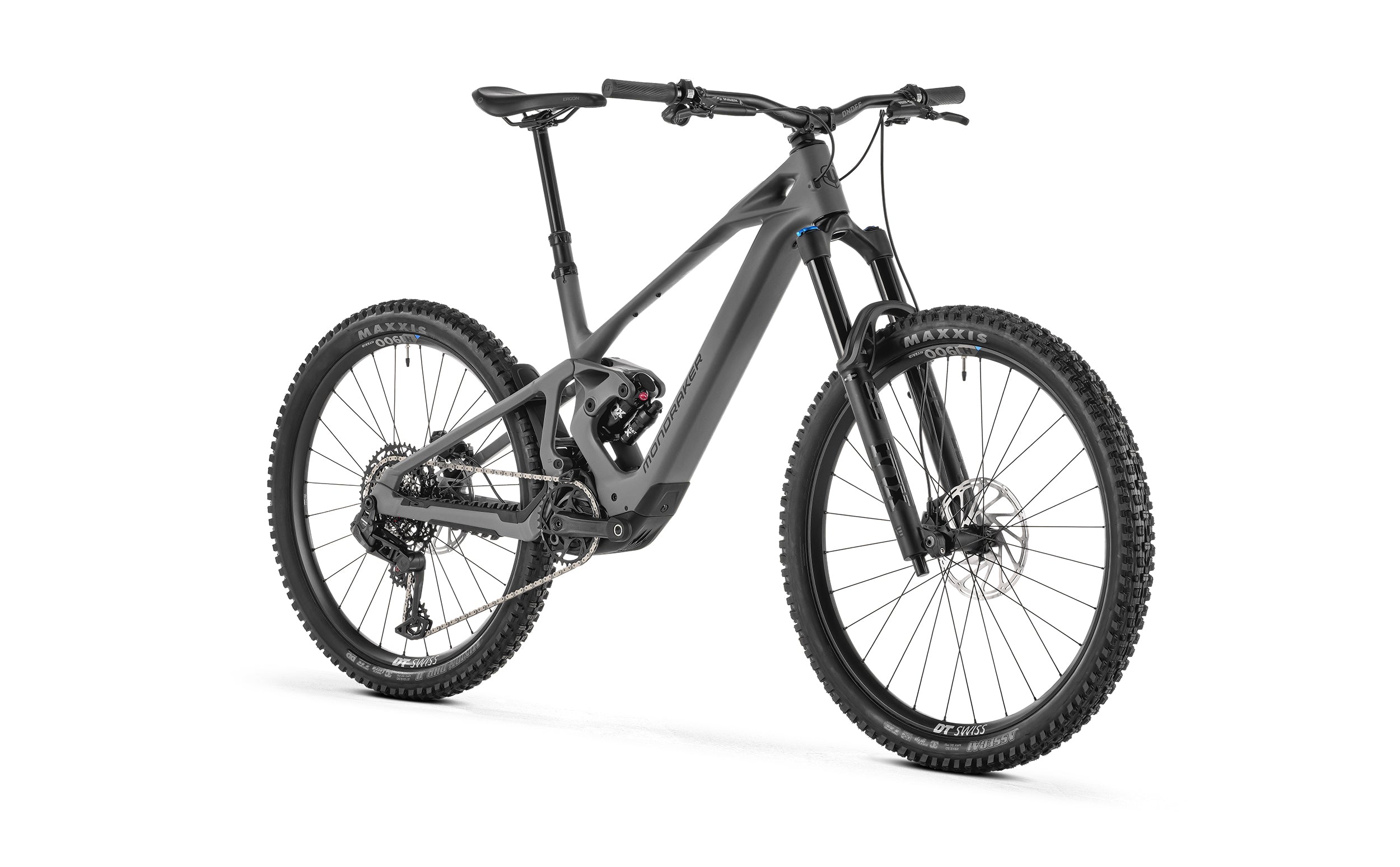

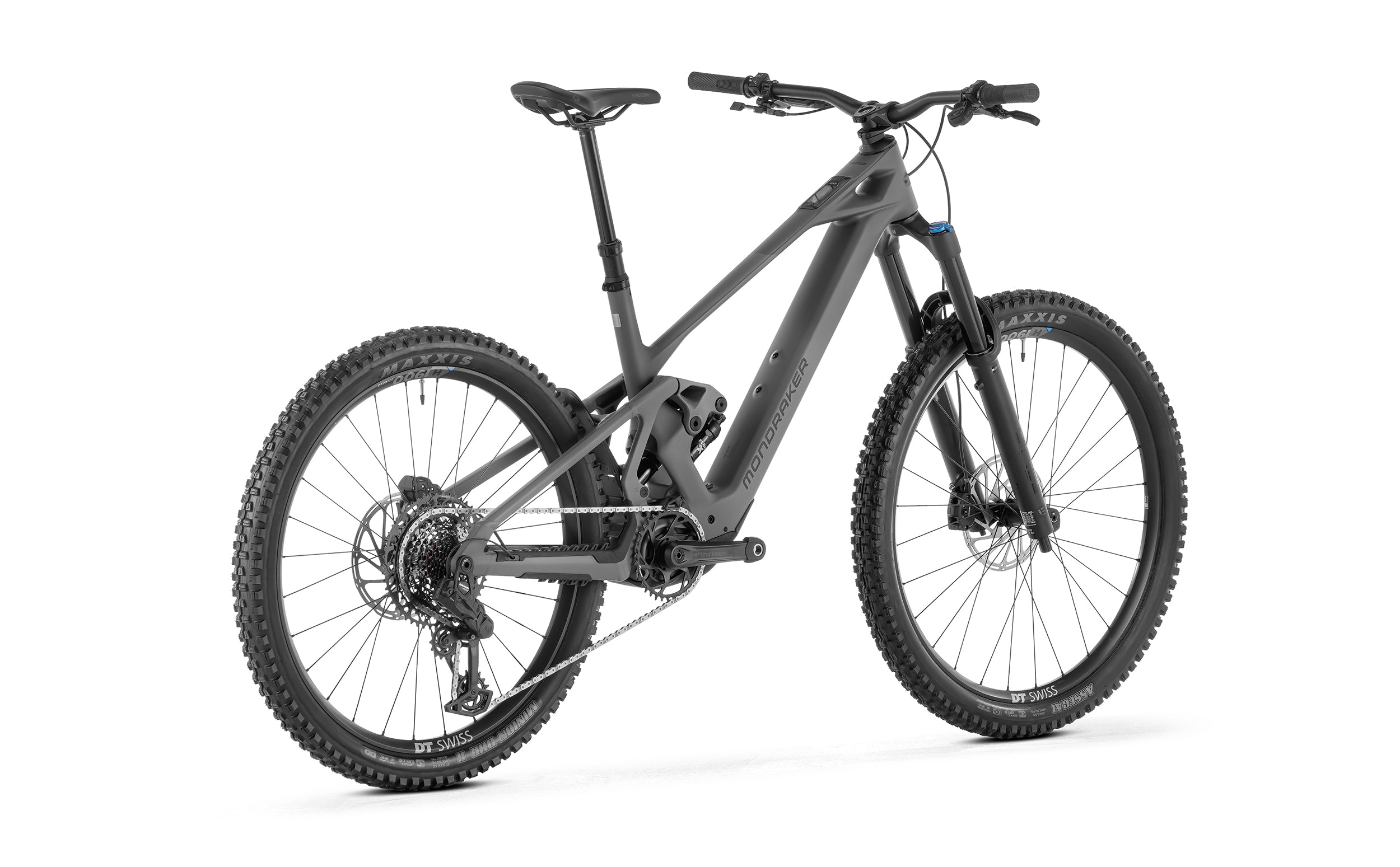

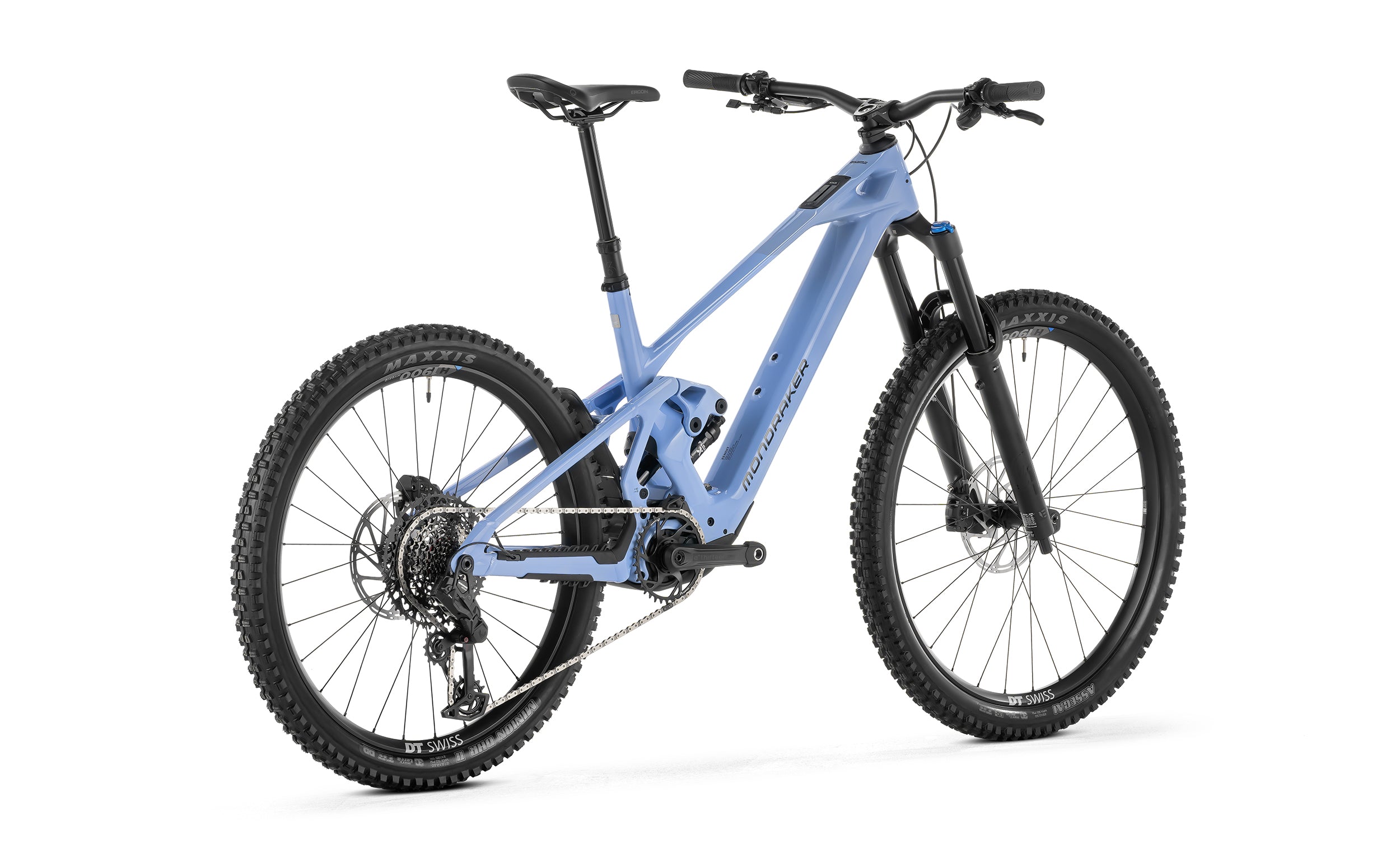

Available in Ionite Blue and Greyhound Grey, with Small, Medium, Medium/Large, Large and X-Large size options.
Frame size measurements: S 380mm, M 410mm, ML 435mm, L 460mm and XL 490mm.
