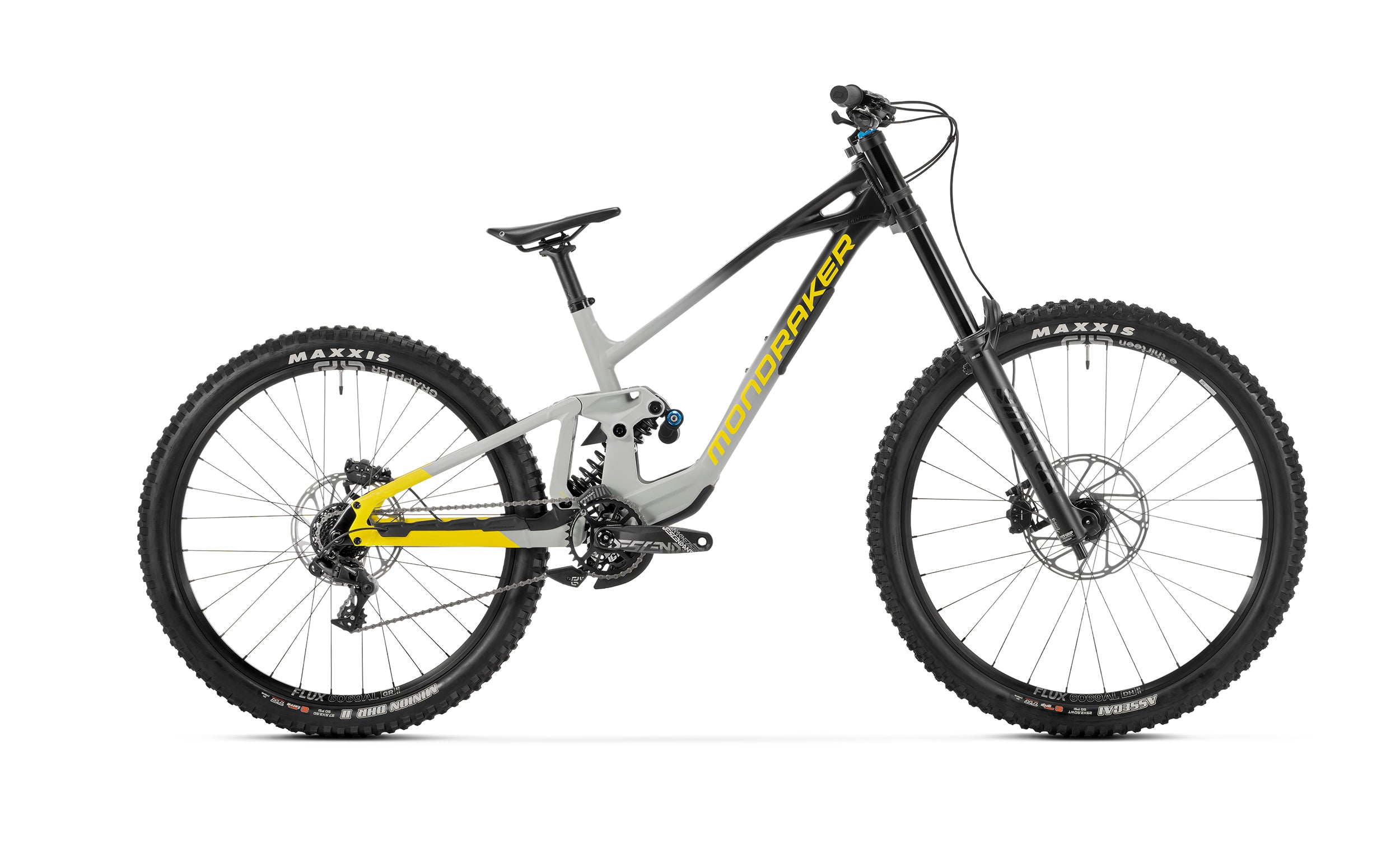

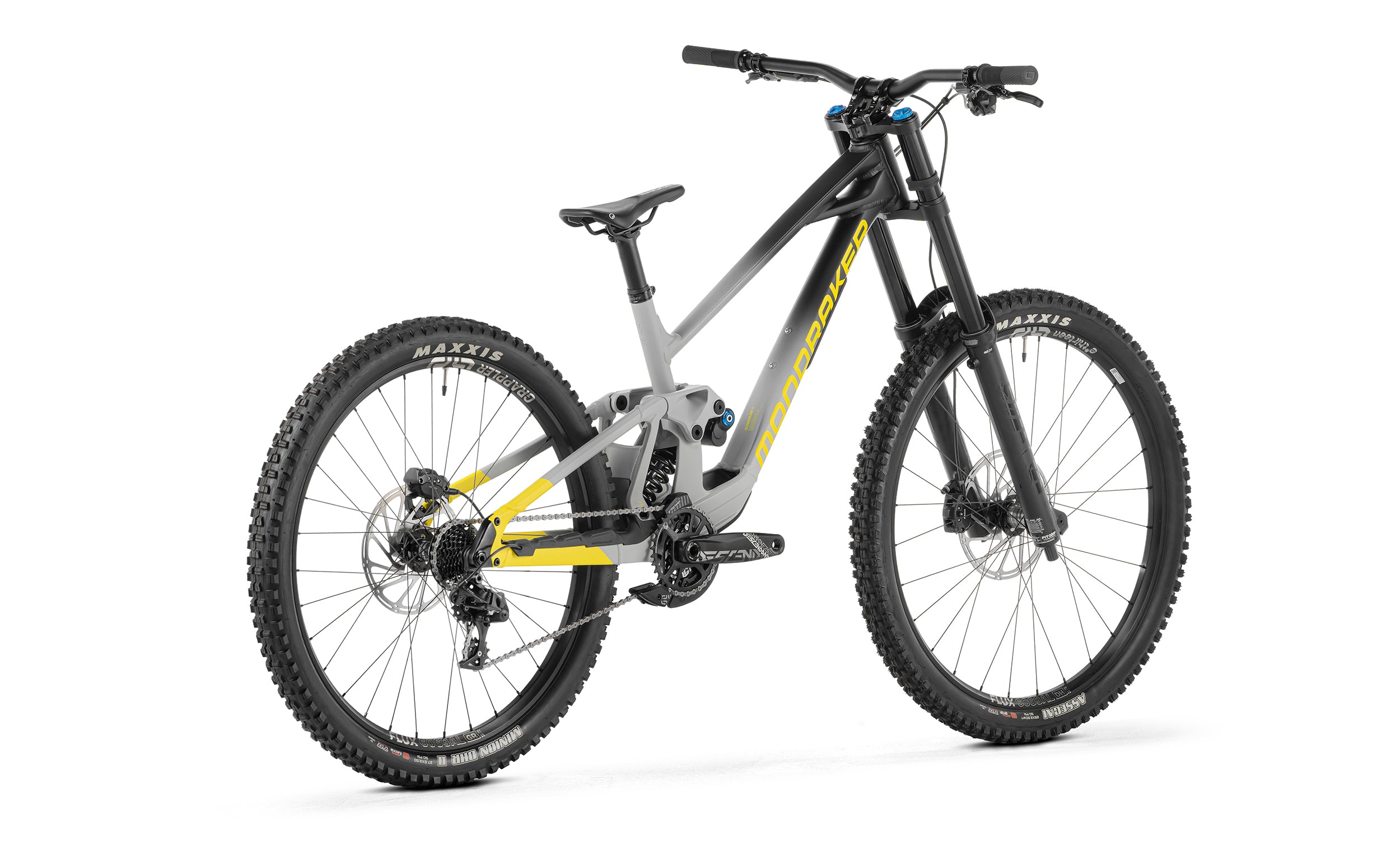

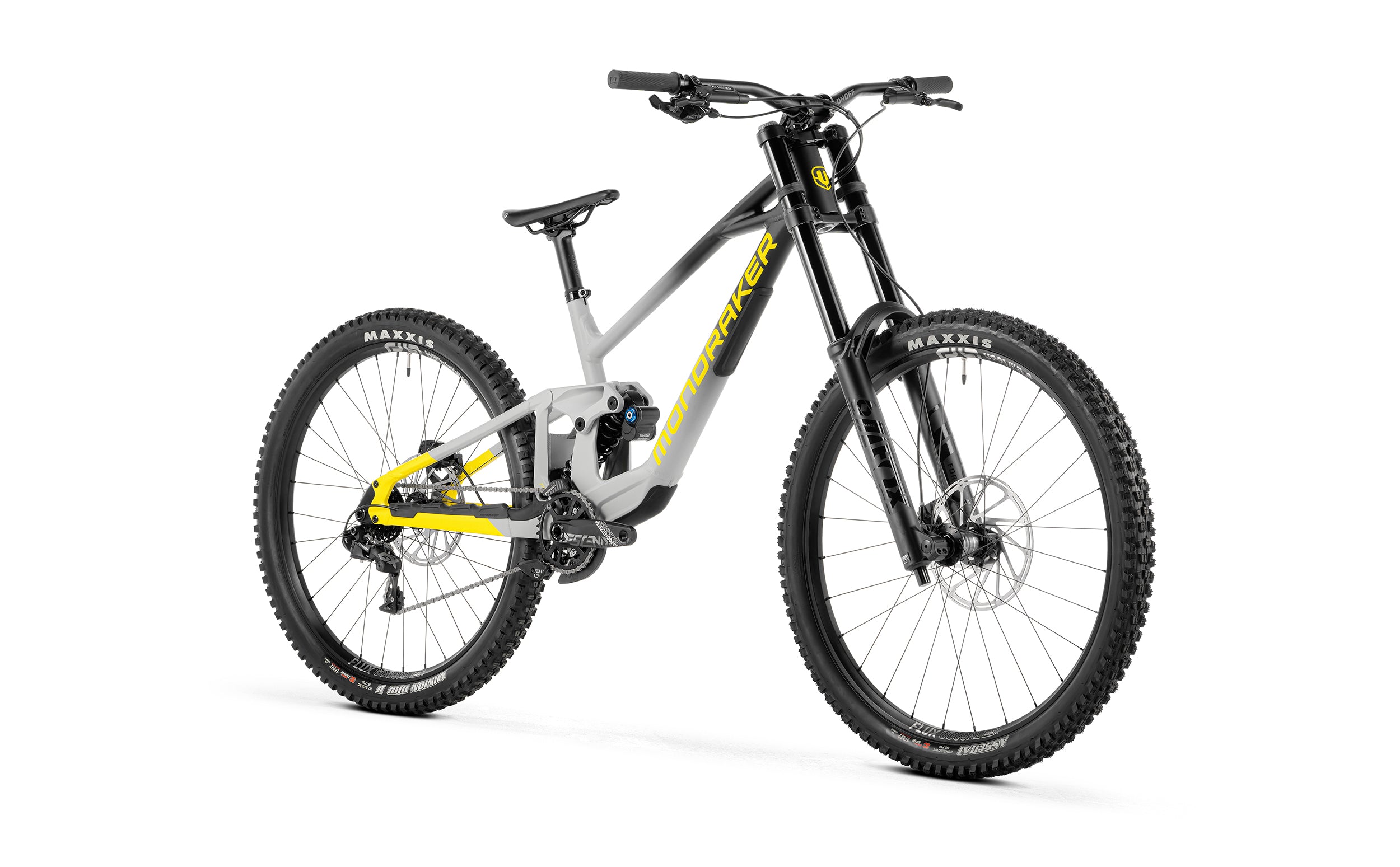

MONDRAKER SUMMUM R DOWNHILL BIKE

£4,999.00
Minus Plus

DOWNHILL

DH is our passion. DH and racing are in our DNA.

Our DNA comes from DH racing, there’s no denying it and we’re proud of it. DH is the Formula 1 of mountain biking. It’s where prototypes are put through the wringer, hammered by the tracks and the riders. That’s why at Mondraker we have a top-level international team: the Mondraker Factory Racing, which includes world-class riders such as Dakotah Norton and Ronan Dunne. Our DH bikes will continue to be available as carbon or aluminium framed versions, depending on rider preference.

Your best new tool for the job in Downhill Racing.

Developed under the cutting-edge and most advanced expertise this new Summum has been forged on the toughest World Cup race tracks across the globe with sweat, adrenaline and victories of our Mondraker Factory DH racing team racers.



Mullet    203 mm    200 mm    Alloy

  • Rear shock · Fox DHX2 Performance Elite
  • Fork · Fox 40 29 Float GRIP Performance, 203mm
  • Front brake · Sram Maven Base
  • Rims · e*thirteen Grappler Flux
  • Others · Geometry kit included: +- 5mm headset cups, Lower shock mount flip chip, +5mm dropout, -5mm dropout

Components

Technical specs

  • frame

    Frame

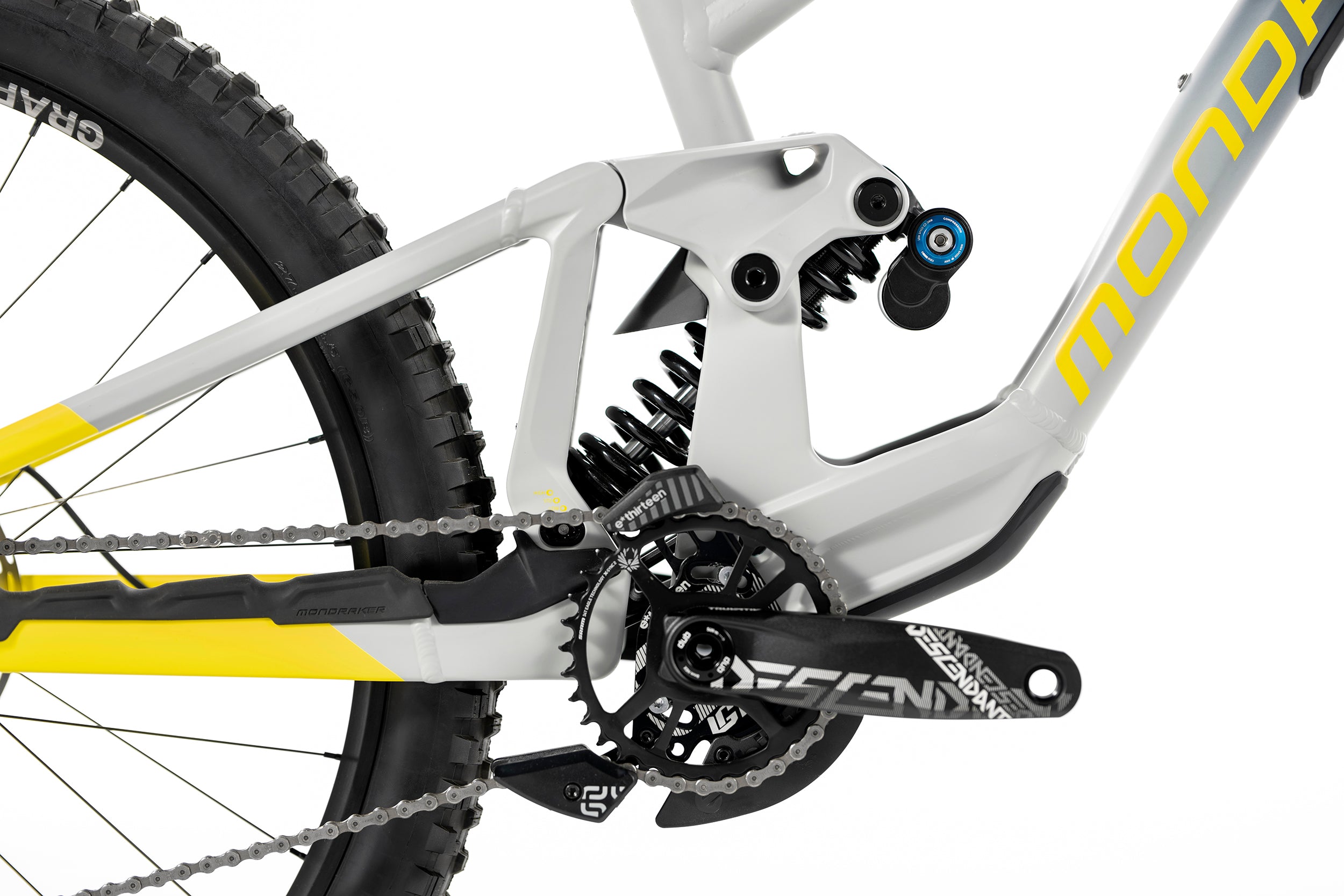

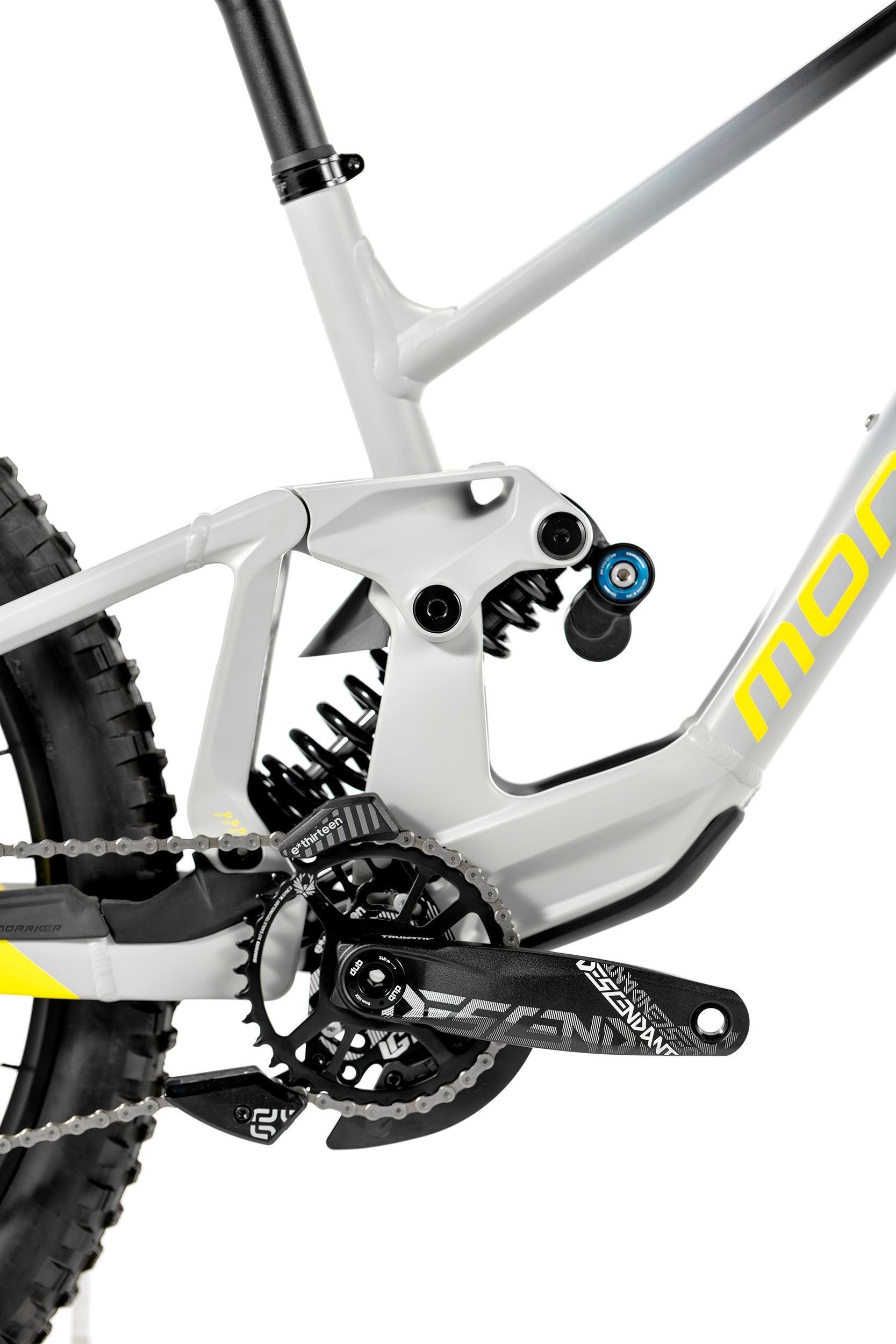

    Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05.


    sizes

    Sizes

    M / L / XL

  • rear shock

    Rear shock

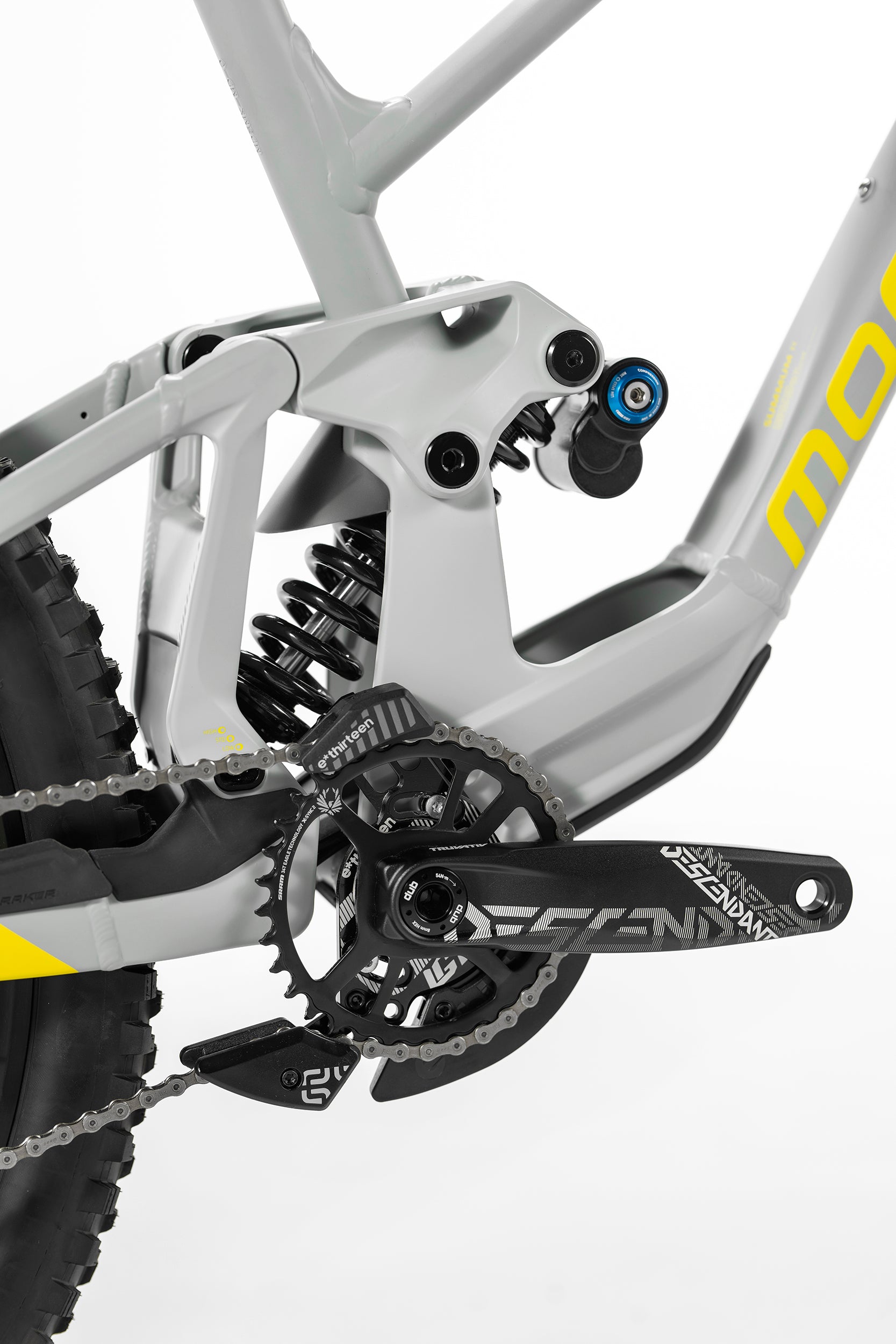

    Fox DHX2 Performance Elite, 225x75mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings


    shock settings

    Shock settings

    CL80 compression, RL70 rebound, Rezi B80, Bleed 0.5, VVCM. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs

  • fork

    Fork

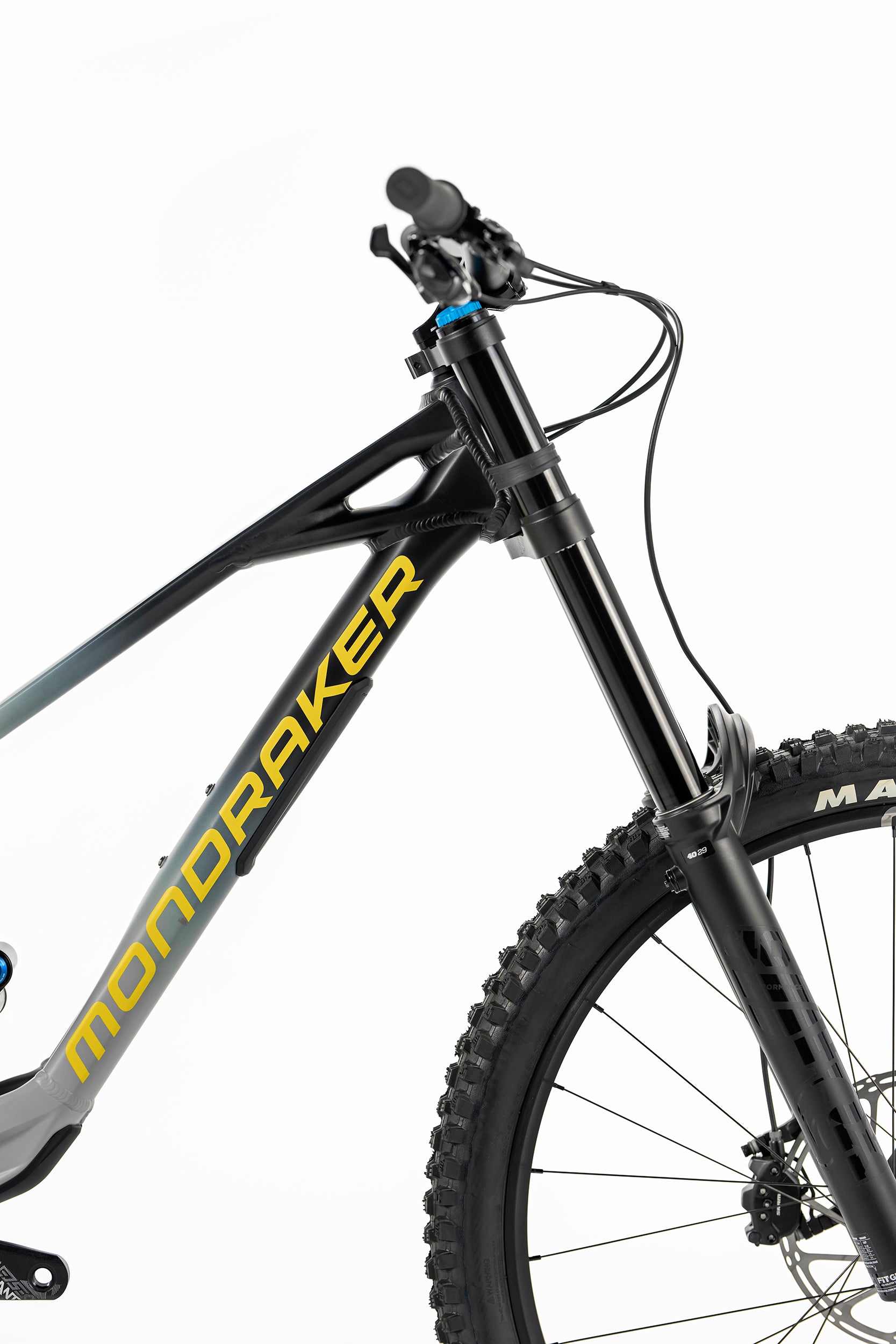

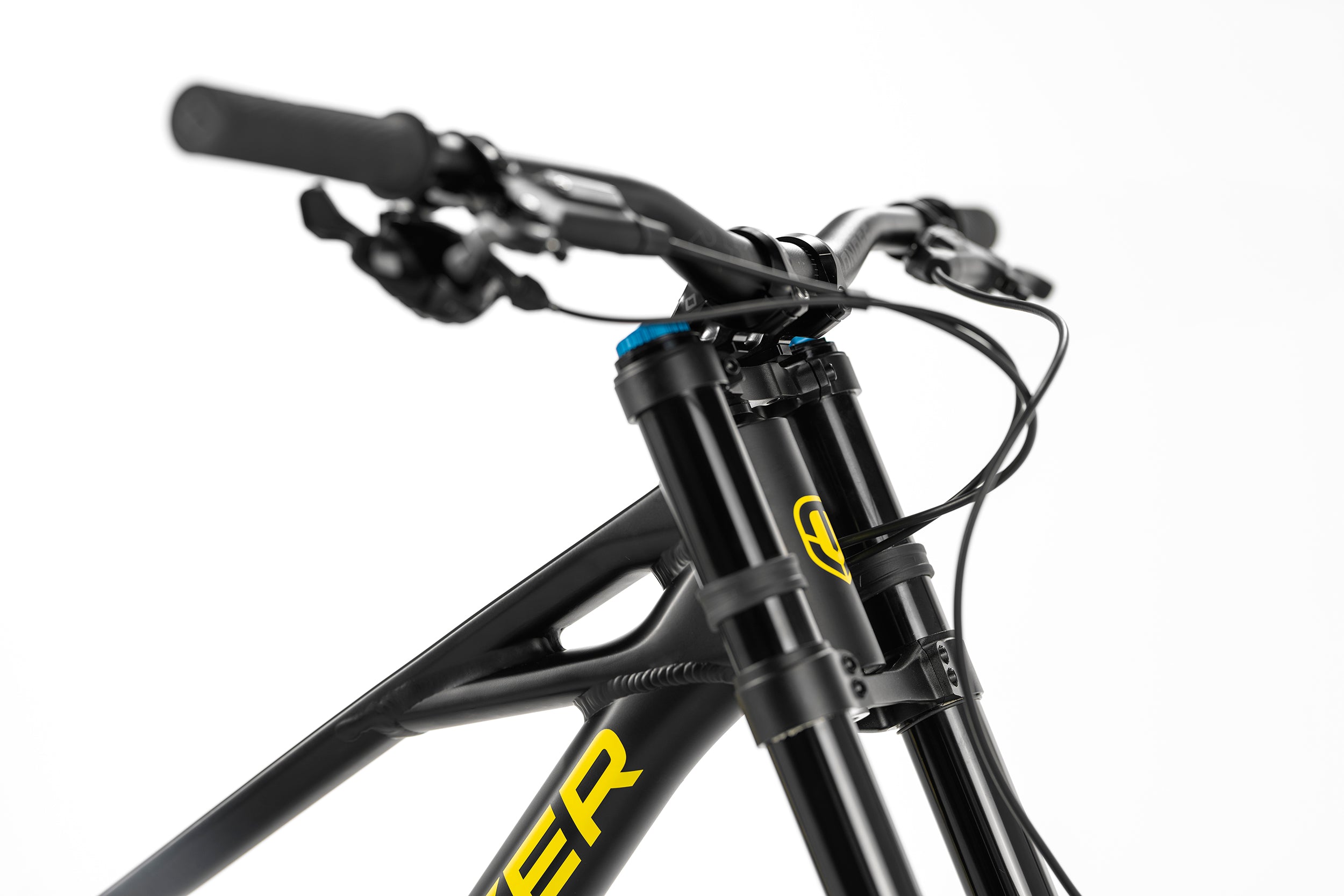

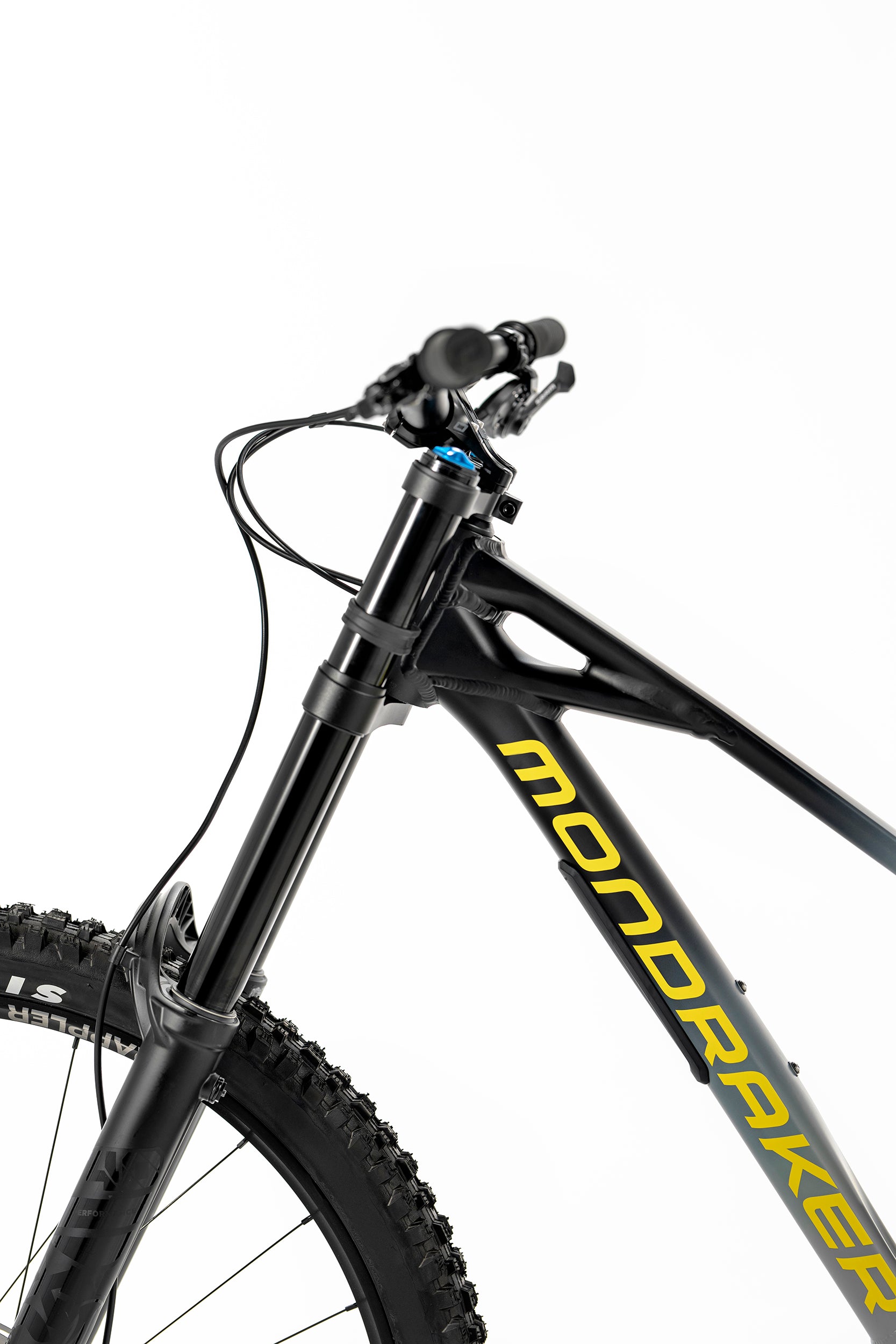

    Fox 40 29 Float GRIP Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 52mm. Settings: 3-pos compression dial, air preload


    headset

    Headset

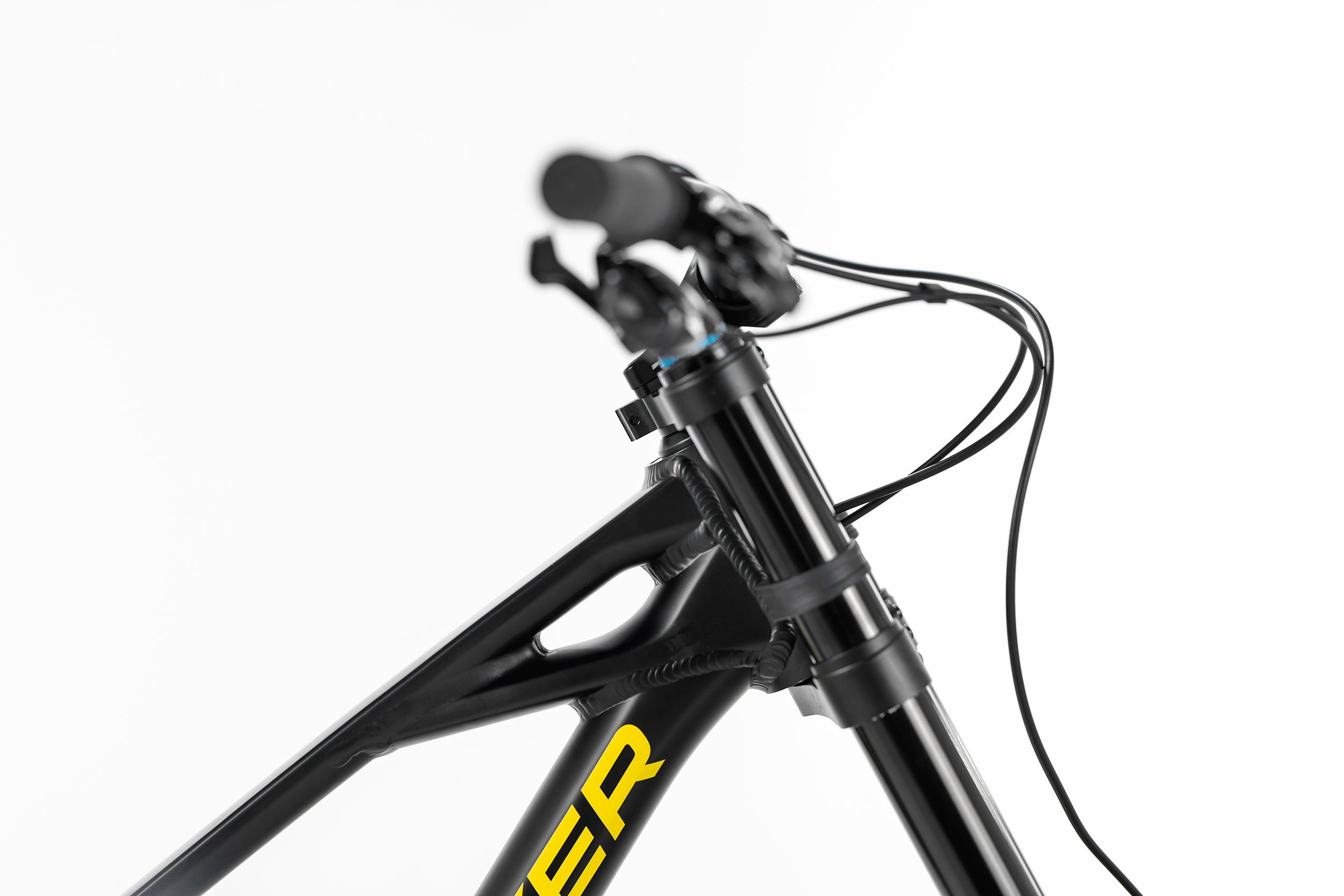

    Onoff DH ARS (Adjustable Reach System) 1-1/8", 1-1/8" steerer tube, 41x30x7 45ºx45º sealed bearings, reach geometry kit cups (+-5mm)

  • stem

    Stem

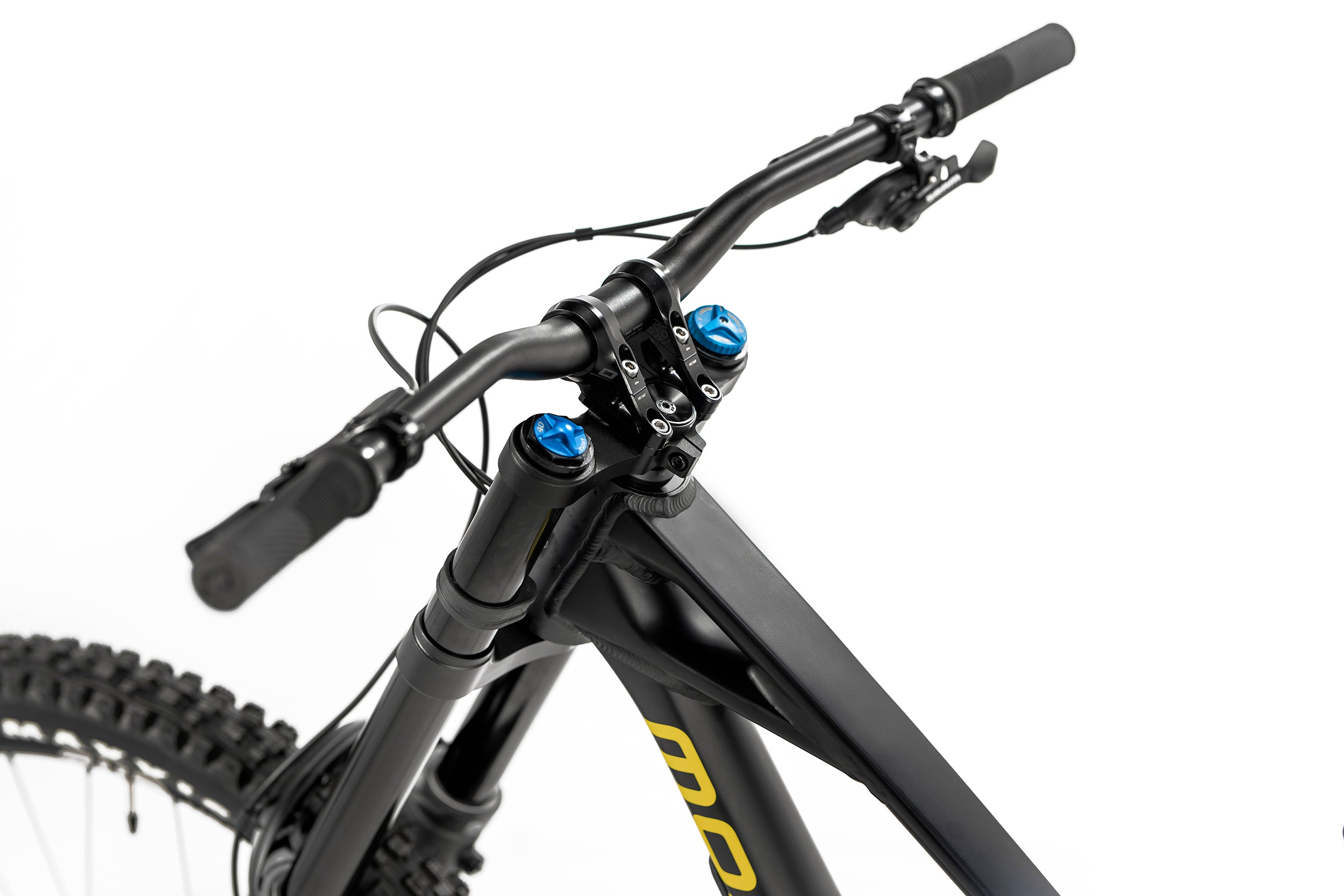

    Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer


    handlebar

    Handlebar

    Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore.

  • grips

    Grips

    Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size


    seatpost

    Seatpost

    Onoff S3 DH Alloy, diameter 31.6mm, length 300mm

  • saddle

    Saddle

    Ergon SM10 DH Black


    front brake

    Front brake

    Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed organic pads

  • rear brake

    Rear brake

    Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads


    brake lever

    Brake lever

    Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust

  • rims

    Rims

    e*thirteen Grappler Flux, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes


    spokes

    Spokes

    e*thirteen Sapim D-light / Brass

  • front hub

    Front hub

    e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts


    rear hub

    Rear hub

    e*thirteen 12x157mm, Sidekick,12°/15°/18° Adjustable Deadband, triple-sealed, IS 6 bolts, HG freehub

  • front tire

    Front tire

    Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead


    rear tire

    Rear tire

    Maxxis Minion DHR II 27''5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH protection, 60x2TPI, folding bead

  • crankset

    Crankset

    Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5


    rings

    Rings

    34T, steel, X-SYNC

  • bottom bracket

    Bottom bracket

    Sram DUB BSA, sealed bearings, 83mm


    chain

    Chain

    Sram PC1110 11s, Powerlock

  • derailleur hanger

    Derailleur hanger

    E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider


    rear derrailleur

    Rear derrailleur

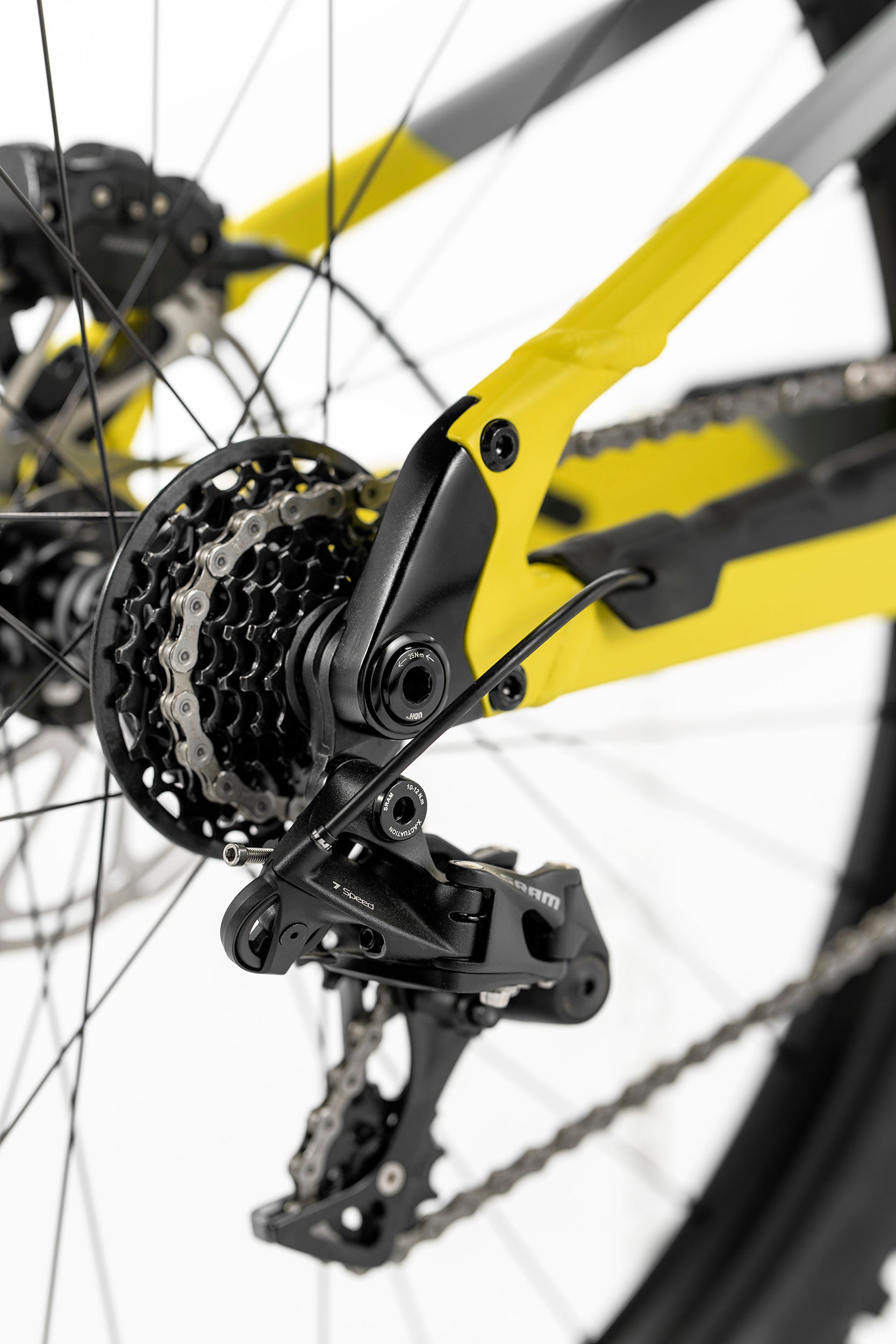

    Sram GX DH, 7s, medium cage

  • shift levers

    Shift levers

    Sram trigger GX DH 7s, X-actuation 1:1


    casette

    Casette

    Sram PG 720 11-25T, 7s

  • derailleur hanger

    Derailleur hanger

    Sram UDH


    others

    Others

    Geometry kit included: +- 5mm headset cups, Lower shock mount flip chip, +5mm dropout, -5mm dropout

  • weight

    Weight

    18,9 kg
