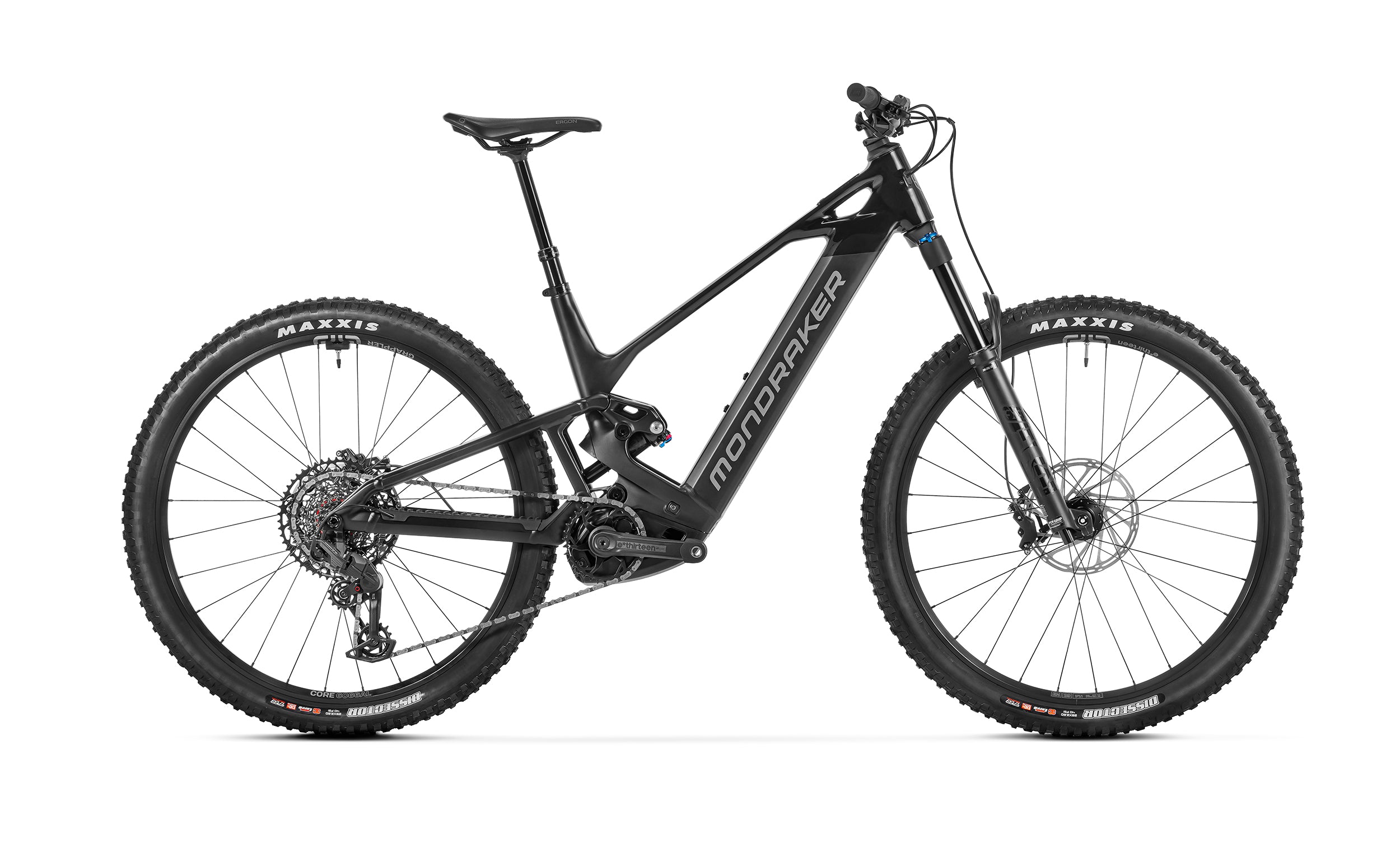

With the Scree, we’ve created a full suspension ebike that delivers everything both first-time ebike riders and those stepping up from a non-assist bike need for. A model featuring 29” wheels, 130mm rear and 150mm front travel, a 120Nm Bosch CX Gen 5 motor, and a removable 800Wh Bosch battery.
Everything we’ve learned from the iconic Crafty and Level enduro bikes, adapted to make your ride as fun as possible, and built around Stealth Alloy aluminium frame with polished welds and a purposefully low standover height to help keep the centre of gravity down, improving both handling and rider comfort at the same time.
R Model
The natural step up in performance: upgraded components to make the most of every trail. Greater response on climbs and descents. For riders looking to refine their skills in the ebike world.
Components
Technical specs
-
Frame
SCREE 6061 Alloy Stealth Evo, Updated Zero Suspension System, 130mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
-
Rear shock
Fox Float Rhythm EVOL 165x45mm. Settings: Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
LCM compression, LRM rebound, CMF, 0.8 volume spacer
-
Fork
Fox 36 29 Float Rhythm, 150mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: GRIP Sweep-Adjust
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
-
Stem
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
-
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
X-Fusion Manic diameter 31.6mm,1X Remote lever, S size: 361x125mm, M size: 425x150mm, ML size: 469x170mm, L size: 521x190mm, XL size: 531x200
-
Saddle
Ergon SMC10 Gel
Front brake
Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
-
Rear brake
Sram DB6, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram DB6, tool reach adjust, lever pivot bushings
-
Rims
e*thirteen Grappler Core, IW30 Hookless, 6066 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
-
Front hub
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Superboost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
-
Front tire
Maxxis Dissector 29x2.6, tubeless ready, tubeless ready, 3C MaxxTerra compoundm EXO+ protection, 60TPI, folding bead
Rear tire
Maxxis Dissector 29x2.6, tubeless ready, tubeless ready, 3C MaxxTerra compoundm EXO+ protection, 60TPI, folding bead
-
Crankset
E.13 Helix Core E*Spec Plus, All sizes: 160mm
Rings
Sram Eagle 34T T-Type, direct mount, steel, CL55
-
Chain
Sram 70 T-Type, 12s Flattop, PowerLock
Rear derrailleur
Sram 70 Eagle, T-Type, 12s
-
Shift levers
Sram Trigger 70, 12s, T-Type Actuation
Casette
Sram XS-1270, 10-52T, 12s
-
Weight
25,6 kg
Display
Kiox 400C / Bosch Mini Remote
-
Motor
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery
Bosch Powertube 800Wh
