Frame
Arid alloy, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, 1X drivetrain design, Flatmount brake compatible.
Every ride is an opportunity to try something new.
Roam solo. Or chase the group ahead on the horizon. Mix it up with your friends or take on your first gravel race. Or simply leave the world behind for the weekend. There’s no wrong way to go, so long as you go!
Riding gravel brings you endless opportunities to experience the world, at the pace and the place that you choose. The new Mondraker Arid is your gateway to the Mondraker gravel scene and the world beyond your doorstep.
Components
Technical specs
-

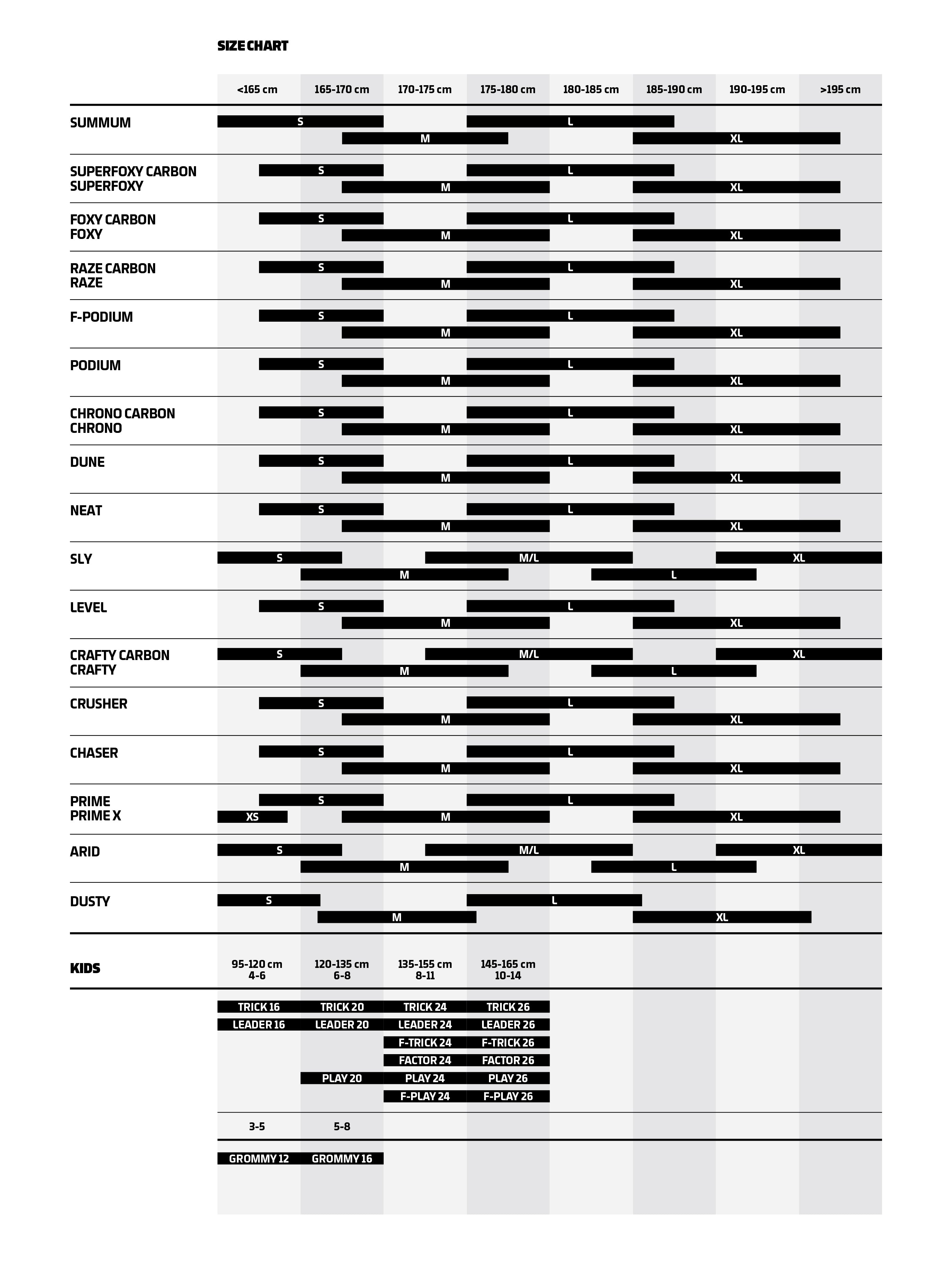

Sizes
S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
-
Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
-
Stem
Onoff S3 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar
OnOff S3 GR 16º bar flare. Width sizes S size: 440mm M size: 440mm ML size: 460mm L size: 460mm XL size: 460mm
-
Grips
OnOff HEX Bartape
Seatpost
Onoff S3 0-R, diameter 27.2mm, length 400mm
-
Saddle
FIZIK Terra Argo X5 140mm
Front brake
Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
-
Rear brake
Shimano GRX RX-610, RX-400 caliper, CL-800 ice tech 160mm centerlock rotor, resin pad
Brake lever
Shimano GRX RX-610, contact point adjustment, tooled reach adjust, aluminium lever.
-
Rims
Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear
Spokes
Mavic Steel double butted flat spokes
-
Front hub
Mavic, 12x100mm, IS 6 bolts
Rear hub
Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, MS Freehub
-
Front tire
Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Rear tire
Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
-
Crankset
Shimano GRX RX-610, S size: 170mm M size: 170mm ML size: 172,5mm L size: 172,5mm XL size: 175mm, CL 49,7
Rings
Shimano 40T, direct mount, steel
-
Bottom bracket
Token T47 BSA sealed bearings, 85,5mm
Chain
Shimano SLX M7100, Quick link
-
Rear derrailleur
Shimano GRX RX-822-GS, 12s
Shift levers
Shimano GRX RX-610 dual control, alloy lever
-
Casette
Shimano SLX M7100, hiperglide+,10-45, 12s
Derailleur hanger
Sram UDH
-
Weight
10,9 kg
