Marin Rift Zone 2

£1,999.00
Minus Plus

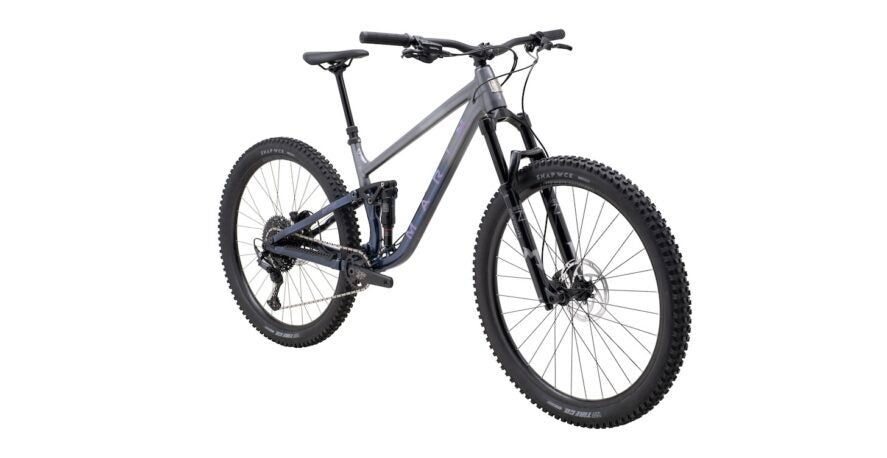

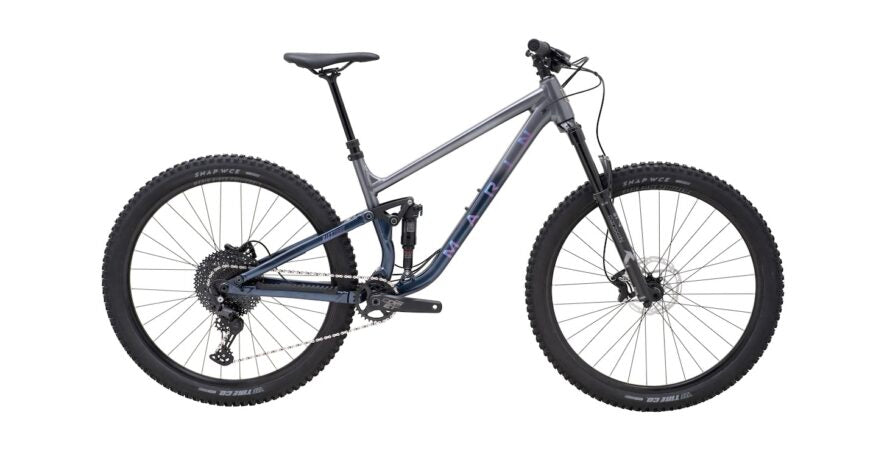

The Marin Rift Zone 2 is a full suspension mountain bike built for flowing singletrack, tight forest trails and technical descents. Its Series 3 aluminium frame pairs 130mm of MultiTrac rear suspension with a 140mm Marzocchi Bomber Z2 fork, giving you travel to smooth out rough ground while keeping the ride lively.

Shimano Deore 12-speed gearing offers a wide 10–51T range for climbs and fast trail sections. Maxxis tyres, hydraulic disc brakes and an adjustable-travel Tranz-X dropper post complete a trail-ready package, so you can settle into the climb and lower the saddle when the trail turns downhill.

Key Features

  • Series 3 6061 aluminium frame with 130mm MultiTrac rear suspension.
  • Marzocchi Bomber Z2 fork with 140mm travel and Rail damper.
  • Marzocchi Bomber Air Inline rear shock with custom tune.
  • Shimano Deore 12-speed drivetrain with 10–51T cassette.
  • Maxxis Assegai front and Minion DHR II rear tyres.
  • Tektro M5140 hydraulic disc brakes with 200mm front and 180mm rear rotors.
  • Tranz-X adjustable-travel dropper post.

Specifications

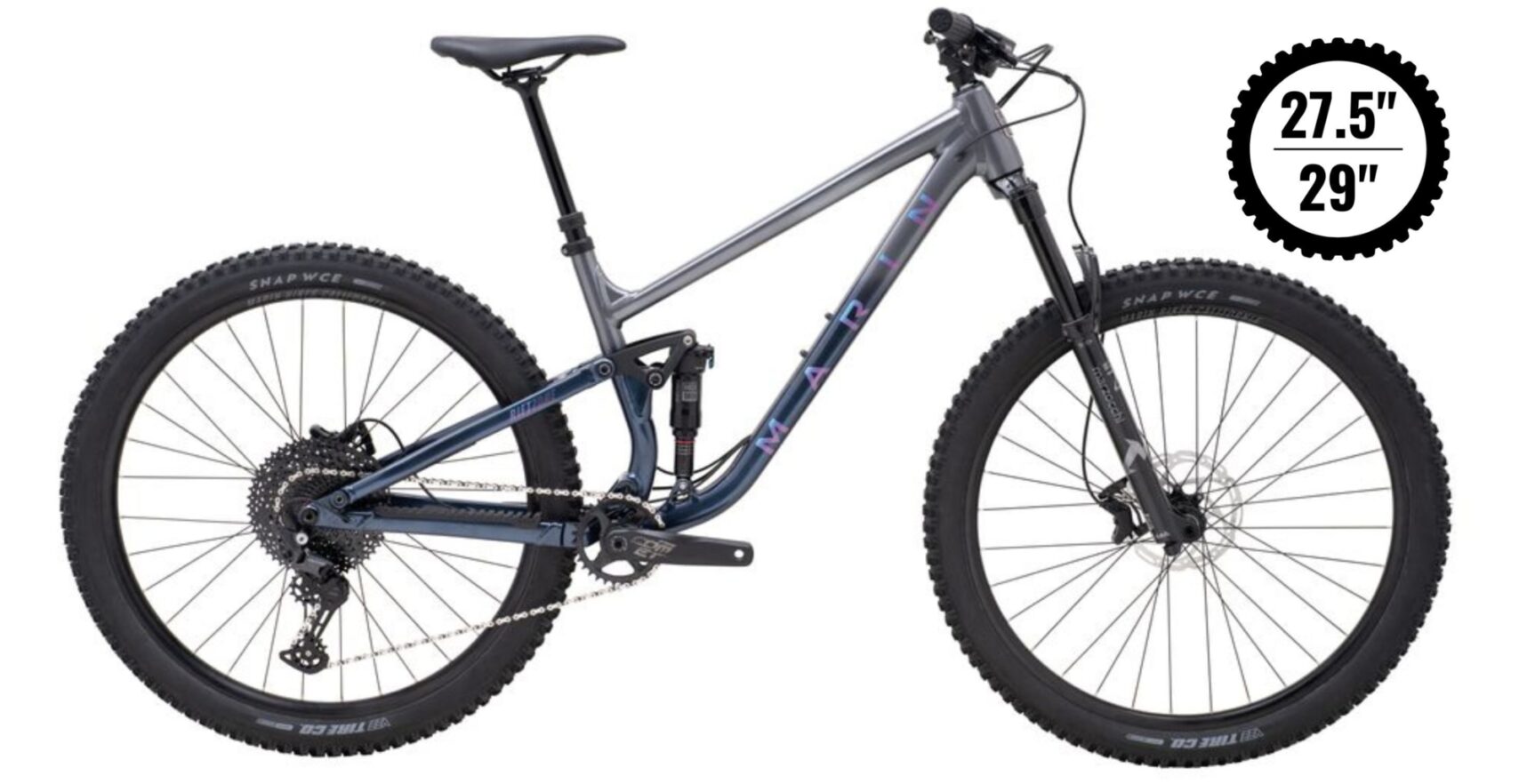

The supplied frame and fork specifications below describe the 29-inch build. A 27.5-inch wheel option is also listed; confirm the specification for your selected size and wheel option before ordering.

  • Frame: Series 3 6061 aluminium, 29-inch wheels, 130mm travel, MultiTrac suspension, 148 x 12mm Boost thru-axle, 73mm threaded bottom bracket with ISCG05 tabs.
  • Fork: Marzocchi Bomber Z2 29-inch, Rail damper with sweep adjustment, 140mm travel, Kabolt bolt-on axle, 44mm offset.
  • Rear shock: Marzocchi Bomber Air Inline, custom tune, 210 x 55mm, 25 x M8 upper and lower mounts.
  • Rims: Marin double-wall alloy, 29mm internal width, pinned joint, disc-specific, 32H, tubeless compatible.
  • Rear hub: Shimano HB-MT501B, 148 x 12mm, Centerlock, Micro Spline freehub.
  • Front hub: Shimano HF-MT500B, 110 x 15mm, Centerlock.
  • Spokes: 14g black stainless steel.
  • Tyres: Front Maxxis Assegai MAXX GRIP 2.5-inch EXO+; rear Maxxis Minion DHR II MAXXTERRA 2.5-inch EXO+. Tubeless compatible.
  • Rear derailleur: Shimano Deore 12-speed SGS.
  • Shifter: Shimano Deore SL-M6100-R, 12-speed.
  • Crankset: Marin forged alloy, integrated steel 30T narrow-wide chainring, 170mm cranks, Boost spacing.
  • Bottom bracket: External sealed cartridge bearing.
  • Chain: KMC X-12, silver and black.
  • Cassette: Shimano Deore M6100, 12-speed, 10–51T.
  • Brakes and levers: Tektro M5140 hydraulic, 200mm front rotor and 180mm rear rotor.
  • Handlebar: Marin Mini-Riser, 6061 double-butted aluminium, 780mm width, 40mm rise, 5° up, 9° back.
  • Stem: Marin 3D forged alloy, 55mm.
  • Grips: Marin Grizzly Lock On.
  • Headset: FSA No 57E, semi-sealed cartridge bearings, 1 1/8-inch x 1 1/2-inch.
  • Seatpost: Tranz-X YSI60QL adjustable-travel dropper, 30.9mm diameter. Small: 150mm; Medium: 170mm; Large/XL: 200mm.
  • Saddle: Marin Speed Concept.
  • Extras: Bolt-on 12mm thru-axle, 174mm length, 1.0 thread pitch, 16.5mm tapered head.

Specifications and price are subject to change without notice.
