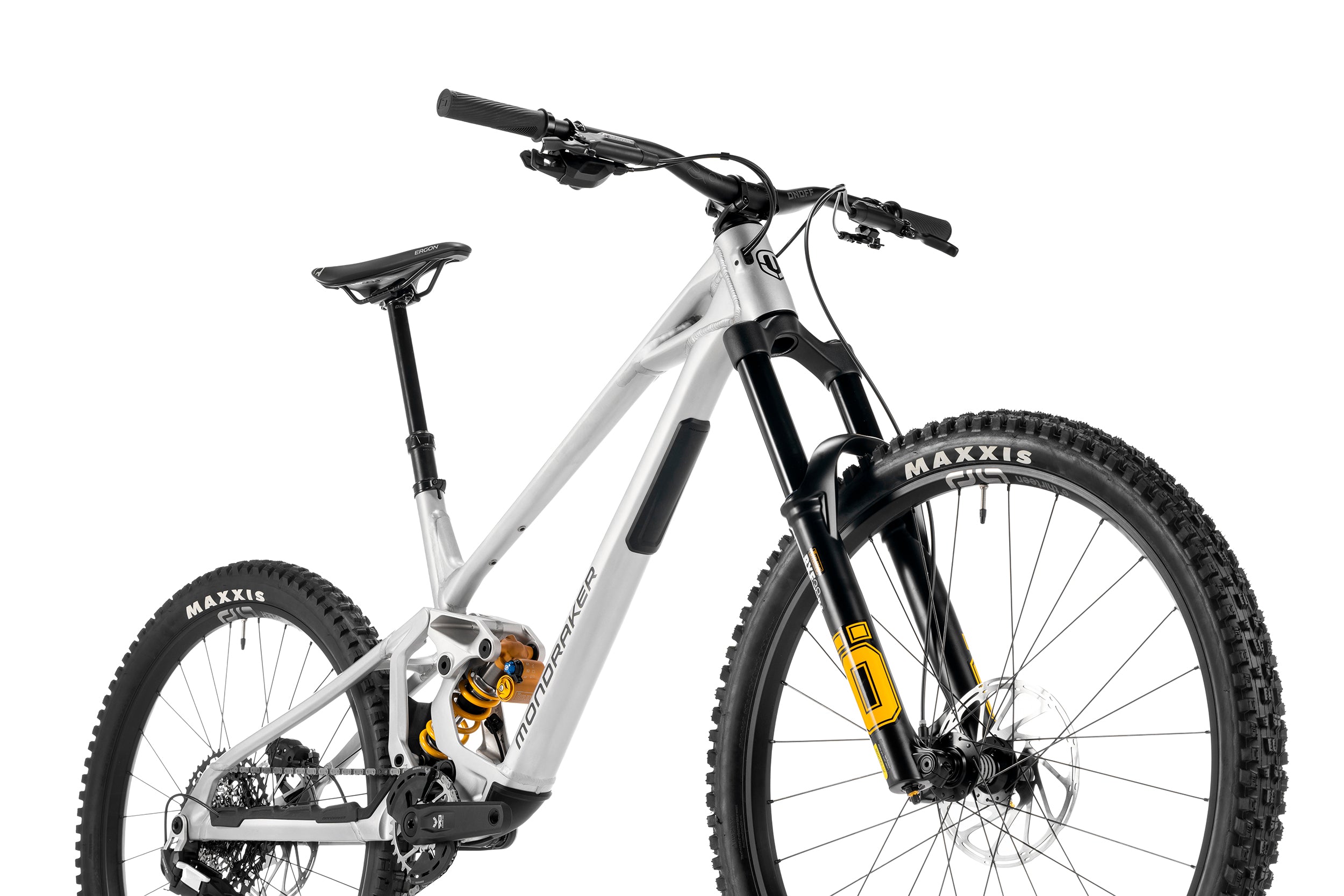

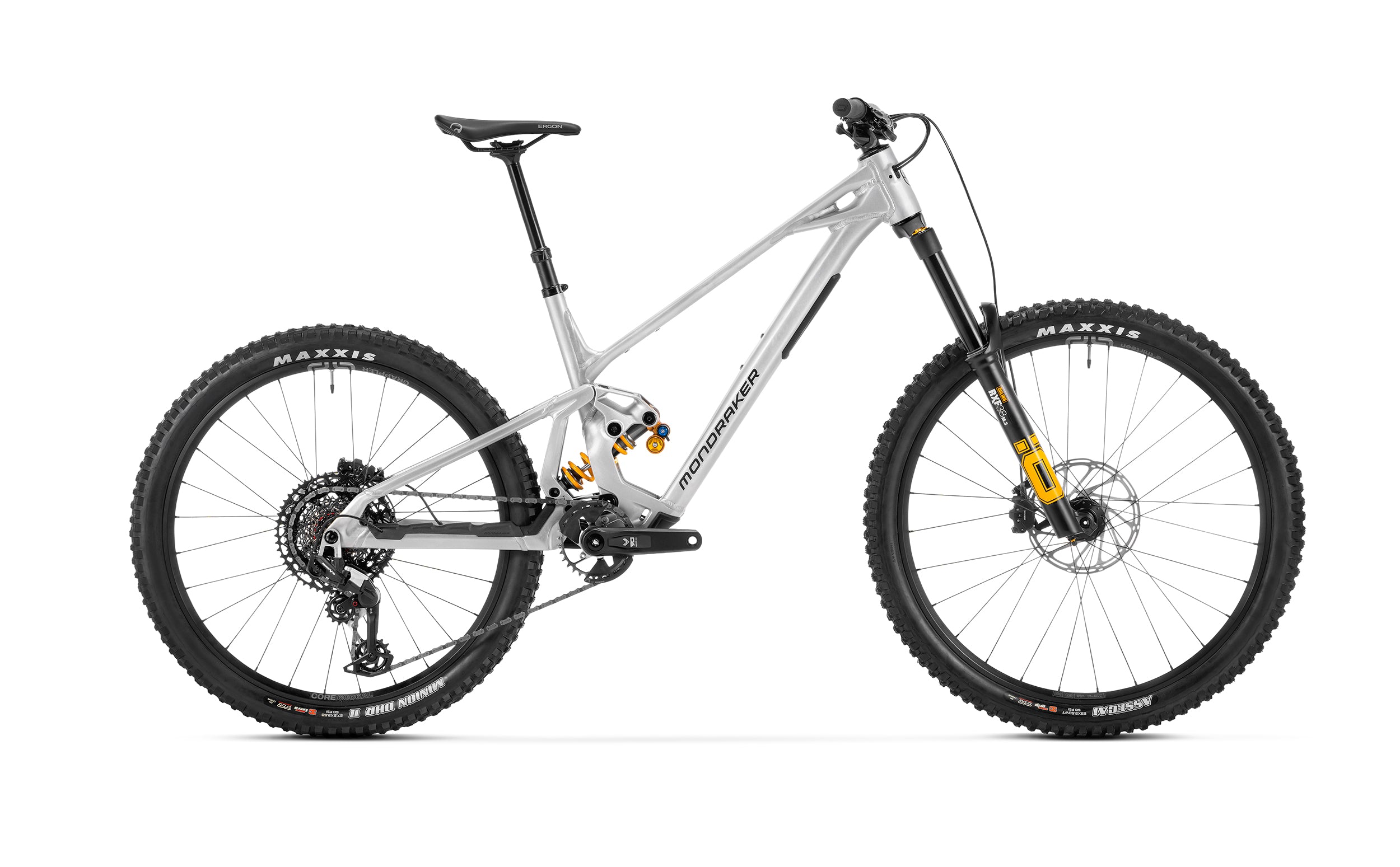

MONDRAKER ANARK XR FULL SUSPENSION BIKE PARK/ENDURO BIKE

£5,399.00
This product is unavailable

Say hello to your new favourite freeride machine.

The all-new ANARK enters the Mondraker gravity line-up for 2026, designed with a fun-first approach and slides straight into the bike park and freeride category.


ANARK brings modern geometry, kinematics and performance to the wilder side of riding. It’s about the most fun you can have on a mountain bike. We’re talking face aching grins; sock marks on dusty shins and that urge for one last party train. ANARK is all about getting in that bike park shred state.


Slappin’ turns and spraying dirt.


Bike parks and trails designed for maximum fun are on the up, and the new ANARK is the bike to find your shred state on. It builds on the success of the Foxy platform and pulls from the MFR race development programme to offer our most exciting long travel gravity rig to date.

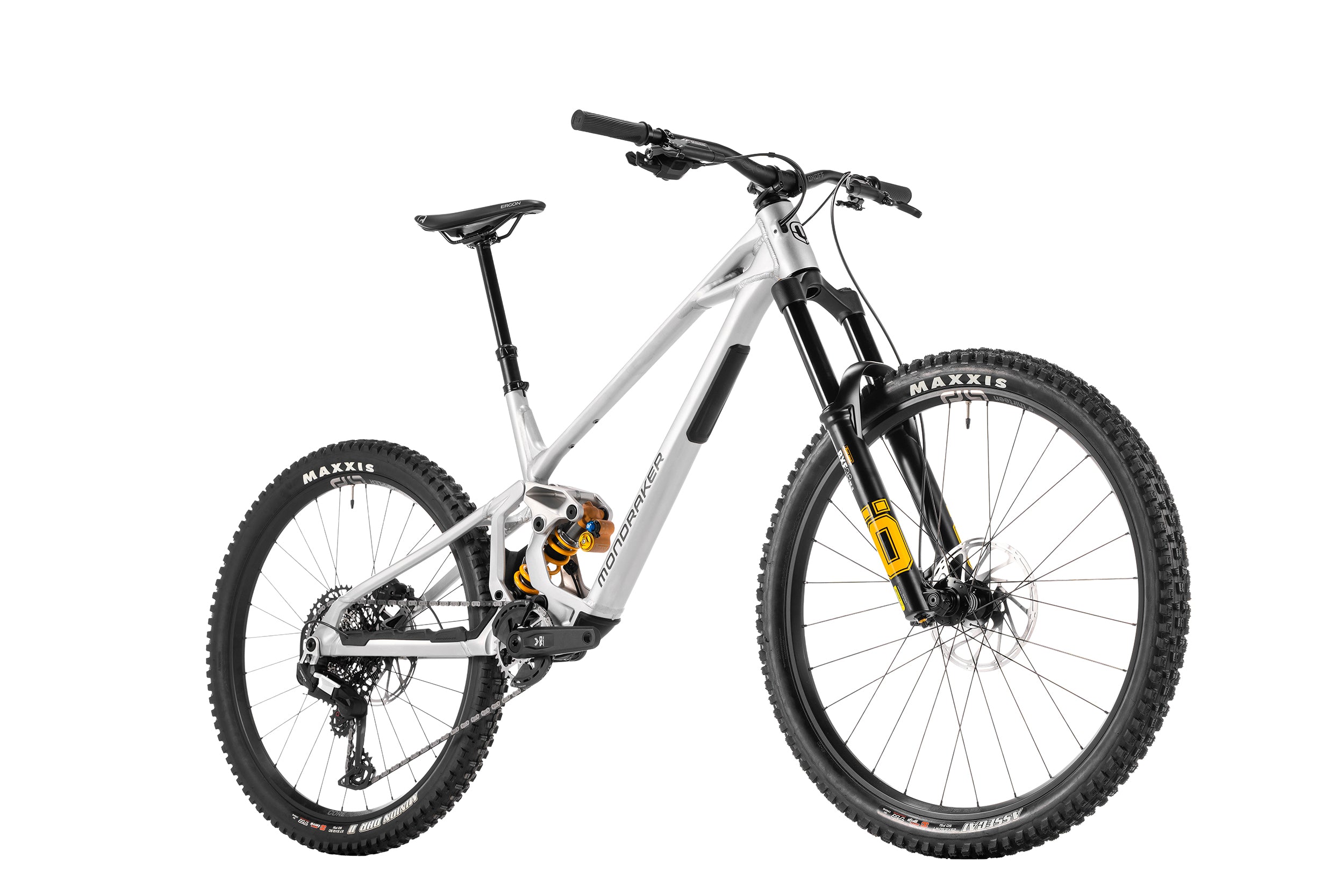

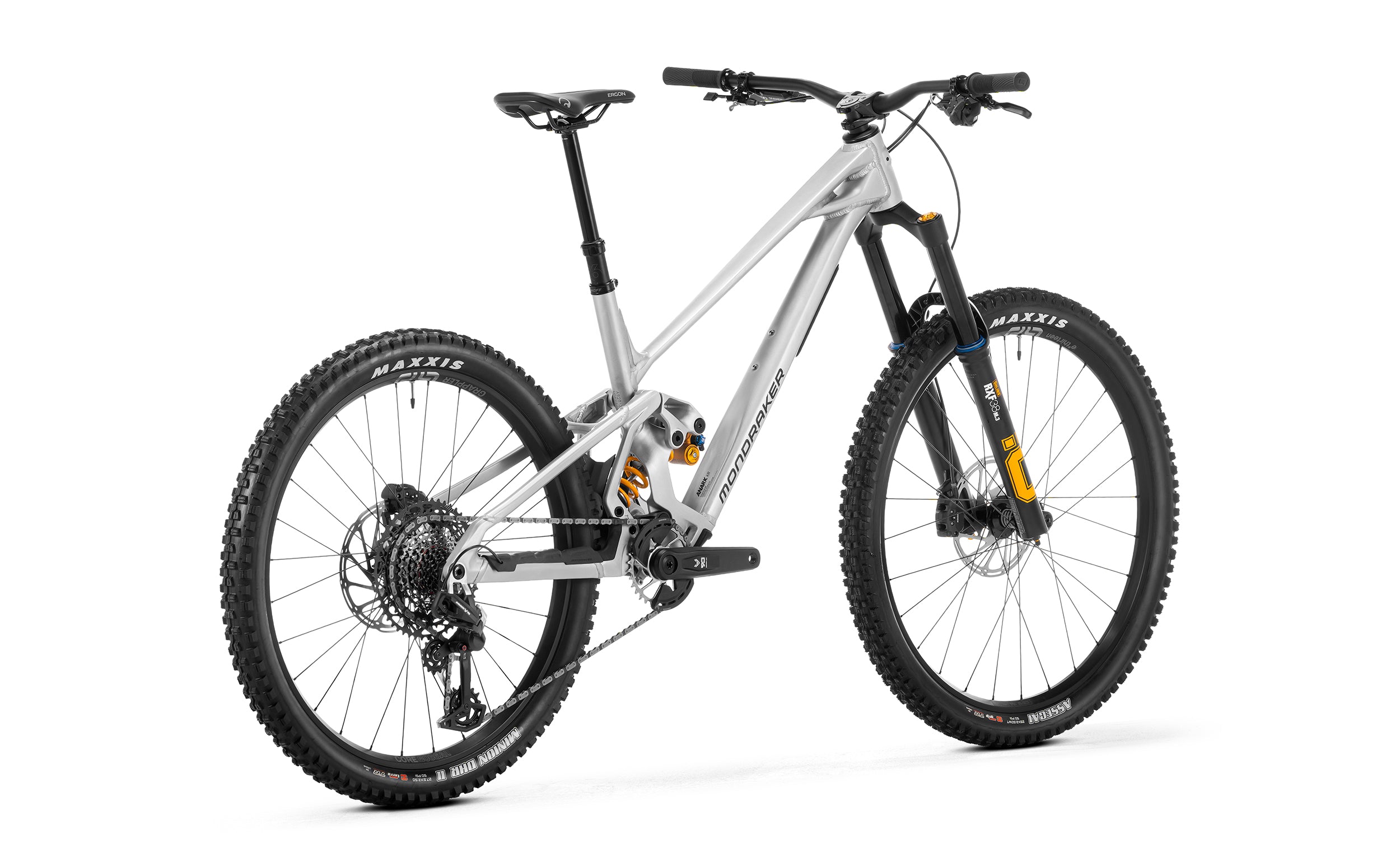

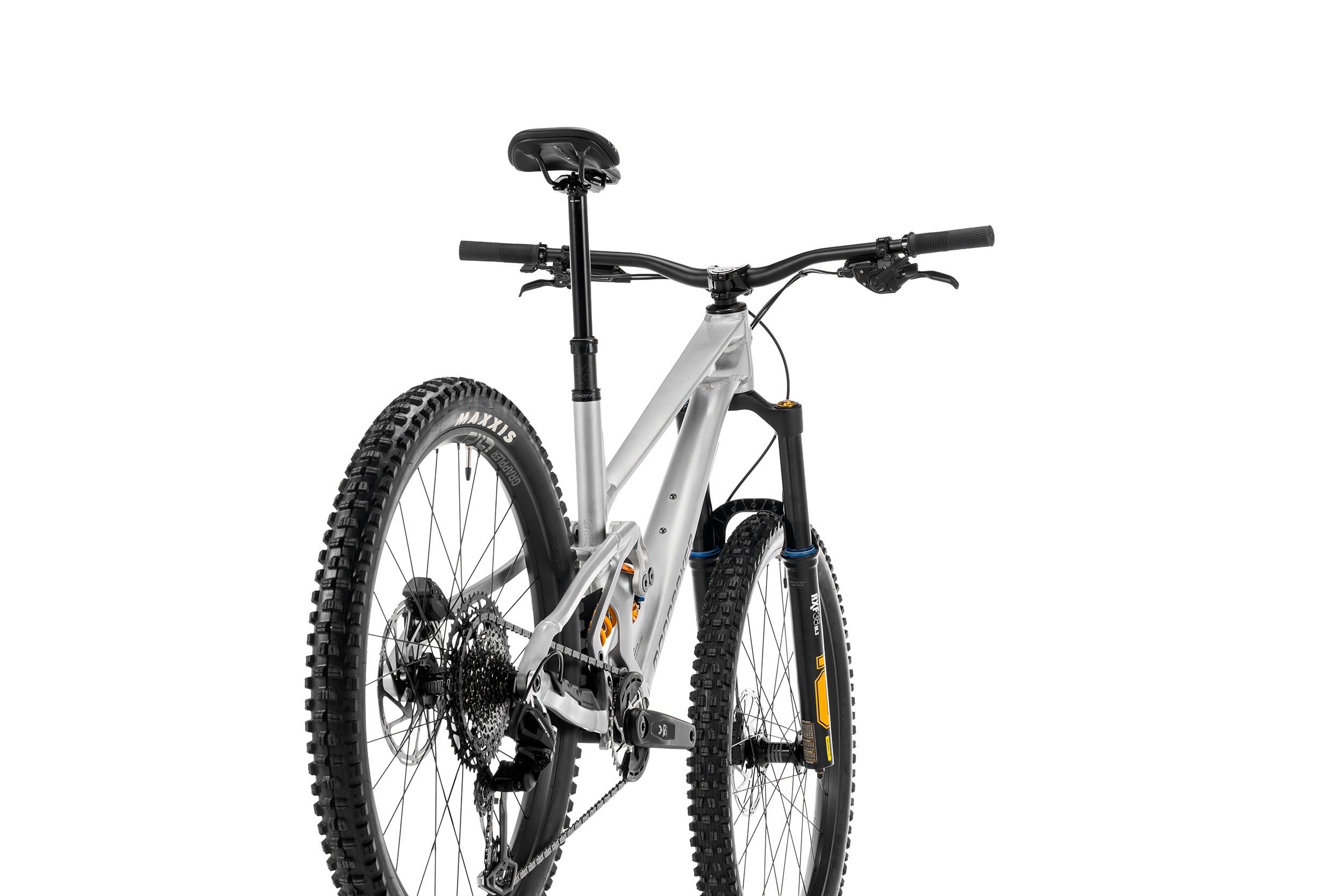

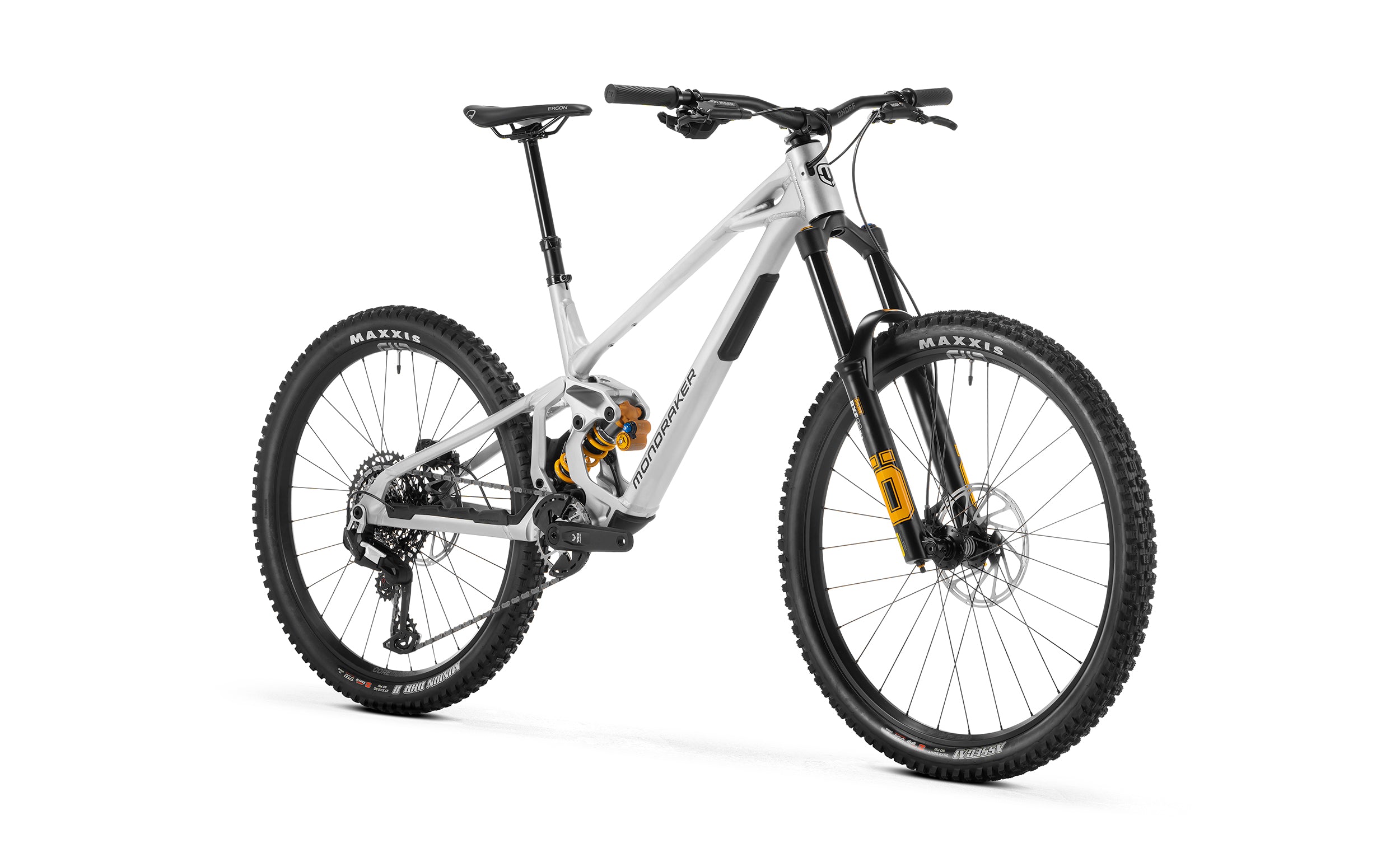

ANARK XR

Mullet     180 mm     170 mm   Alloy
  • Rear shock · Öhlins TTX 22M.2 Coil 205X65mm.
  • Fork · Öhlins RXF 38 M.3 29, 180mm
  • Brake lever · Sram Maven Base
  • Rims · e*thirteen Grappler Core
  • Rear derrailleur · Sram 90 Eagle, T-Type, 12s

Components

Technical specs

  • frame

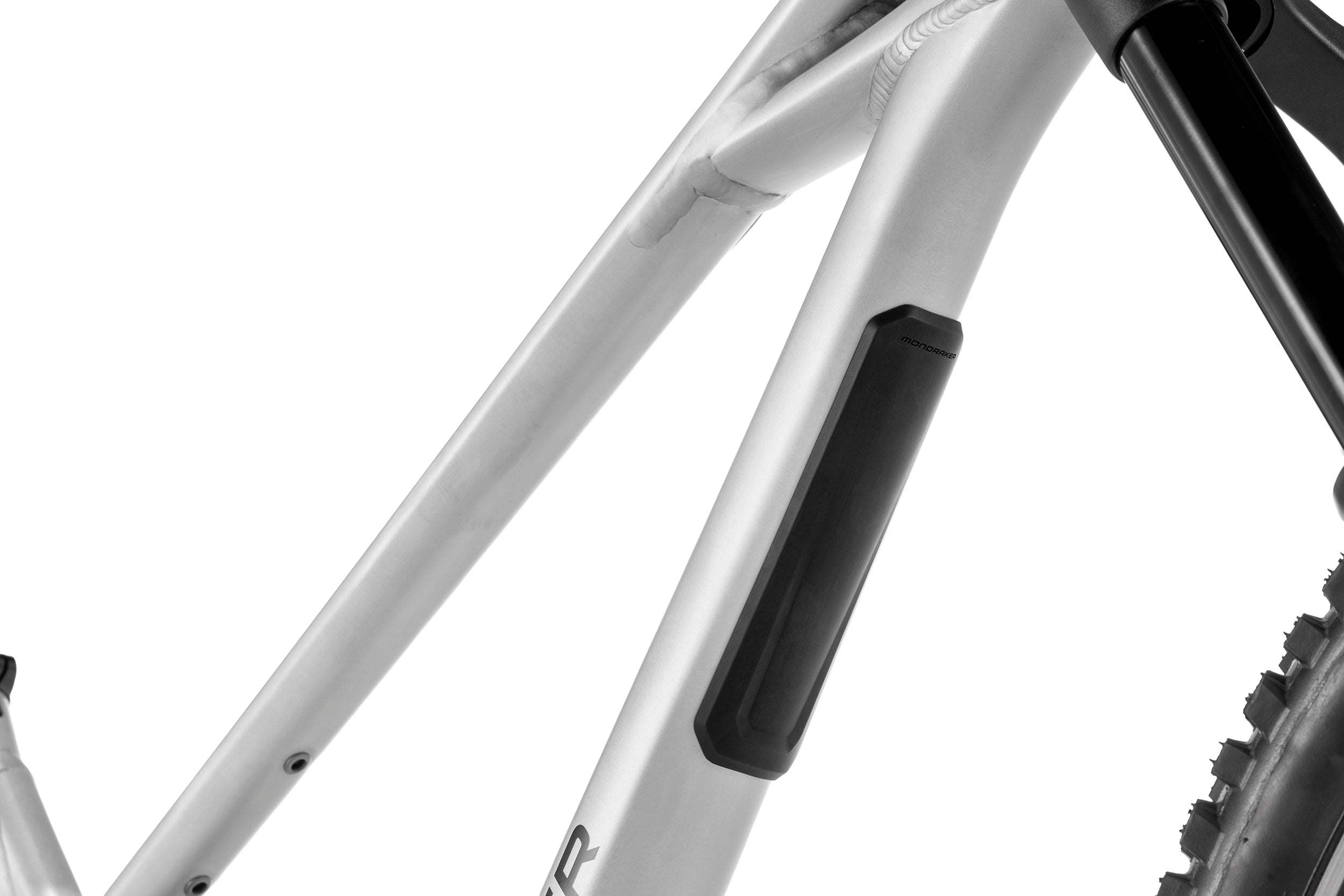

    Frame

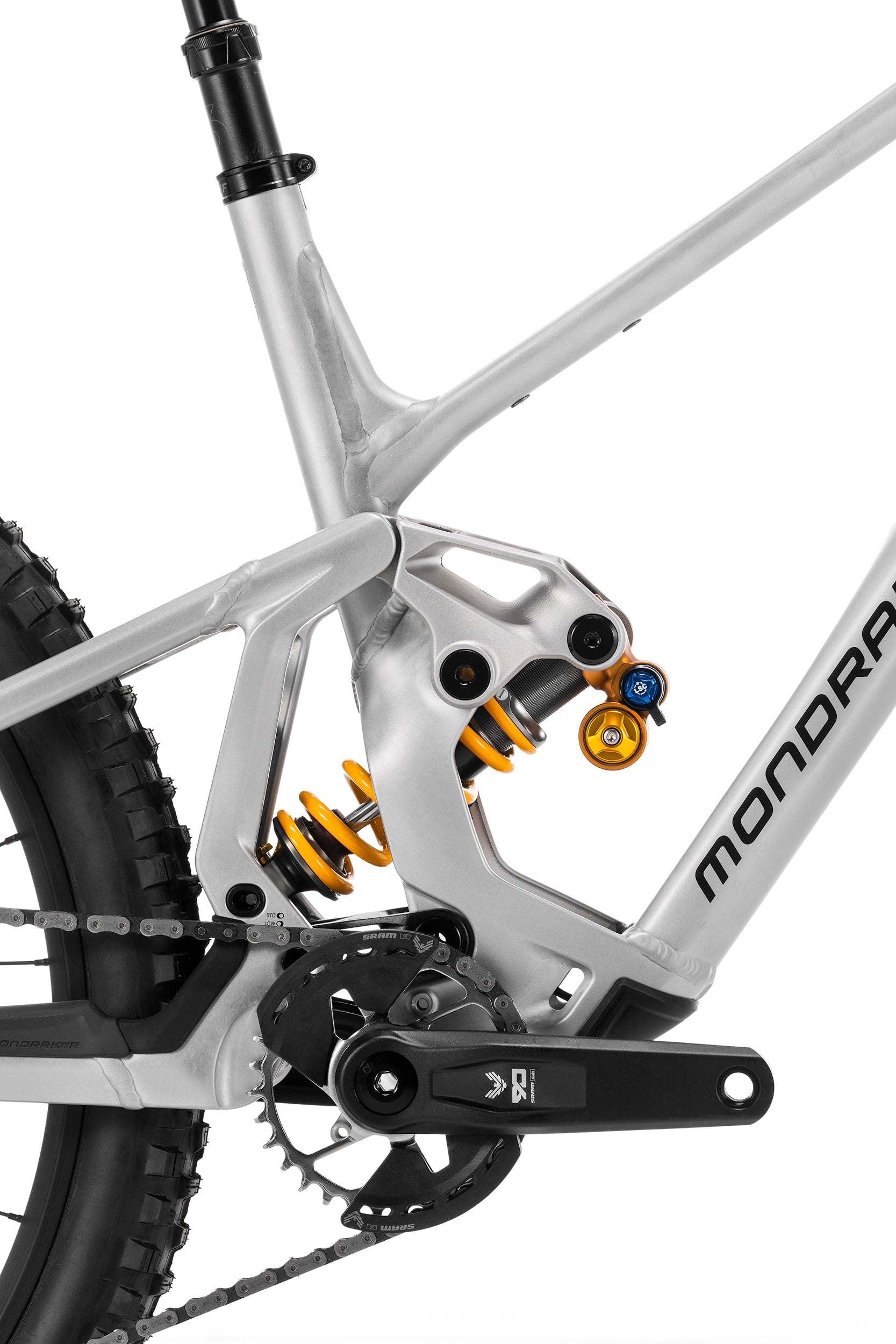

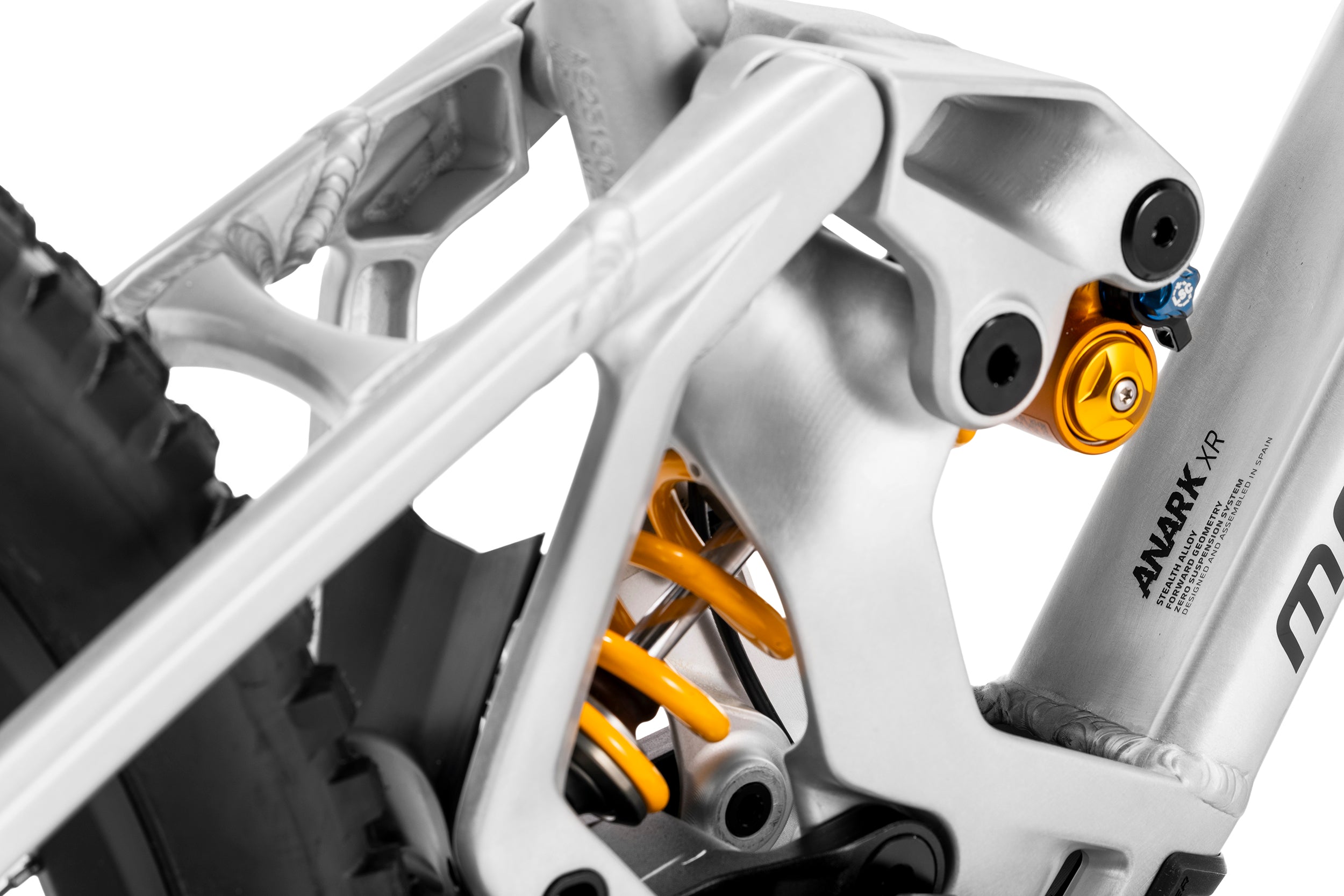

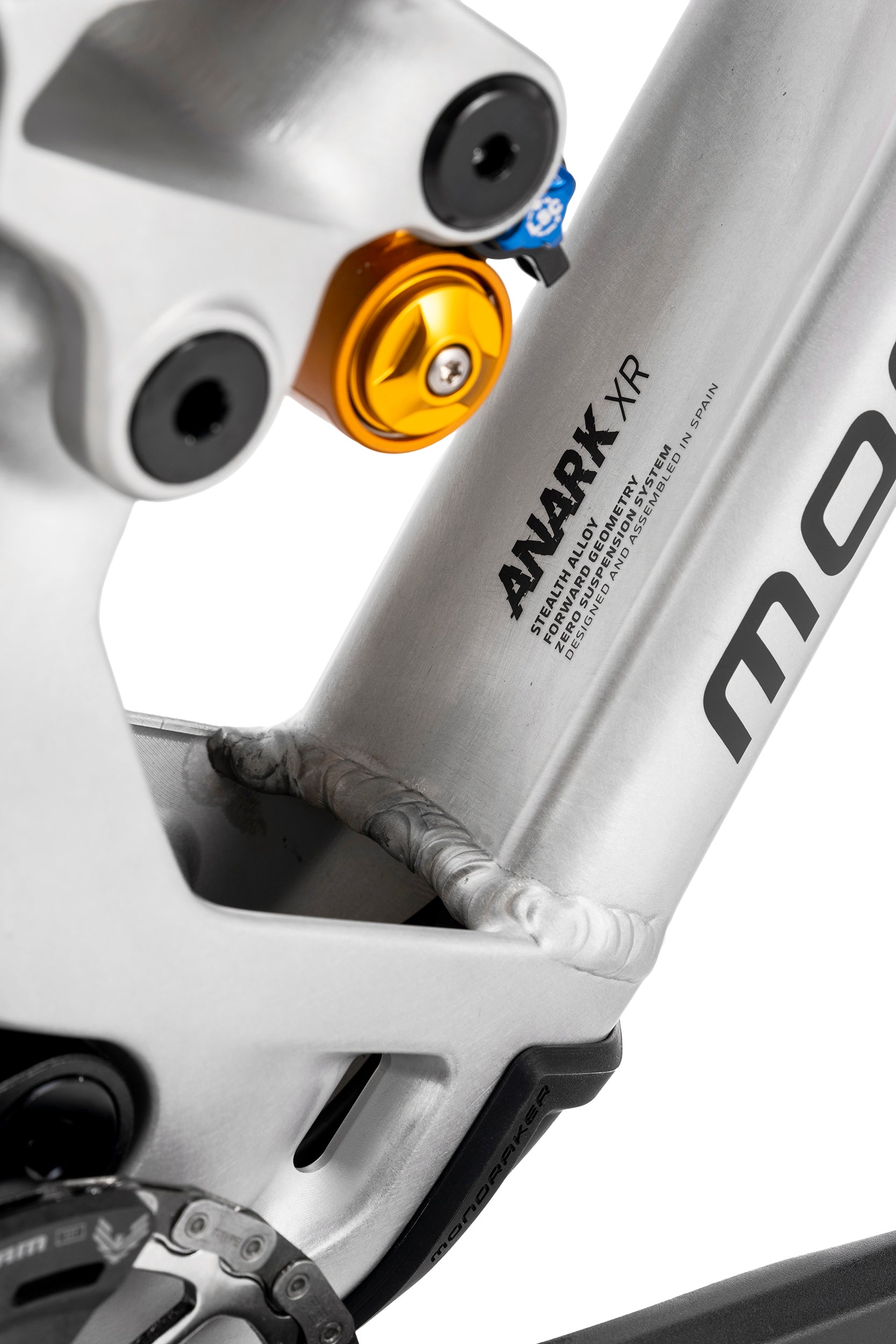

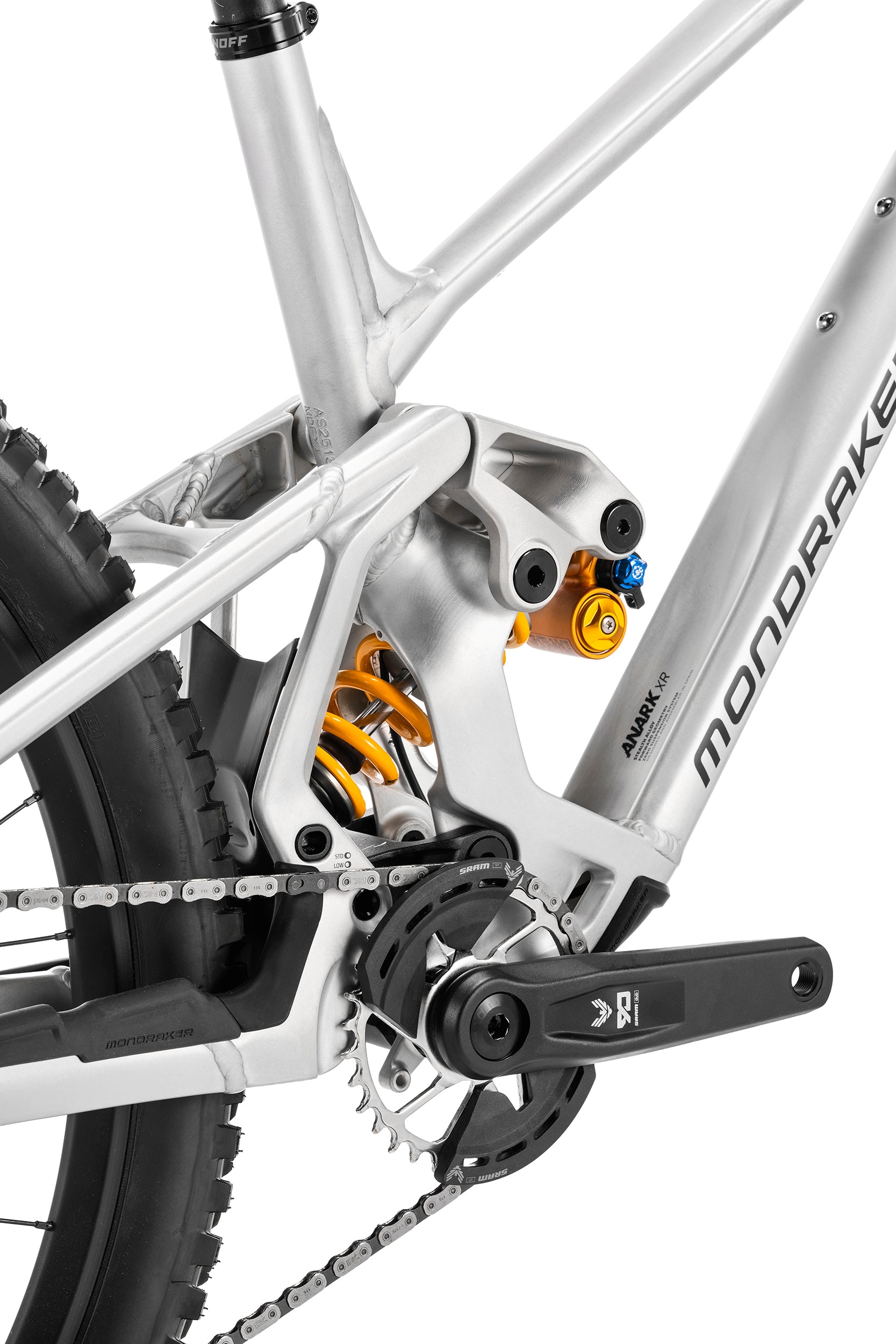

    Anark 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 170mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, Max. capacity sealed bearings, ISCG 05


    sizes

    Sizes

    S: 440mm / M: 460mm / ML: 480mm / L: 500mm / XL: 520mm

  • rear shock

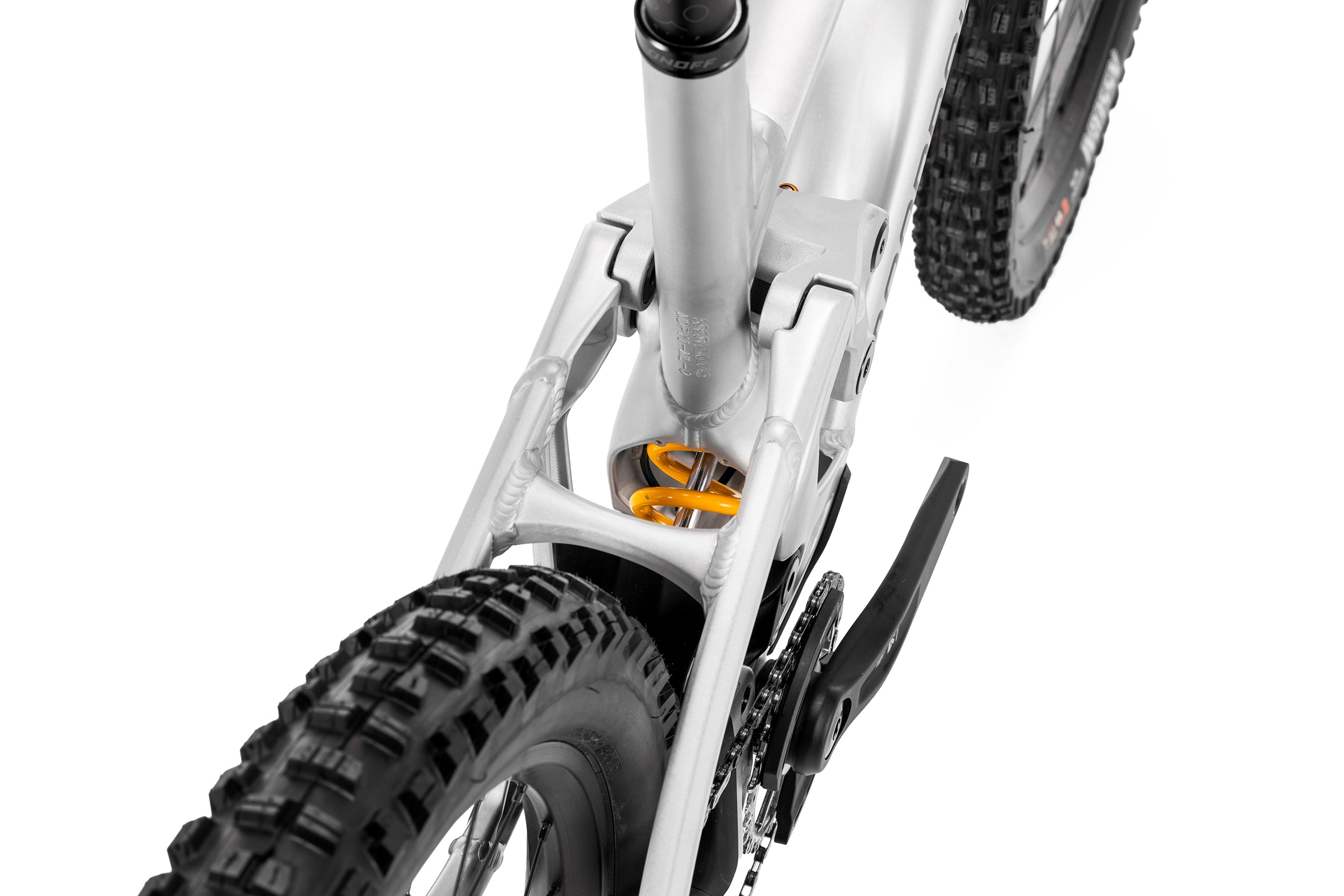

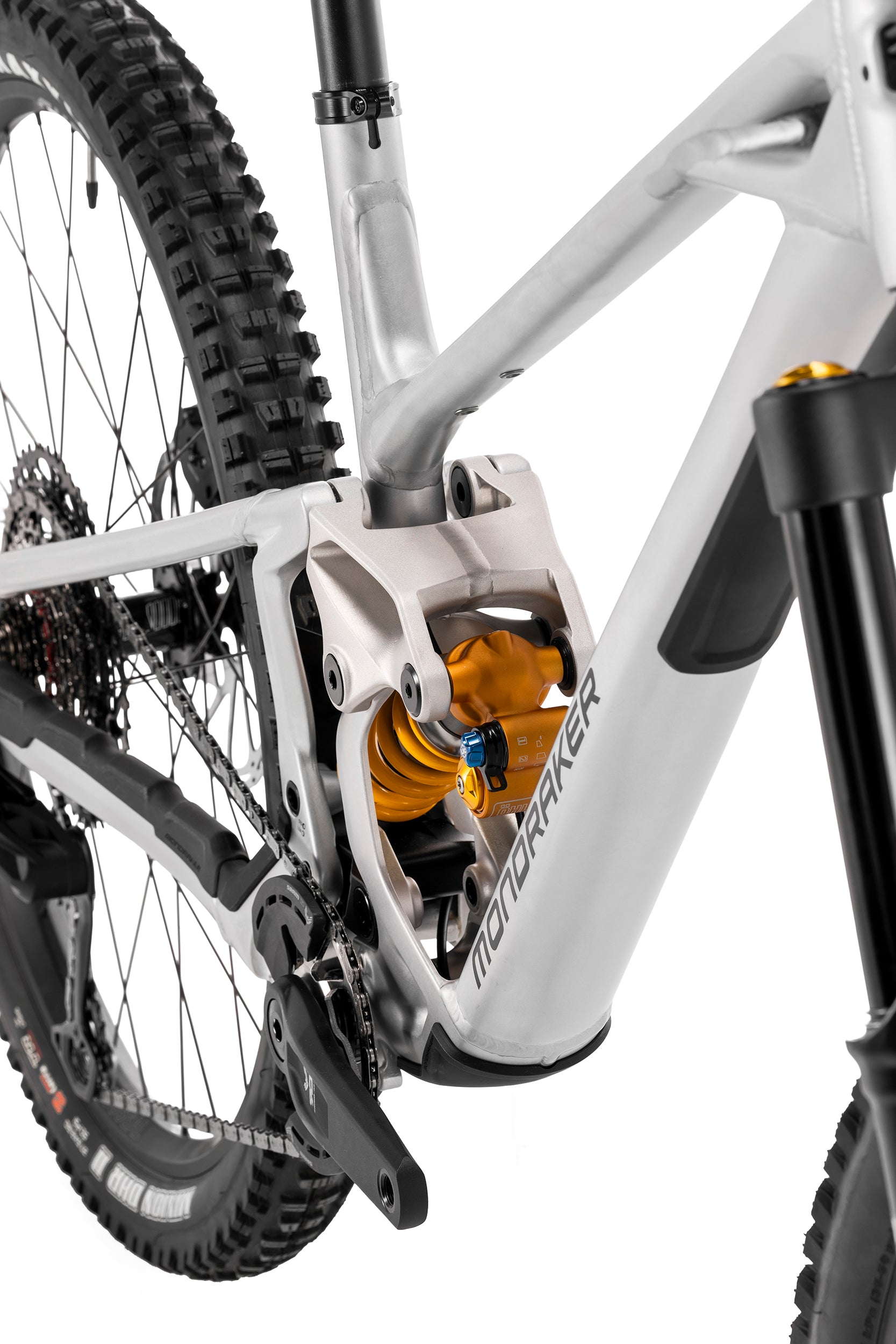

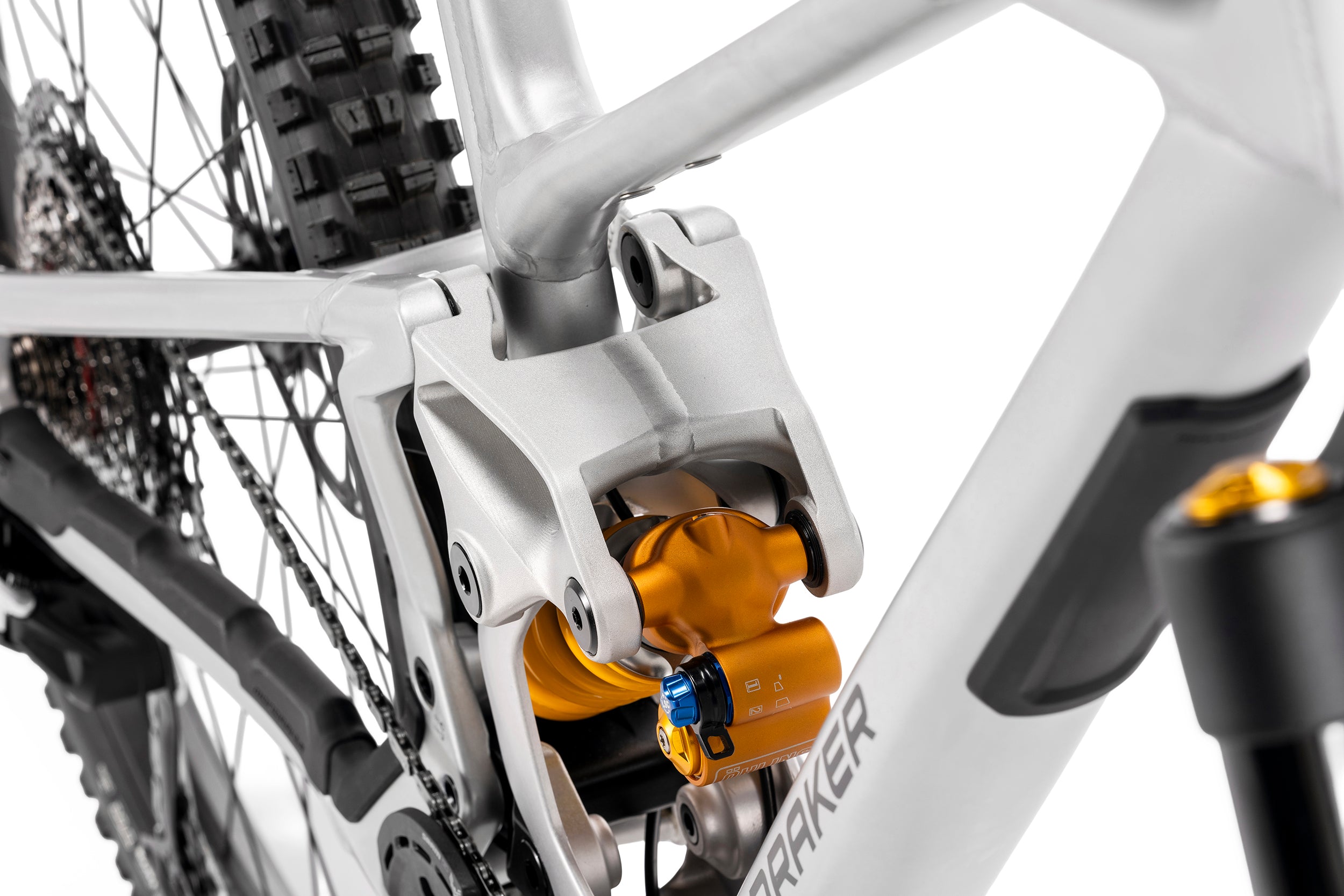

    Rear shock

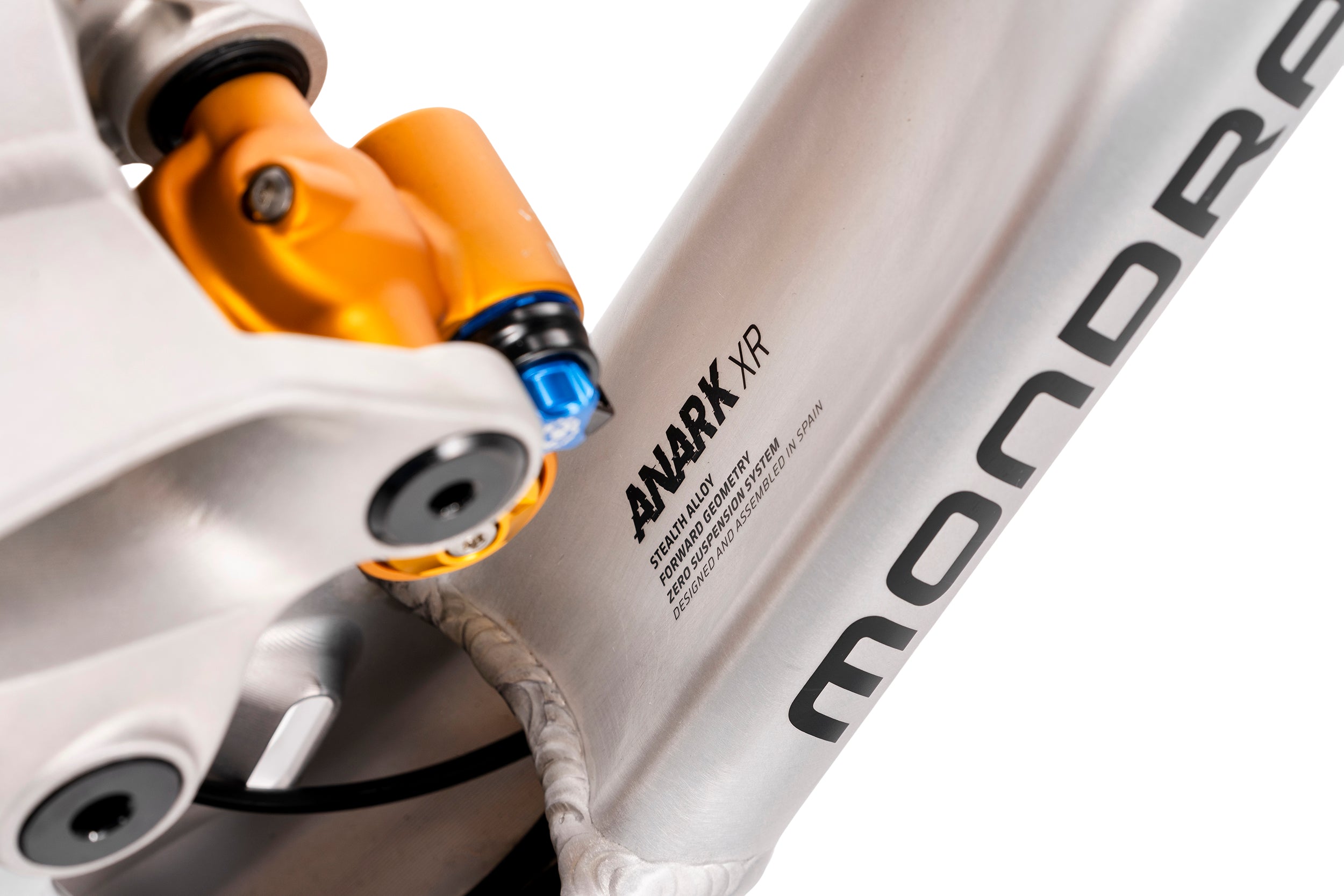

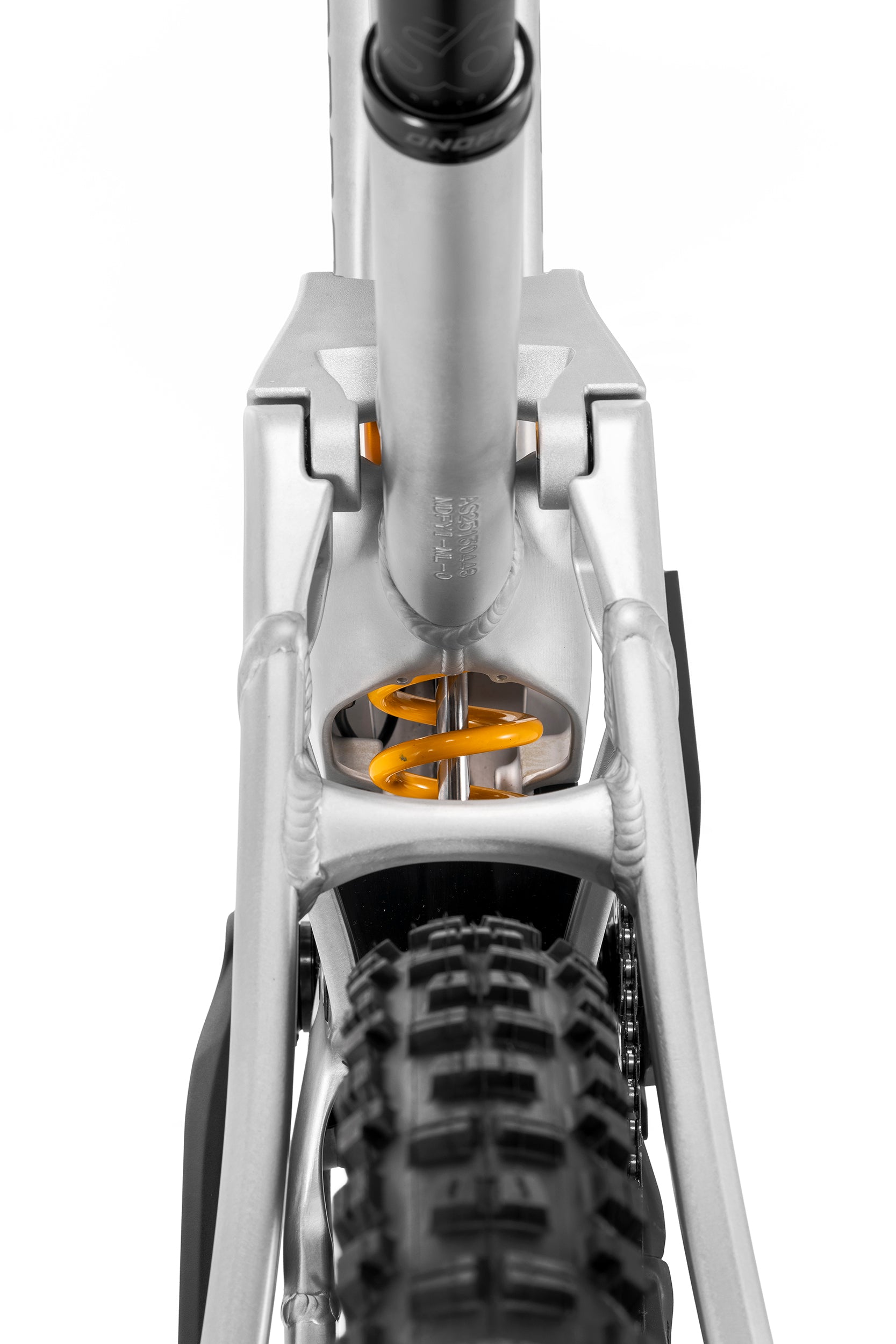

    Öhlins TTX 22M.2 Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound. Trunnion top mount, 30x8mm bottom bushings


    shock settings

    Shock settings

    C10 compression, R20 rebound. Spring rate: S size 343 lbs, M size 411 lbs, size ML 457 lbs, L size 502 lbs, XL size 502 lbs

  • fork

    Fork

    Öhlins RXF 38 M.3 29, 180mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber


    headset

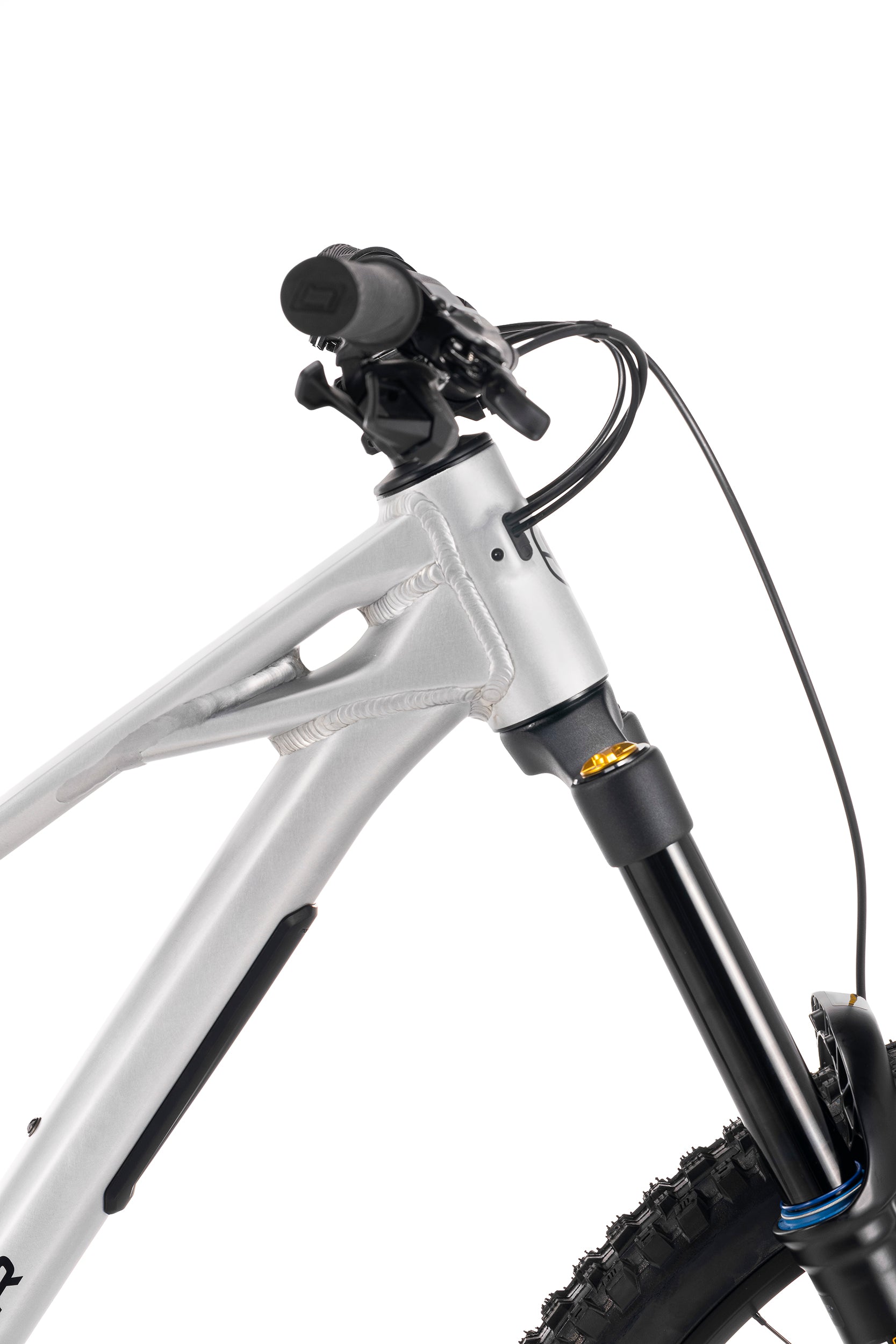

    Headset

    Onoff custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

  • stem

    Stem

    Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore


    handlebar

    Handlebar

    Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

  • grips

    Grips

    Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size


    seatpost

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

  • saddle

    Saddle

    Ergon Enduro SPS20


    front brake

    Front brake

    Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

  • rear brake

    Rear brake

    Sram Maven Base, 18 and 19.5-millimeter 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads


    brake lever

    Brake lever

    Sram Maven Base , SwingLink and lever pivot bushings, tools-free reach adjust

  • rims

    Rims

    e*thirteen Grappler Core, IW30 Hookless, 6066 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes


    spokes

    Spokes

    e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

  • front hub

    Front hub

    e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts


    rear hub

    Rear hub

    e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub

  • front tire

    Front tire

    Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, DH casing, 60x2TPI, folding bead


    rear tire

    Rear tire

    Maxxis Minion DHR II 27''5x2.5 WT, tubeless ready, 3C Maxx Terra compound, DH protection, 60x2TPI, folding bead

  • crankset

    Crankset

    Sram 90 T-Type, Boost, DUB axle, Direct mount chain ring, S size: 165mm M size: 165mm ML size: 165mm L size: 170mm XL size: 170mm, CL 55


    rings

    Rings

    32T, Alloy, T-type

  • bottom bracket

    Bottom bracket

    Sram DUB BSA, sealed bearings, 73mm


    chain

    Chain

    Sram 70 T-Type, 12s Flattop, PowerLock

  • rear derrailleur

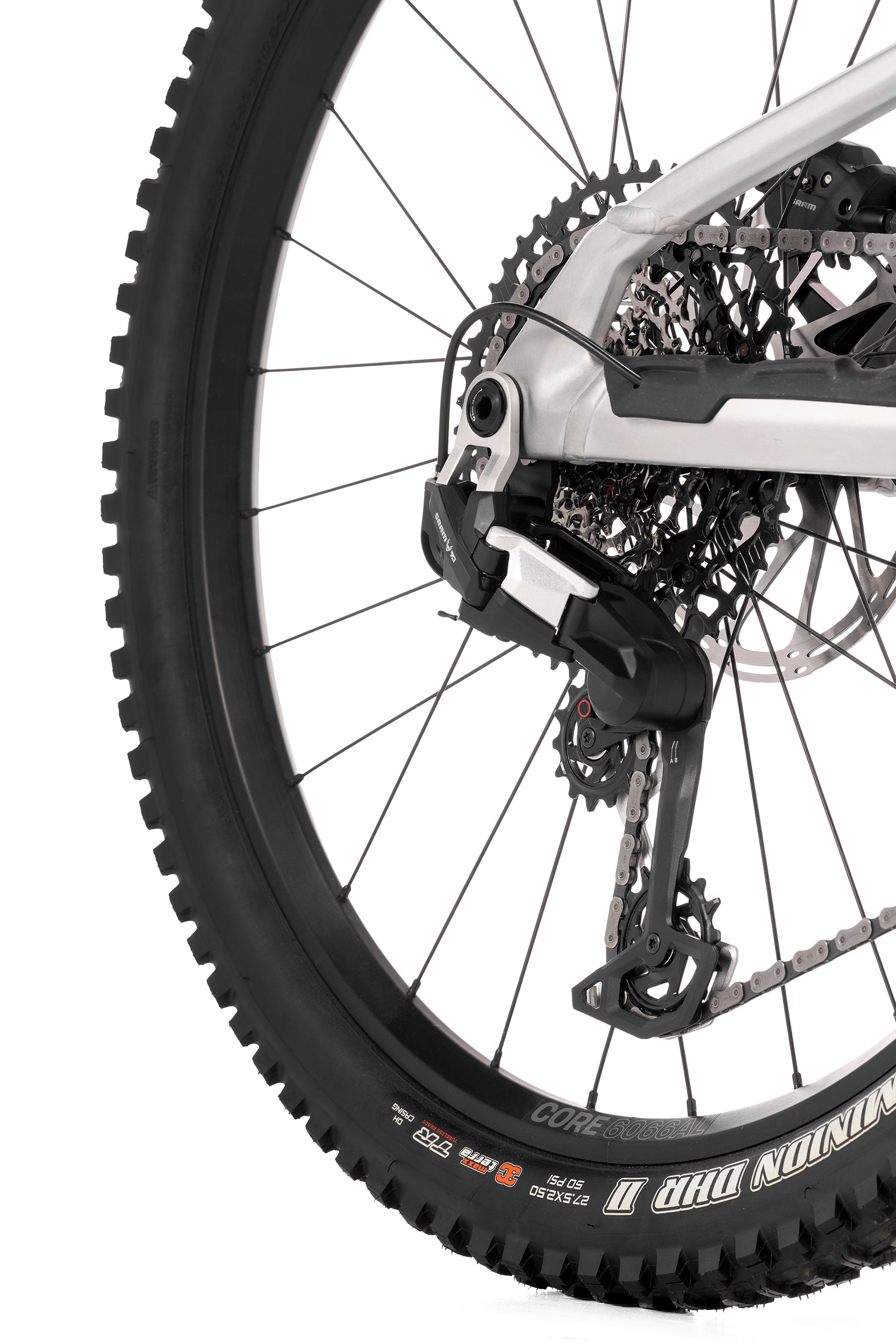

    Rear derrailleur

    Sram 90 Eagle, T-Type, 12s


    shift levers

    Shift levers

    Sram Trigger 70, 12s, T-Type Actuation

  • casette

    Casette

    Sram XS-1270, 10-52T, 12s


    weight

    Weight

    17,9 kg
