FAST PACED, EPIC RIDES
PUSHING THE ENVELOPE UP AND DOWN THE TRAIL
CHASING PERSONAL RECORDS

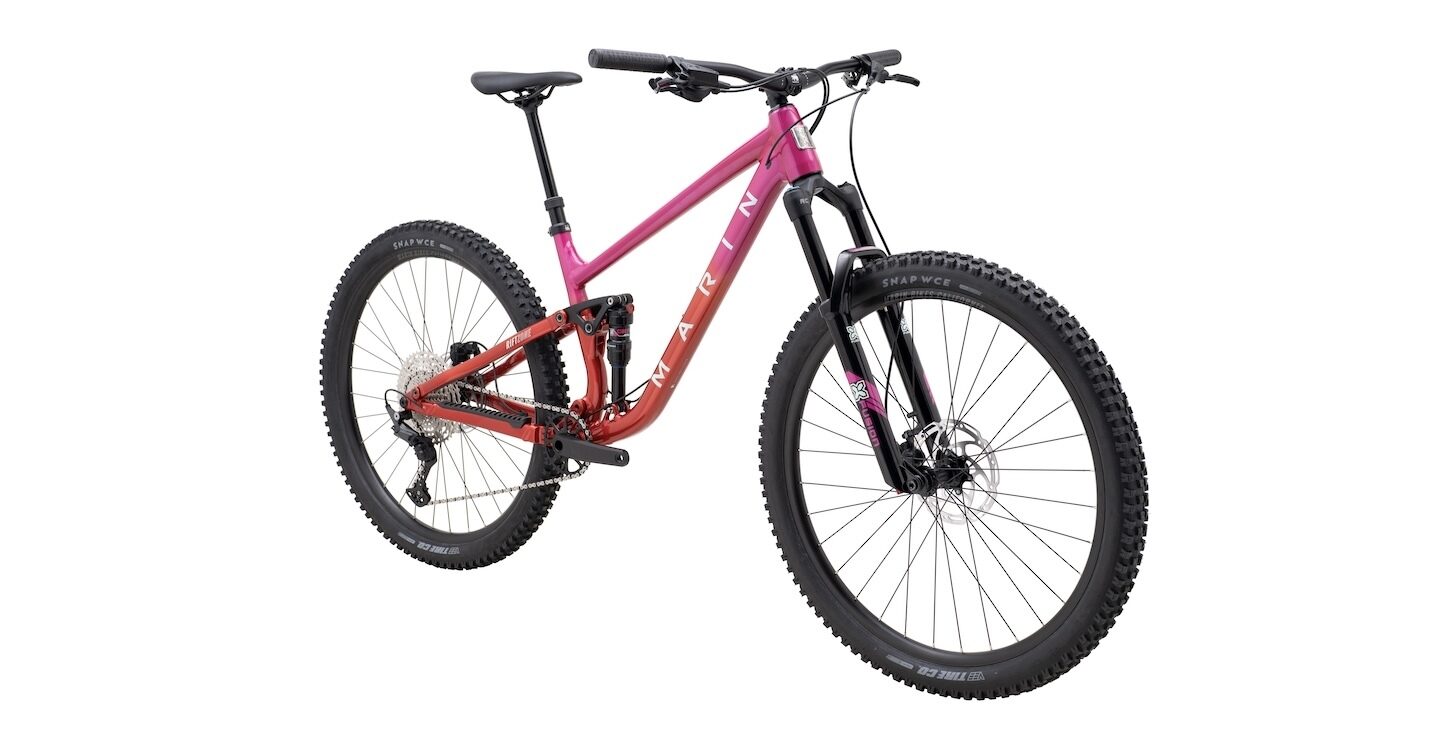

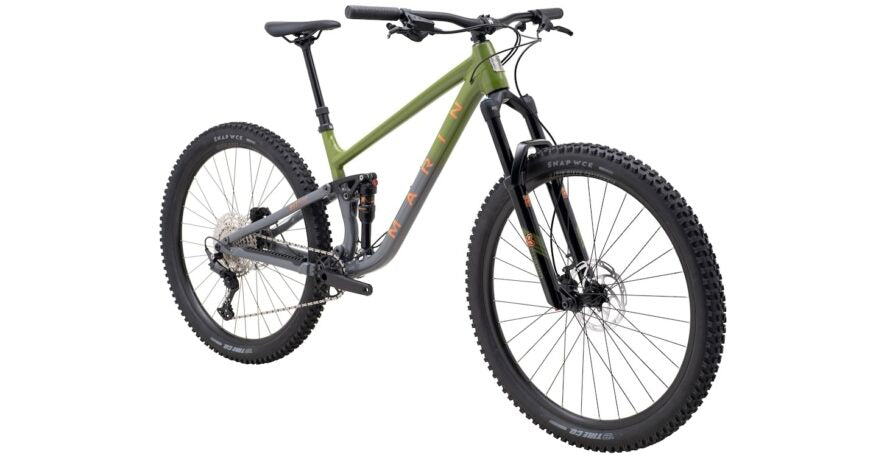

The Rift Zone is our most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.
-
FRAME Series 3 6061 Aluminum Frame, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
-
FORK RockShox Recon Silver RL 29", 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110x15mm Boost Spacing, Maxle Stealth, 42mm Offset SHOCK X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom
-
RIMS Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specifc, Tubeless Compatible
-
HUB REAR Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body
-
HUB FRONT Shimano HF-MT400B, 110x15mm, Centerlock
-
SPOKES 14g Black Stainless Steel TIRES Vee Tire Crown Gem 29x2.35", Dual Control Compound, Tubeless Ready
-
DERAILLEUR REAR Shimano Deore, 11-Speed, SGS SHIFT LEVER Shimano Deore, 11-Speed, SL-5100R
-
CRANKSET Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
-
BOTTOM BRACKET External Sealed Cartridge Bearing
-
CHAIN KMC X-11 Silver and Black CASSETTE Sunrace, 11-Speed, 11-51T, ED Black
-
BRAKES FRONT Shimano BR-MT201 Hydraulic Disc, 180mm Rotor
-
BRAKES REAR Shimano BR-MT201 Hydraulic Disc, 180mm Rotor
-
BRAKE LEVERS Shimano BR-MT201 Hydraulic Disc
-
HANDLEBAR Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back STEM Marin 3D Forged Alloy, 35mm
-
GRIPS Marin MTN, Closed End
-
HEADSET FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
-
SEATPOST Marin Alloy, 30.9mm SADDLE Marin Speed Concept
-
EXTRAS Closed 9-12 Thru-Axle QR System
