Yeti SB140 C Series

£4,995.00 £6,995.00
By Yeti

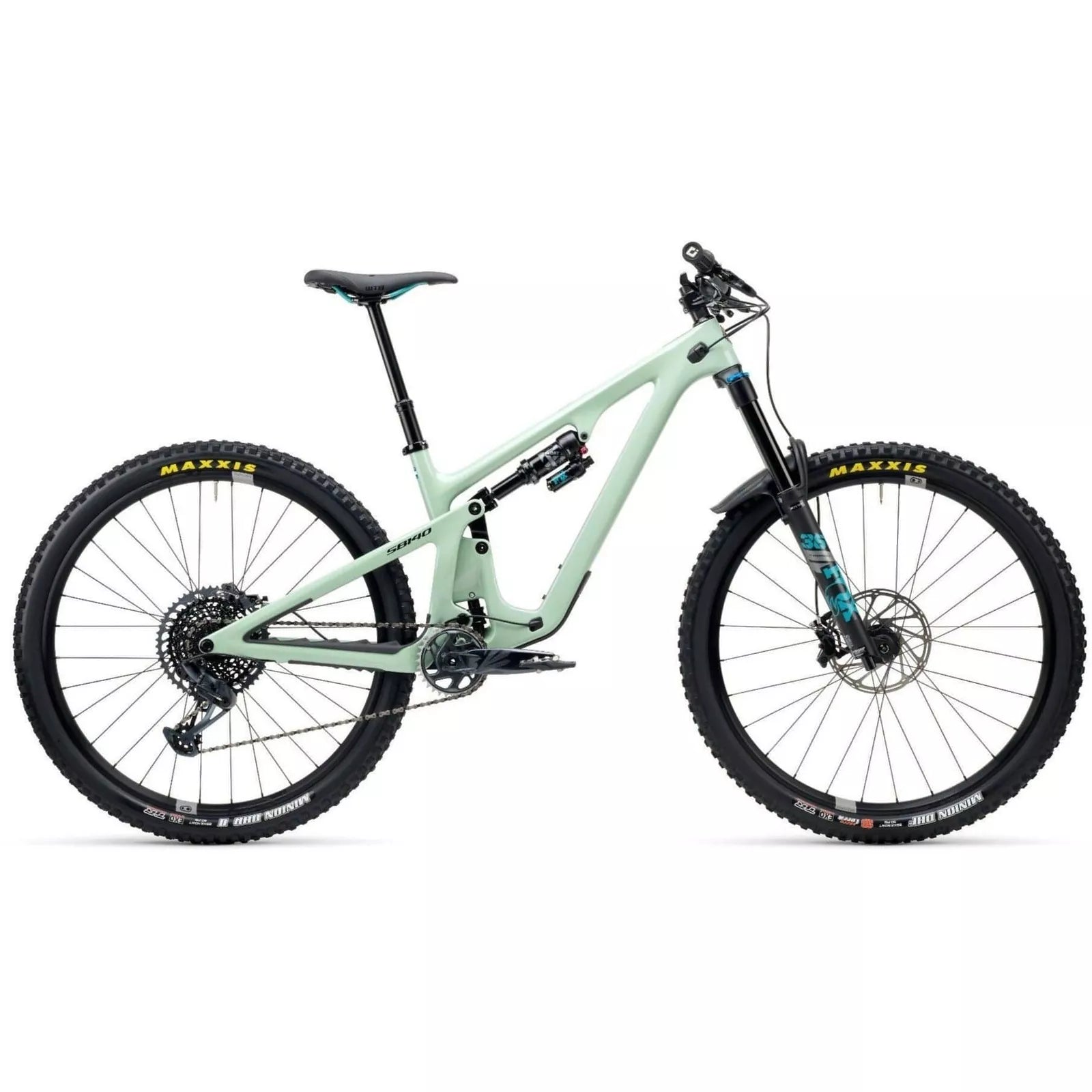

Yeti SB140 C-Series C2 29 Lunch Ride Bike (Sage)

MEET THE BIKE IN BETWEEN NOTHING. LEAVING NO RIDER WANTING. MASTER OF THE CLIMB, THE BOMB, THE RAIL AND THE AIR. THE UTTERLY UNEQUIVOCAL. THE RULE CRUSHER. THE TREND BUSTER. NO RIG CAN RULE ALL, BUT THIS ONE CAN ABSOLUTELY RULE. THE MOUNTAIN BIKE.

SPECIFICATION

C/Series carbon fibre frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing, 148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.

FORK FOX PERFORMANCE 36/160MM
SHOCK FOX PERFORMANCE FLOAT X
TYRE (F) MAXXIS MINION DHF 2.5 EXO
TYRE (R) MAXXIS MINION DHR II 2.4 EXO
ROTOR (F) SRAM CENTERLINE 200
ROTOR (R) SRAM CENTERLINE 180
HEADSET CANE CREEK 40 INTEGRATED
WHEELSET CRANK BROTHERS SYSTHESIS ENDURO 30MM
BB SRAM DUB BSA 73
GRIPS ODI ELITE PRO
BAR BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM
STEM BURGTEC ENDURO MK3 35X50MM
CRANK SRAM GX EAGLE 30T 170MM
SADDLE SILVERADO CUSTOM
BRAKES SRAM CODE R
DERAILLEUR SRAM GX EAGLE
CASSETTE SRAM GX EAGLE 1275 10-52
CHAIN SRAM GX EAGLE
SHIFTER SHIMANO XT
SEATPOST ONEUP DROPPER POST 31.6MM / SM: 150MM, MD: 180MM, LG-XXL: 210MM


Please note: Specifications are subject to change without notice.



GEOMETRY

All measurements are shown in millimetres.


160MM FORK SM MD LG XL XXL
A SEAT TUBE LENGTH 365 400 440 470 485
B EFF. TOP TUBE LENGTH 573 603 624 652 671
C HEAD TUBE ANGLE 65.0 65.0 65.0 65.0 65.0
D EFF. SEATTUBE ANGLE 77.0 77.0 77.0 77.0 77.0
E ACTUAL SEATTUBE ANGLE 71.8 72.2 72.4 72.8 73.3
F CHAINSTAY LENGTH 436 438 440 442 444
G WHEELBASE 1188 1221 1246 1277 1304
H ESTIMATED BB HEIGHT 342 342 342 342 342
I STANDOVER 726 733 737 739 744
J HEADTUBE LENGTH 92 95 100 112 134
K FORK (AXLE TO CROWN) 575 575 575 575 575
L FORK (OFFSET) 44 44 44 44 44
M STACK 617 620 625 635 655
N REACH 430 460 480 505 520
O FRONT CENTER 752 783 806 835 860
P VERTICAL FORK TRAVEL 145 145 145 145 145
