Yeti ARC T-Series Mountain Bike Frame 2022

£1,695.00 £1,799.00
By Yeti

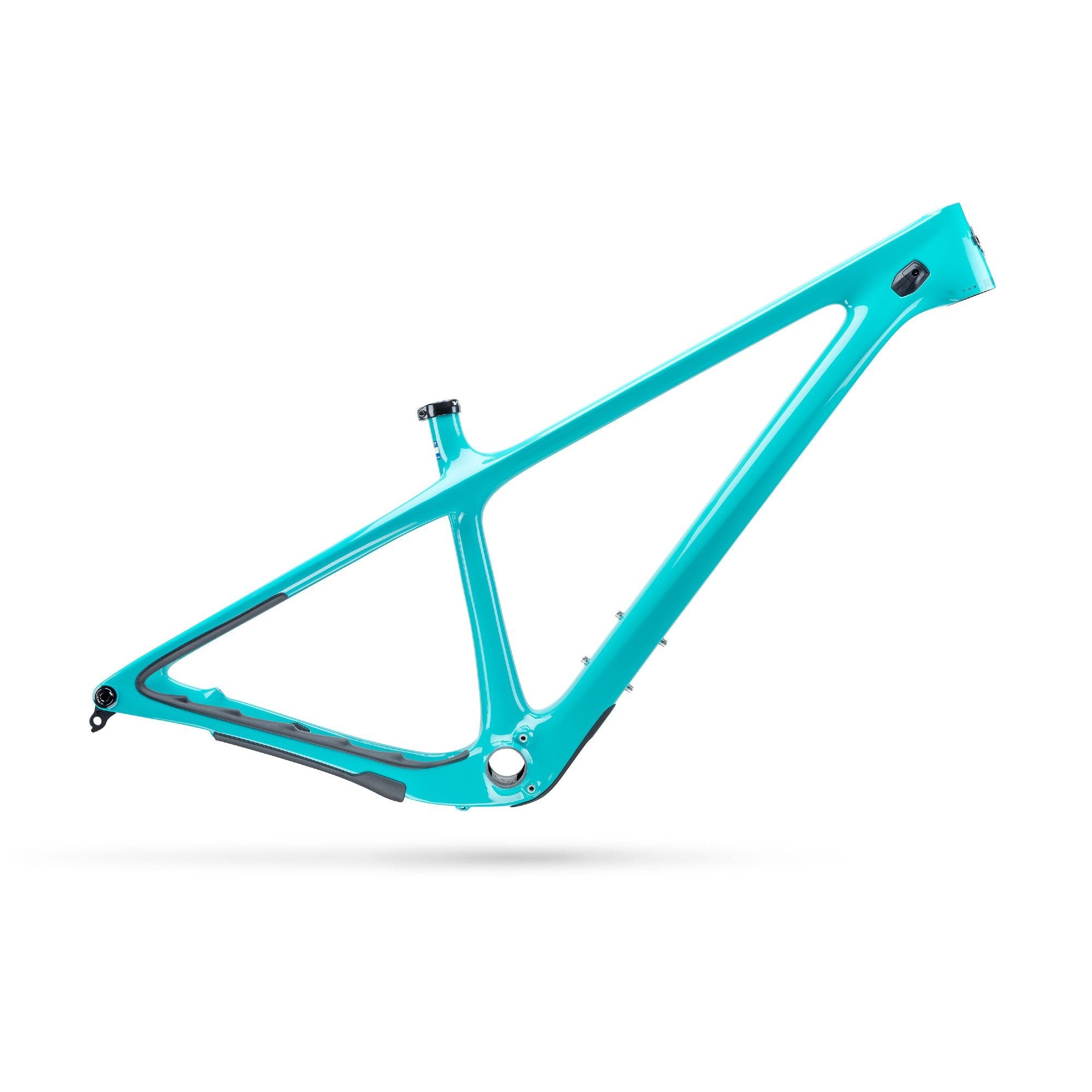

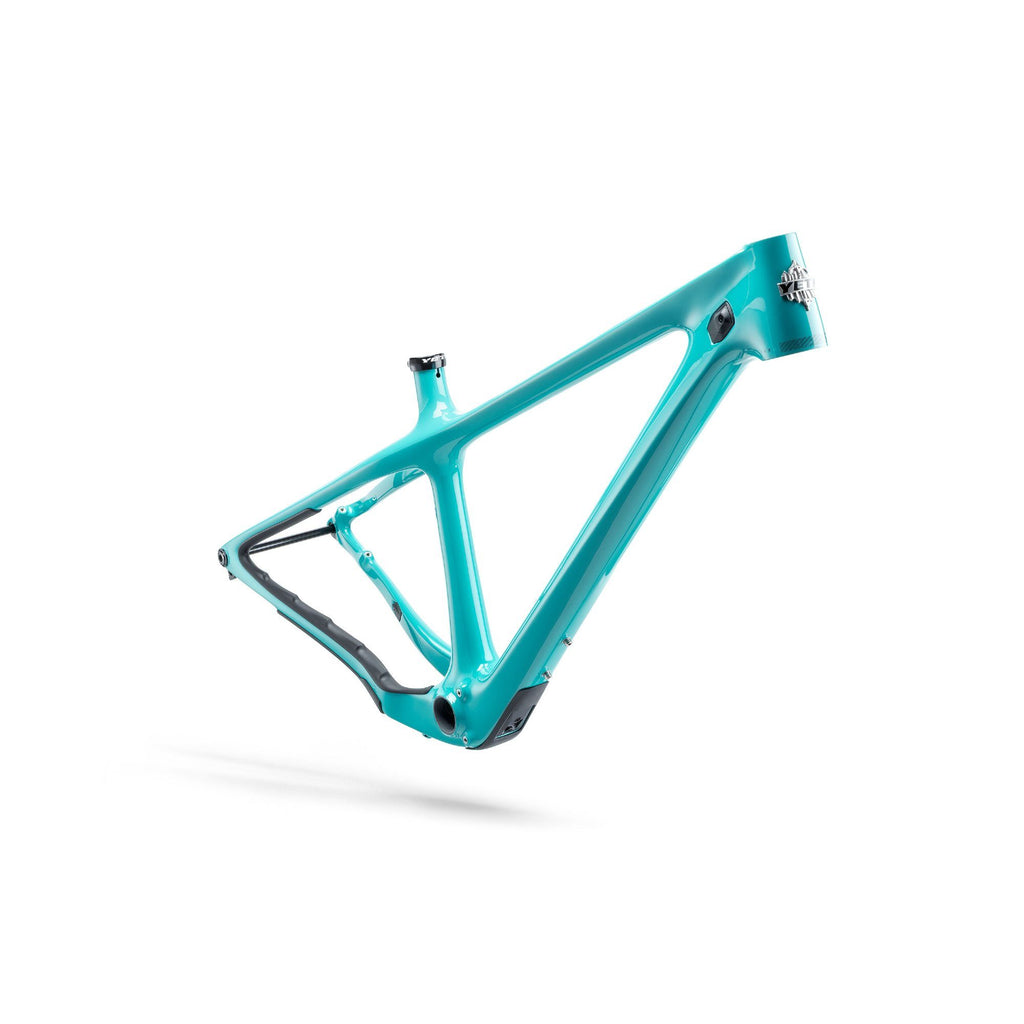

YETI ARC T-SERIES MOUNTAIN BIKE FRAME 2022

A versatile choice with a legendary heritage, the Yeti Arc T-Series Mountain Bike Frame is built for rapid singletrack hooning, technical climbs and everything in between. Designed around a 130mm suspension fork, the geometry is contemporary, seeing roomy reach measurements and a balanced chainstay length to promote traction.

The carbon layup is durable and built to take a beating and features flowing tubes that deliver a direct and responsive ride feel. A ribbed chainstay protector and secure internal routing provide an indescribable level of silence on the trail, ensuring the only noise you’ll hear are your tyres on the dirt and the buzz of the hub.

HIGHLIGHTS

  • Stiff, lightweight carbon layup promotes efficiency
  • Two mounts for water bottles
  • SRAM Universal Derailleur Hanger
  • Modern geometry delivers an exhilarating ride experience
  • Clearance for up to a 2.6” tyre
  • Integrated ISCG tabs
  • Secure internal cable routing
  • 29” wheel specific design

TECHNICAL SPECIFICATION

Frame Yeti TURQ Series carbon fibre frame, press-fit BB92, internally tunnelled cable routing, 148mm x 12mm BOOST dropouts, integrated derailleur hanger and axle
Seat Binder Included
Seatpost diameter 31.6mm
BB type Press-Fit BB92
Recommended fork travel 130mm
Wheel Size 29”

YETI ARC T-SERIES MOUNTAIN BIKE FRAME 2022 SIZING

Size Small Medium Large X-Large
Rider Height (cm) 155 - 170 165 - 180 178 - 191 185 - 201
Seat Tube (ctr-top) 380 410 450 495
Seat Tube (ctr-ctr) - - - -
Reach 420 445 465 490
Effective Top Tube 577.4 604.3 626.0 653.4
Actual Top Tube - - - -
Seat Angle (°) 76 76 76 76
Head Tube Angle (°) 67 67 67 67
Head Tube Length 95 102.9 109.6 119.6
Chainstay Length 433 433 433 433
Wheelbase 1143.5 1171.5 1194.2 1223.1
Standover 723.0 722.0 720.0 720.0
BB Height 310.0 310.0 310.0 310.0
Stack 613.4 638.9 645.1 654.3

All measurements are in millimetres unless otherwise stated.
