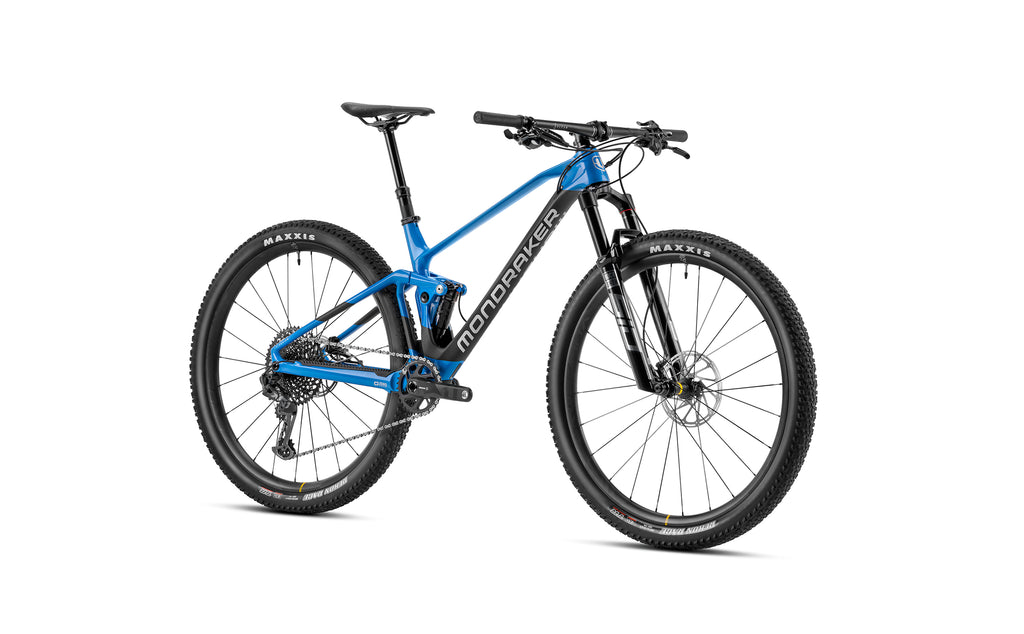

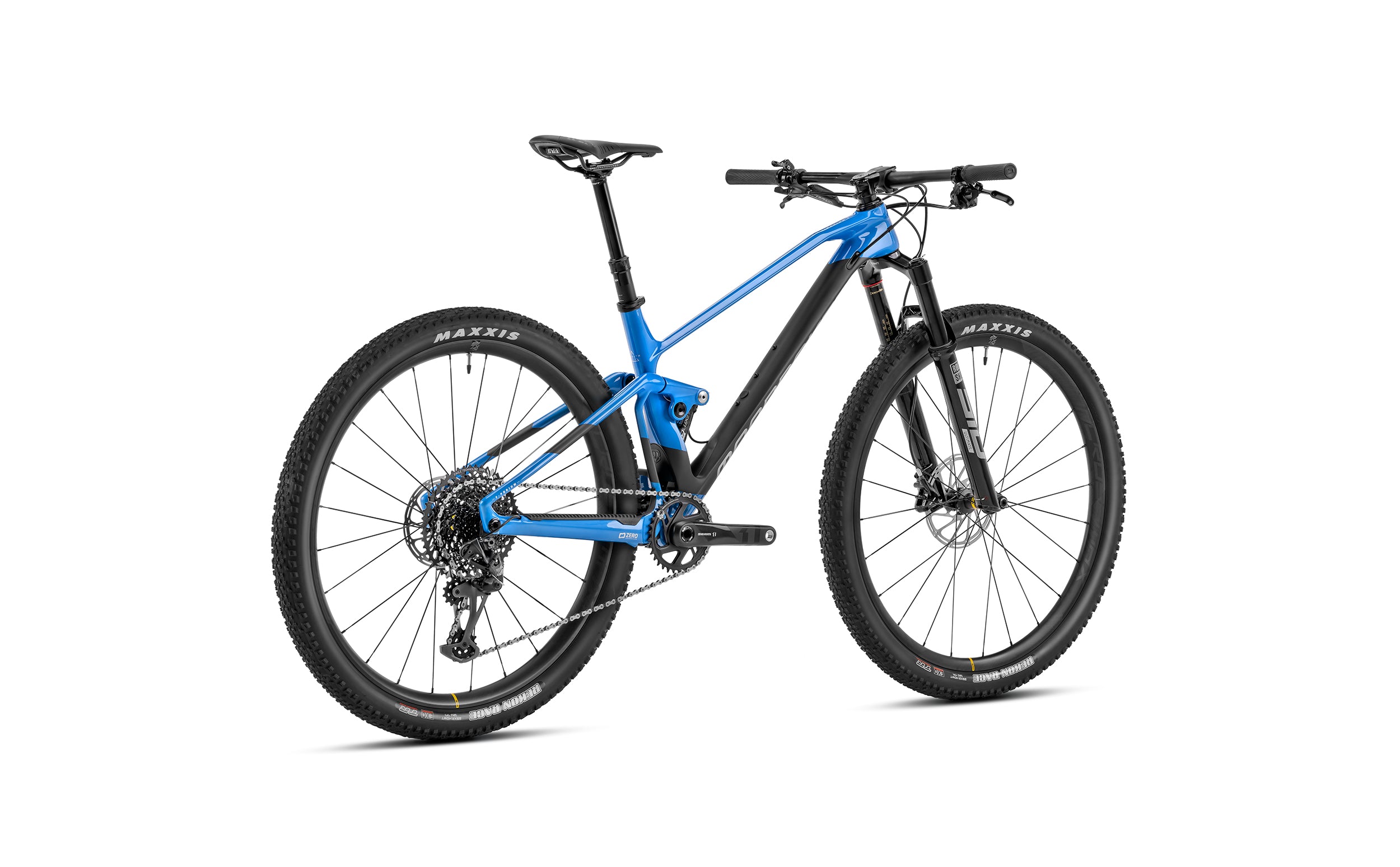

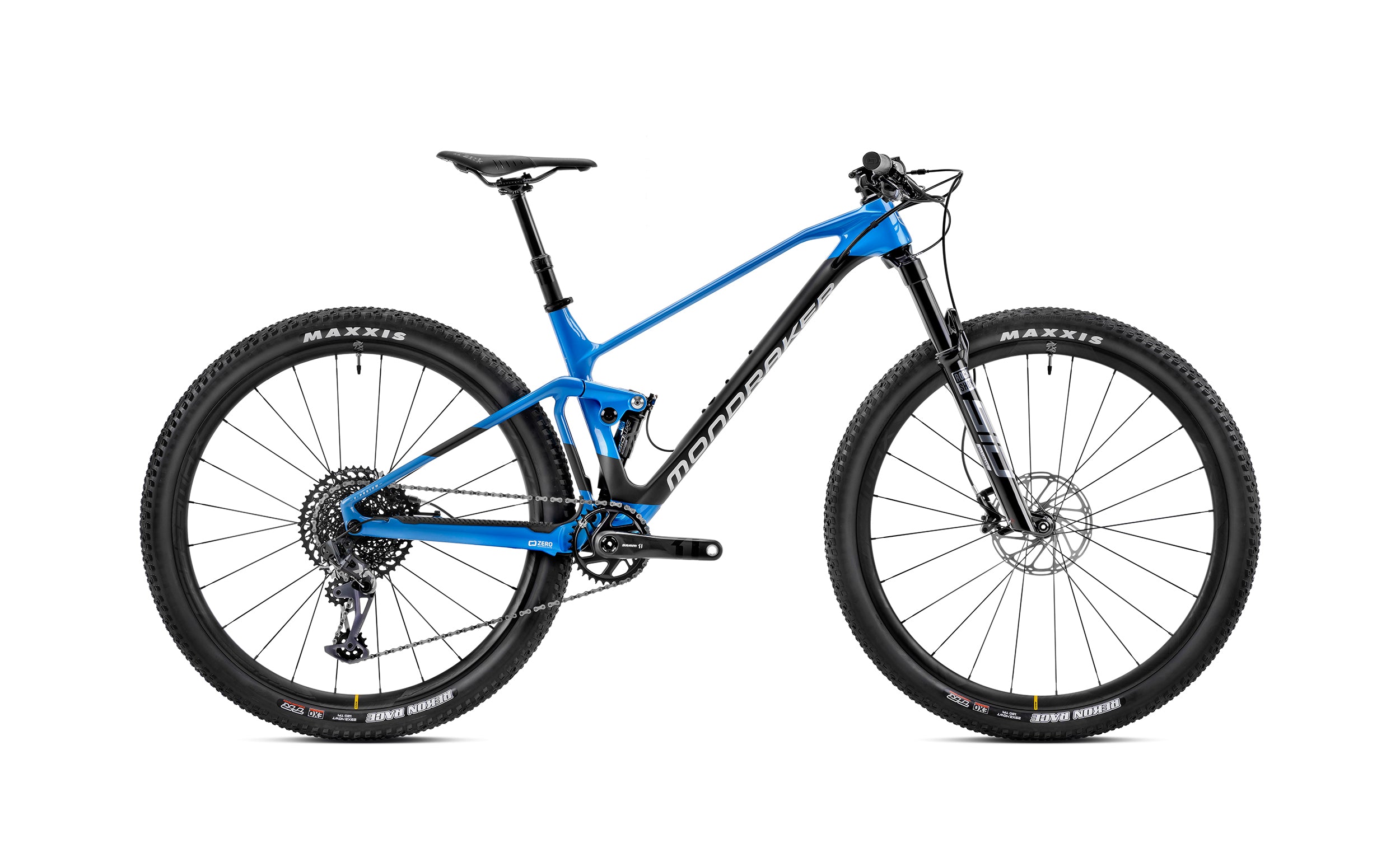

MONDRAKER RAZE R FULL SUSPENSION TRAIL/ENDURO BIKE

£3,299.00 £4,299.00
  • AT MONDRAKER WE’RE CLEAR ABOUT OUR PHILOSOPHY: MOUNTAIN BIKES ARE FOR FUN!

    For most people they need to be able to go both up as well as down. RAZE is our Trail model for riders who want it all, a sure bet yet spectacularly light weight trail rocket with 150mm of front wheel travel and 130mm at the rear. The RAZE is no ordinary trail bike because we believe that the definition of a trail bike shouldn’t be about its suspension travel but its functionality. What’s more, for 2023 the RAZE range is complemented by two aluminium models, both for riders who simply prefer alloy frames and also for those who prefer a more economical option. The RAZE is still THE TRAIL MASTER.


      • fRAME

        Raze 29 Alloy 6061 Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one-piece Monobloc top link, 12x148mm Boost rear axle, tapered head tube, 73mm BSA bottom bracket, designed for single chainring cranks , internal cabling system for the dropper post, MAX sealed bearings, ISCG 05.

        Sizes

        S: 380mm / M: 420mm / L: 470mm / XL: 510mm

        Shock absorber

        Fox Float EVOL Performance, 205x57.5mm. Adjustments: 2-position compression adjustment (Open/Locked), rebound, air preload. Trunnion upper anchor, 25x8mm lower bushings.

        Shock Absorber Adjustment

        Light compression, light rebound, 0.6 air volume spacer

        Fork

        Fox 36 29 Float GRIP EVOL Rhythm, 150mm, tapered head tube, 15x110mm Boost axle, 44mm offset. Adjustments: Sweep fit compression, low speed rebound, air preload.

        Address

        ONOFF Saturn profiled for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, upper part 41x30.2x7x45ºx45º, lower part 51.9x40x8x45ºx45º

        Power

        ONOFF Sulfur FG 30mm 0º, forged alloy 6061, 31.8mm diameter

        Handlebar

        ONOFF Sulfur 1.0 double-butted in 6061 alloy, rise: 20mm, width: 800mm, rear sweep: 9º, upsweep: 5º, diameter 31.8mm

        Grips

        ONOFF Twin, 1 lock-on, 135mm

        Shank

        ONOFF Internal wiring harness, diameter 31.6mm, 1 remote control with bearing, size S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 558x170-200mm

        Saddle

        Mondraker MDK Series, SRX, steel rail

        Front brake

        SRAM G2 R, 4-piston caliper, 180mm Centerline one-piece IS 6-bolt disc, organic sheet steel pads.

        Back brake

        SRAM G2 R, 4-piston caliper, 180mm Centerline one-piece IS 6-bolt disc, organic sheet steel pads.

        brake levers

        SRAM G2 R, tool-free reach adjustment, lever shaft with bushings

        Tires

        Mavic CrossMax XL S, 29 Boost, 30mm internal width, hookless, tubeless ready, 24 spokes

      • Radios

        Mavic, 24 straight pull bi-butted spokes

        front hub

        Mavic Infinity Hub, 15x110mm Boost, 6-bolt IS

        rear hub

        Mavic Infinity Hub, freewheel hub with ID360 technology, 12x148mm Boost, 6-bolt IS, XD freehub

        Front tire

        Maxxis Dissector 29x2.4 WT; tubeless ready, 3C MAXX TERRA compound, EXO+ casing, 120TPI, folding rim

        rear tire

        Maxxis Aggressor 29x2.3; tubeless ready, double compound, Exo casing, 60TPI, folding rim

        Cranks

        Truvativ Stylo 7K Eagle, Boost, DUB axle, Direct Mount chainring, size S: 170mm M: 170mm L: 175mm XL: 175mm, CL 52

        Dishes

        32 teeth, CNC machined alloy, X-SYNC 2

        bottom bracket

        SRAM DUB BSA, sealed bearings, 73mm

        Chain

        SRAM NX Eagle, 12v, Powerlock

        Shift - rear

        SRAM GX Eagle, clutch with type 3 roller bearings, box lock, 1x12v, X-Actuation 1:1

        Controls - shift buttons

        SRAM Trigger NX Eagle, 12v, X-Actuation 1:1

        Pinions

        SRAM PG-1230 11-50 teeth, 12v

        shift hanger

        SRAM UDH

        Weight without pedals

        15.4kg
