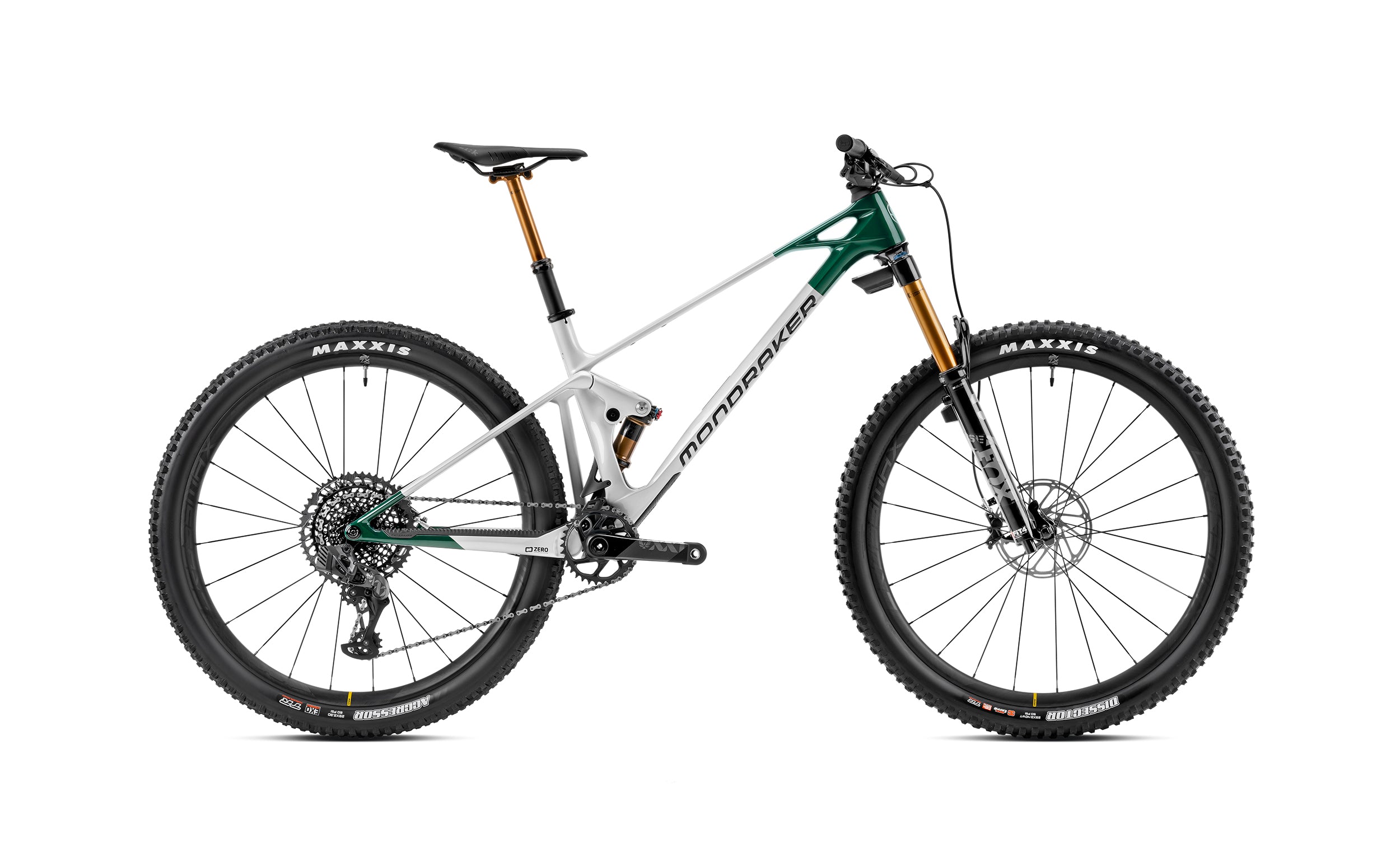

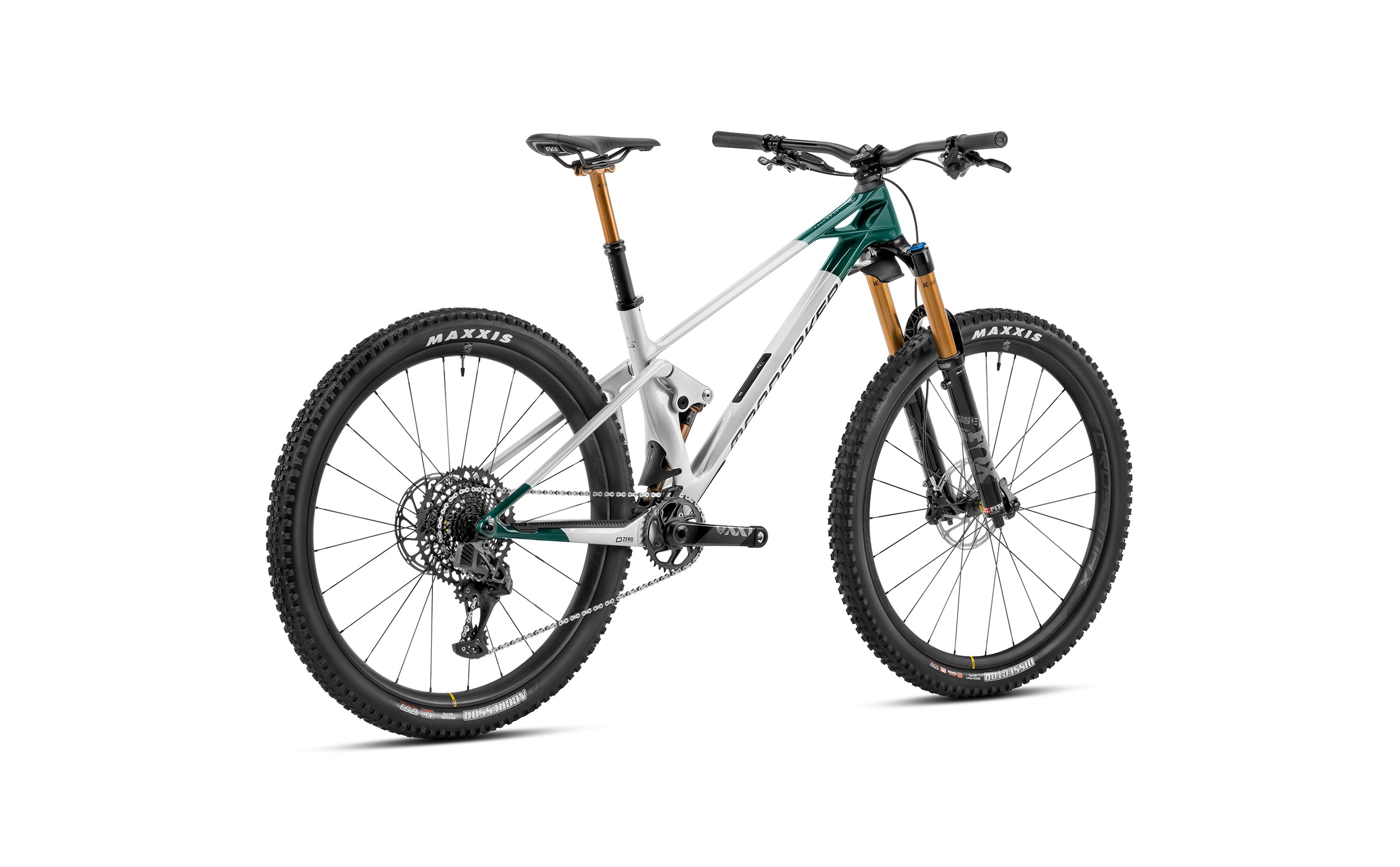

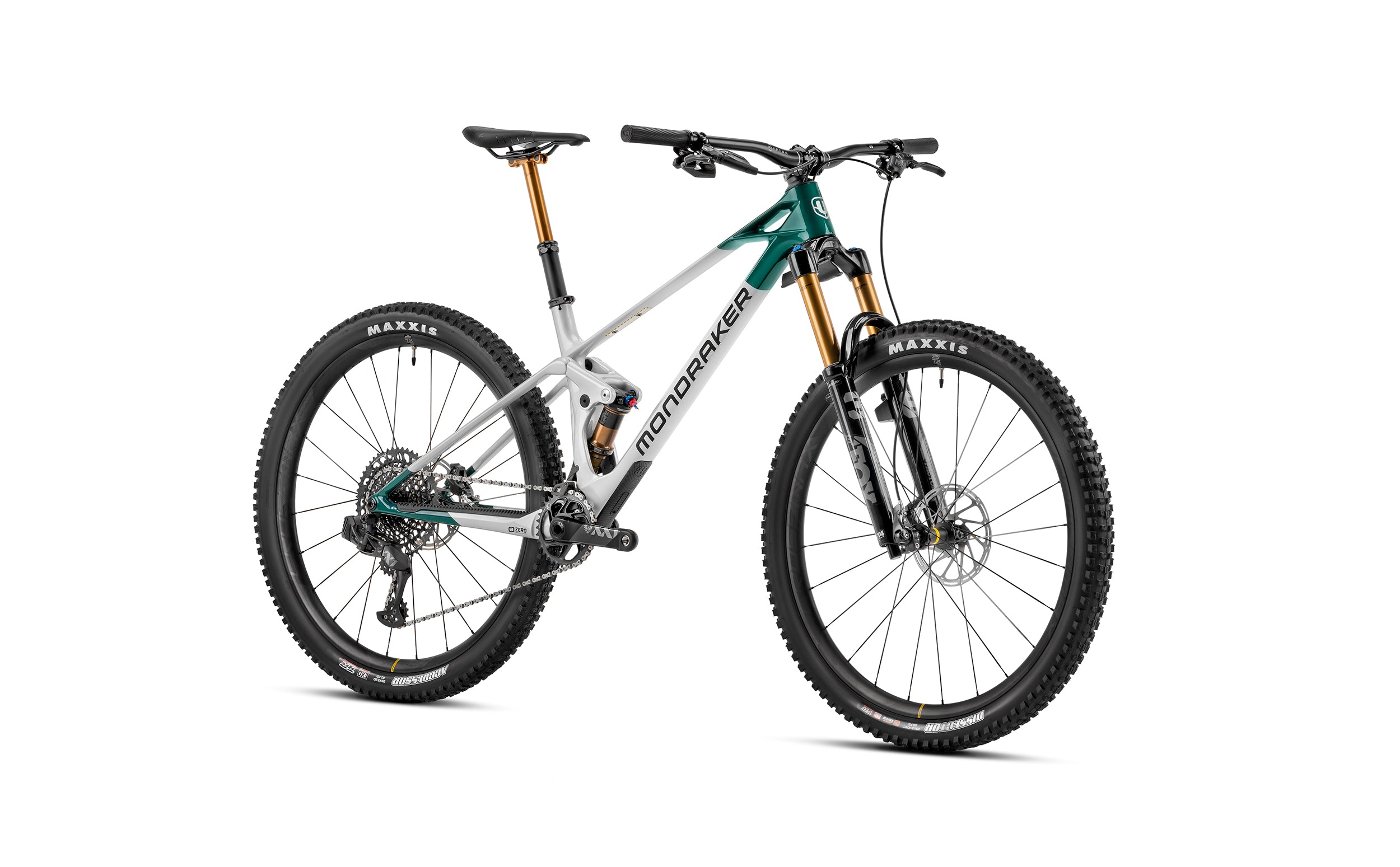

MONDRAKER RAZE CARBON RR SL

£9,999.00
By Mondraker
This product is unavailable

  • AT MONDRAKER WE’RE CLEAR ABOUT OUR PHILOSOPHY: MOUNTAIN BIKES ARE FOR FUN!

    For most people they need to be able to go both up as well as down. RAZE is our Trail model for riders who want it all, a sure bet yet spectacularly light weight trail rocket with 150mm of front wheel travel and 130mm at the rear. The RAZE is no ordinary trail bike because we believe that the definition of a trail bike shouldn’t be about its suspension travel but its functionality. What’s more, for 2023 the RAZE range is complemented by two aluminium models, both for riders who simply prefer alloy frames and also for those who prefer a more economical option. The RAZE is still THE TRAIL MASTER. Not surprisingly the RAZE CARBON RR model was given the best trail bike of 2022 award by the prestigious UK bike magazine MBR, which just about says it all

    • Frame

      Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. MIND System (EU only)

      Sizes

      S: 380mm / M: 420mm / L: 450mm / XL: 500mm

      Rear shock

      Fox Float DPS Factory Kashima EVOL LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

      Shock settings

      Light compression,light rebound, air volume spacer 0.6

      Fork

      Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

      Headset

      Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

      Stem

      ONOFF Krypton FG 30mm, CNC, 31.8mm barbore

      Handlebar

      ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

      Grips

      ONOFF Desert, 1lock-on, 135mm

      Seatpost

      Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm

      Saddle

      Fizik Antares R7

      Front brake

      Sram G2 RSC, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

      Rear brake

      Sram G2 RSC, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

      Brake lever

      Sram G2 RSC, SwingLink, tool-free reach adjust

      Rims

      Mavic CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

    • Spokes

      24 straight-pull double butted spokes

      Front hub

      Infinity hub, Boost 15x110mm, IS 6 bolts

      Rear hub

      Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts

      Front tire

      Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

      Rear tire

      Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

      Crankset

      Sram XX1 Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

      Rings

      32T, CNC-machined alloy, X-SYNC 2

      Bottom bracket

      Sram DUB BSA, sealed bearings, 73mm

      Chain

      Sram GX Eagle, 12s, Powerlock

      Rear derrailleur

      Sram XX1 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1

      Shift levers

      Sram Eagle AXS Rocker paddle, 12s

      Casette

      Sram XG-1295, 10-52T, 12s

      Derailleur hanger

      Sram UDH

      Weight

      13,0 kg
