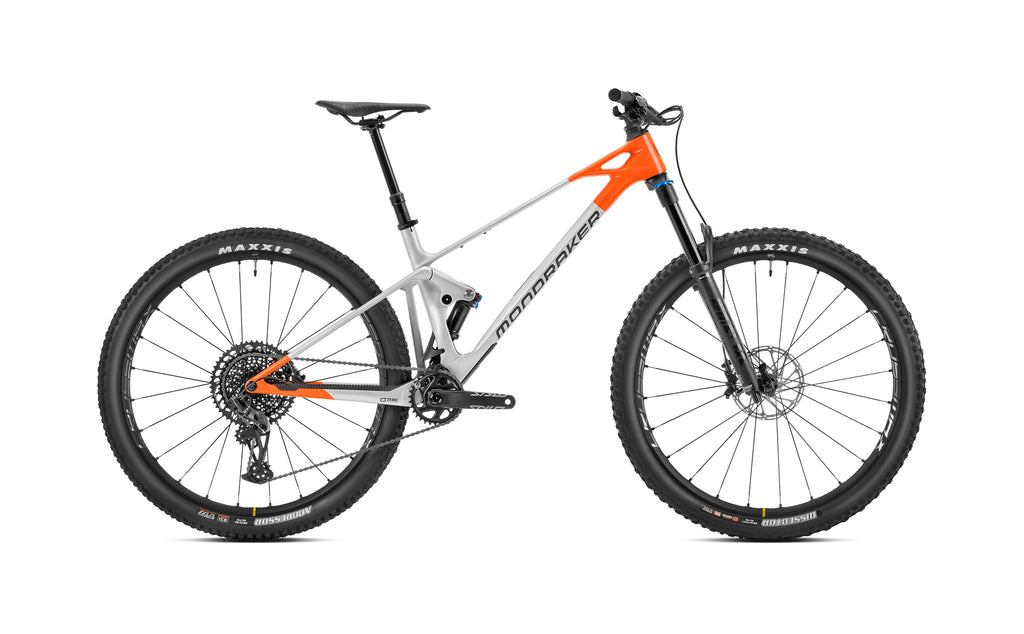

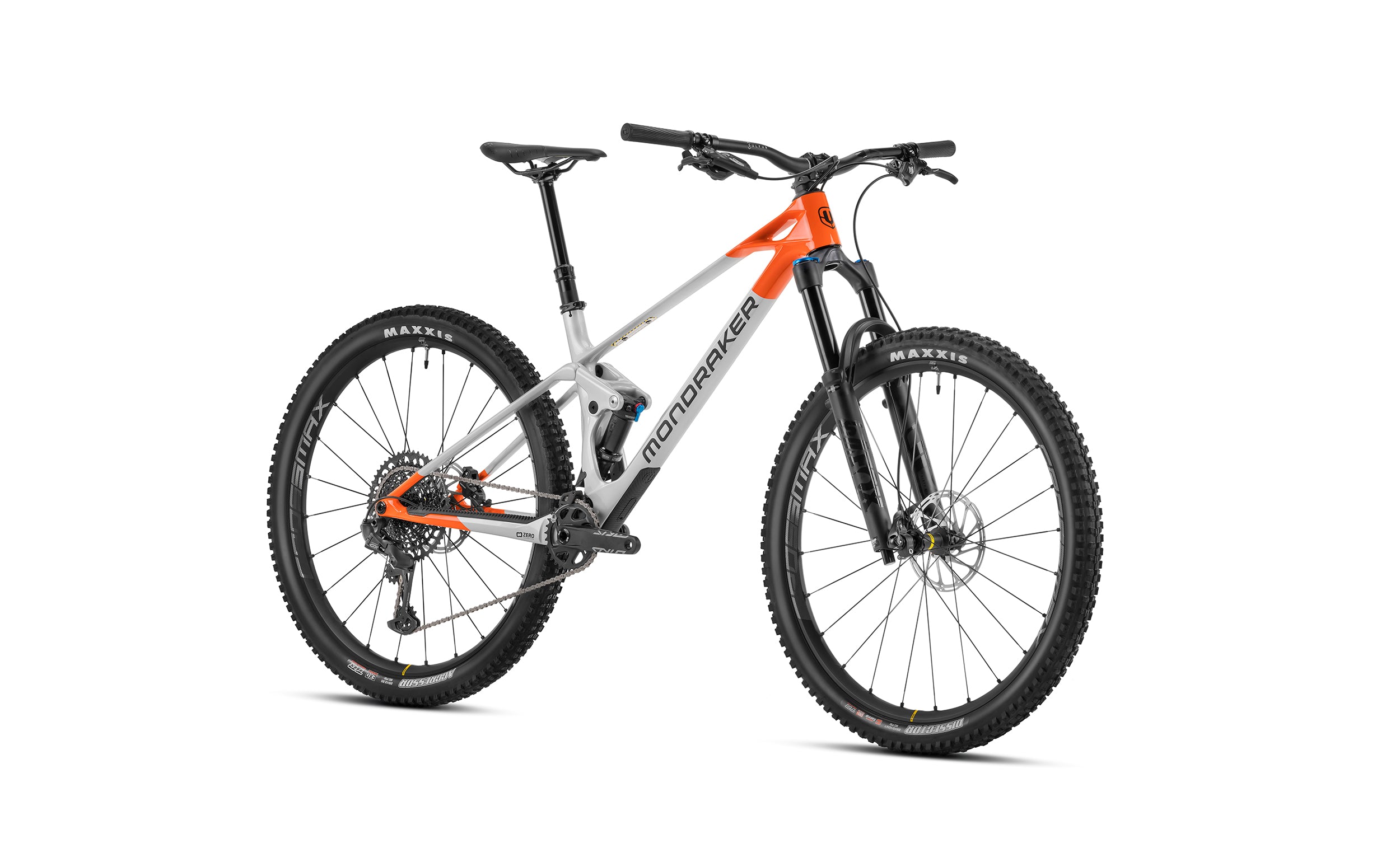

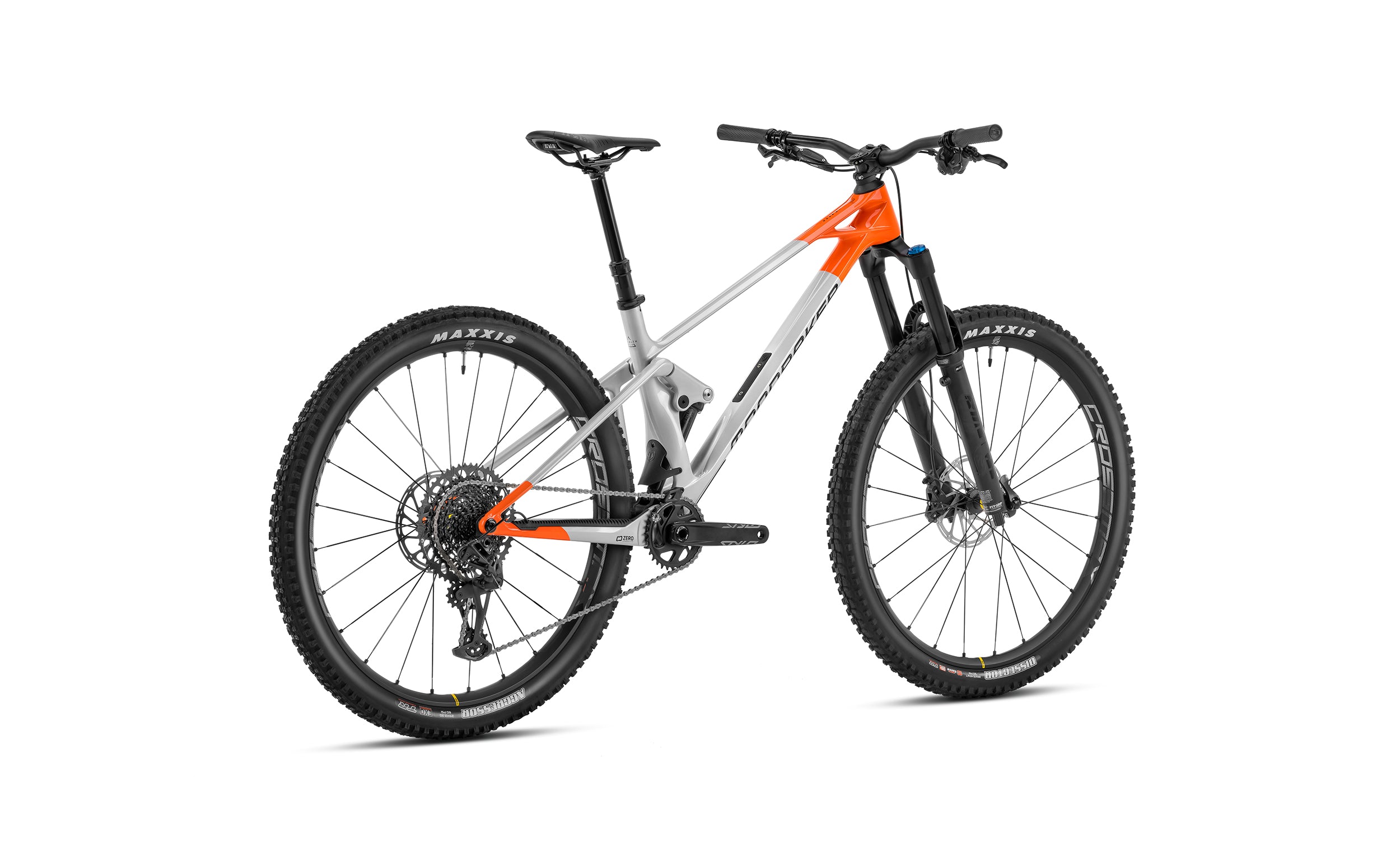

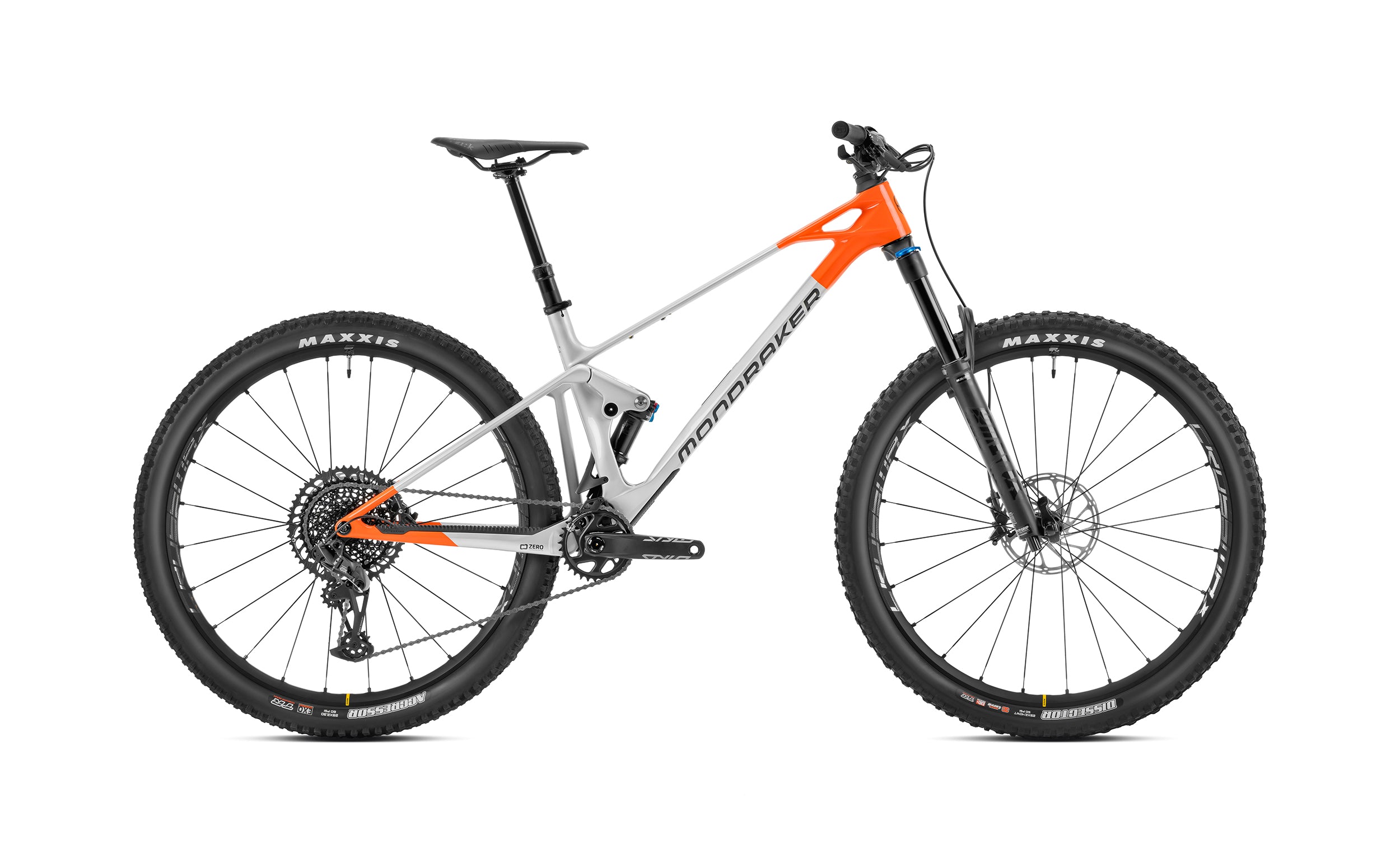

MONDRAKER RAZE CARBON R 2023

£6,399.00
This product is unavailable
  • AT MONDRAKER WE’RE CLEAR ABOUT OUR PHILOSOPHY: MOUNTAIN BIKES ARE FOR FUN!

    For most people they need to be able to go both up as well as down. RAZE is our Trail model for riders who want it all, a sure bet yet spectacularly light weight trail rocket with 150mm of front wheel travel and 130mm at the rear. The RAZE is no ordinary trail bike because we believe that the definition of a trail bike shouldn’t be about its suspension travel but its functionality. What’s more, for 2023 the RAZE range is complemented by two aluminium models, both for riders who simply prefer alloy frames and also for those who prefer a more economical option. The RAZE is still THE TRAIL MASTER. Not surprisingly the RAZE CARBON RR model was given the best trail bike of 2022 award by the prestigious UK bike magazine MBR, which just about says it all.

      • Frame

        Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. Optional MIND System (EU only)

        Sizes

        S: 380mm / M: 420mm / L: 450mm / XL: 500mm

        Rear shock

        Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings

        Shock settings

        Light compression, light rebound, air volume spacer 0.6

        Fork

        Fox 36 29 Float GRIP EVOL Performance, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload

        Headset

        Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

        Stem

        ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

        Handlebar

        ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

        Grips

        ONOFF Desert, 1lock-on, 135mm

        Seatpost

        ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

        Saddle

        Fizik Antares R7

        Front brake

        Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

        Rear brake

        Sram G2 R, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

        Brake lever

        Sram G2, SwingLink, tool-free reach adjust

        Rims

        Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

      • Spokes

        24 straight-pull double butted spokes

        Front hub

        Infinity hub, Boost 15x110mm, IS 6 bolts

        Rear hub

        Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts

        Front tire

        Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

        Rear tire

        Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

        Crankset

        Truvativ Stylo 7k Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

        Rings

        32T, CNC-machined alloy, X-SYNC 2

        Bottom bracket

        Sram DUB BSA, sealed bearings, 73mm

        Chain

        Sram NX Eagle, 12s, Powerlock

        Rear derrailleur

        Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

        Shift levers

        Sram Trigger NX Eagle, 12s, X-Actuation 1:1

        Casette

        Sram XG-1275, 10-52T, 12s

        Derailleur hanger

        Sram UDH

        Weight

        13,5 kg
