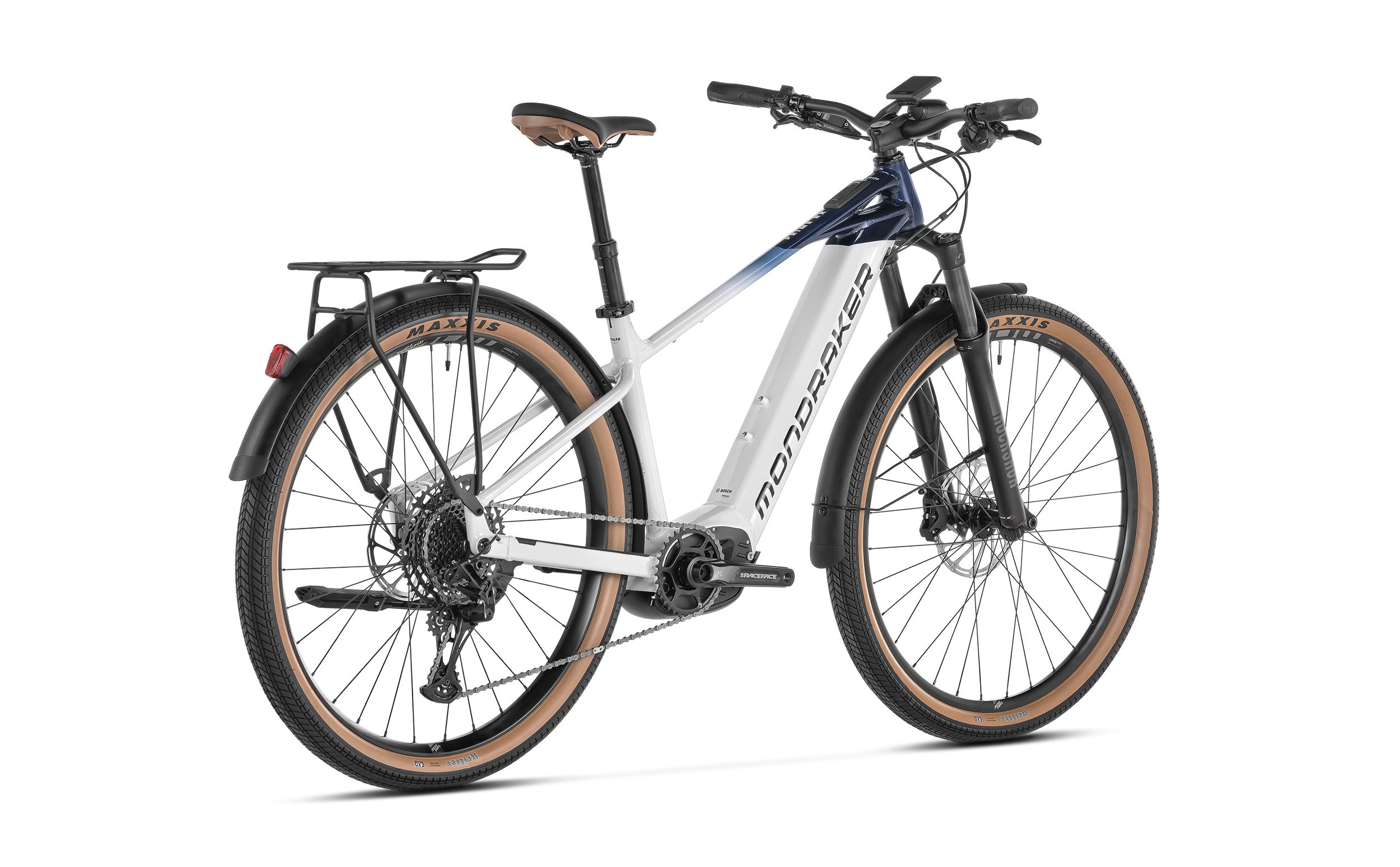

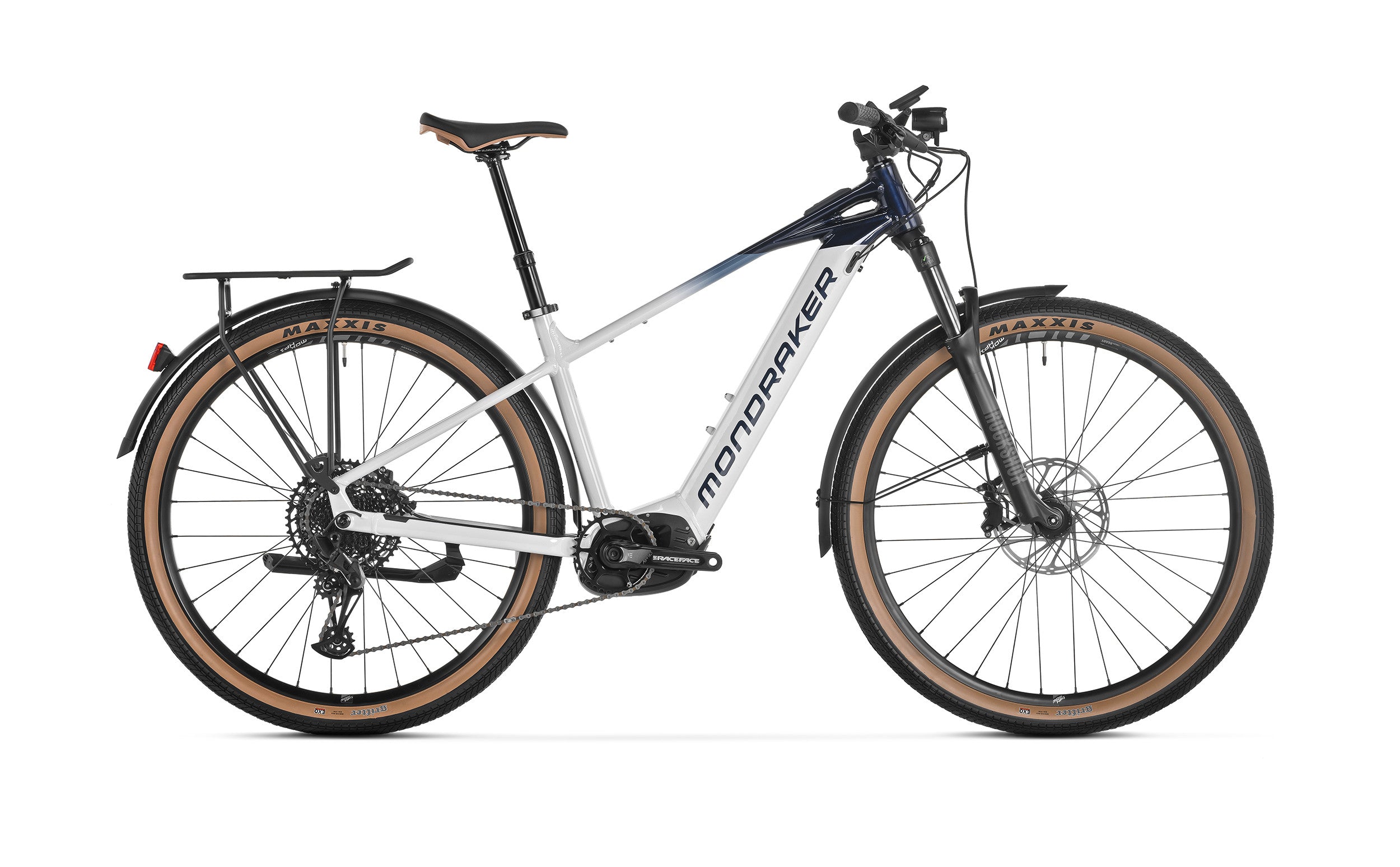

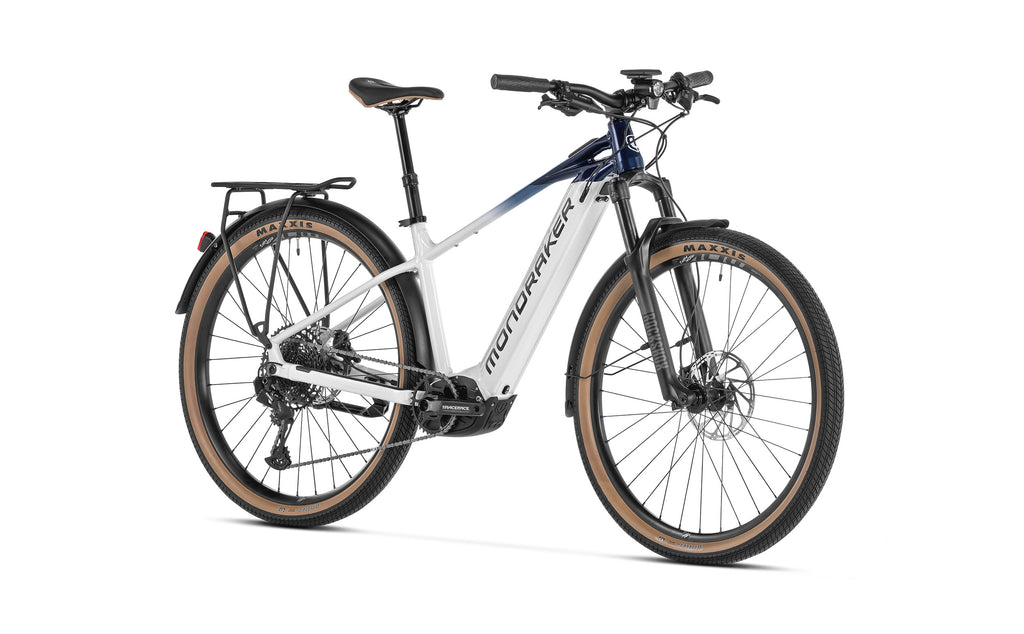

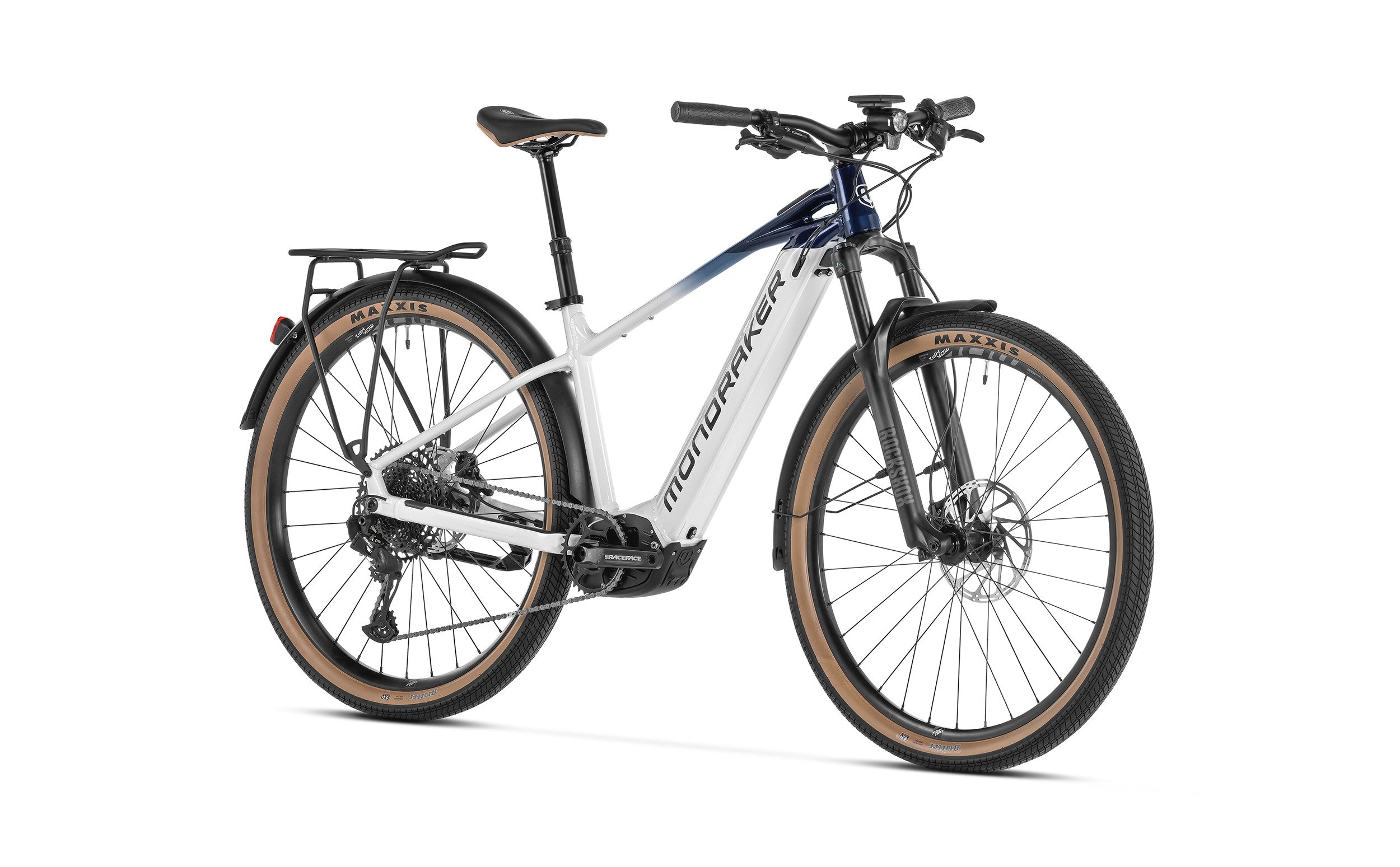

MONDRAKER PRIME RX E-BIKE

$4,763.00 $5,292.00

IF YOU WANT TO ENTER THE WORLD OF LIGHT EBIKES WITH A POWERFUL MOTOR, THIS IS THE BIKE FOR YOU


  • Frame

    Prime 6061 Xtralite Full Butted Alloy, Forward Geometry, internal non-removable battery, tapered head tube, Boost 12x148mm rear axle, integrated dropout speed sensor


    sizes

    Sizes

    XS: 380mm / S: 390mm / M: 430mm / L: 470mm / XL: 510mm

  • fork

    Fork

    RockShox 35 Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload


    headset

    Headset

    Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

  • stem

    Stem

    MDK Urban 35mm 0º, 6061 forged alloy, 31.8mm barbore


    handlebar

    Handlebar

    MDK Urban 1.0 double butted 6061 alloy, rise: 20mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore

  • grips

    Grips

    Onoff Shaper


    seatpost

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

  • saddle

    Saddle

    MDK urban


    front brake

    Front brake

    Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

  • rear brake

    Rear brake

    Sram DB8, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads


    brake lever

    Brake lever

    Sram DB8, tool reach adjust, lever pivot bushings

  • rims

    Rims

    MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes


    spokes

    Spokes

    CN round stainless steel

  • front hub

    Front hub

    Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts


    rear hub

    Rear hub

    Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub

  • front tire

    Front tire

    Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall.


    rear tire

    Rear tire

    Maxxis Grifter 29x2.5, single compound, 60TPI, wire bead, tanned wall.

  • crankset

    Crankset

    Race Face Aeffect ebike, 165mm


    rings

    Rings

    Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

  • pedals

    Pedals

    Urban pedal resin black


    chain

    Chain

    Sram SX Eagle, 12s, Powerlock

  • rear derrailleur

    Rear derrailleur

    Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1


    shift levers

    Shift levers

    Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click

  • casette

    Casette

    Sram PG-1210, 11-50T, 12s


    derailleur hanger

    Derailleur hanger

    Mondraker M068

  • others

    Others

    Front light: 50LUX output DC 6-12V, waterproof Alloy cage. Rear Light: Fender Mount, w/ Reflective, e-bike version, 6-12V. Fenders: Alloy black MDK custom fenders. Rack: Alloy MDK rear Rack, Max loading 25kg. Kickstand: Massload KSA18-40


    weight

    Weight

    24,9 kg

  • display

    Display

    Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller


    motor

    Motor

    Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM

  • battery

    Battery

    Bosch Powertube 750Wh
