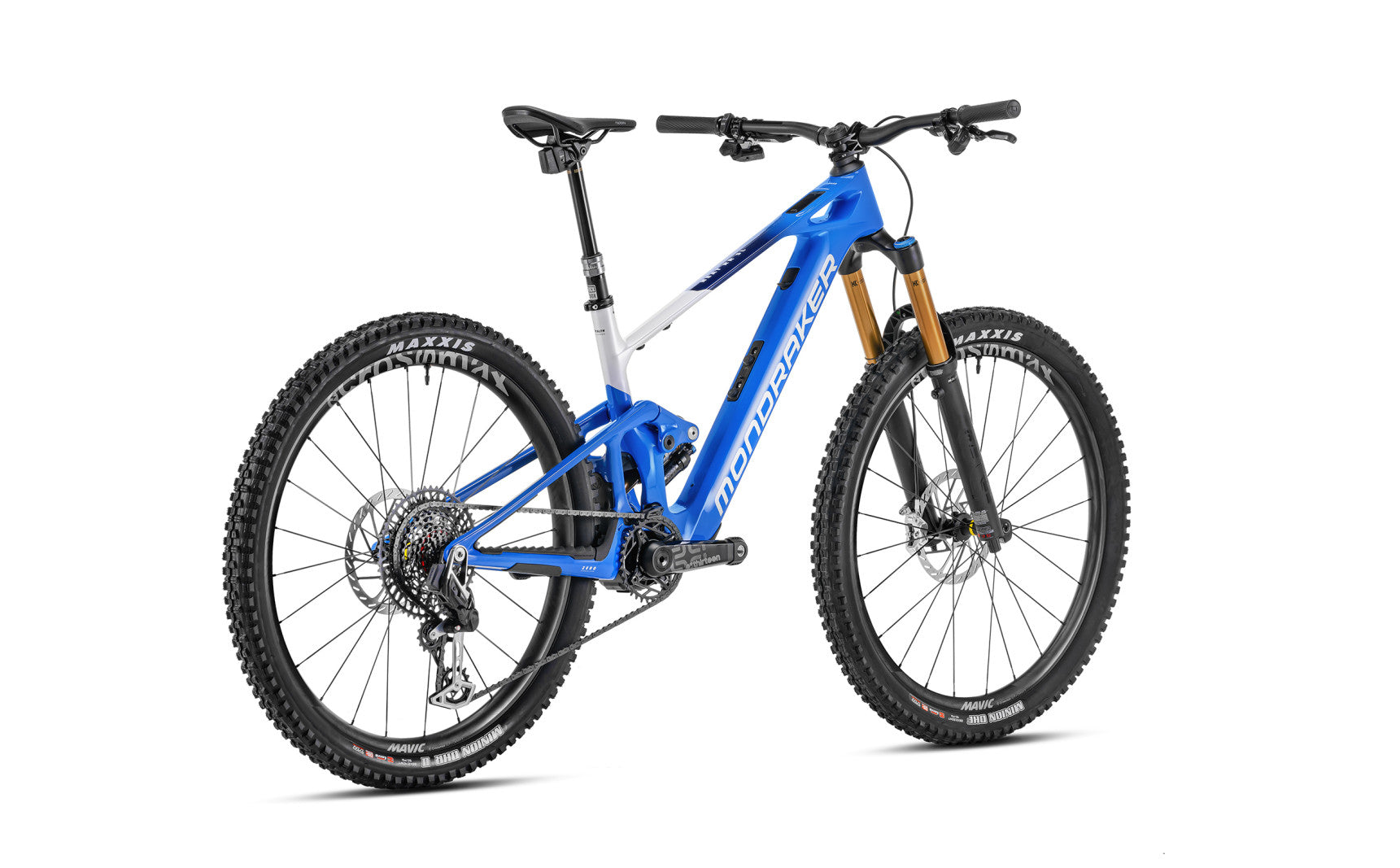

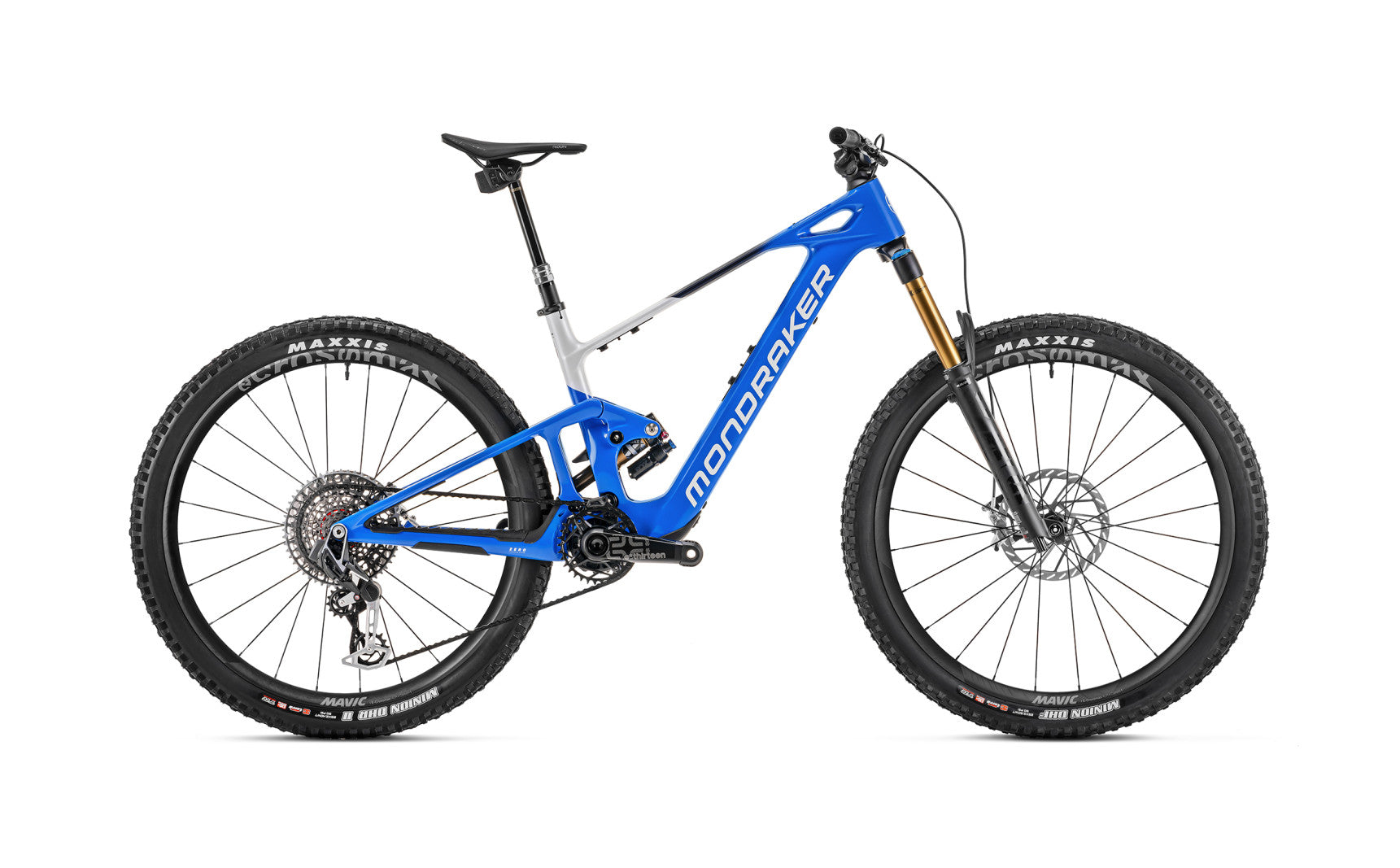

MONDRAKER NEAT RR SL LIGHTWEIGHT EBIKE

$13,554.00
This product is unavailable
  • PLEASE EVERYONE, STAND UP AND WELCOME THE NEAT.

    A new beginning. A new era of ebikes. Born and bred with all of our character, identity and feeling. A Mondraker by definition, but more manoeuverable, nimble and even faster than ever before. A new cycle with a new leader.

    The NEAT range shares the same carbon fibre frame but with three different builds to choose from: NEAT R, NEAT RR and NEAT RR SL. All three come with a Fox Float X shock and Fox 36 fork, 4 piston brakes and Maxxis Minion DHF and DHR tyres with EXO+ sidewalls.

     NEAT RR

    ENDURO/AM / LIGHT E-MTB

    COMPONENTS

    TECHNICAL SPECS

        • frame

          Frame

          Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.


          sizes

          Sizes

          S: 380mm / M: 420mm / L: 450mm / XL: 490mm

        • rear shock

          Rear shock

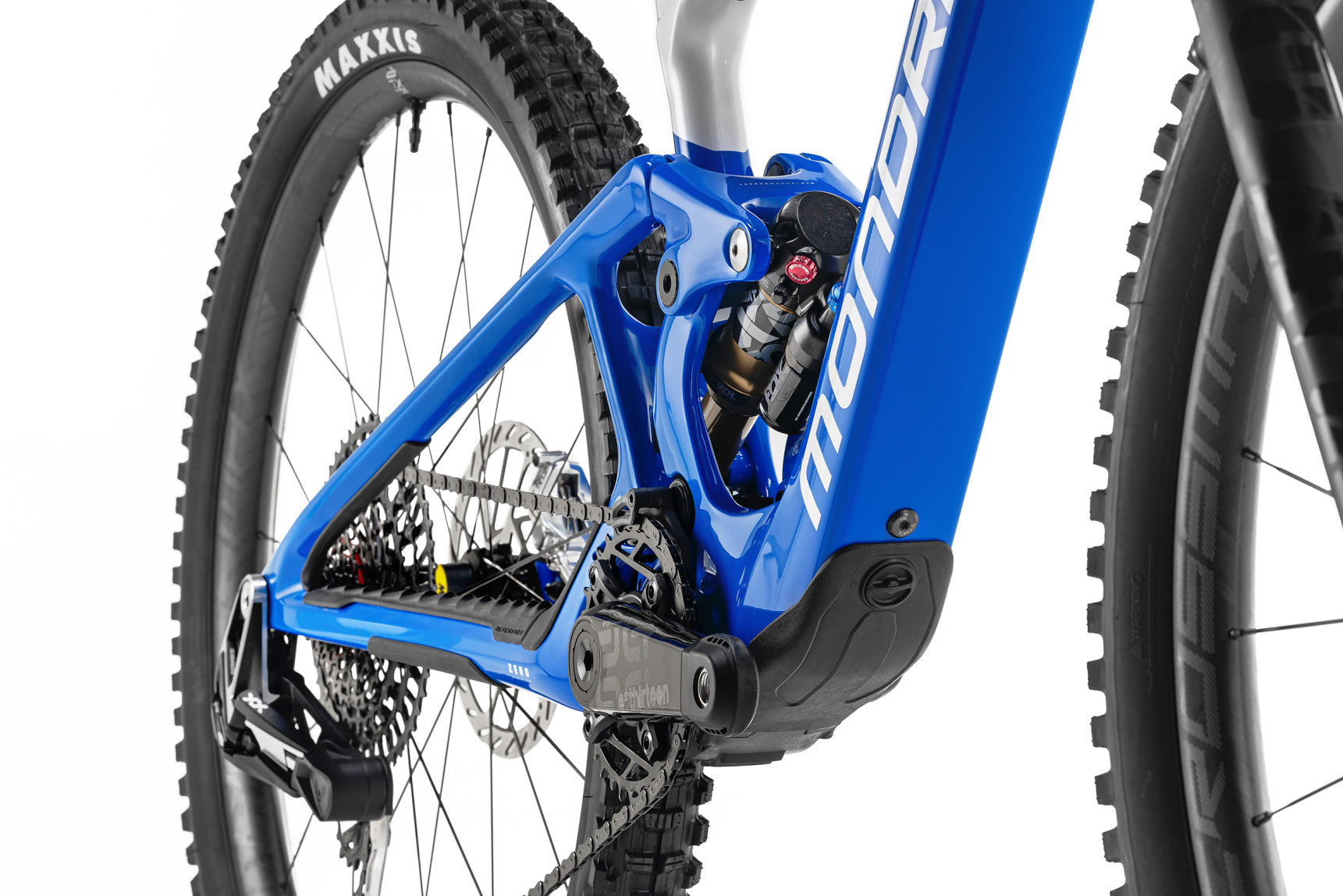

          Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings


          shock settings

          Shock settings

          Medium compression, medium rebound, air volume spacer 0.4

        • fork

          Fork

          Fox 36 29 Float GRIP2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload


          headset

          Headset

          Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

        • stem

          Stem

          Onoff Krypton FG 30mm, CNC, 31.8mm barbore


          handlebar

          Handlebar

          Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

        • grips

          Grips

          Onoff Desert, 1lock-on, 135mm


          seatpost

          Seatpost

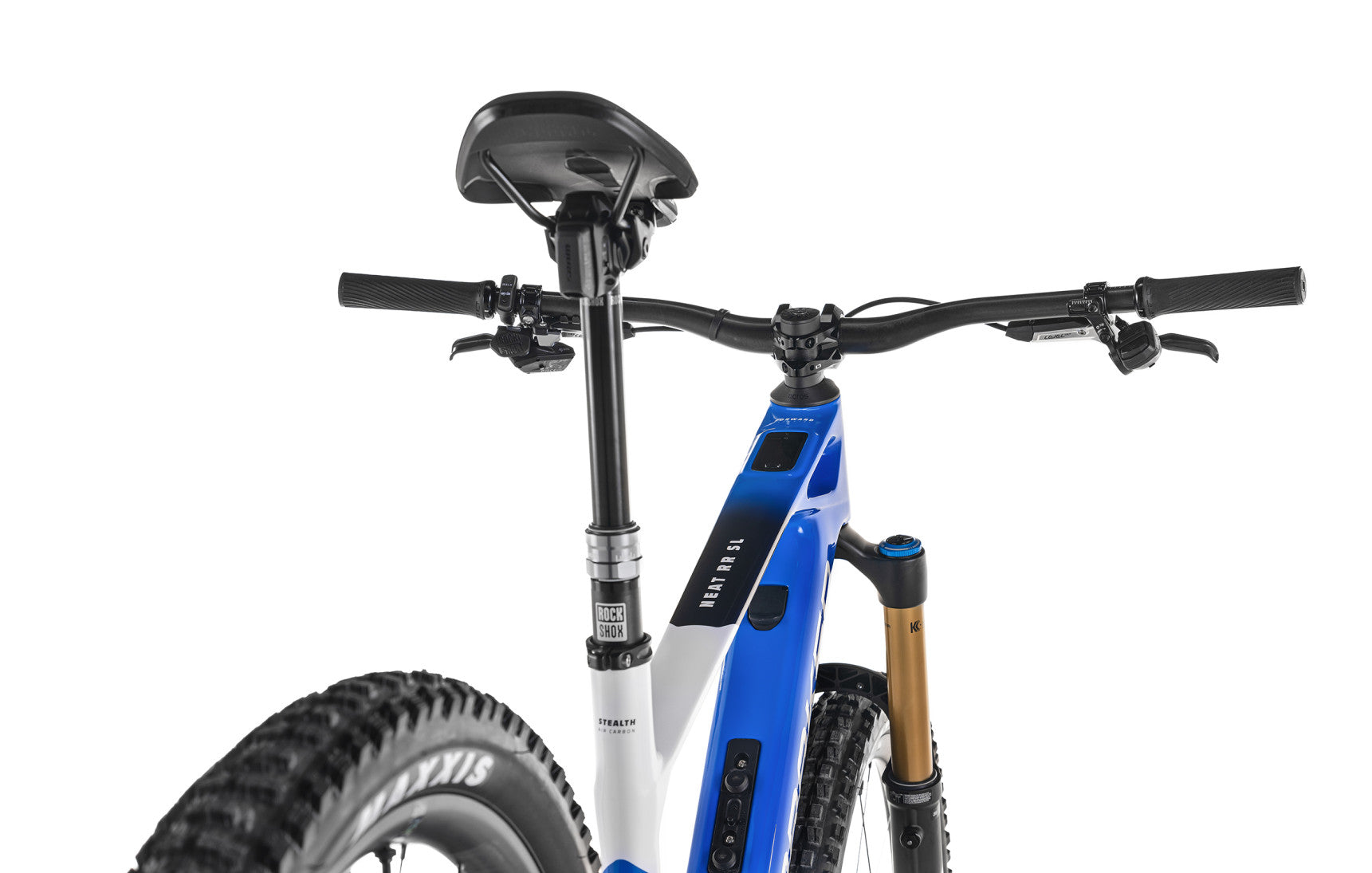

          RockShox Reverb Stealth AXS, diameter 31.6mm S size: 340x125mm M size: 390x150mm L size: 440x170mm XL size: 440x170mm

        • saddle

          Saddle

          Fizik Terra Aidon Slim X5


          front brake

          Front brake

          Sram Level Ultimate Stealth, 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

        • rear brake

          Rear brake

          Sram Level Ultimate Stealth, 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed organic pads


          brake lever

          Brake lever

          Sram Level Ultimate, tools-free reach adjust, lever pivot bearings, carbon lever

        • rims

          Rims

          Mavic E-CrossMax Carbon XL R, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes


          spokes

          Spokes

          Mavic 28 straight-pull double butted spokes

        • front hub

          Front hub

          Mavic Infinity hub, Boost 15x110mm, IS 6 bolts


          rear hub

          Rear hub

          Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub

        • front tire

          Front tire

          Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead


          rear tire

          Rear tire

          Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

        • crankset

          Crankset

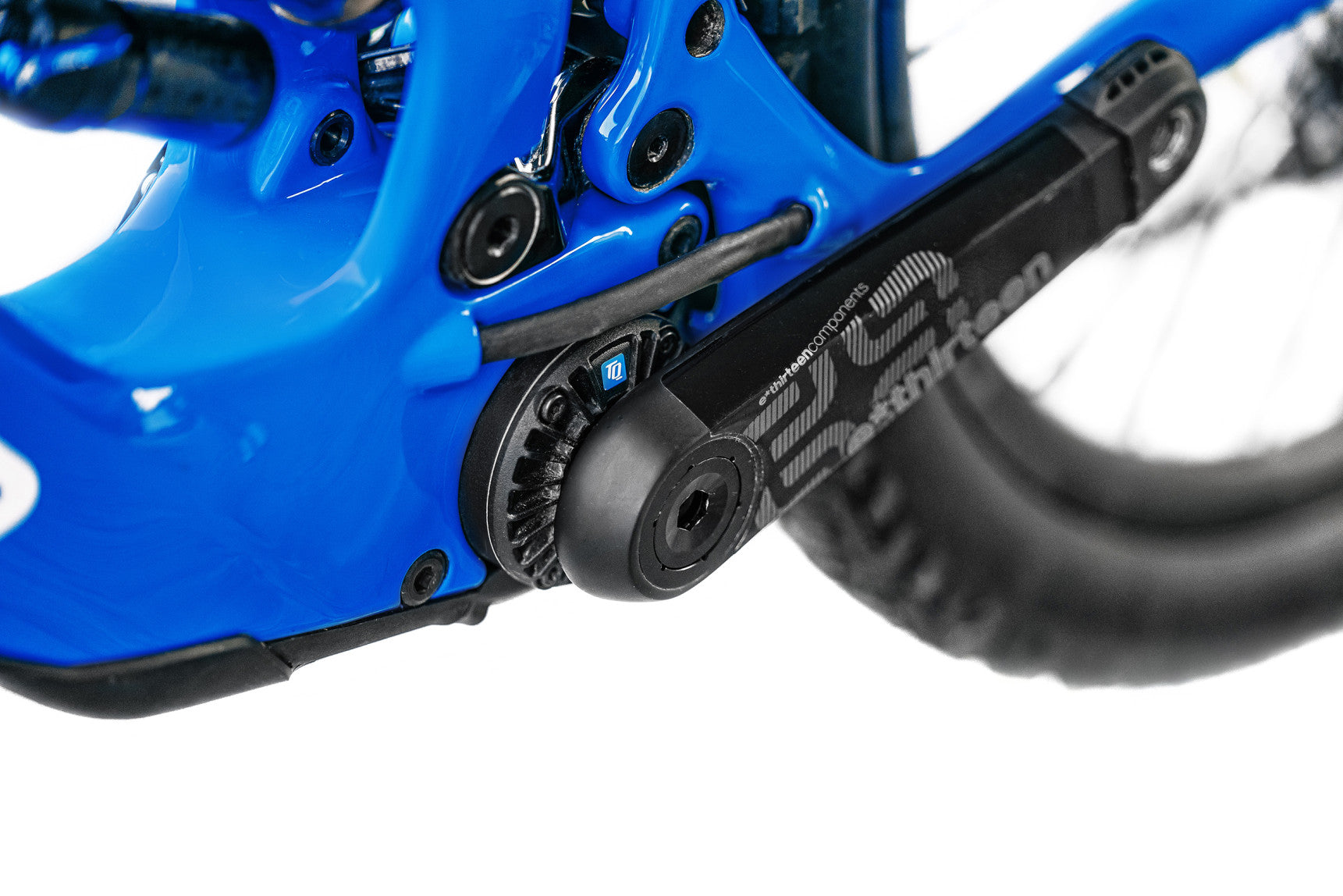

          E.13 TRS Race carbon ebike, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm


          rings

          Rings

          Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD

        • chain

          Chain

          Sram X0 Eagle T-Type, 12s, Powerlock


          rear derrailleur

          Rear derrailleur

          Sram XX Eagle AXS, T-Type roller bearing clutch, cage lock, long carbon cage, 1x12s

        • shift levers

          Shift levers

          Sram Eagle AXS Pod MMX, 12s


          casette

          Casette

          Sram XG-1295, 10-52T, T-Type, 12s

        • others

          Others

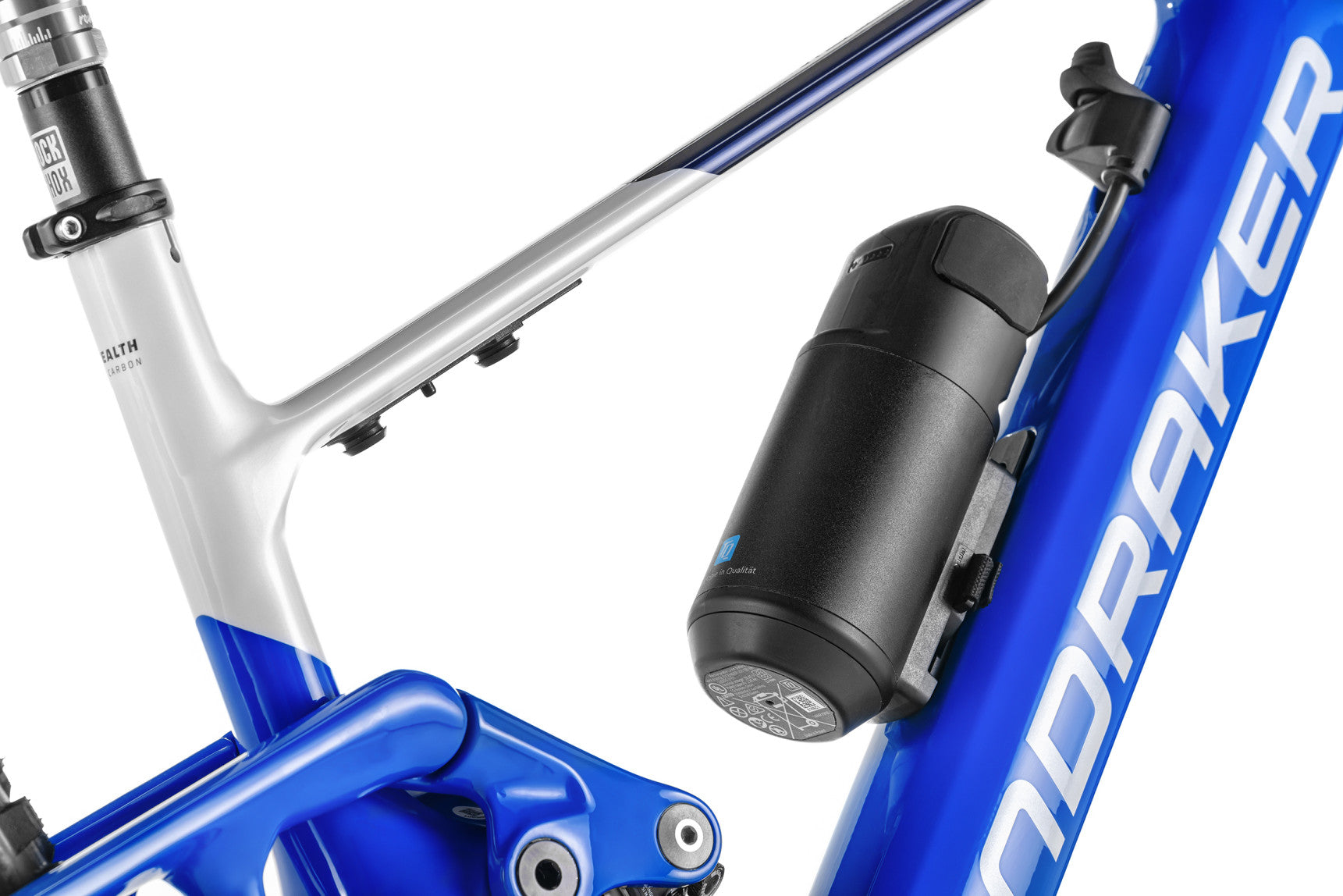

          Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh


          weight

          Weight

          17.9 kg - Max System Weight 150kg

        • display

          Display

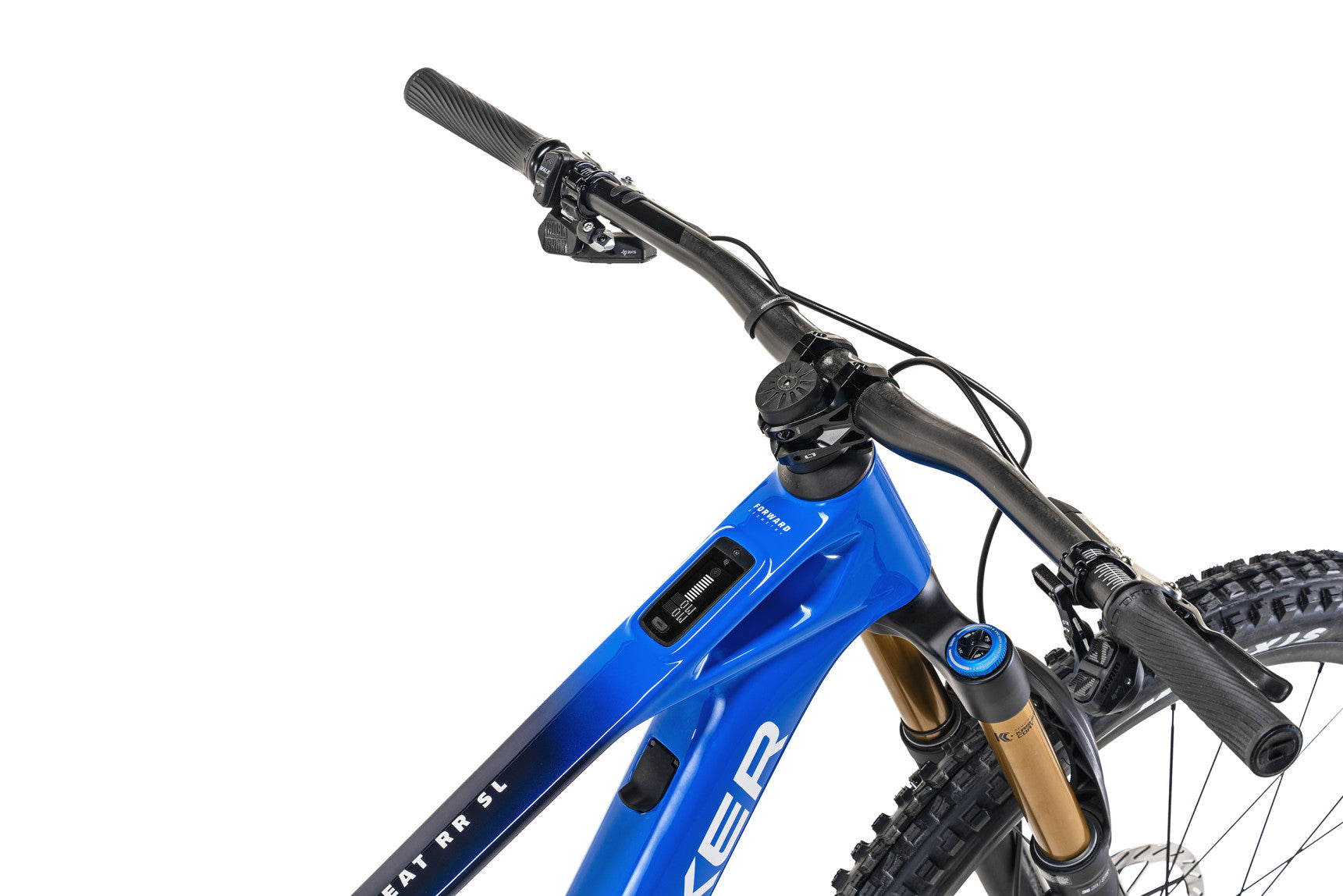

          TQ HPR display V01


          motor

          Motor

          TQ HPR-50

        • battery

          Battery

          TQ HPR-50 360Wh integrated and removable
