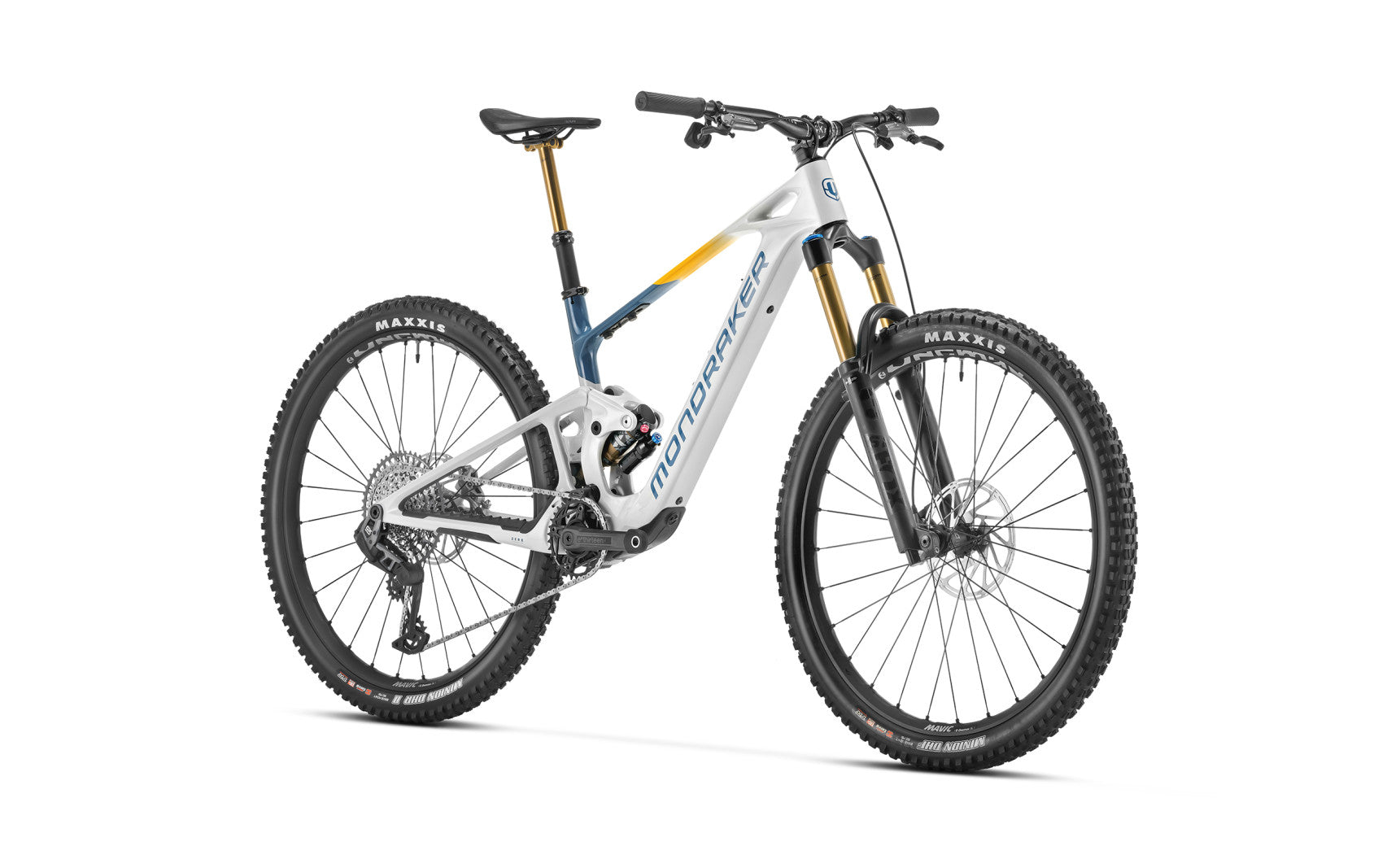

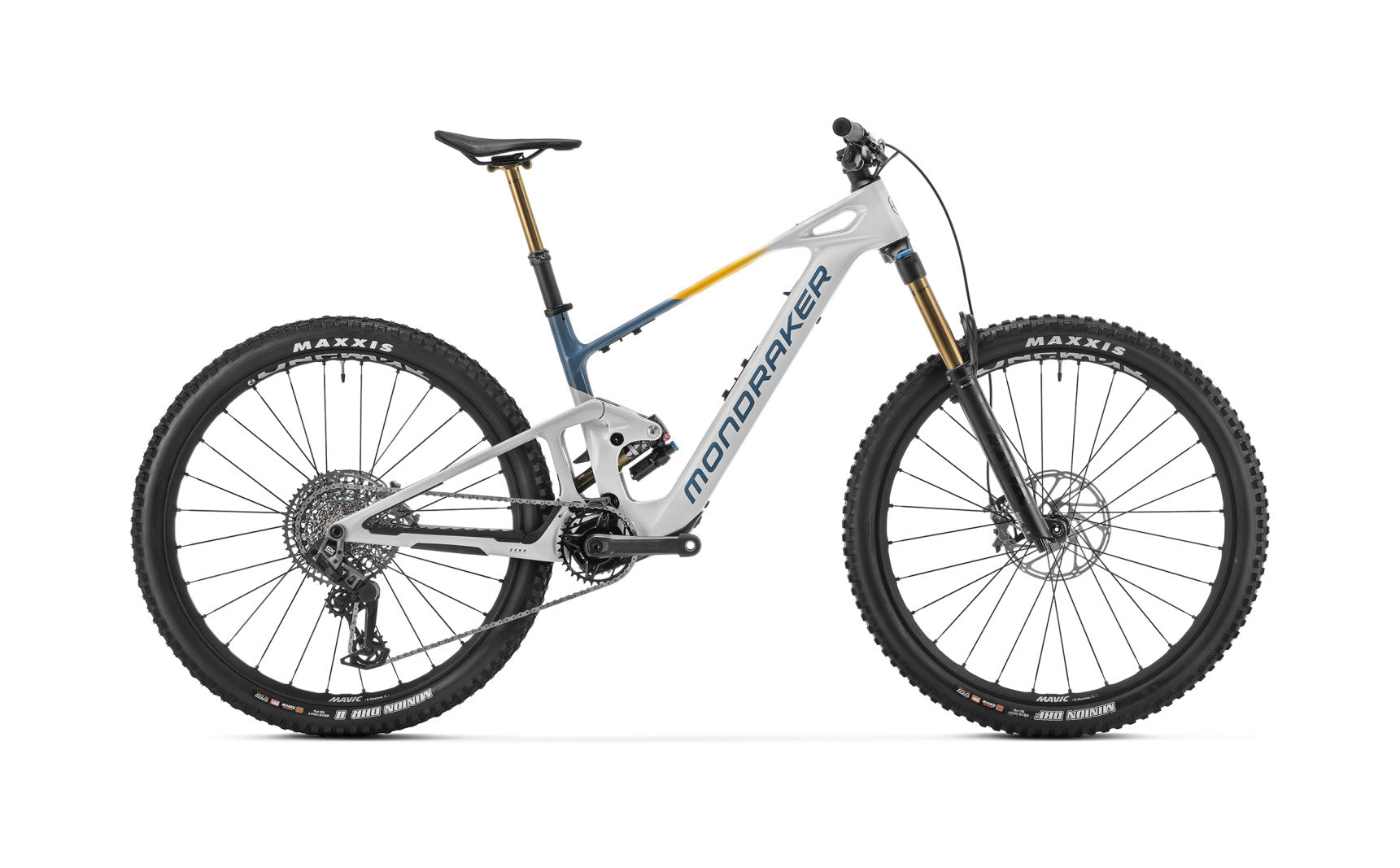

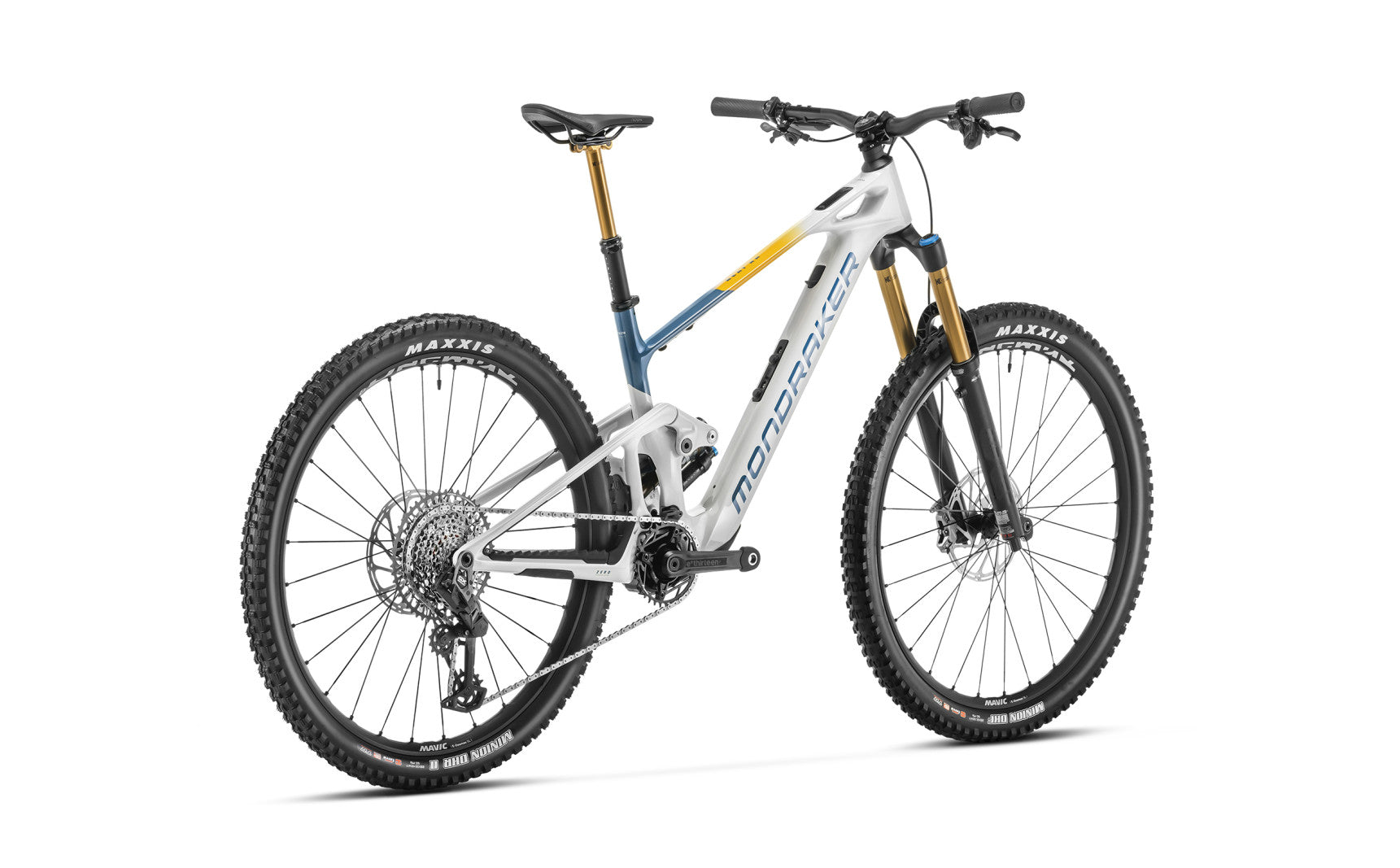

MONDRAKER NEAT RR LIGHTWEIGHT EBIKE

$10,972.00
This product is unavailable
  • PLEASE EVERYONE, STAND UP AND WELCOME THE NEAT.

    A new beginning. A new era of ebikes. Born and bred with all of our character, identity and feeling. A Mondraker by definition, but more manoeuverable, nimble and even faster than ever before. A new cycle with a new leader.

    The NEAT range shares the same carbon fibre frame but with three different builds to choose from: NEAT R, NEAT RR and NEAT RR SL. All three come with a Fox Float X shock and Fox 36 fork, 4 piston brakes and Maxxis Minion DHF and DHR tyres with EXO+ sidewalls.

     NEAT RR

    ENDURO/AM / LIGHT E-MTB

    COMPONENTS

    TECHNICAL SPECS

      • frame

        Frame

        Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.


        sizes

        Sizes

        S: 380mm / M: 420mm / L: 450mm / XL: 490mm

      • rear shock

        Rear shock

        Fox Float X Factory Kashima EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings


        shock settings

        Shock settings

        Medium compression, medium rebound, air volume spacer 0.4

      • fork

        Fork

        Fox 36 29 Float GRIP2 Factory Kashima, 160mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload


        headset

        Headset

        Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

      • stem

        Stem

        Onoff Krypton FG 30mm, CNC, 31.8mm barbore


        handlebar

        Handlebar

        Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

      • grips

        Grips

        Onoff Desert, 1lock-on, 135mm


        seatpost

        Seatpost

        Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm

      • saddle

        Saddle

        Fizik Terra Aidon Slim X5


        front brake

        Front brake

        Sram Level Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

      • rear brake

        Rear brake

        Sram Level Bronze Stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads


        brake lever

        Brake lever

        Sram Level Bronze, tools-free reach adjust, lever pivot bushings

      • rims

        Rims

        Mavic E-DeeMax SL 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes


        spokes

        Spokes

        Mavic 28 straight-pull double butted spokes

      • front hub

        Front hub

        Mavic Infinity hub, Boost 15x110mm, IS 6 bolts


        rear hub

        Rear hub

        Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub

      • front tire

        Front tire

        Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead


        rear tire

        Rear tire

        Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

      • crankset

        Crankset

        E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm


        rings

        Rings

        Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD

      • chain

        Chain

        Sram GX Eagle T-Type, 12s, Powerlock


        rear derrailleur

        Rear derrailleur

        Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s

      • shift levers

        Shift levers

        Sram Eagle AXS Pod MMX, 12s


        casette

        Casette

        Sram XS-1275, 10-52T, T-Type, 12s

      • others

        Others

        Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh


        weight

        Weight

        18.3 kg - Max System Weight 150kg.

      • display

        Display

        TQ HPR display V01


        motor

        Motor

        TQ HPR-50

      • battery

        Battery

        TQ HPR-50 360Wh integrated and removable
