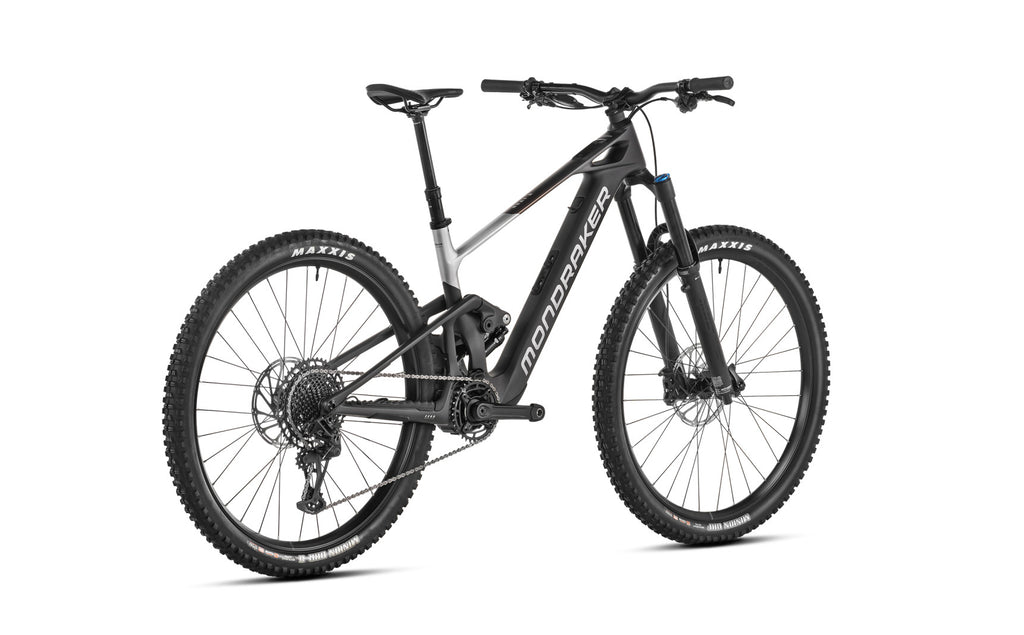

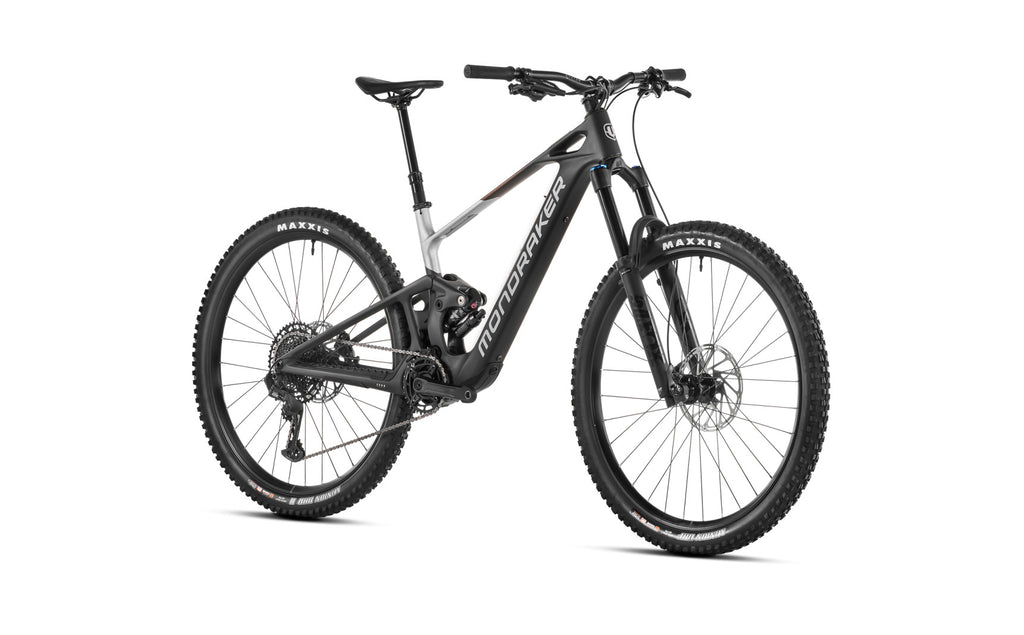

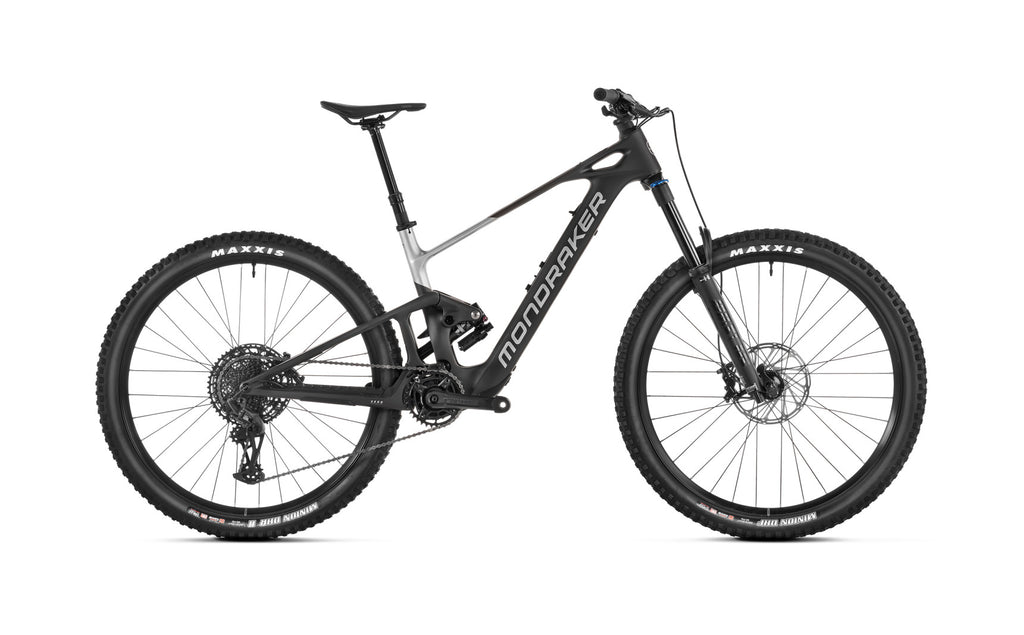

MONDRAKER NEAT R LIGHTWEIGHT EBIKE

$7,900.00 $8,777.00
  • PLEASE EVERYONE, STAND UP AND WELCOME THE NEAT.

    A new beginning. A new era of ebikes. Born and bred with all of our character, identity and feeling. A Mondraker by definition, but more manoeuverable, nimble and even faster than ever before. A new cycle with a new leader.

    The NEAT range shares the same carbon fibre frame but with three different builds to choose from: NEAT R, NEAT RR and NEAT RR SL. All three come with a Fox Float X shock and Fox 36 fork, 4 piston brakes and Maxxis Minion DHF and DHR tyres with EXO+ sidewalls.

     NEAT R

    ENDURO/AM / LIGHT E-MTB

    COMPONENTS

    TECHNICAL SPECS

    • frame

      Frame

      Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, integrated dropout speed sensor, exclusive plastic motor covers.


      sizes

      Sizes

      S: 380mm / M: 420mm / L: 450mm / XL: 490mm

    • rear shock

      Rear shock

      Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings


      shock settings

      Shock settings

      Medium compression, medium rebound, air volume spacer 0.4

    • fork

      Fork

      Fox 36 29 Float GRIP EVOL Performance, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload


      headset

      Headset

      Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

    • stem

      Stem

      Onoff Krypton FG 30mm, CNC, 31.8mm barbore


      handlebar

      Handlebar

      Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

    • grips

      Grips

      Onoff Desert, 1lock-on, 135mm


      seatpost

      Seatpost

      Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm

    • saddle

      Saddle

      Fizik Terra Aidon Slim X5


      front brake

      Front brake

      Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

    • rear brake

      Rear brake

      Sram G2 R, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads


      brake lever

      Brake lever

      Sram G2 R, tool-free reach adjust, lever pivot bushings

    • rims

      Rims

      Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes


      spokes

      Spokes

      Mavic J-bend double butted, contactless lacing

    • front hub

      Front hub

      Mavic, Boost 15x110mm, IS 6 bolts


      rear hub

      Rear hub

      Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub

    • front tire

      Front tire

      Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead


      rear tire

      Rear tire

      Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

    • crankset

      Crankset

      E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm


      rings

      Rings

      Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

    • chain

      Chain

      Sram NX Eagle, 12s, Powerlock


      rear derrailleur

      Rear derrailleur

      Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

    • shift levers

      Shift levers

      Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click


      casette

      Casette

      Sram PG-1230, 11-50T, 12s

    • derailleur hanger

      Derailleur hanger

      Sram UDH


      others

      Others

      Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version *Optional external battery: TQ 160Wh

    • weight

      Weight

      18.9 kg - Max System Weight 150kg.


      display

      Display

      TQ HPR display V01

    • motor

      Motor

      TQ HPR-50


      battery

      Battery

      TQ HPR-50 360Wh integrated and removable
