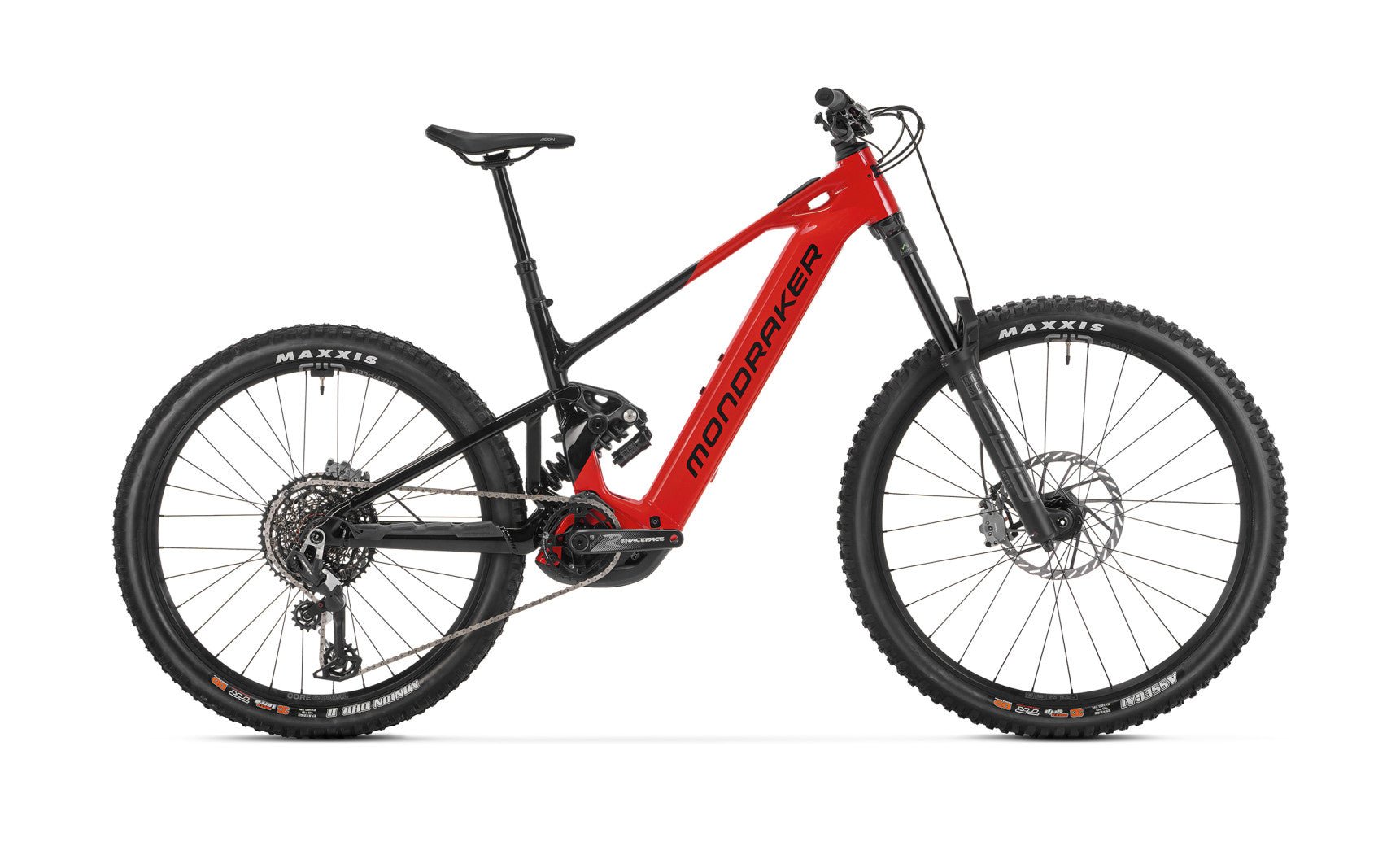

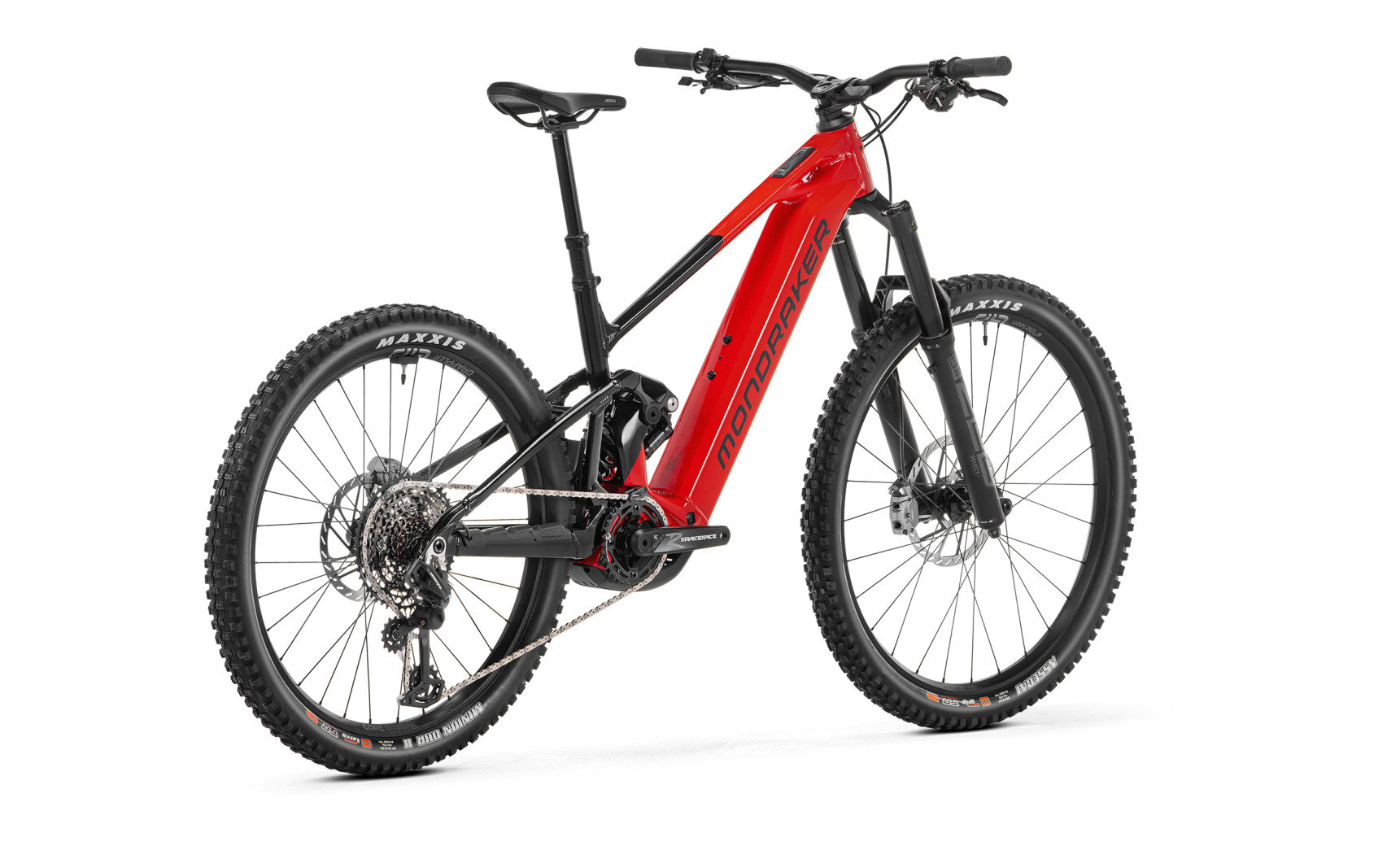

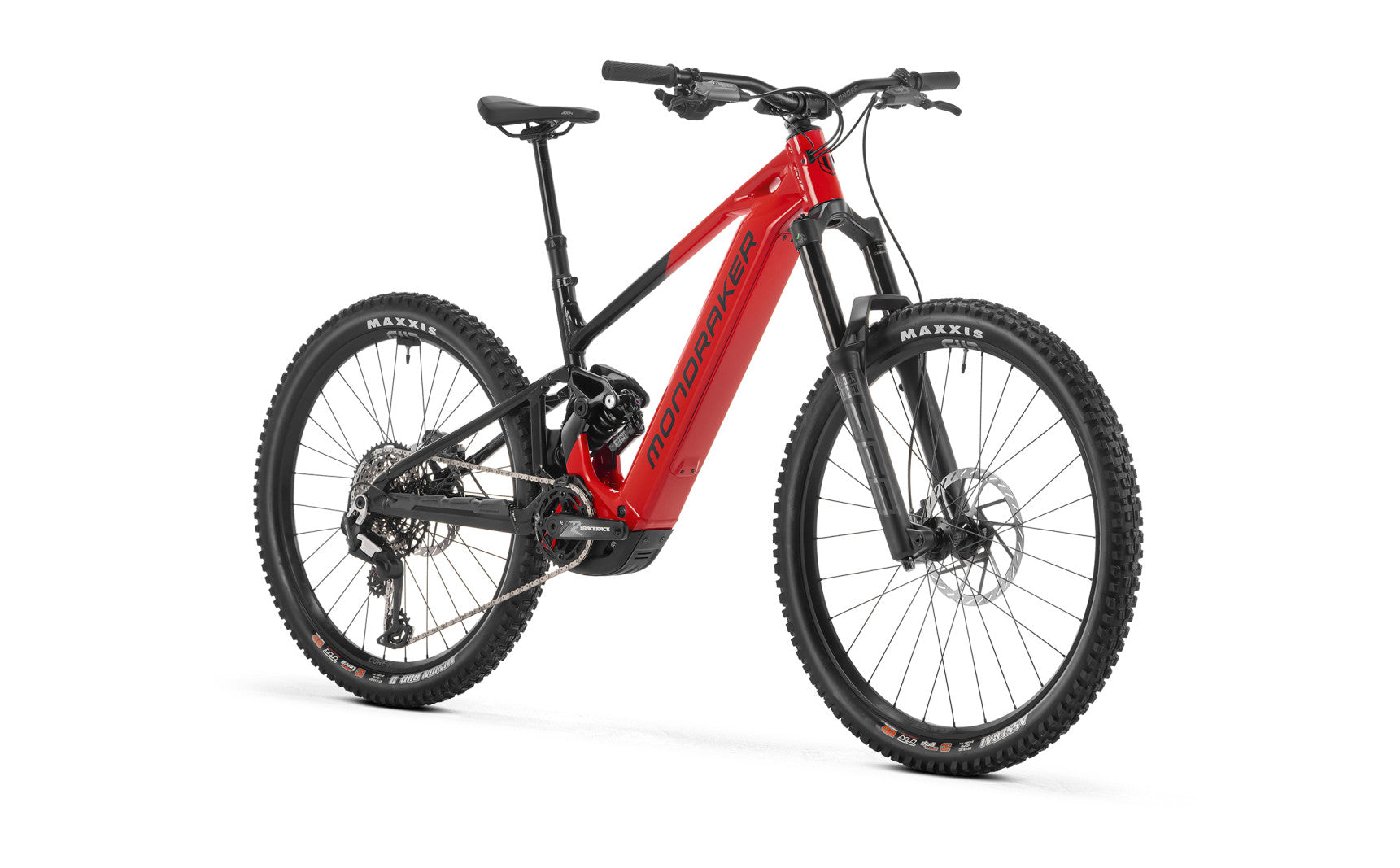

The Level R is your ticket to another level of enduro. As the most accessible model in the new range, it features the fifth-generation Bosch Performance Line CX motor, now delivering up to 750W and 100Nm of torque (with the latest software update), paired with a massive 800Wh battery, which is easily removable via the sleek carbon access panel on the downtube. Key spec highlights include:
• RockShox ZEB RC fork
• SRAM Maven Bronze brakes
• SRAM 90 Eagle T-Type drivetrain (10-52T, 34T chainring)
• Maxxis Assegai 29"x2.6" WT (front) / Minion DHR II 27.5"x2.6" WT (rear)
Components
Frame
Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock
RockShox Vivid Coil base, 205x65mm. Settings: external bottom out, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
C26 compression, R23 rebound. Spring rate: S size 350 lbs, M size 400 lbs, ML size 450 lbs, L size 500 lbs, XL size 500 lbs
Fork
RockShox ZEB Select Charger RC 29, 180mm, e-bike approved, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: low-speed compression, low-speed rebound, air preload
Headset
Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
Stem
Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle
FIZIK Terra Aidon X5 145mm
Front brake
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust
Rims
e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear
Spokes
e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front hub
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub
Front tire
Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead
Rear tire
Maxxis Minion DHR II 27’5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead
Crankset
Race Face Aeffect ebike, All sizes: 160mm
Rings
Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain
Sram 70 Eagle T-Type, 12s, Powerlock
Rear derrailleur
Sram 90 Eagle T-Type, 12s
Shift levers
Sram 90 Eagle, 12s, T-Type Actuation, single click
Casette
Sram XS-1270, 10-52T, T-Type, 12s
Weight
26,7 kg
Display
Purion 400 / Bosch Mini Remote / Bosch System Controller
Motor
Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)
Battery
Bosch Powertube 800Wh
