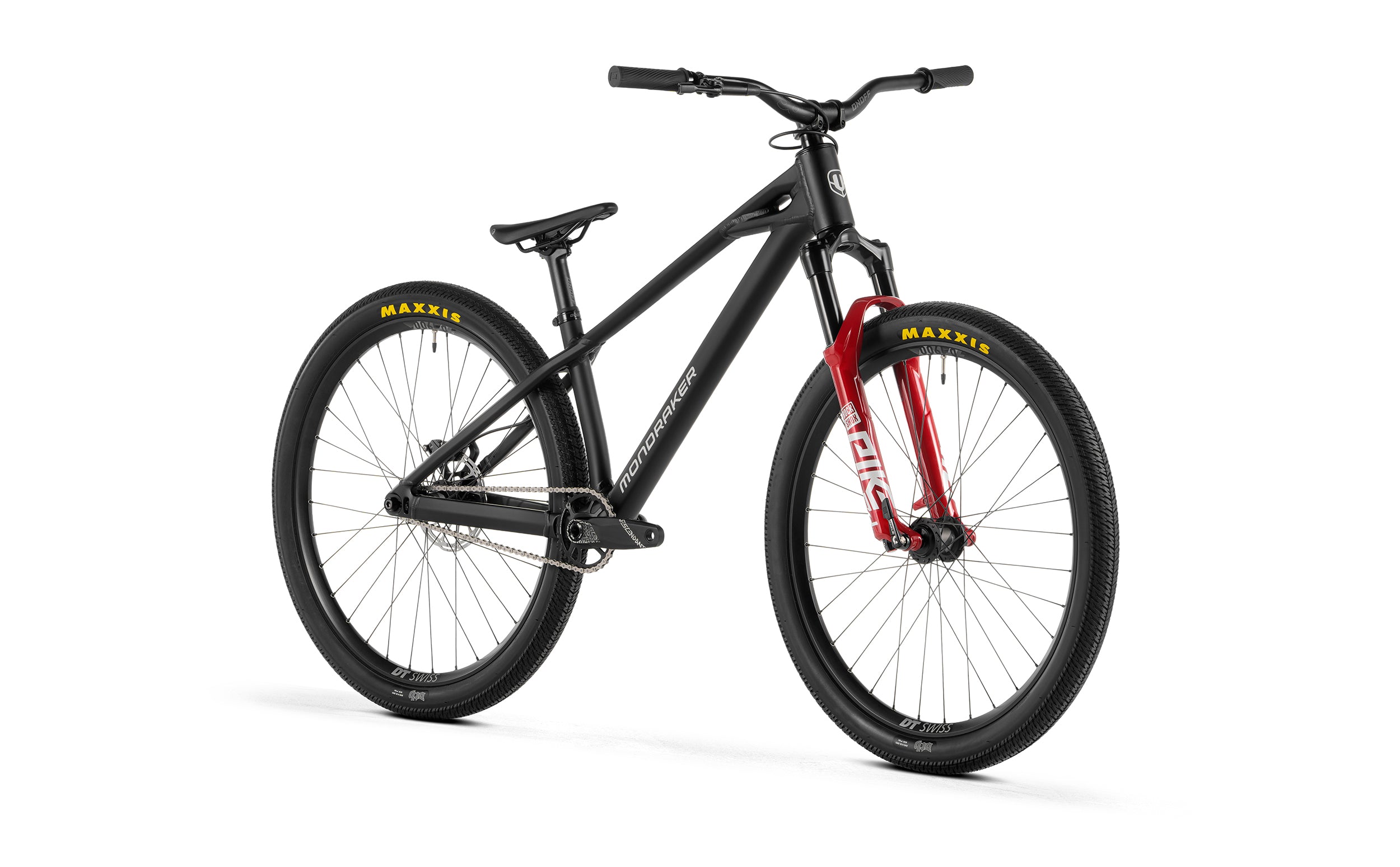

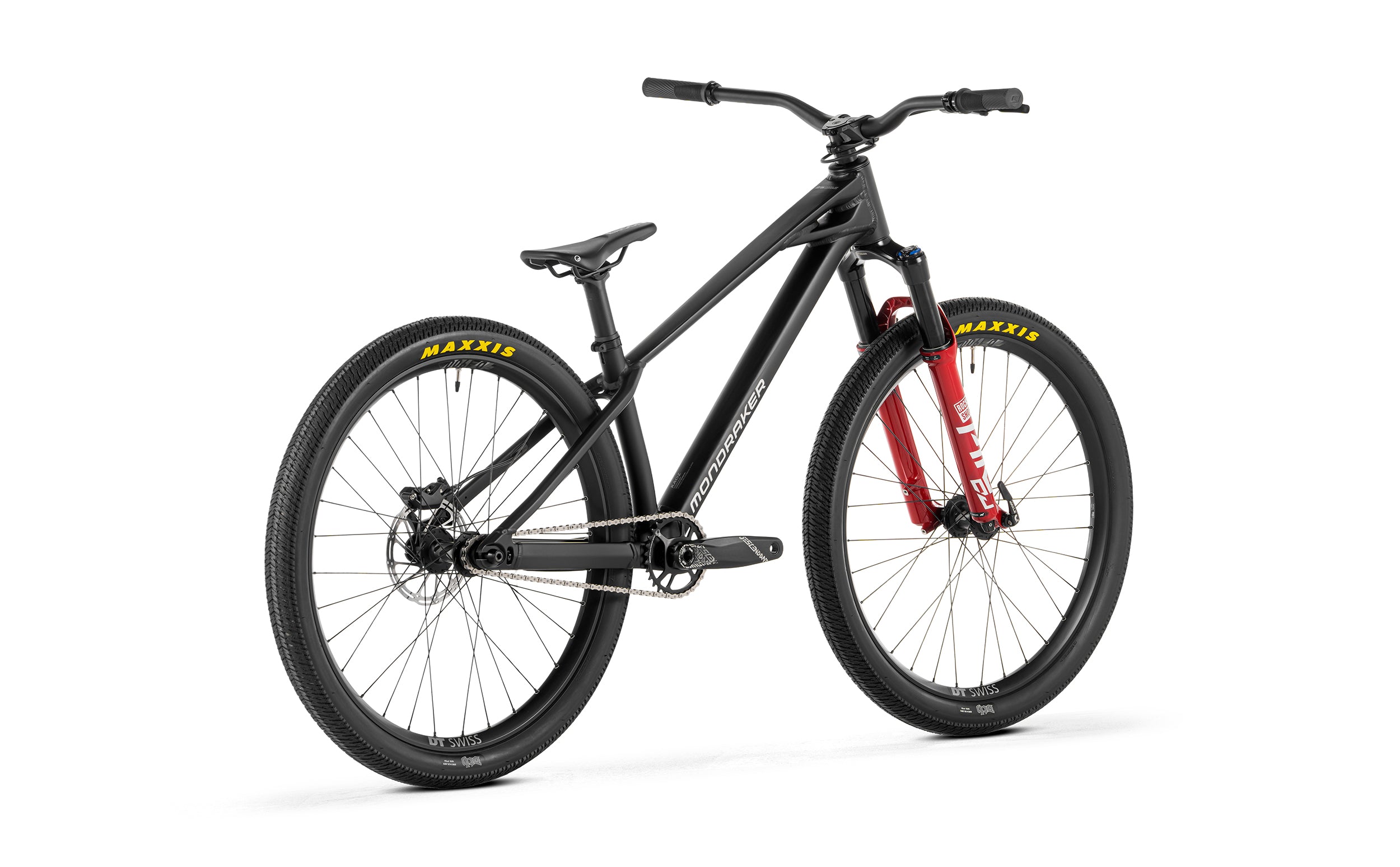

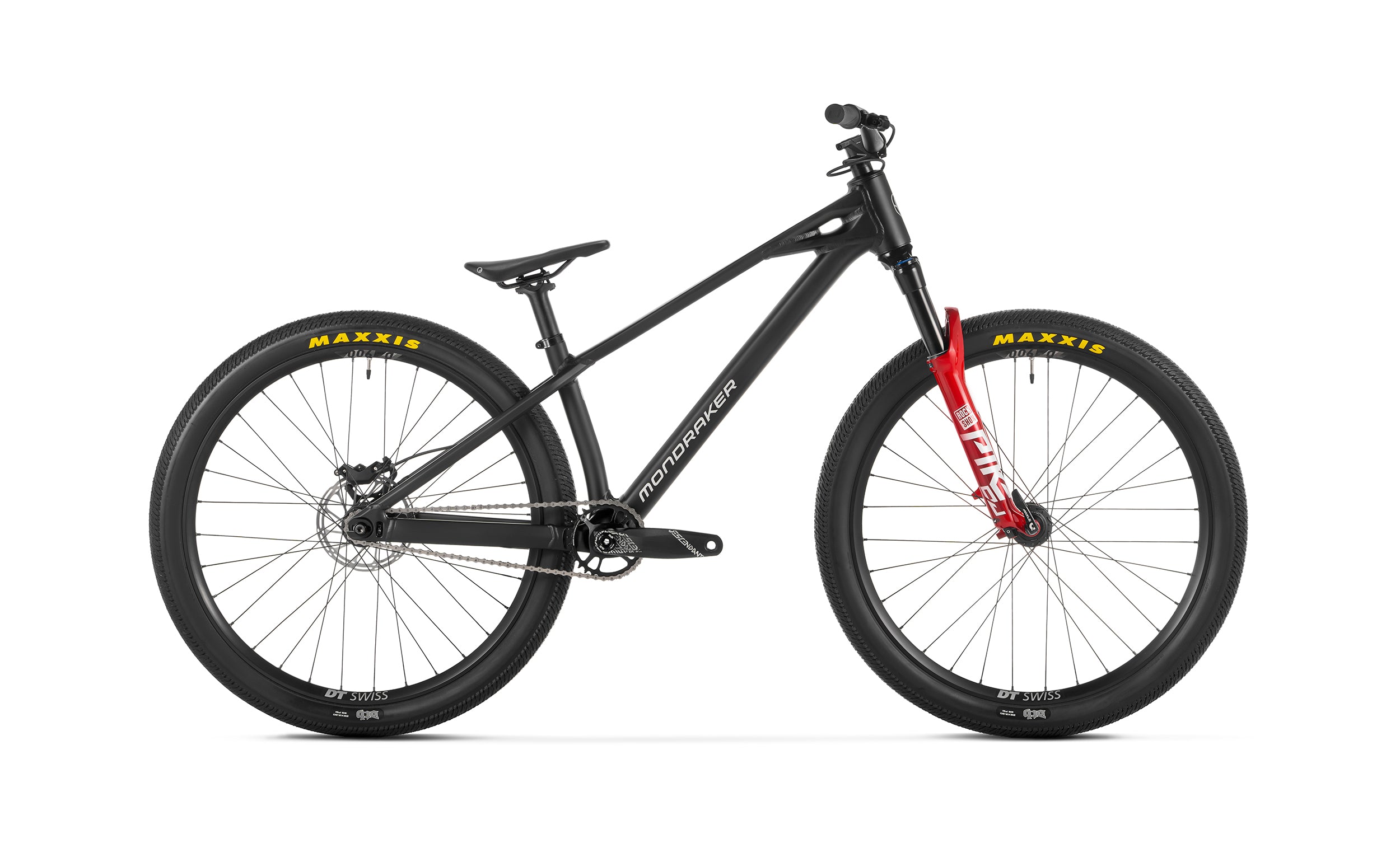

Mondraker Kaos Dirt Jump Bike

£1,999.00
Minus Plus

Introducing the Mondraker KAOZ

The latest bike to join our gravity collection, alongside the proven Summum DH race bike, and new Anark park bike.


With instantly recognisable Mondraker aesthetics, the KAOZ is a frame for creative riding and has some unique features.


Whether that’s carving concrete bowls; pumping hard packed rollers or boosting off sculpted lips - KAOZ is the bike for expressing yourself.



26"    100mm     Alloy

  • Fork · RockShox PIKE DJ, 26”, 100mm
  • Brake lever · Sram DB8
  • Rims · DT Swiss D 1900 Classic

Components

Technical specs

  • frame

    Frame

    Kaoz 6061-T6 Stealth Alloy Evo, hydroformed tubing, 26” Forward Geometry, BSA73, 10x135mm rear axle, Sliding Dropouts, Single Speed


    sizes

    Sizes

    M: 415mm / L: 440mm

  • fork

    Fork

    RockShox PIKE DJ, 26”, 100mm, Charger damper, tapered steerer tube, 15x100mm axle, 40mm offset


    headset

    Headset

    Onoff custom ZS56/ZS56, 1-1/8”, 1.2” head tube

  • stem

    Stem

    Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore


    handlebar

    Handlebar

    Onoff S6 1.5 7050 alloy, rise: 38mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore

  • grips

    Grips

    Onoff Desert Pro, CNC lock-on, 135mm, thin


    seatpost

    Seatpost

    Onoff S3 DH alloy, diameter 31.6mm, length 300mm

  • saddle

    Saddle

    Ergon SM10 DH Black


    rear brake

    Rear brake

    Sram DB8, 4-piston caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pads

  • brake lever

    Brake lever

    Sram DB8, tool reach adjust, lever pivot bushings


    rims

    Rims

    DT Swiss D 1900 Classic, 30mm internal width, aluminum pinned rim joint, tubeless ready, 32 spokes

  • spokes

    Spokes

    DT J-bend spokes, DT competition®, black


    front hub

    Front hub

    DT Swiss 370, 15x100mm, IS 6 bolts

  • rear hub

    Rear hub

    DT Swiss 370 Classichub with 36T Ratchet LN, Singlespeed with sprocket 12T, 10x135mm bolts-on, IS 6 bolts


    front tire

    Front tire

    Maxxis DTH 26x2.3, single compound, 60TPI, Tubeless ready, Foldable

  • rear tire

    Rear tire

    Maxxis DTH 26x2.3, single compound, 60TPI, Tubeless ready, Foldable


    crankset

    Crankset

    Sram Truvativ Descendant 6K, DUB axle, Direct mount chain ring, 165mm CL 49mm

  • rings

    Rings

    Sram Eagle 30T, steel, X-Sync 2


    bottom bracket

    Bottom bracket

    Sram DUB BSA, sealed bearings, 73mm

  • chain

    Chain

    Sram PC-1, Singlespeed, PowerLock 1s


    weight

    Weight

    11,2 kg (Size M)
