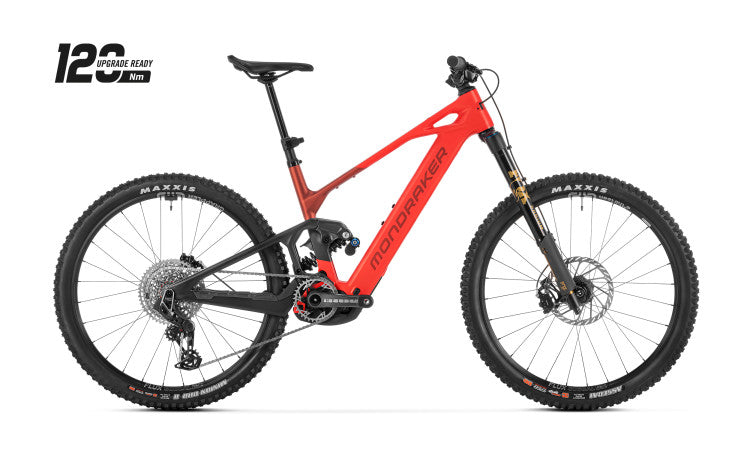

The ultimate enduro bike in our full power mountain bike category, it comes with 29” wheels and 160/150mm of travel. The new Crafty Carbon range is available in 5 different builds, all with a carbon fibre frame guaranteeing versatility and endurance on the harshest of terrains. Crafty Carbon also incorporates the very latest edition of the Zero Suspension System and a flip chip on the lower shock mount as well as two different swingarm lengths depending on frame size: 455mm (S, M, ML) and 465mm (L and XL).
Components
Frame
Crafty Stealth Air full Carbon, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock
Fox DHX2 Factory Kashima, 185x55mm. Settings: high and low-speed compression, high and low-speed rebound, spring preload. Super light steel (SLS) spring. Trunnion top mount, 30x8mm bottom bushings
Shock settings
CL60 compression, Bleed 0,9, RS60 rebound, Rezi B60, LML, VVCM Spring rate:S size 400 lbs, M size 450 lbs, ML size 500 lbs, L size 550 lbs, XL size 600 lbs
Fork
Fox Podium 29 Float GRIPX2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload
Headset
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Stem
Onoff S9 30mm 0º, Full CNC, 31.8mm barbore
Handlebar
Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.
Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
Seatpost
RockShox Reverb Stealth AXS, diameter 31.6mm S size: 398.2x125mm, M size: 448.2x150mm,ML size: 498.2x175mm, L size: 548.2x200mm, XL size:548.2x200mm
Saddle
Ergon SM-10
Front brake
Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Maven Silver, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust
Rims
e*thirteen Grappler Flux, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes
Spokes
e*thirteen Sapim D-light / Brass
Front hub
e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Boost 12x148mm, Sidekick,12°/15°/18° Adjustable Deadband, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Front tire
Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead
Rear tire
Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset
E.13 Helix Race Carbon E*Spec Plus, All sizes: 160mm
Rings
Sram XX Eagle 34T T-Type, direct mount, steel, CL55
Chain
Sram GX Eagle T-Type, 12s, Powerlock
Rear derrailleur
Sram X0 Eagle AXS, T-Type, 12s
Shift levers
Sram Eagle AXS Pod MMX, 12s
Casette
Sram XS-1275, 10-52T, T-Type, 12s
Weight
24,4 kg
Display
Kiox 400C / Bosch Mini Remote
Motor
Bosch Performance Line CX R (25Km/h) SMART SYSTEM (BDU386Y)
Battery
Bosch Powertube 800Wh
