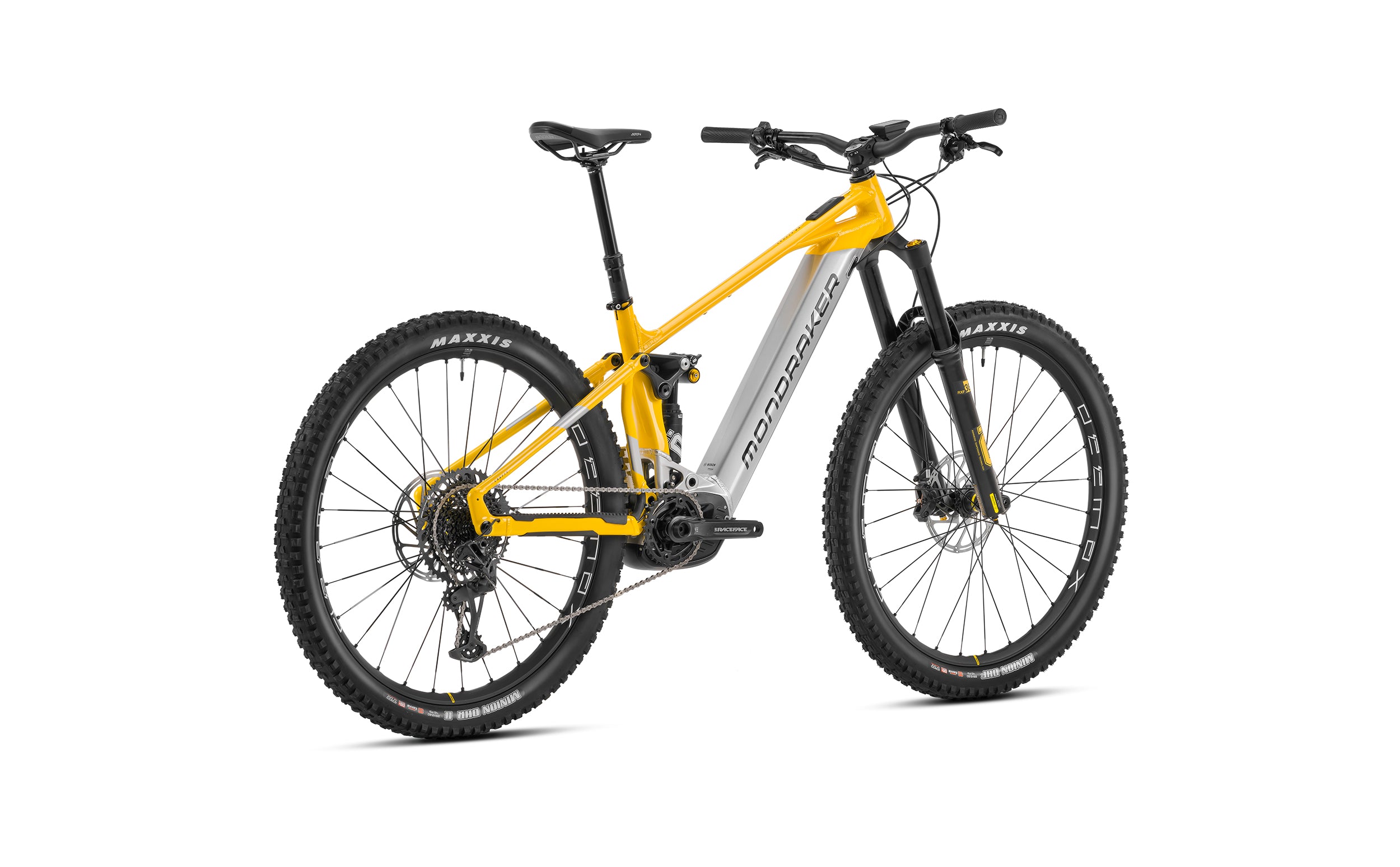

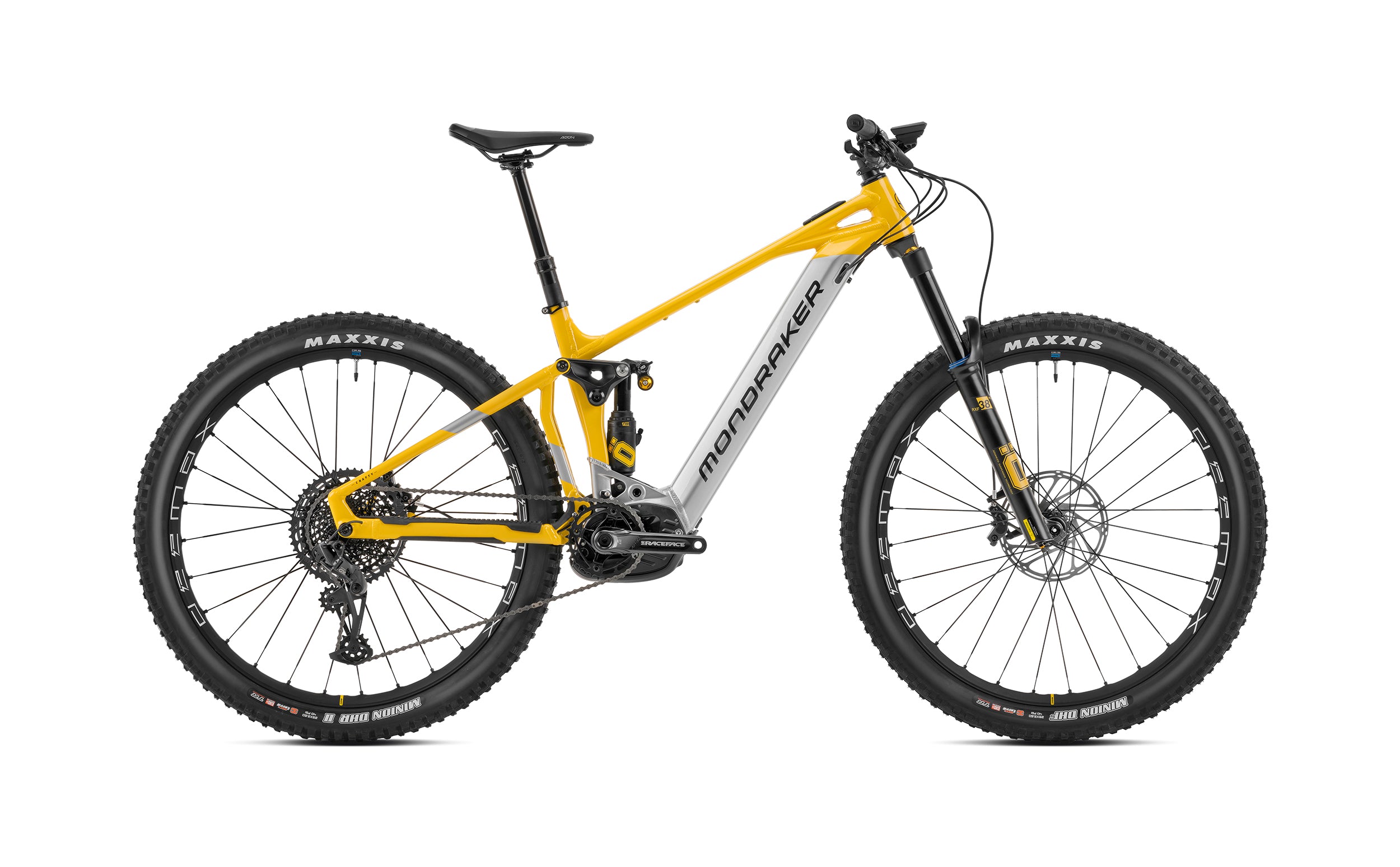

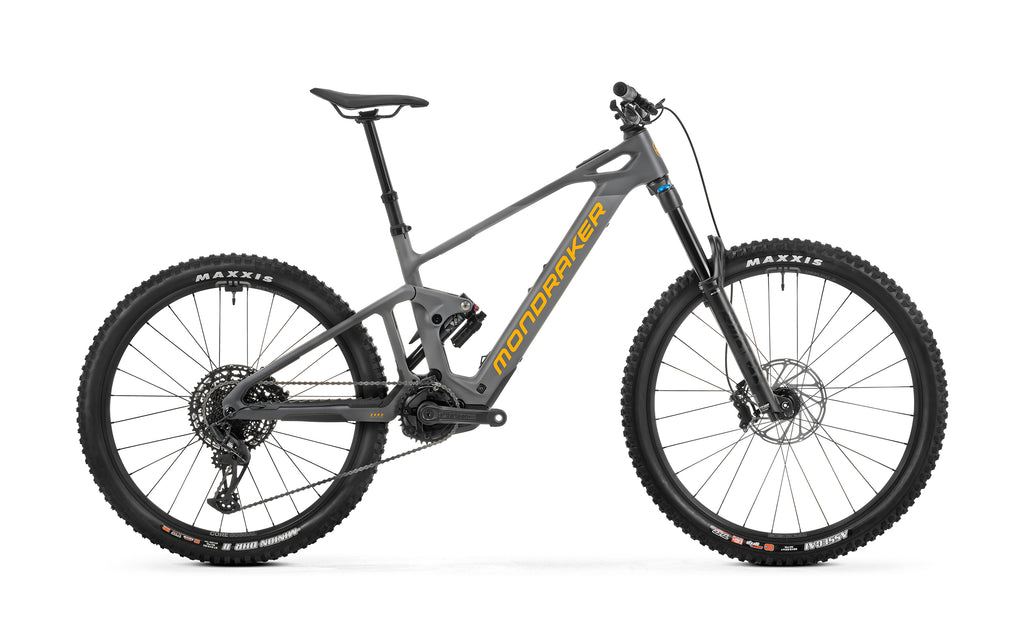

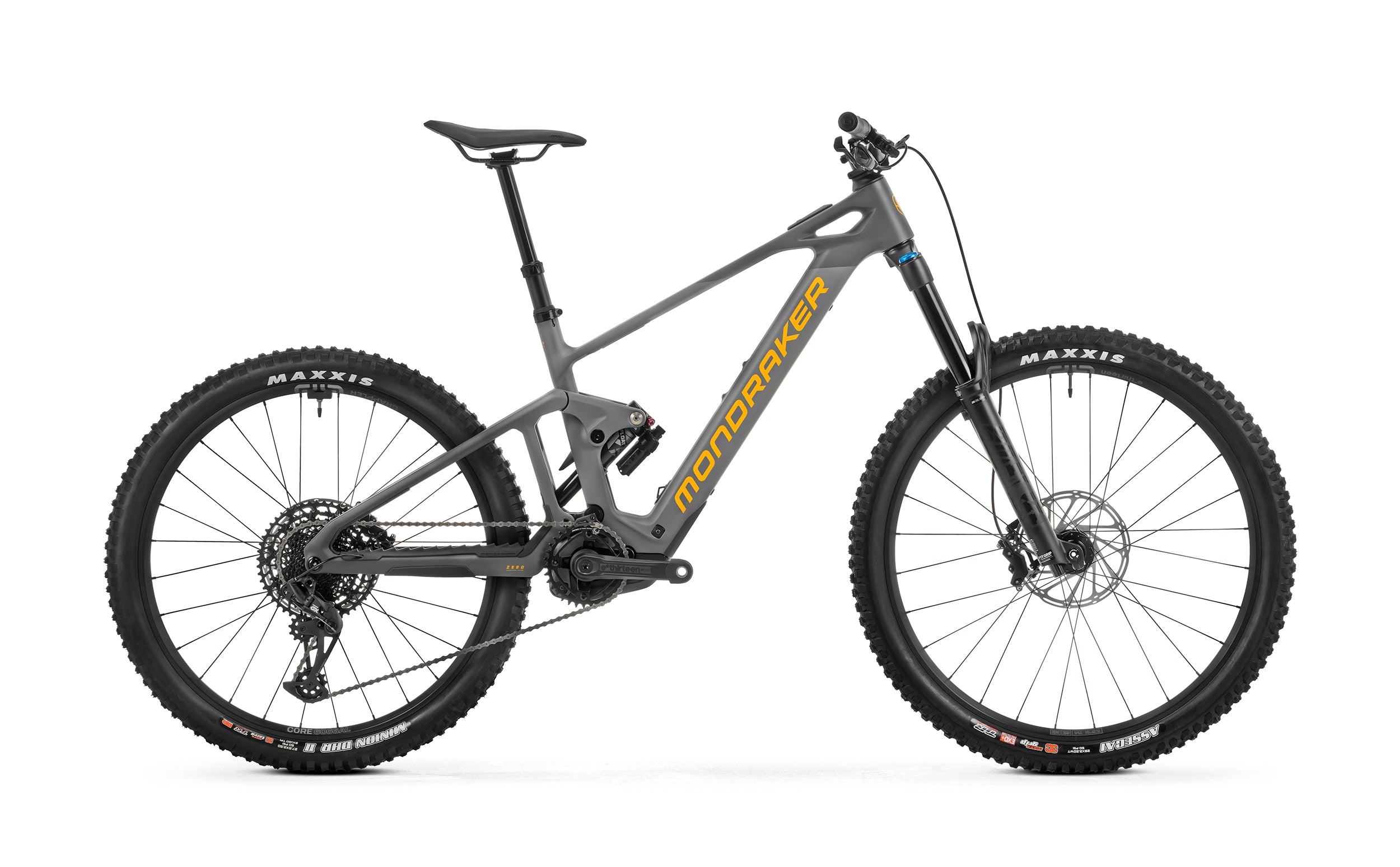

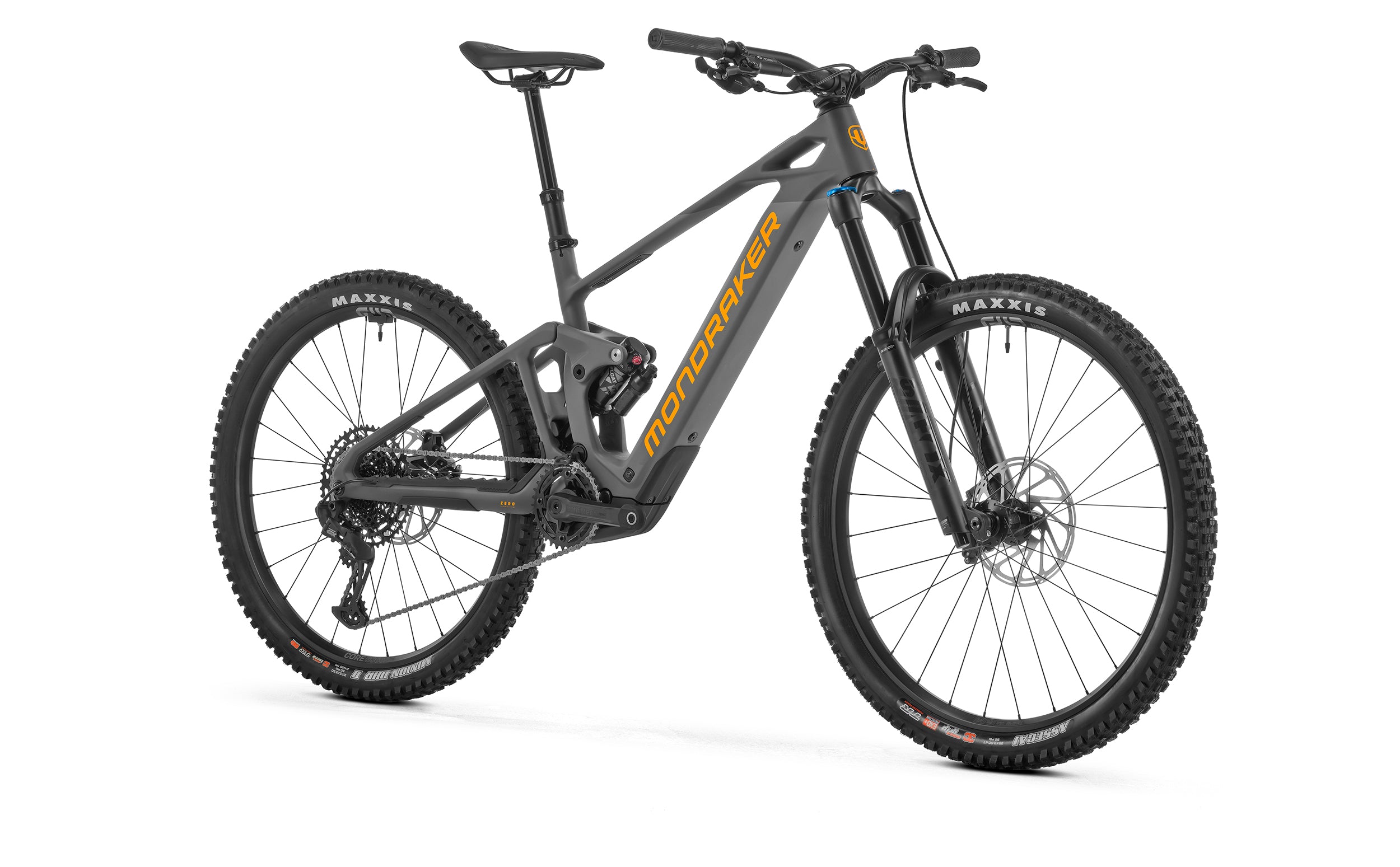

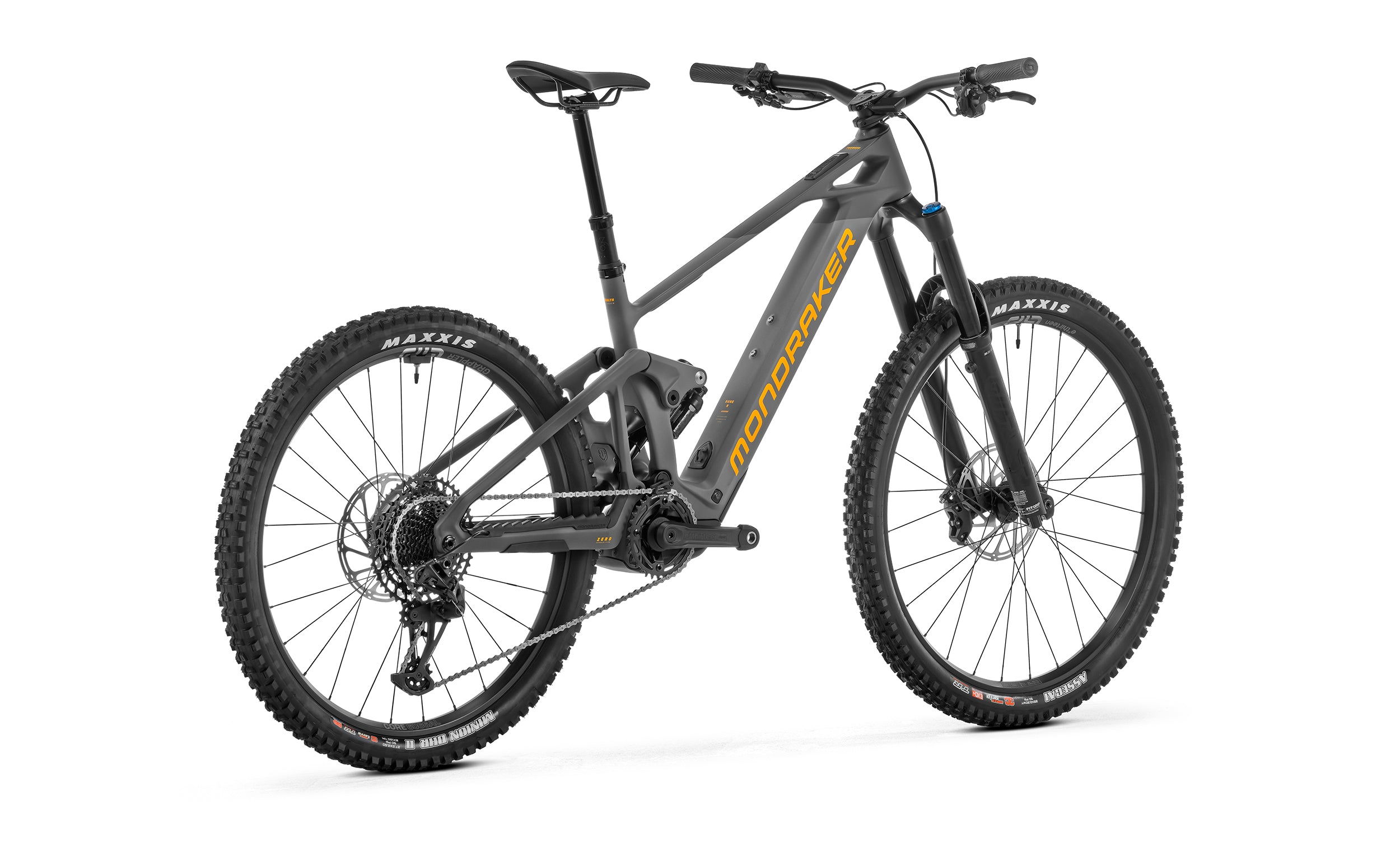

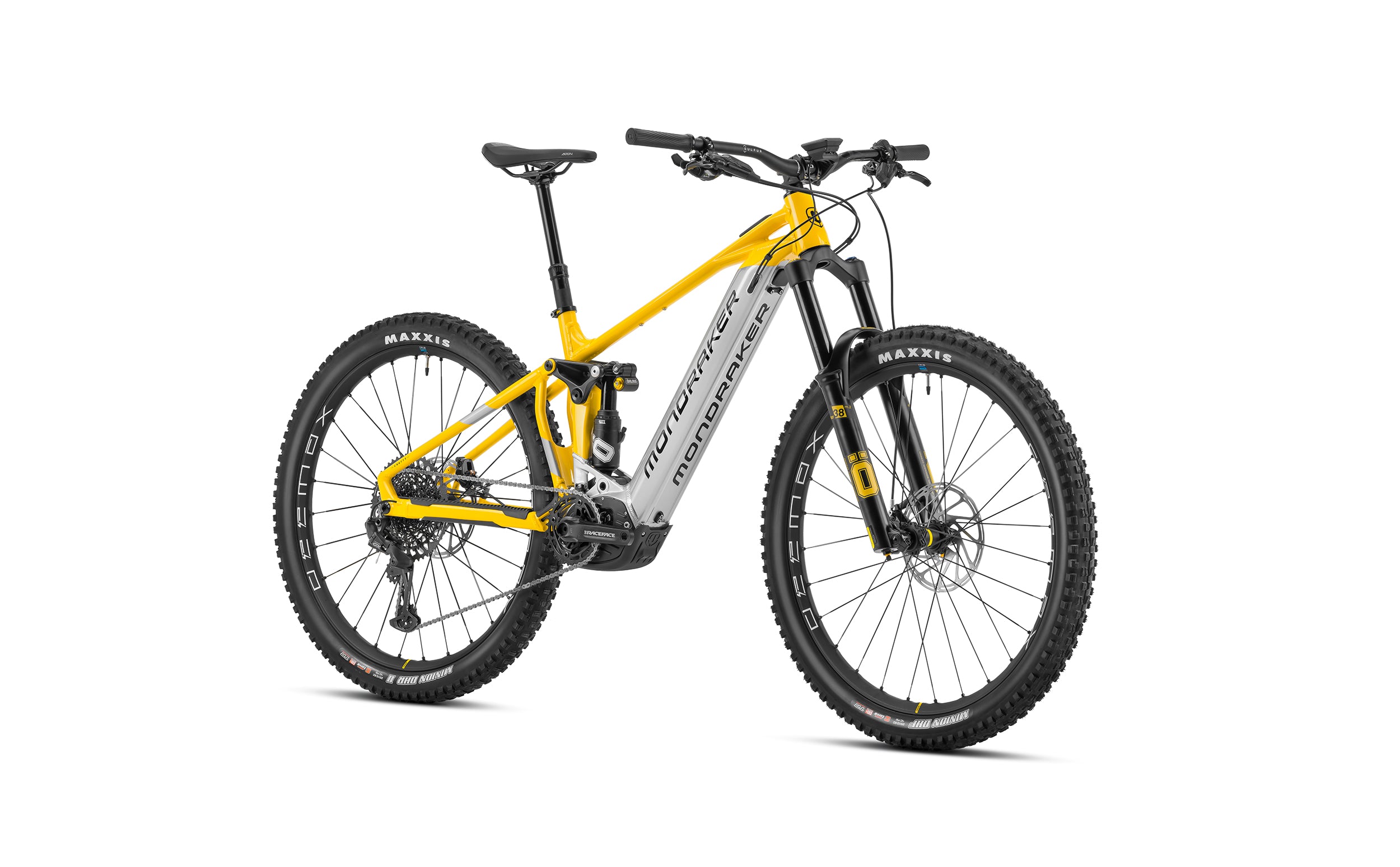

MONDRAKER DUNE R LIGHTWEIGHT EMTB

£6,799.00

DUNE R: THE ENTRY LEVEL BUILD


The entry level DUNE R gives up little to its more expensive siblings. A 170mm FOX 38 Float 3P Performance Grip fork keeps the front wheel in check while a Fox Float X Performance EVOL shock tames things at the back, SRAM supplies the GX Eagle rear mech and E.13 their E*Spec Plus cranks, ONOFF provide the Pija dropper post, SRAM the DB8 brakes and e*thirteen Grappler Core wheels with 30mm wide aluminium rims round things out.

Components

Technical specs

  • frame

    Frame

    Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.


    sizes

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

  • rear shock

    Rear shock

    Fox Float X Performance EVOL, 205x65mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings


    shock settings

    Shock settings

    Medium compression, medium rebound, air volume spacer 0.4

  • fork

    Fork

    FOX 38 Float 3P Performance Grip, 170mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload


    headset

    Headset

    Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock

  • stem

    Stem

    Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore


    handlebar

    Handlebar

    Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

  • grips

    Grips

    Onoff Forest, CNC lock-on, 135mm


    seatpost

    Seatpost

    Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)

  • saddle

    Saddle

    Fizik Terra Aidon Slim X5


    front brake

    Front brake

    Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

  • rear brake

    Rear brake

    Sram DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads


    brake lever

    Brake lever

    Sram DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

  • rims

    Rims

    e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''''''''5 rear


    spokes

    Spokes

    e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

  • front hub

    Front hub

    e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts


    rear hub

    Rear hub

    e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub

  • front tire

    Front tire

    Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead


    rear tire

    Rear tire

    Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead

  • crankset

    Crankset

    e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm


    rings

    Rings

    Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

  • chain

    Chain

    Sram NX Eagle, 12s, Powerlock


    rear derrailleur

    Rear derrailleur

    Sram GX Eagle,12s

  • shift levers

    Shift levers

    Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click


    casette

    Casette

    Sram PG-1230, 11-50T, 12s

  • derailleur hanger

    Derailleur hanger

    Sram UDH


    weight

    Weight

    19,9 kg

  • display

    Display

    Purion 400 / Bosch Mini Remote / Bosch System Controller


    motor

    Motor

    Bosch Performance Line SX (25Km/h) GEN4 SMART SYSTEM Diagonal, Wide

  • battery

    Battery

    Bosch Compact Powertube 400Wh
