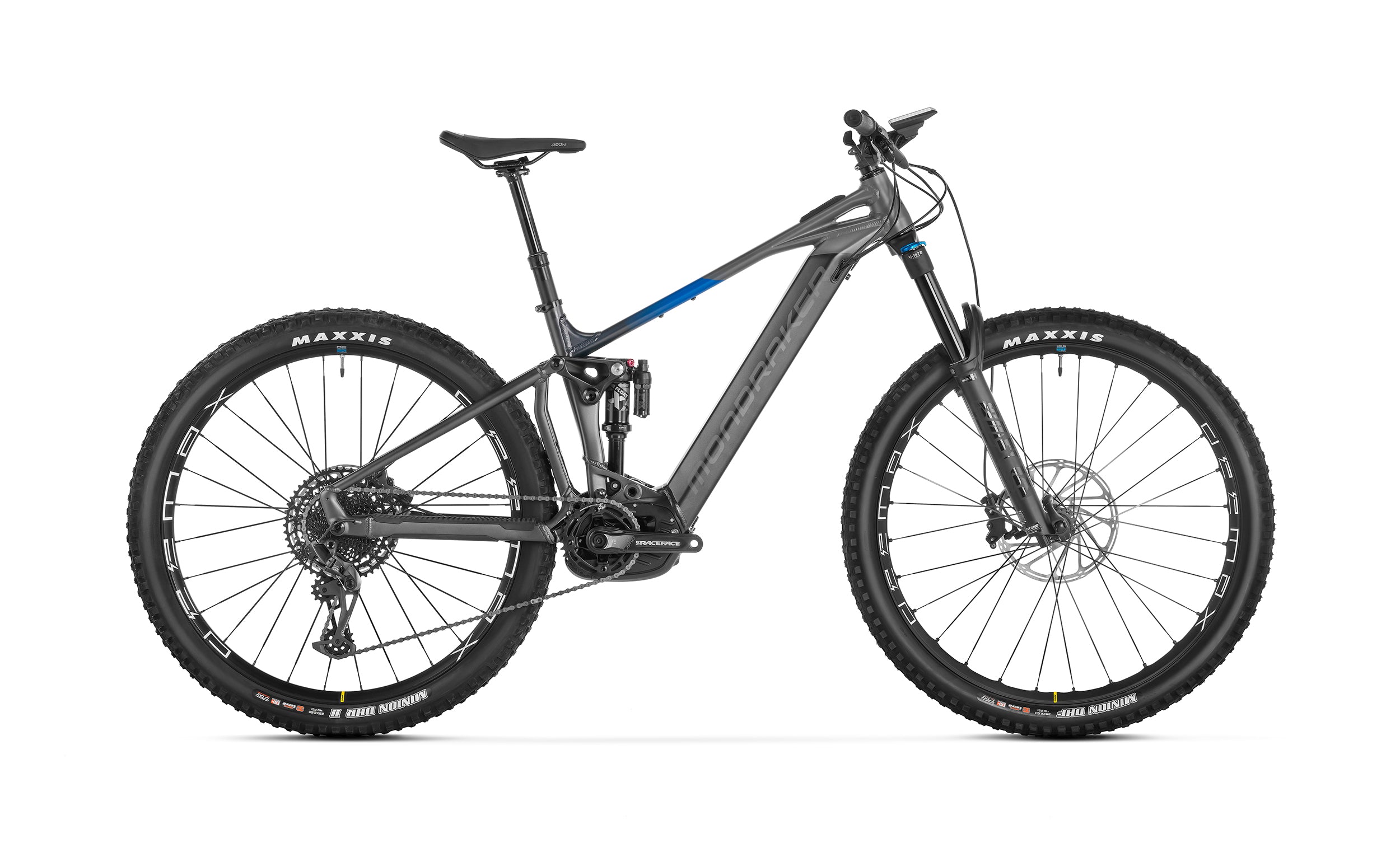

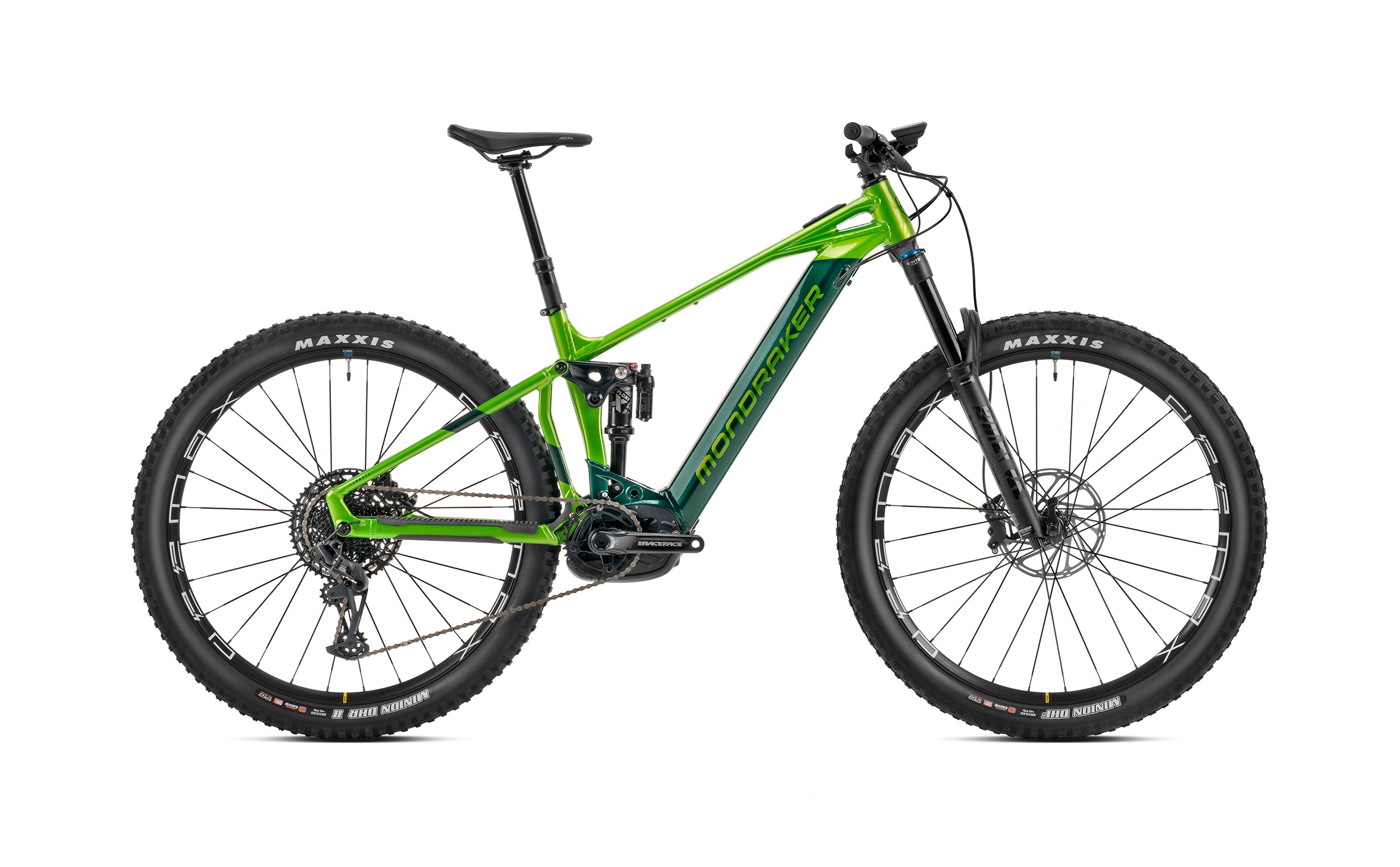

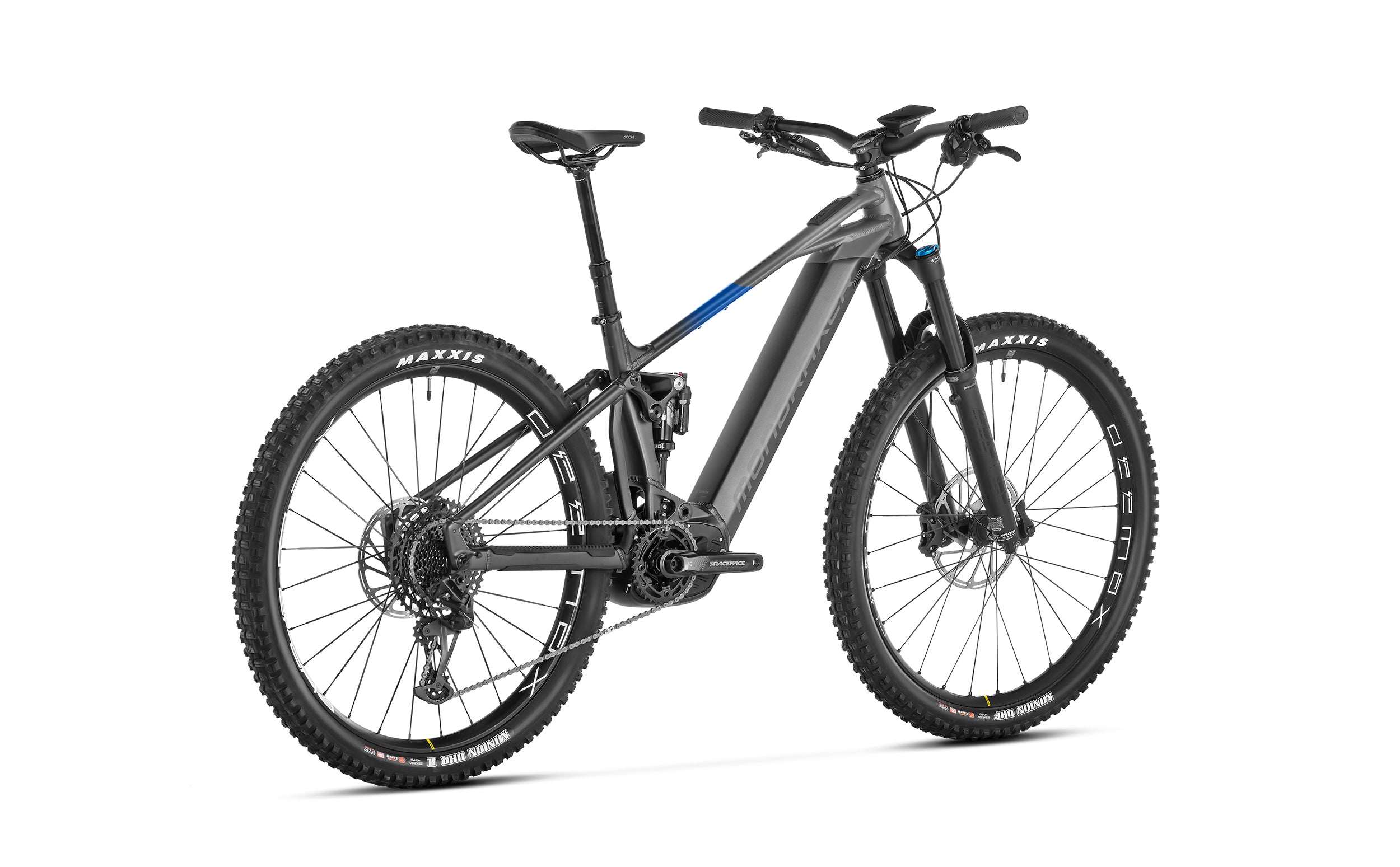

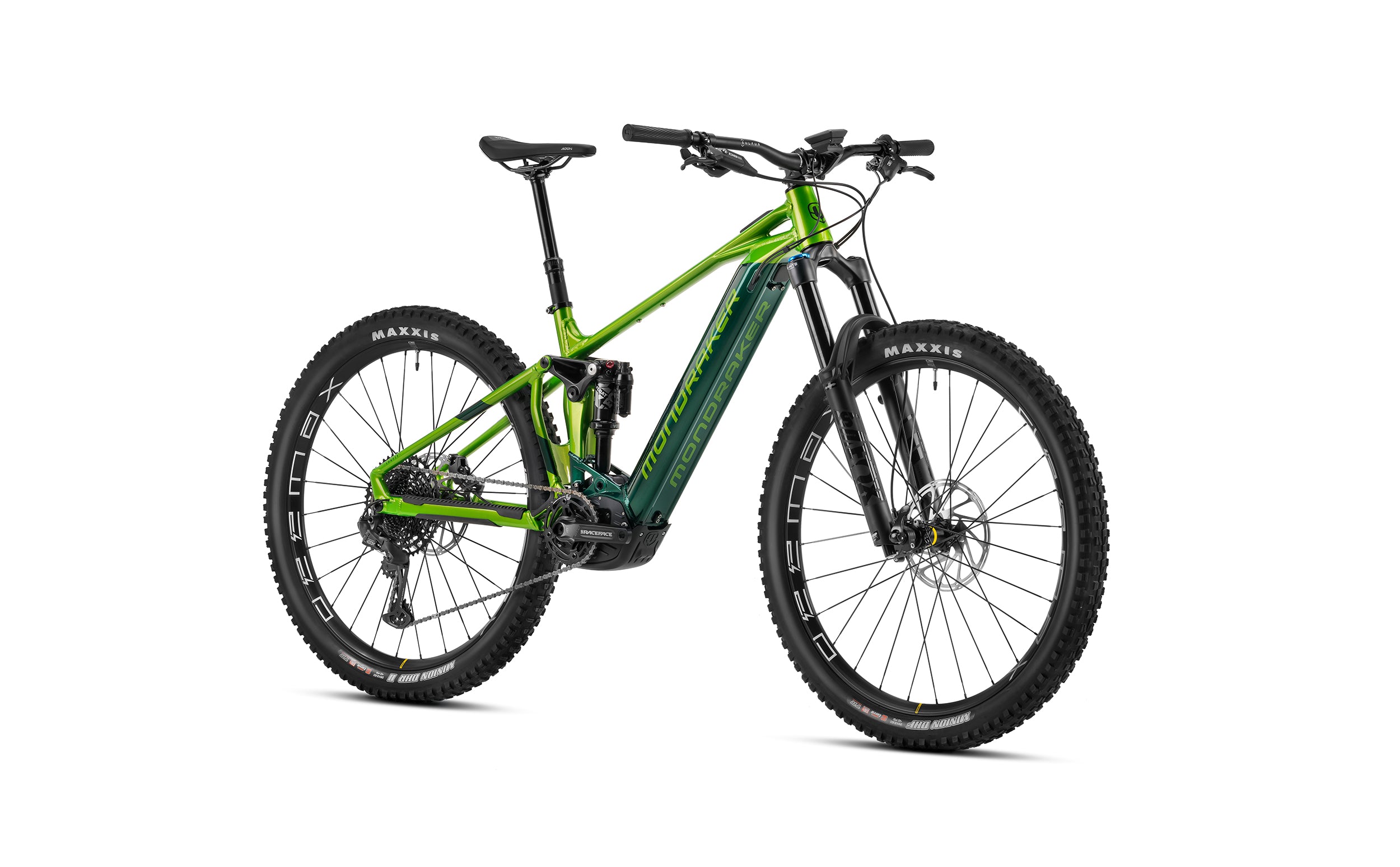

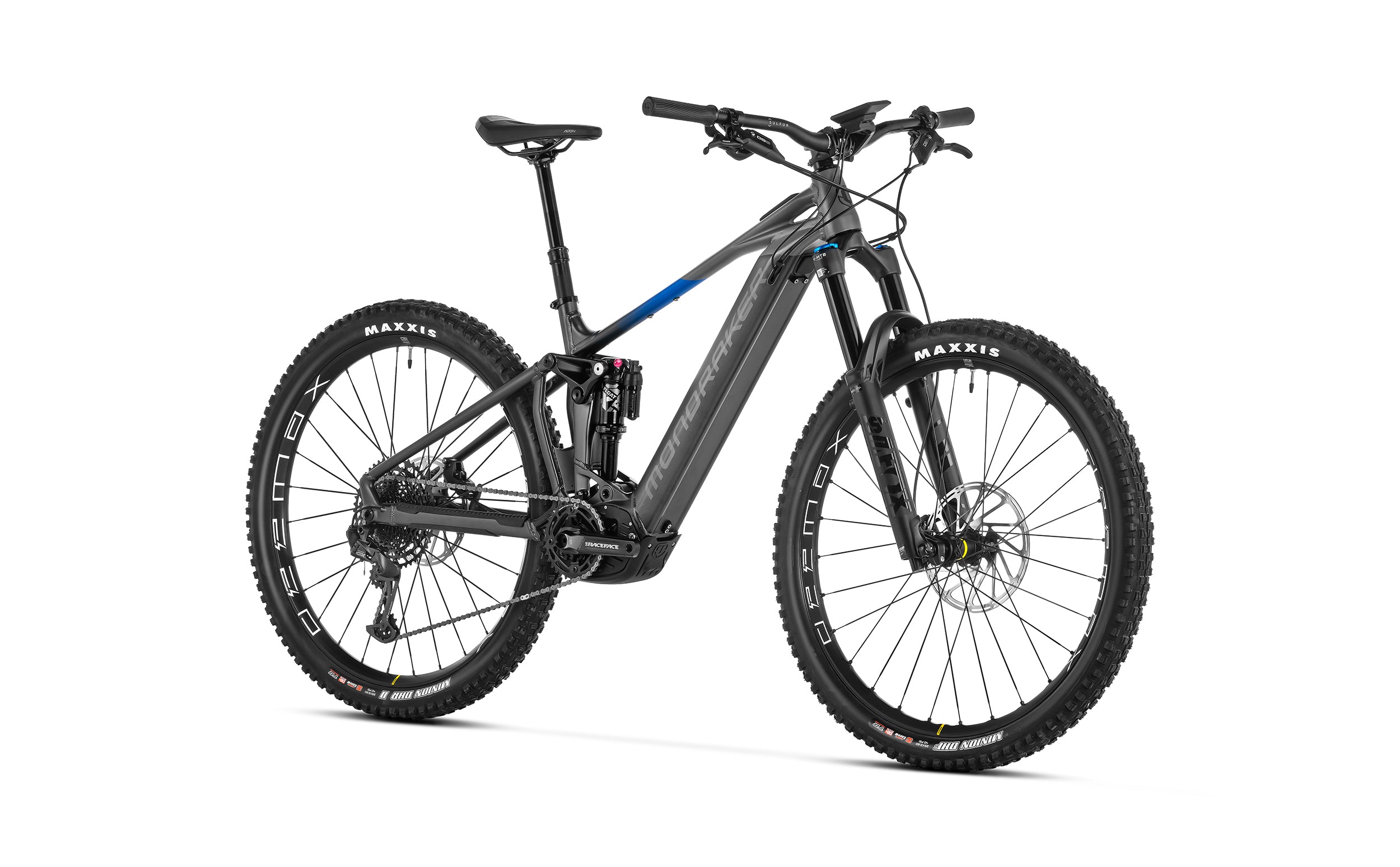

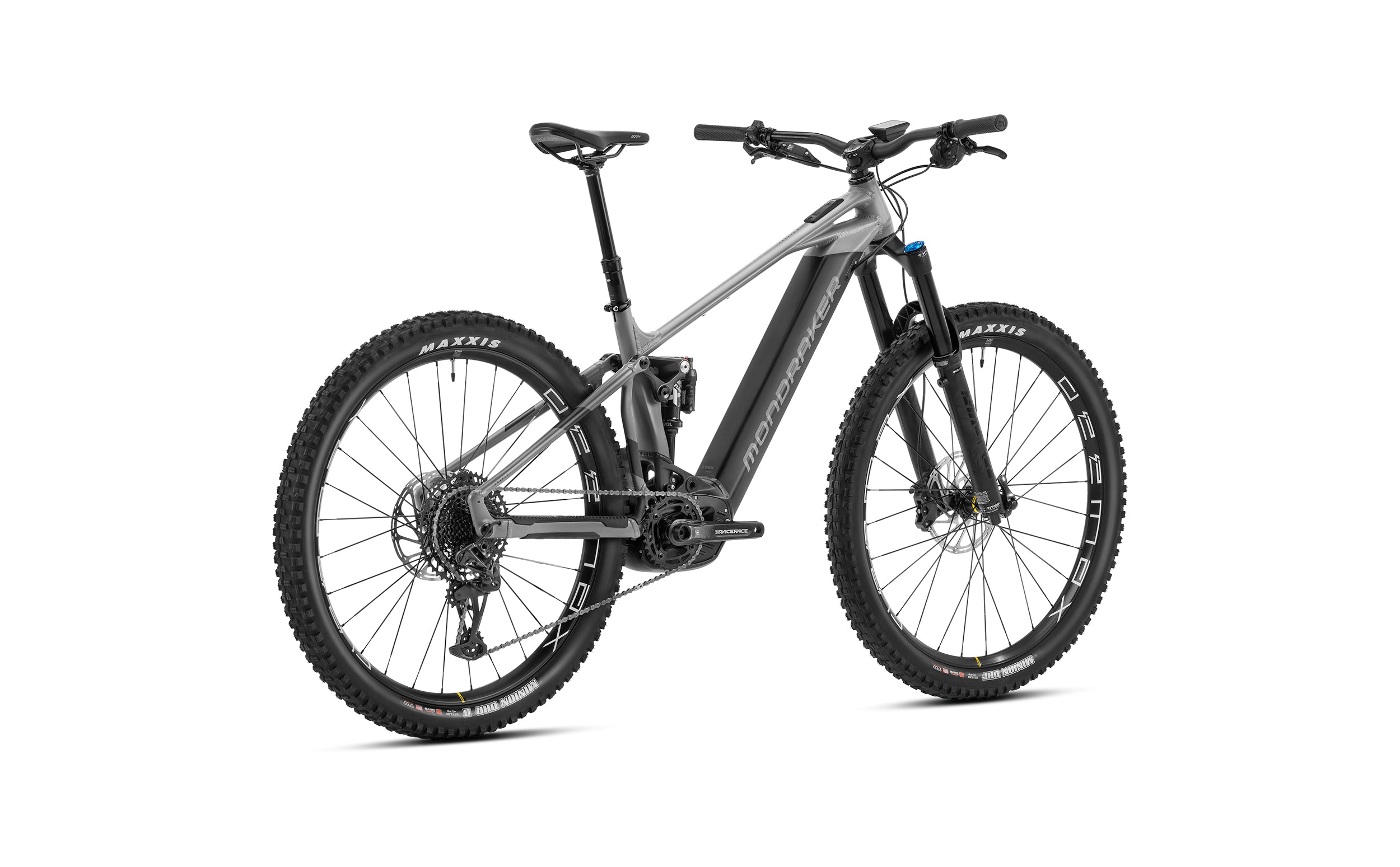

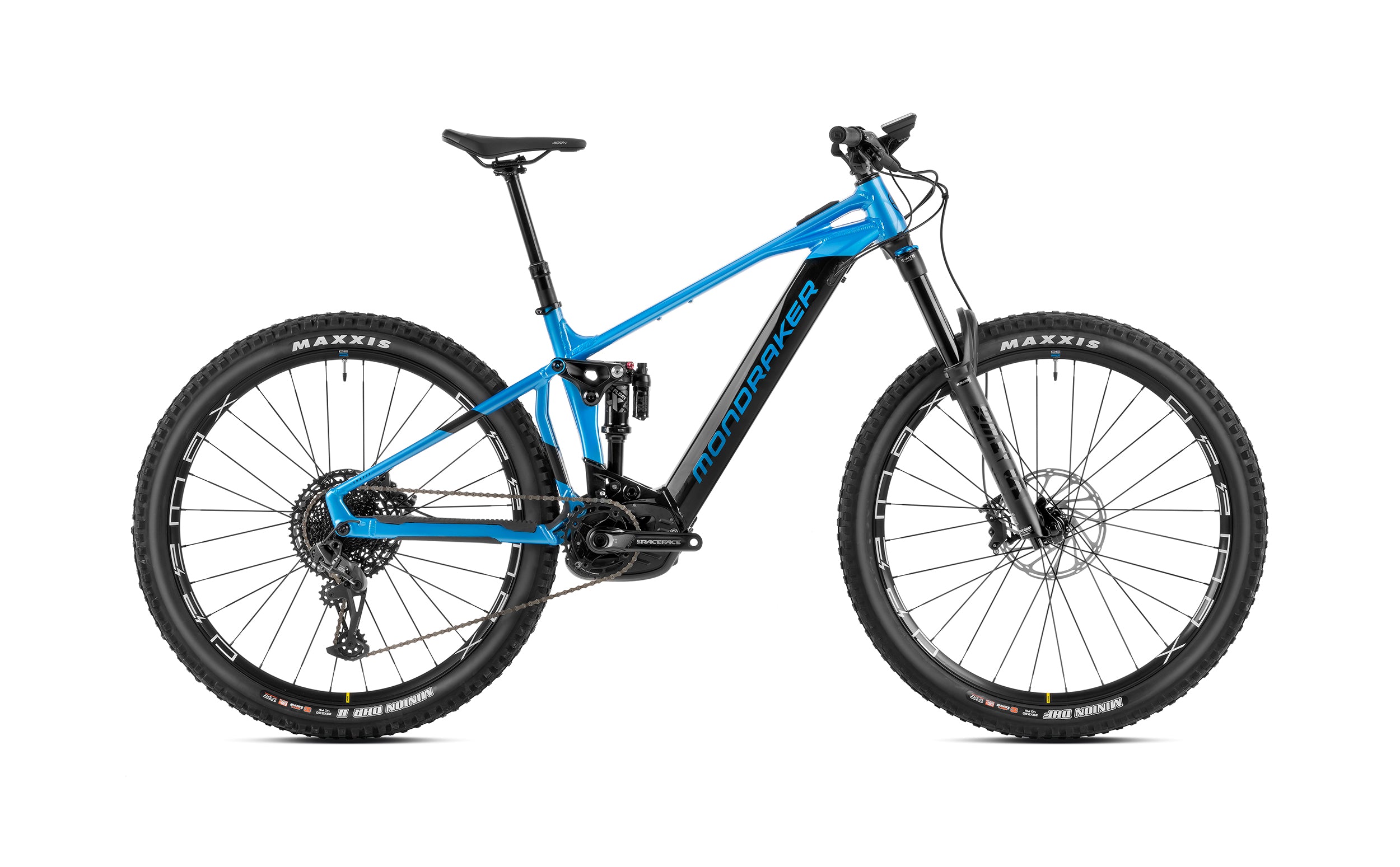

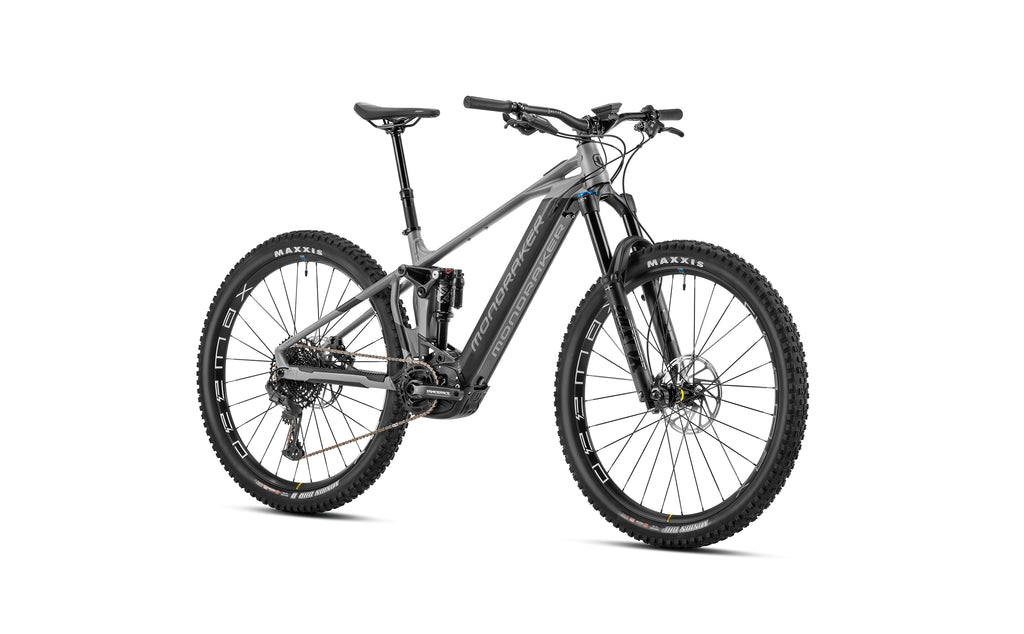

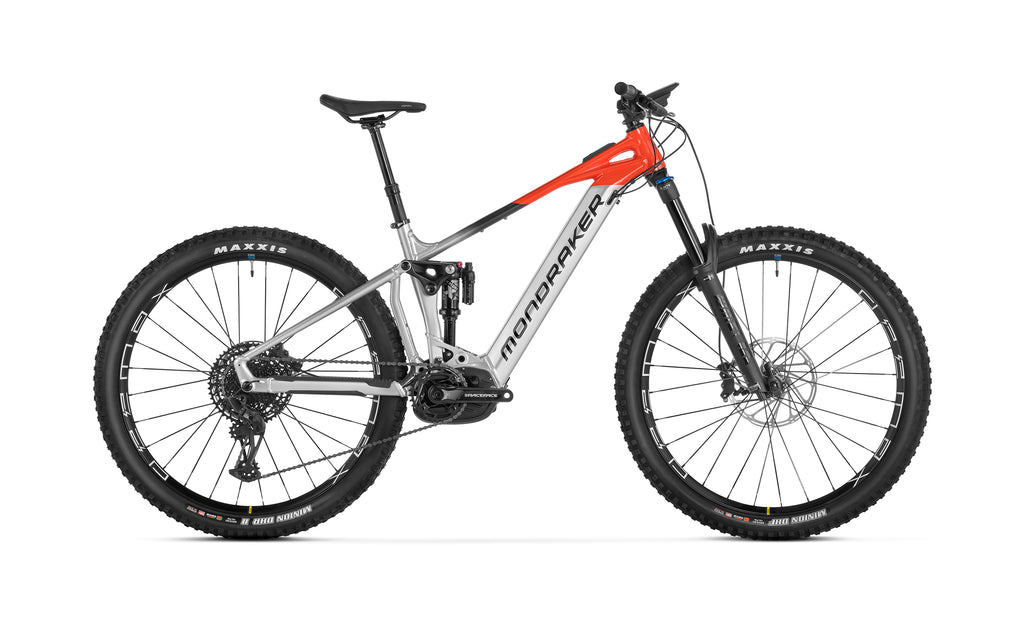

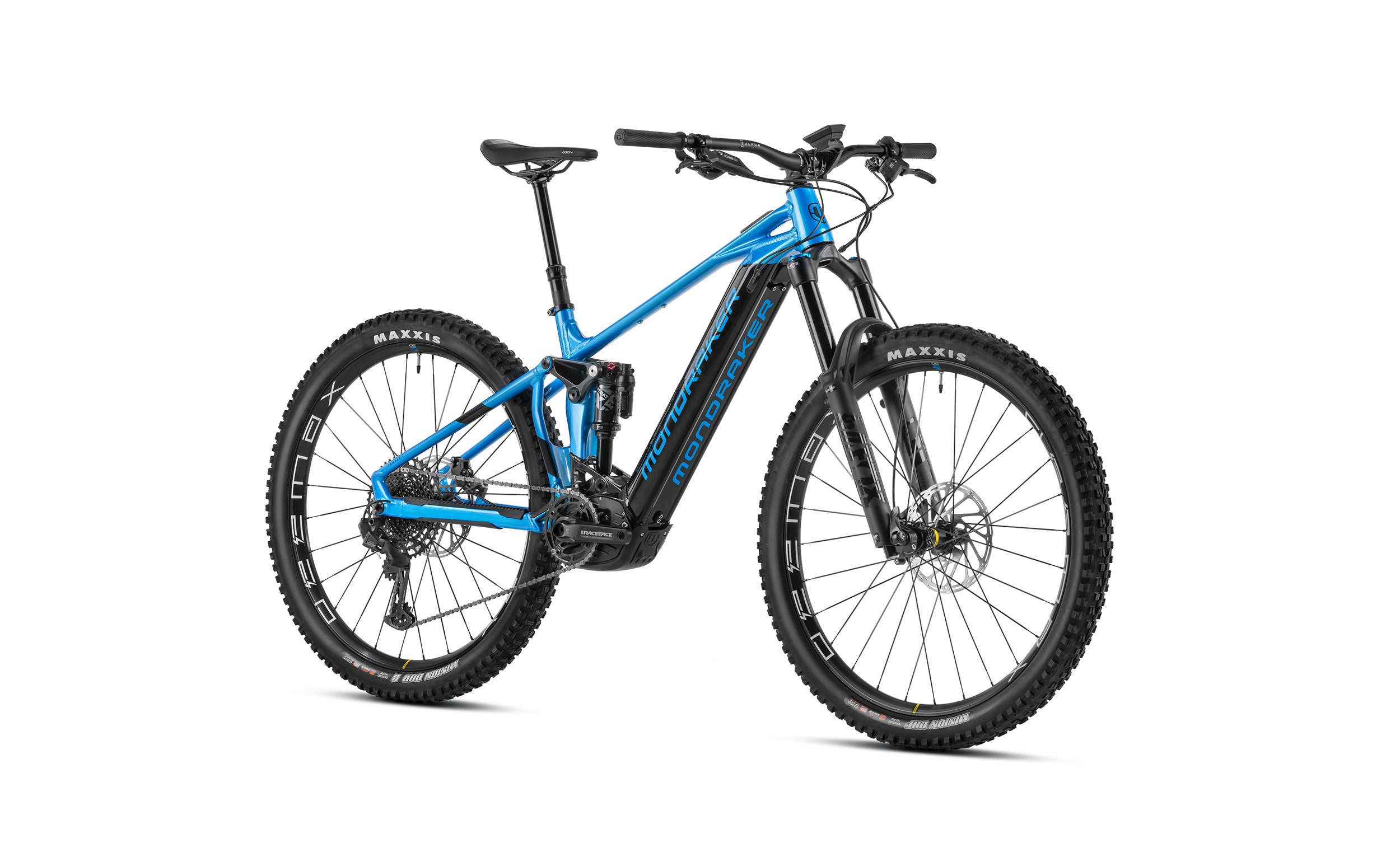

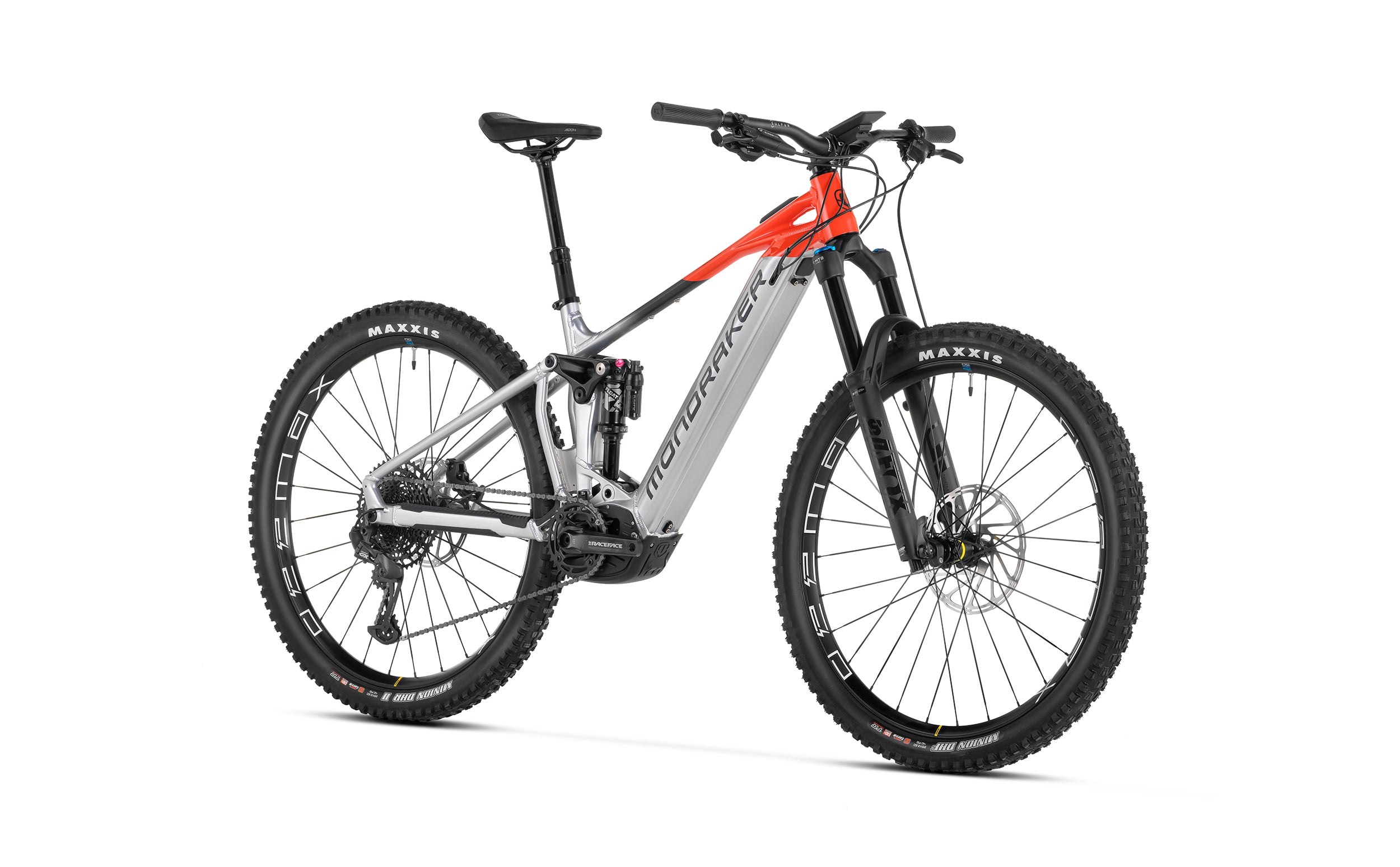

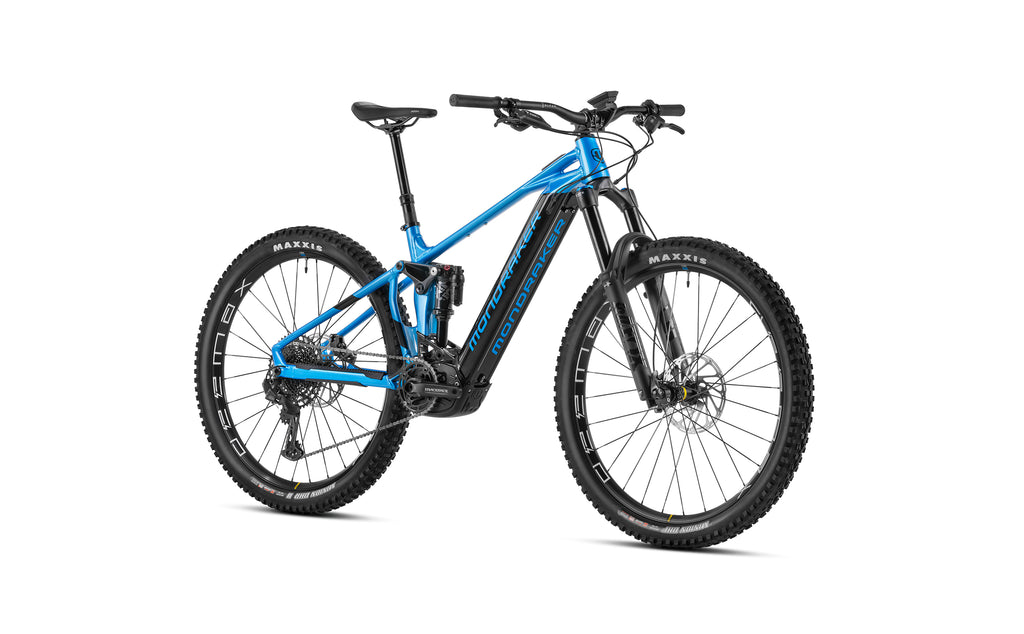

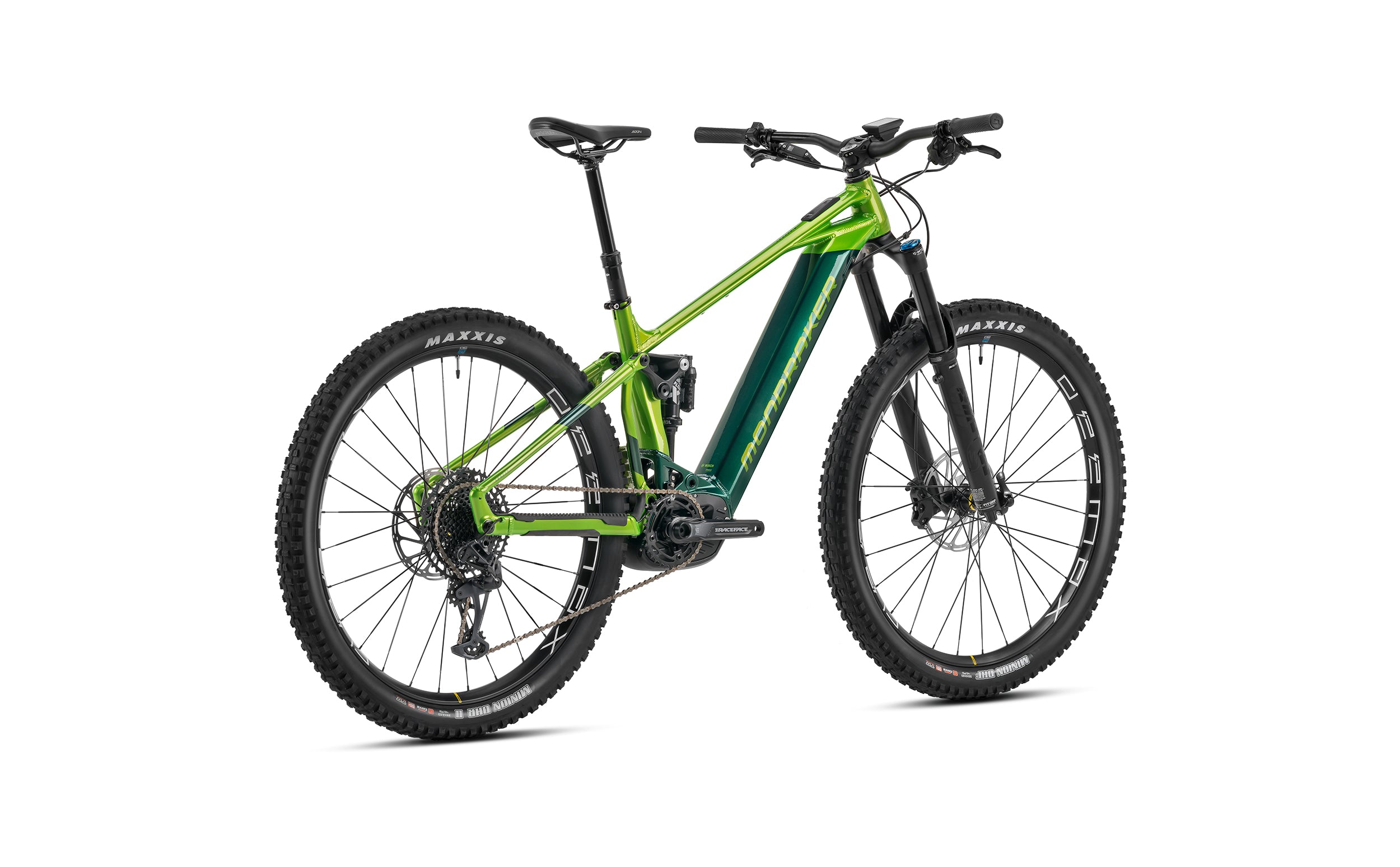

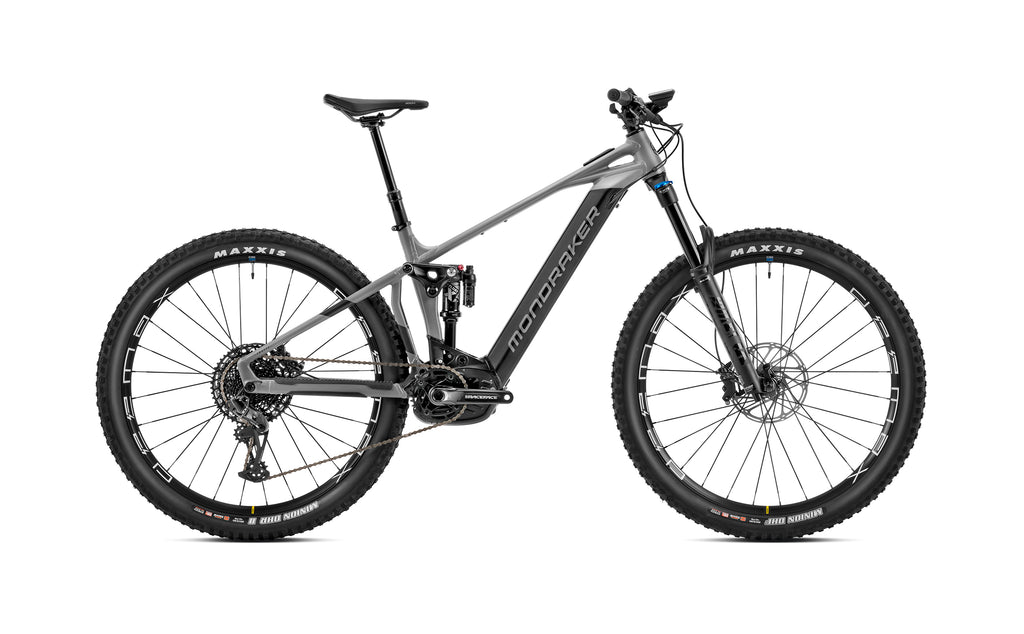

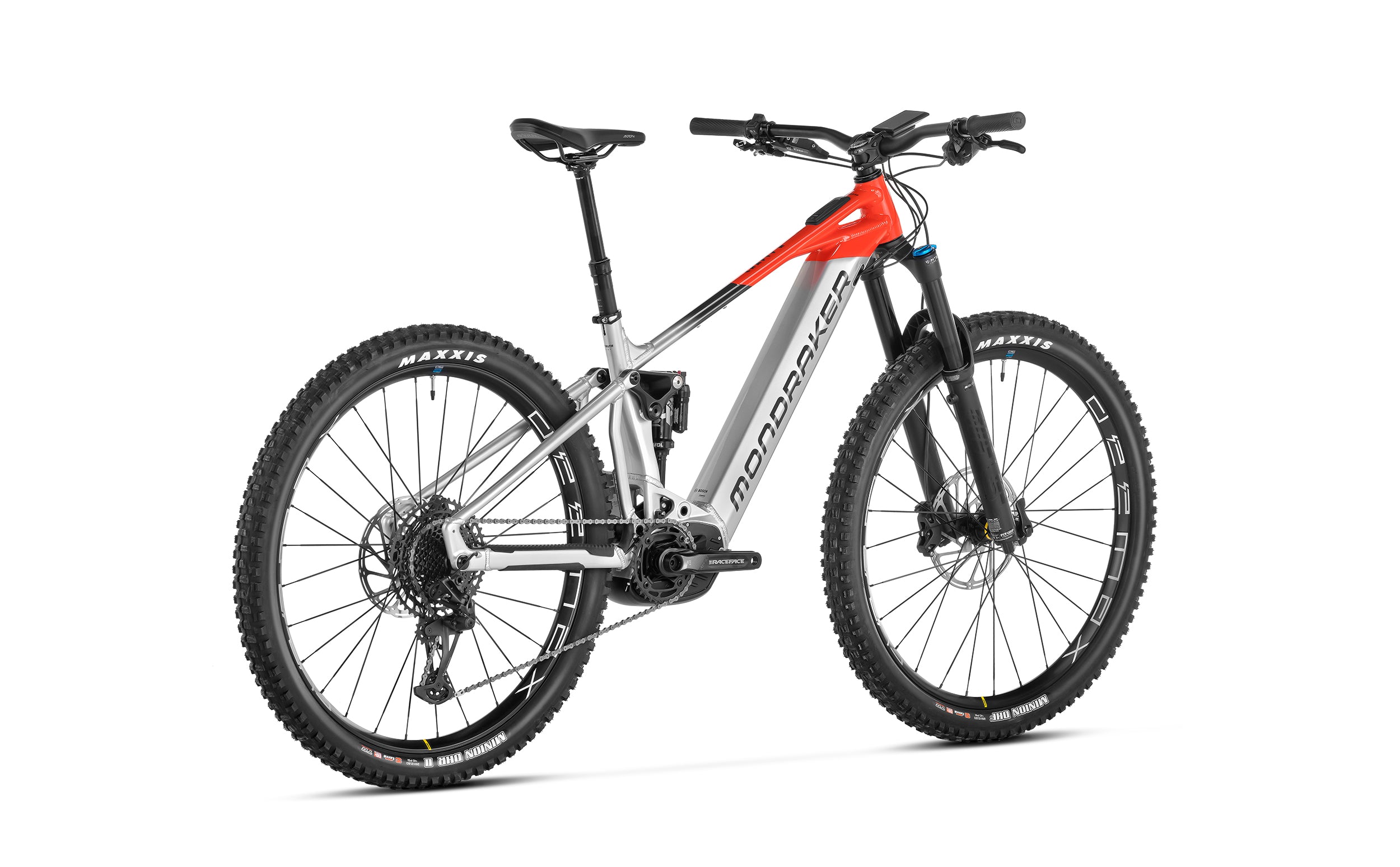

AVAILABLE IN THREE DIFFERENT COLORS, THE CRAFTY R ROCKS OUR ZERO SUSPENSION SYSTEM KINEMATICS WHICH PROVIDES A SUPER SUPPLE SUSPENSION ACTION WHILE AT THE SAME TIME NOT WASTING ANY ENERGY IN THE PROCESS
Available in three different colors, the CRAFTY R rocks our ZERO suspension system kinematics which provides a super supple suspension action while at the same time not wasting any energy in the process. It’s one of our priorities when it comes to our bikes. What’s more, the bike’s really agile on the trail which is much-needed in an eMTB. It all adds up to maximum fun and excellent value for money. It comes complete with Bosch’s Performance CX Line Smart Control motor, the all-new Mini Remote control and integrated System Controller. The CRAFTY R is the most competitive total enduro ebike out there.
Frame
Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Sizes
S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock
Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Shock settings
medium compression, medium rebound, air volume spacer 0.2
Fork
Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Desert, 1lock-on, 135mm
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Saddle
FIZIK Terra Aidon X5 145mm
Front brake
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Rear brake
Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake lever
Sram DB8, tool-free reach adjust
Rims
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Spokes
Mavic J-bend double butted, contactless lacing
Front hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear hub
Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts
Front tire
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Rear tire
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Crankset
Race Face Aeffect ebike, 165mm
Rings
Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain
Sram SX Eagle, 12s, Powerlock
Rear derrailleur
Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift levers
Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
Casette
Sram PG-1210, 11-50T, 12s
Derailleur hanger
Mondraker M068
Weight
25,6 kg
Display
Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller
Motor
Bosch Performance Line CX Cruise (25Km/h) Smart System
Battery
Bosch Powertube 750Wh
