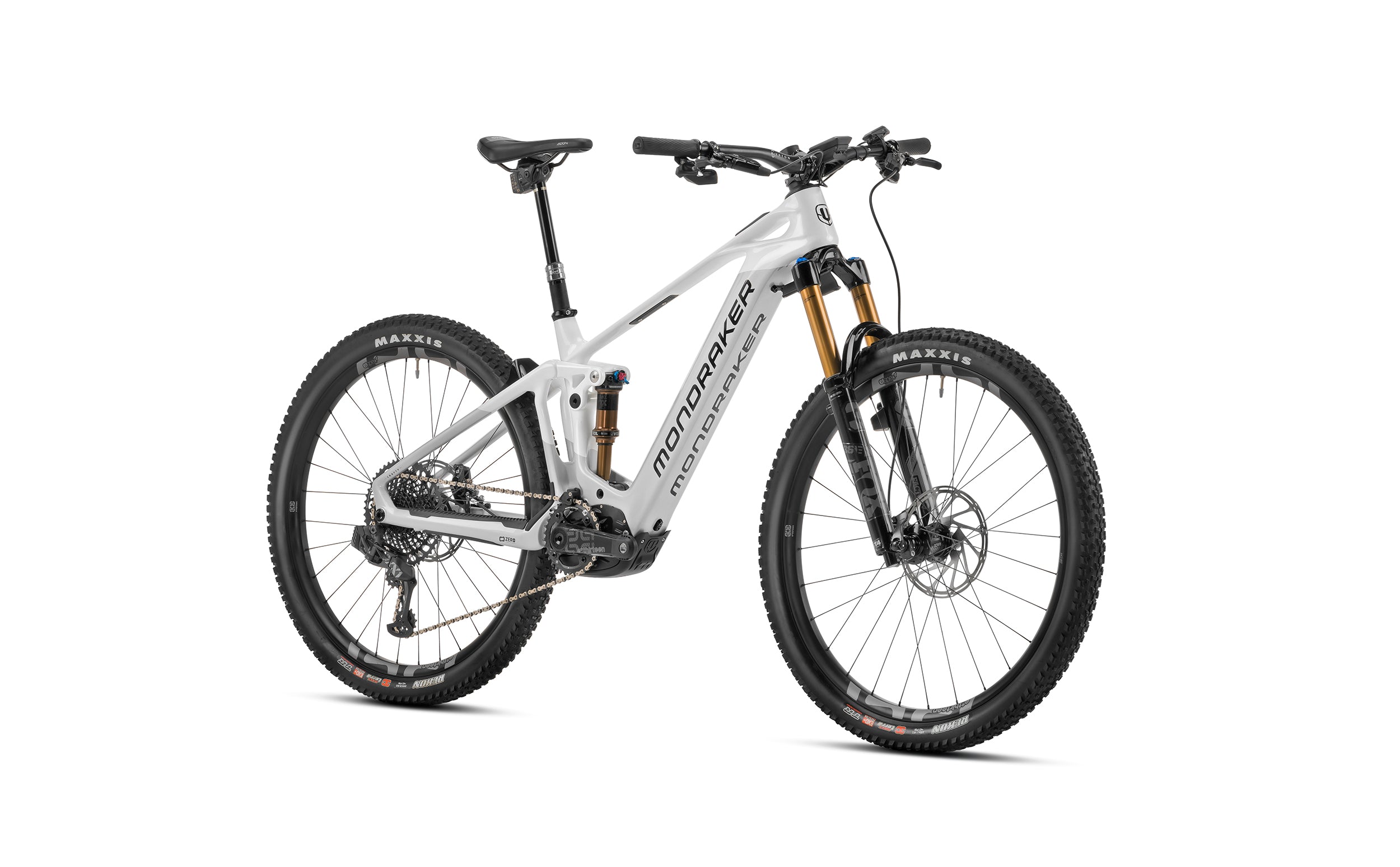

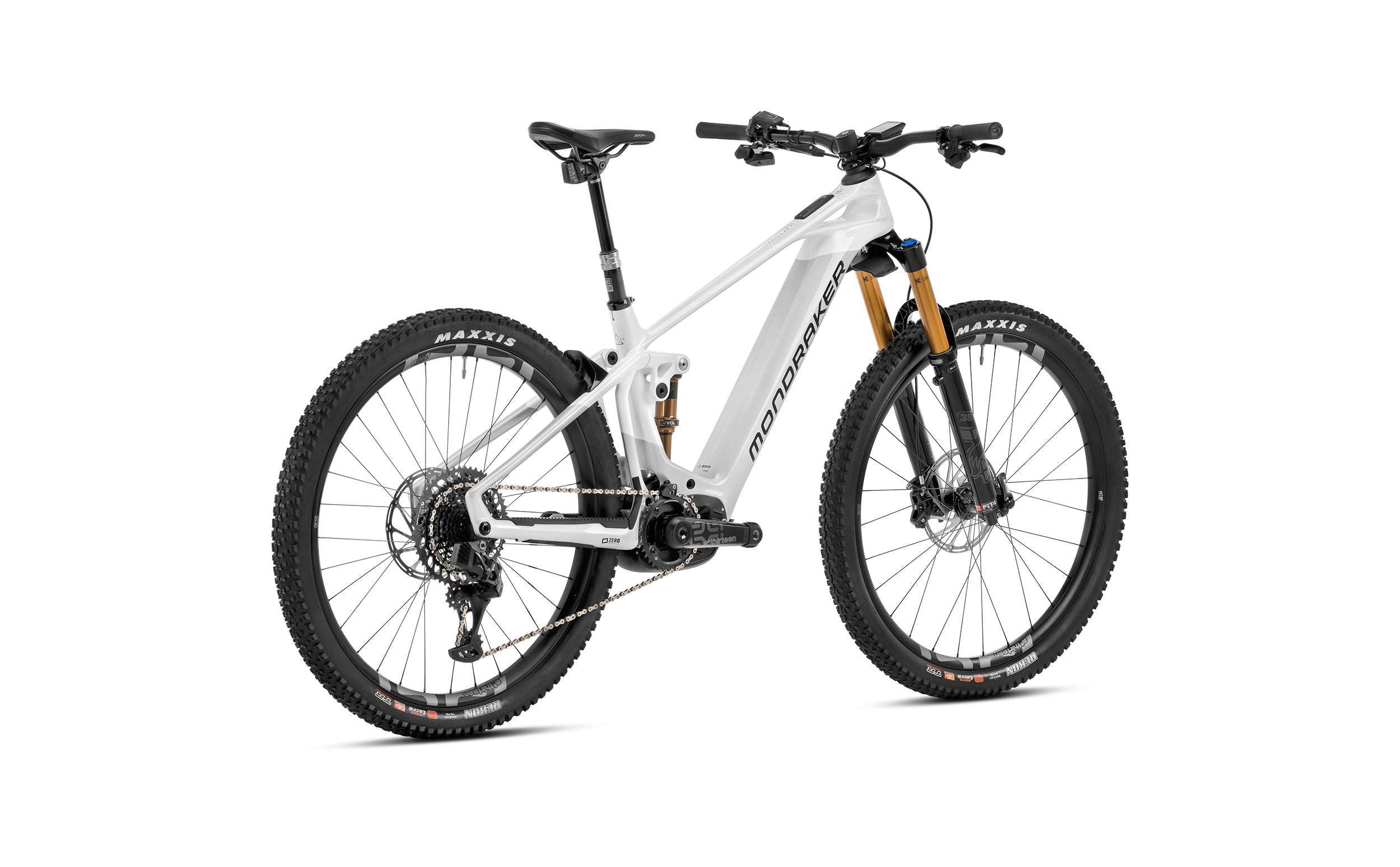

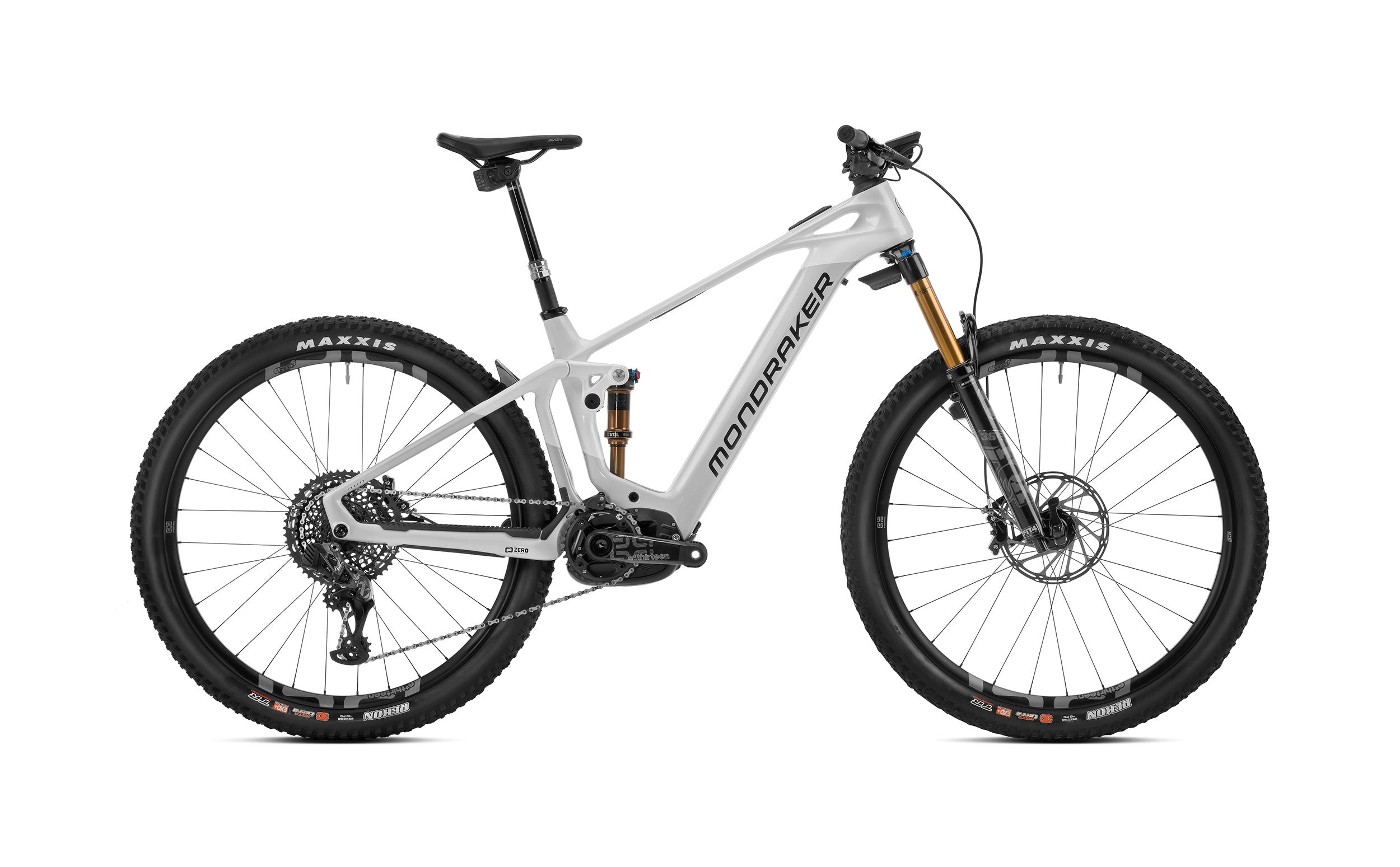

MONDRAKER CRAFTY CARBON RR SL

£12,999.00
This product is unavailable

THE CRAFTY CARBON RR SL IS THE EBIKE WE DESIGNED TO UNLEASH PASSIONS


The CRAFTY CARBON RR SL is the ebike we designed to unleash passions. It stands out for its lightness and, above all, for its agility and manageability. It goes without saying it’s a benchmark in terms of performance, whether uphill or downhill, and it enjoys class-leading technologies such as ZERO SUSPENSION SYSTEM, FORWARD GEOMETRY, STEALTH AIR FULL CARBON and MIND…the telemetry system for everyone. All of this, added to the Bosch Smart System with wireless Bluetooth Mini Remote control and integrated System Controller, makes them the most sought after bikes for riders looking for an ebike to take them to the next level. These bikes come with 160mm travel at the front and 150mm at the rear.

  • Frame

    Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. MIND System (EU only)

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

    Rear shock

    Fox Float DPS Factory Kashima evol LV, 205x65mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

    Shock settings

    Medium compression, Medium rebound, 0.4 volume spacer

    Fork

    Fox 36 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload

    Headset

    Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

    Stem

    Onoff Krypton FG 30mm, CNC, 31.8mm barbore

    Handlebar

    Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

    Grips

    Onoff Desert, 1lock-on, 135mm

    Seatpost

    RockShox Reverb Stealth AXS, diameter 31.6mm, S size: 390x125mm, M size: 440x150mm, L/XL size: 440x170mm

    Saddle

    FIZIK Terra Aidon X1 145mm

    Front brake

    Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    Rear brake

    Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    Brake lever

    Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

    Rims

    e*thirteen Race Carbon Enduro IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes

    Spokes

    e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers

  • Front hub

    e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

    Rear hub

    e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub

    Front tire

    Maxxis Rekon 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    Rear tire

    Maxxis Rekon 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    Crankset

    E.13 TRS Race carbon ebike, 165mm

    Rings

    Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD

    Chain

    Sram GX Eagle, 12s, Powerlock

    Rear derrailleur

    Sram XX1 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1 with battery cover

    Shift levers

    Sram Eagle AXS Rocker paddle, 12s

    Casette

    Sram XG-1295, 10-52T, 12s

    Derailleur hanger

    SRAM UDH

    Weight

    22,7 kg

    Display

    Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller

    Motor

    Bosch Performance Line CX Cruise (25Km/h) Smart System

    Battery

    Bosch Powertube 750Wh
