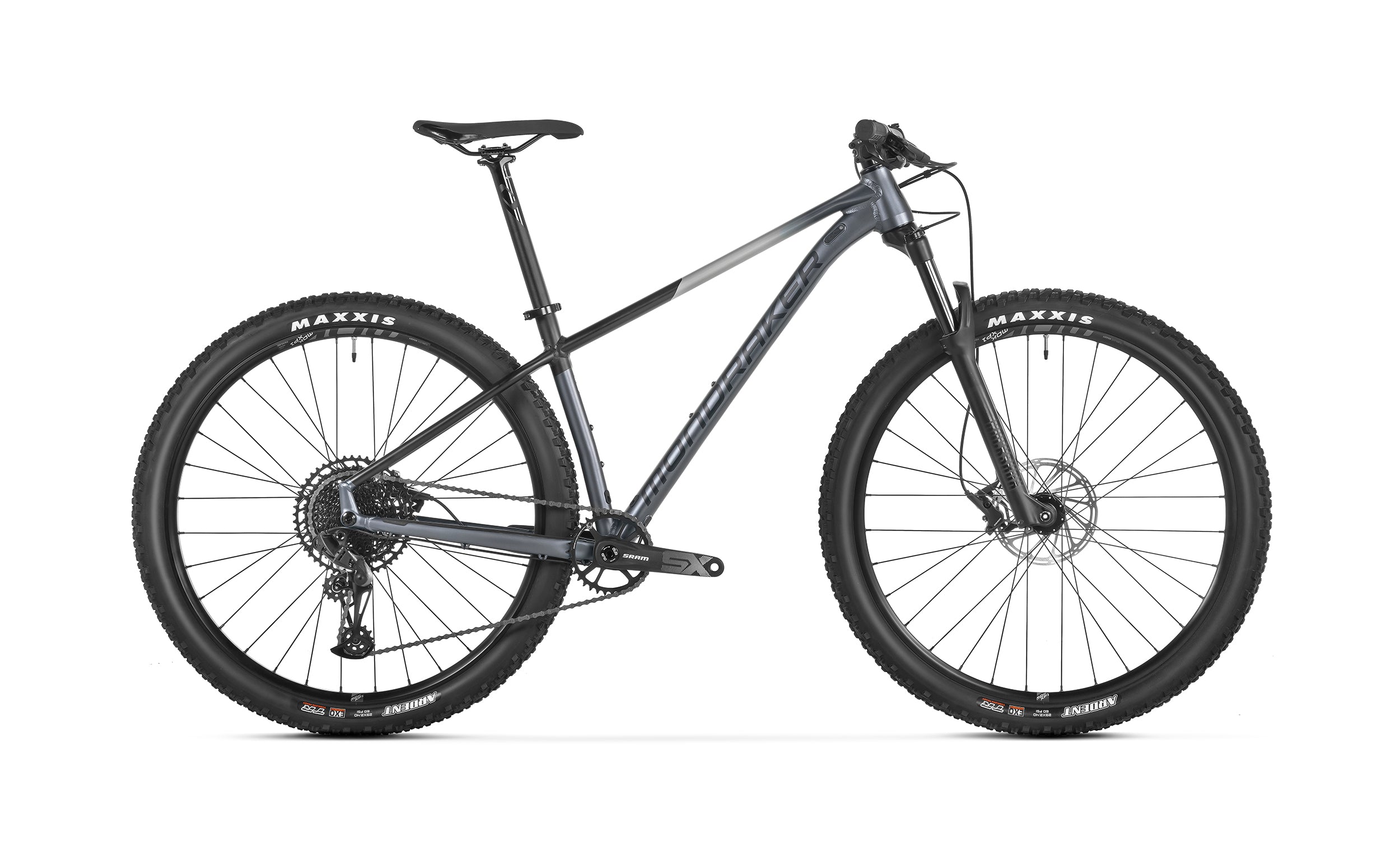

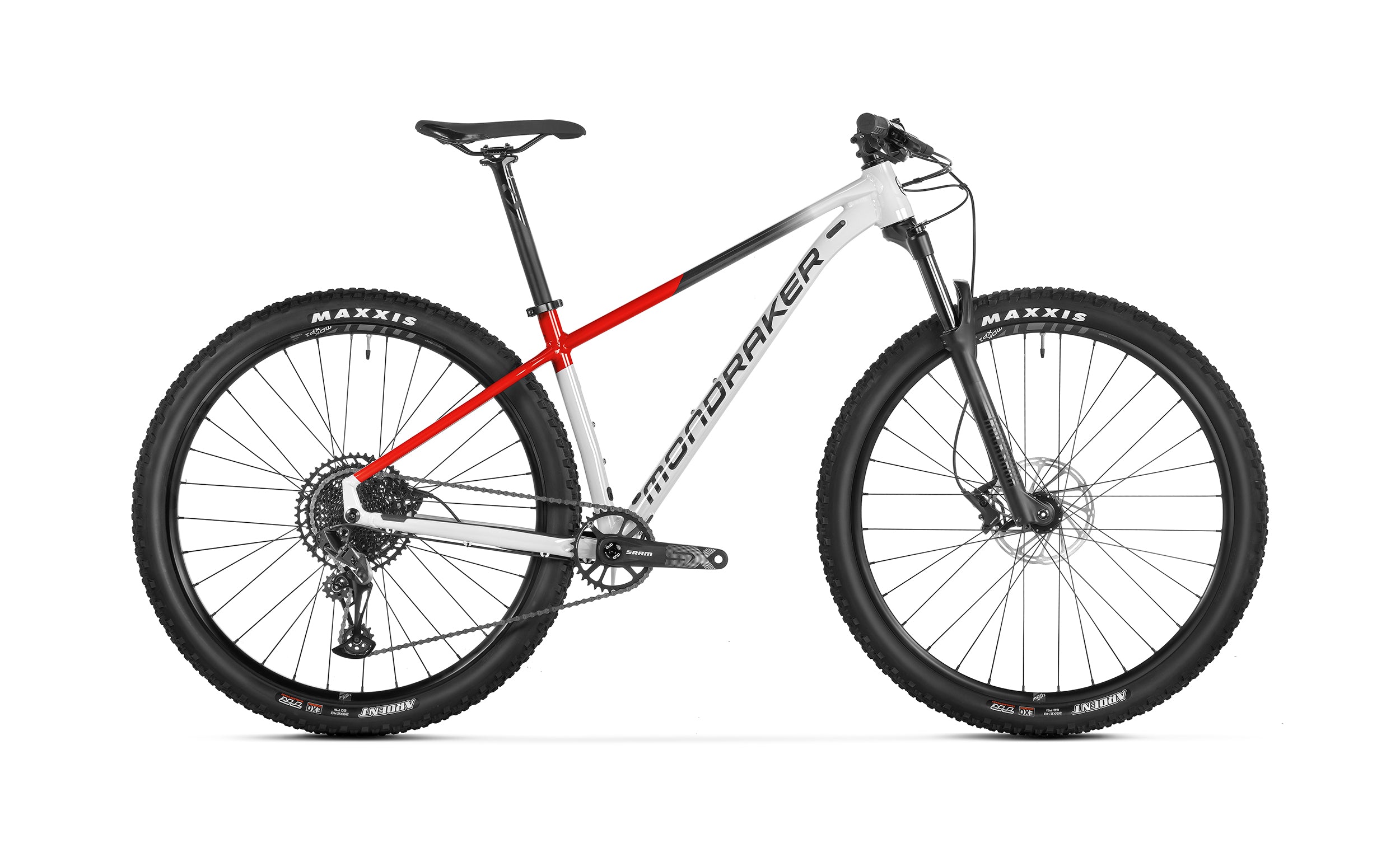

MONDRAKER CHRONO DC

$1,884.00
By Mondraker
Minus Plus
  • THE CHRONO, ABOVE ALL, IS A DYNAMIC MOUNTAIN BIKE.
    Its frame is made of butted 6061 Xtralite Alloy and has our FORWARD GEOMETRY which will put you in an optimal position to pedal effectively while at the same time offering you stability and confidence when facing descents.

    • Chart

      Chrono 29 6061 Xtralite Alloy butted, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG internal cable routing, 12x148mm Boost rear axle.

      Sizes

      S: 395mm / M: 430mm / L: 470mm / XL: 520mm

      Fork

      RockShox Judy Silver TK 29, 120mm, TurnKey, Solo Air, tapered head tube, 9x100mm axle, 30mm steel bars, 51mm offset. Adjustments: 2-position Poploc remote control compression (open/lock), rebound, air preload.

      Fork remote control

      RockShox, PopLoc

      Address

      ONOFF Saturn profiled for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, upper part 41x30.2x7x45ºx45º, lower part 51.9x40x8x45ºx45º

      Power

      ONOFF, 6061 T6 alloy, diameter 31.8mm, rise: +/-7º, length according to bike size: S: 50mm, M: 50mm, L: 60mm, XL: 70mm

      Handlebar

      ONOFF Sulfur 0.2 double-butted in 6061 alloy, rise: 4.8mm, width: 740mm, rear sweep: 9º, upsweep: 0º, diameter 31.8mm

      Grips

      ONOFF Twin, 1 lock-on, 135mm

      Shank

      ONOFF Sulfur 0-R, 6061 T6 alloy, 3D forged, diameter 27.2mm, length 400mm

      Saddle

      Mondraker XC Series, steel rail

      Front brake

      SRAM Level, 2-piece caliper, 6-bolt IS one-piece 180mm Centerline disc, organic sheet steel pads.

      Back brake

      SRAM Level, 2-piece caliper, 6-bolt IS one-piece 160mm Centerline disc, organic sheet steel pads.

      brake levers

      SRAM Level, tool reach adjustment, lever shaft with bushings

      Tires

      MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes

    • Radios

      CN, round, stainless steel

      front hub

      Formula DC20LW, 9x100mm, cup and cone bearings, 6-bolt IS

      rear hub

      Formula MST148S-4SB, 12x148mm Boost, sealed bearings, 6-bolt IS, HG freehub

      Front tire

      Maxxis Ardent 29x2.40; double compound, EXO, tubeless ready, 60TPI, folding rim

      rear tire

      Maxxis Ardent 29x2.40; double compound, EXO, tubeless ready, 60TPI, folding rim

      Cranks

      SRAM SX Eagle, Boost, DUB axle, Direct Mount chainring, size S: 170mm M: 175mm L: 175mm XL: 175mm, CL 52

      Dishes

      34 teeth, steel, X-Sync 2

      bottom bracket

      SRAM DUB BSA, sealed bearings, 73mm

      Chain

      SRAM SX Eagle, 12v, Powerlock

      Shift - rear

      SRAM SX Eagle, clutch with type 3 roller bearings, box lock, long box, 1x12v, X-ACTUATION 1:1

      Controls - shift buttons

      SRAM Trigger SX Eagle, 12v, X-Actuation 1:1

      Pinions

      SRAM PG-1210 11-50 teeth, 12v

      shift hanger

      Mondraker M068

      Weight without pedals

      13.6kg
