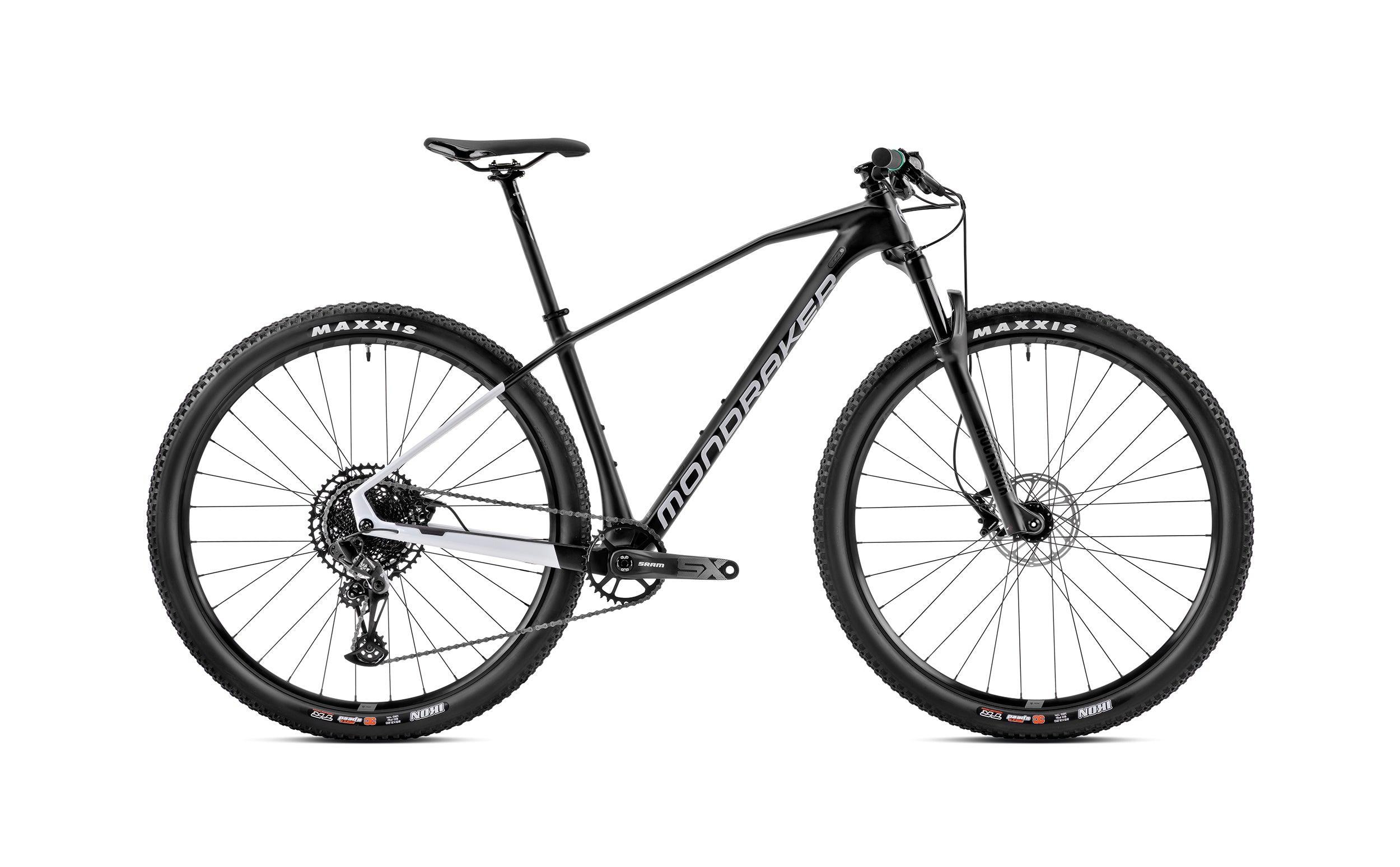

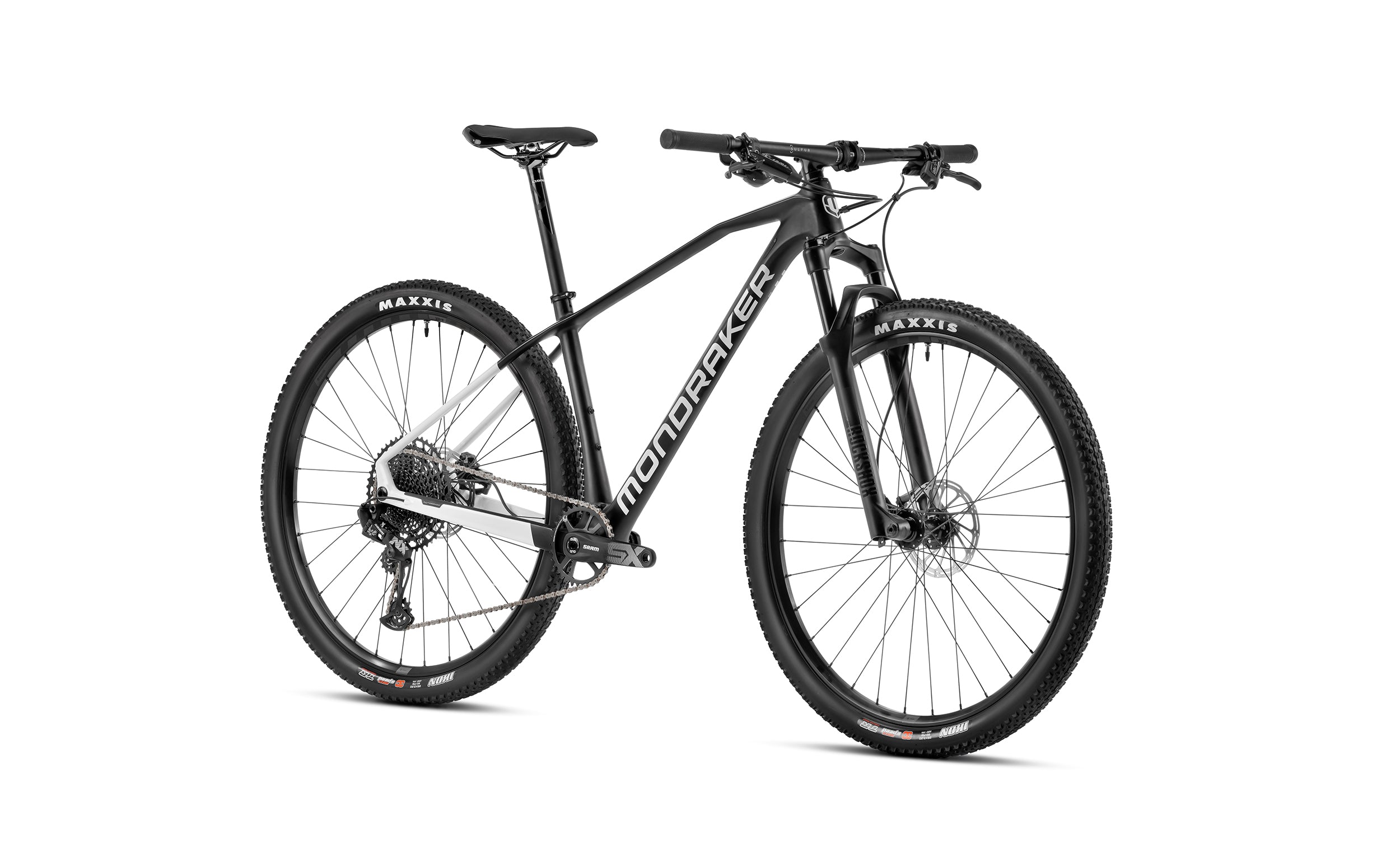

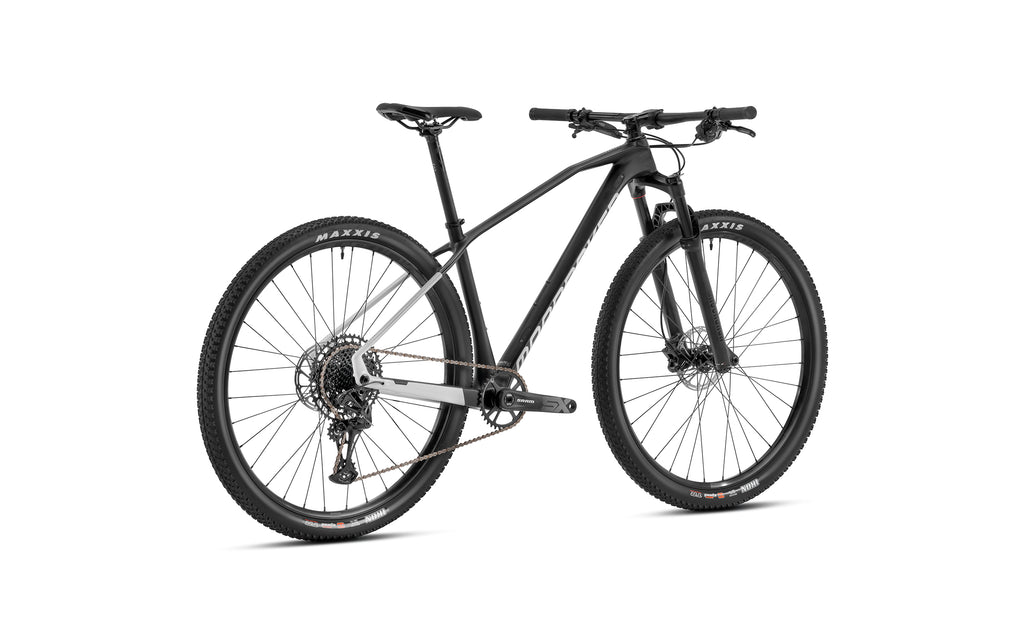

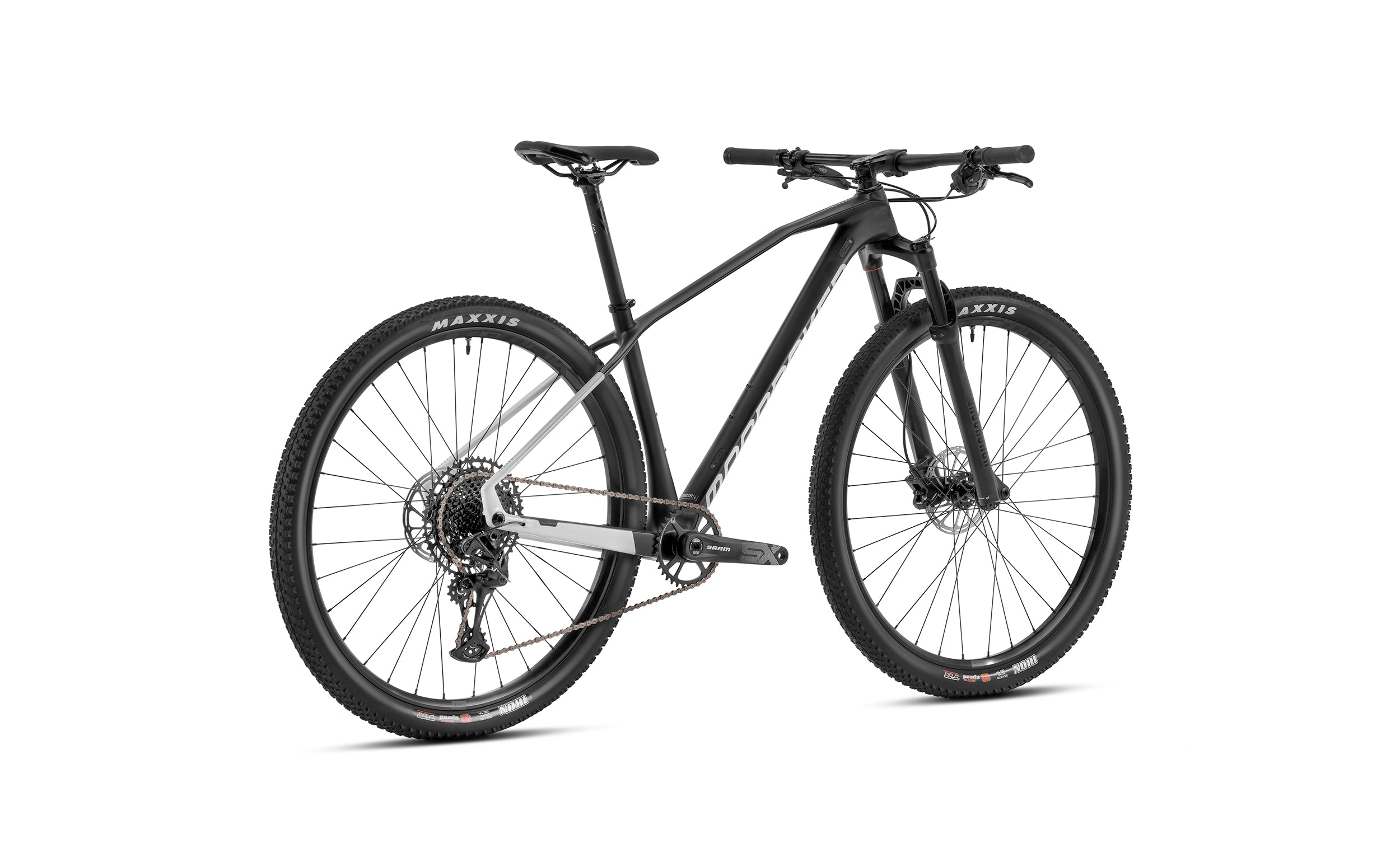

MONDRAKER CHRONO CARBON 29

$2,575.00
This product is unavailable
  • THE CHRONO, ABOVE ALL, IS A DYNAMIC BIKE.
    Its frame is made of butted 6061 Xtralite Alloy and has our FORWARD GEOMETRY which will put you in an optimal position to pedal effectively while at the same time offering you stability and confidence when facing descents. New for 2023 we upped the fork travel for a little more rowdy trail behaviour!
    It’s the lowest priced bike in the Chrono range but still gives you all of our more than 20 years of knowledge in the manufacture of first class bikes, which means you can enjoy our Racing DNA every time you take it out.

    Frame

    Chrono 29 Stealth Alloy, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable Routing, Boost 12x148mm rear axle

    Sizes

    S: 395mm / M: 430mm / L: 470mm / XL: 520mm

    Fork

    RockShox Judy Silver TK 29, 120mm, TurnKey, Solo Air, tapered steerer tube, 9x100mm axle, 30mm steel stanchions, 46mm offset. Settings: Poplock 2 pos remote compression (open/lock), rebound, air preload

    Headset

    ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

    Fork remote

    RockShox PopLoc

    Stem

    ONOFF Sulfur, 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 50mm, size L: 60mm, size XL: 70mm

    Handlebar

    ONOFF Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 740mm, 9º backsweep, 0º upsweep, 31.8mm barbore

    Grips

    ONOFF Twin, 1lock-on, 135mm

    Seatpost

    ONOFF Pija dropper internal, diameter 31.6mm, S/M size: 405x95-125mm, L/XL size 458x120-150mm

    Saddle

    Mondraker XC Series, steel rail

    Front brake

    Sram Level, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

    Rear brake

    Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad

    Brake lever

    Sram Level, tooled reach adjust, lever pivot bushings

    Rims

    MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes

  • Spokes

    CN round stainless steel

    Front hub

    Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts

    Rear hub

    Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts

    Front tire

    Maxxis Ardent 29x2.40, 60TPI, folding bead

    Rear tire

    Maxxis Ardent 29x2.40, 60TPI, folding bead

    Crankset

    Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm

    Rings

    34T, steel, X-Sync 2

    Bottom bracket

    Sram DUB BSA, sealed bearings, 73mm

    Chain

    Sram SX Eagle, 12s, Powerlock

    Rear derrailleur

    Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

    Shift levers

    Sram Trigger SX Eagle, 12s, X-Actuation 1:1

    Casette

    Sram PG-1210, 11-50T, 12s

    Derailleur hanger

    Mondraker M068
