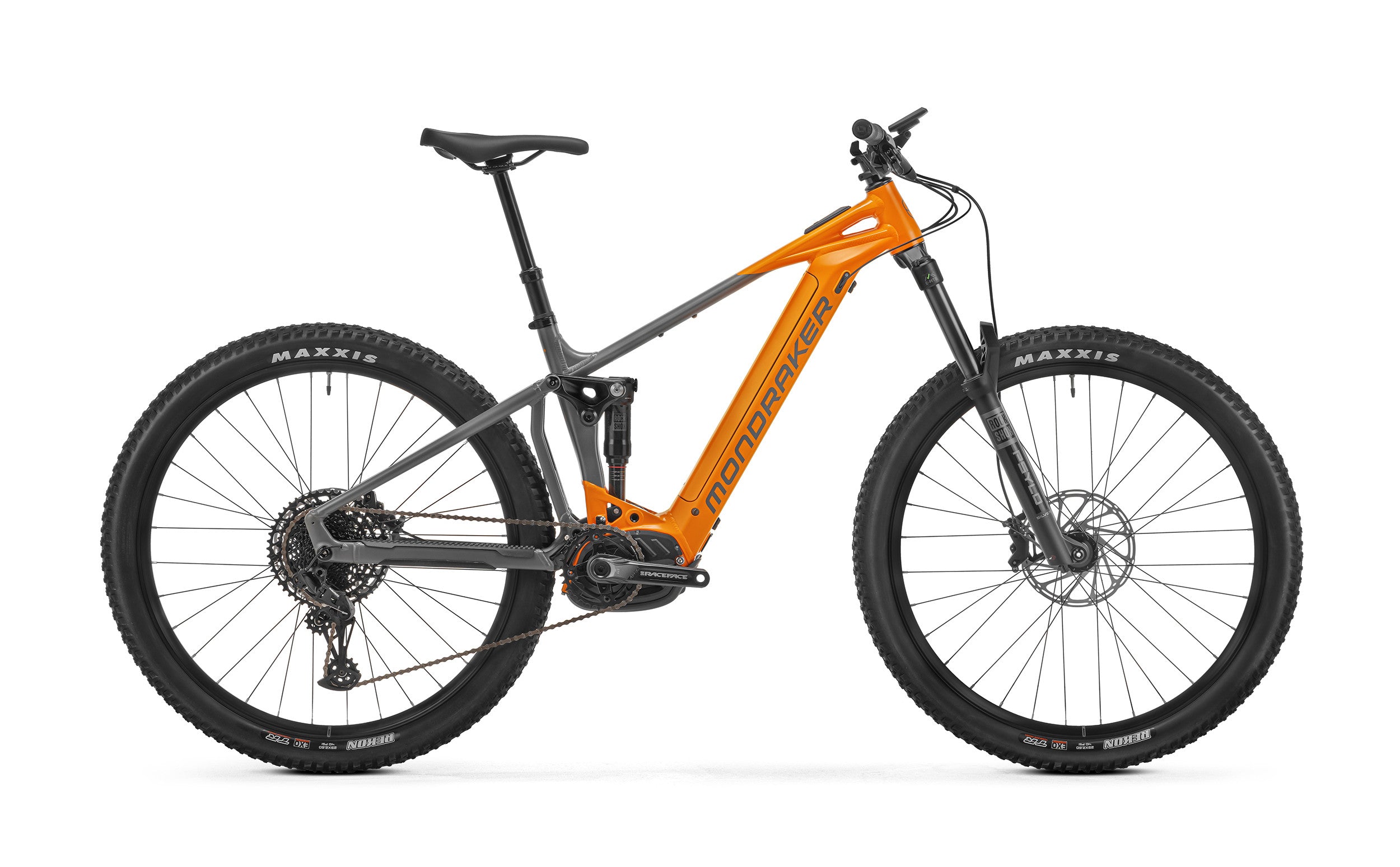

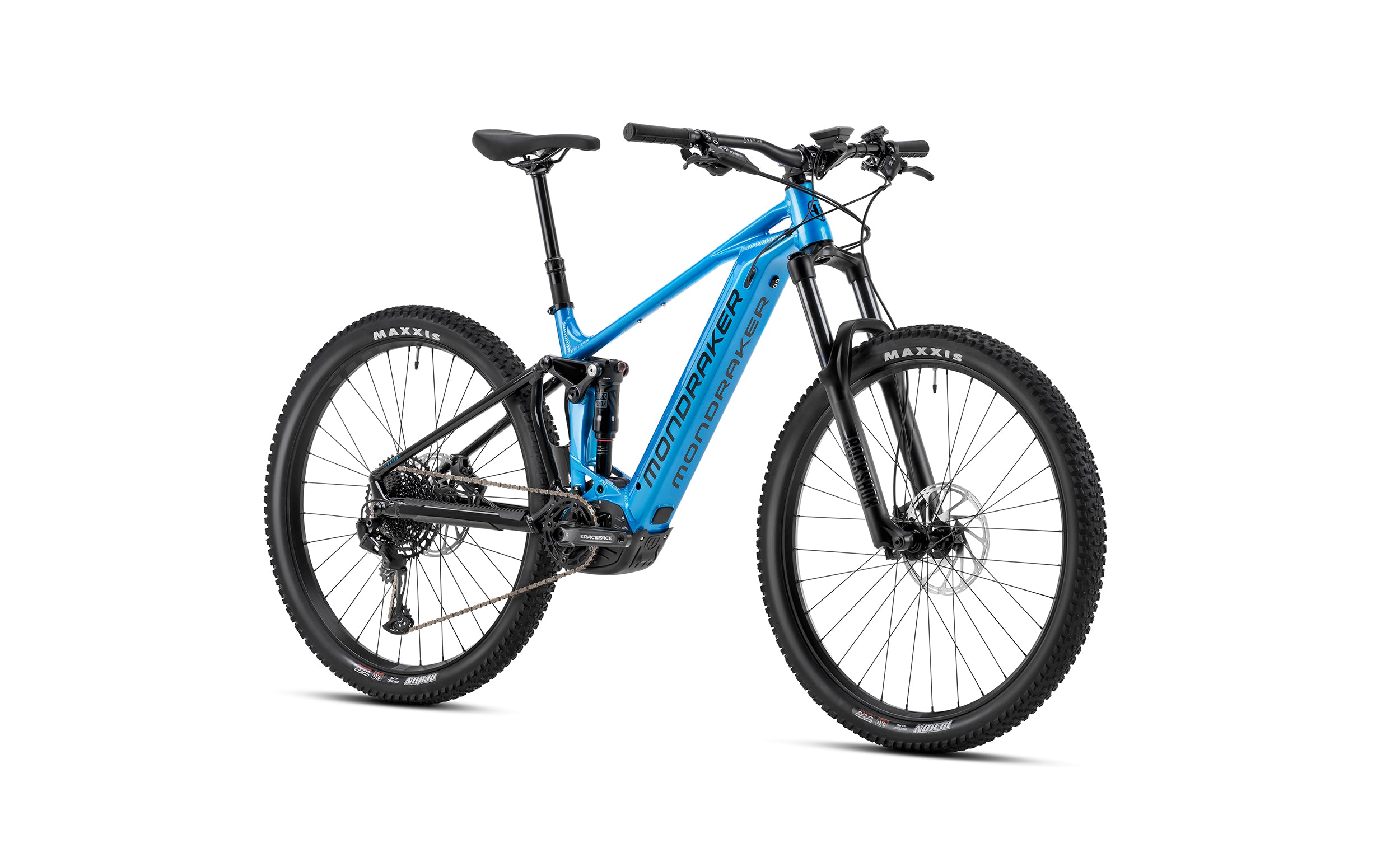

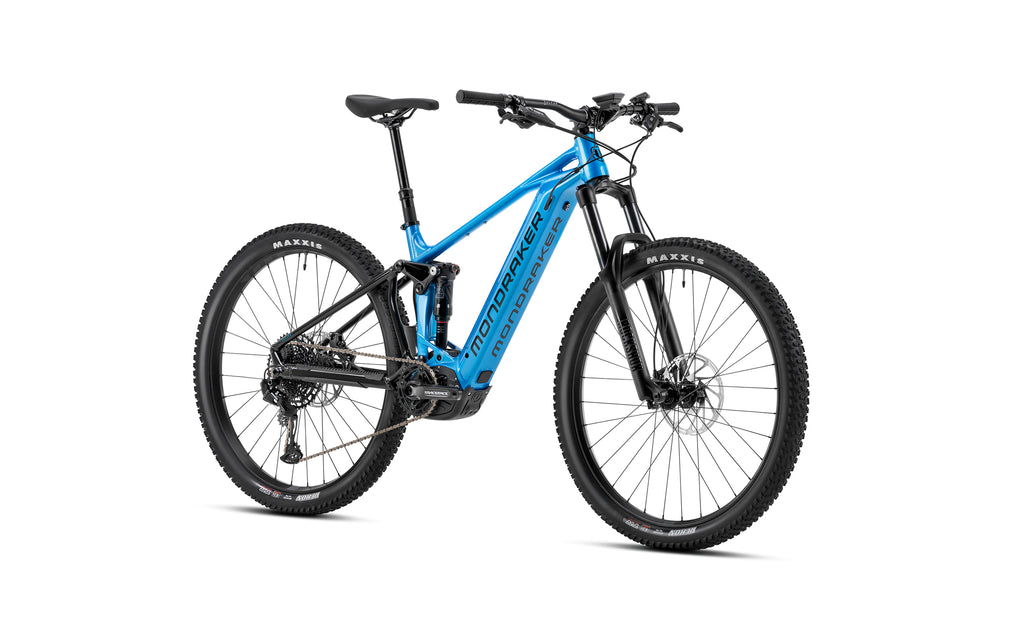

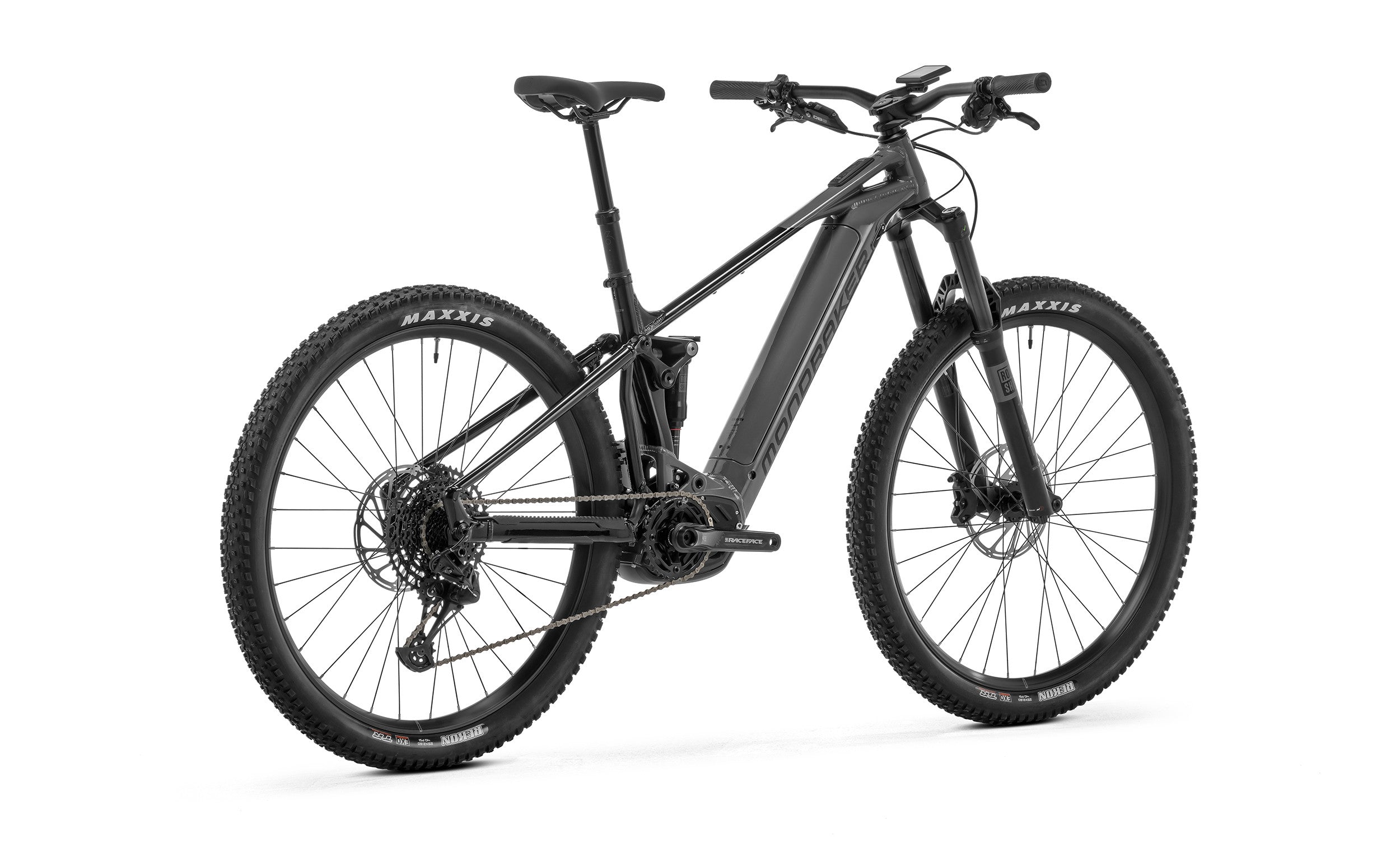

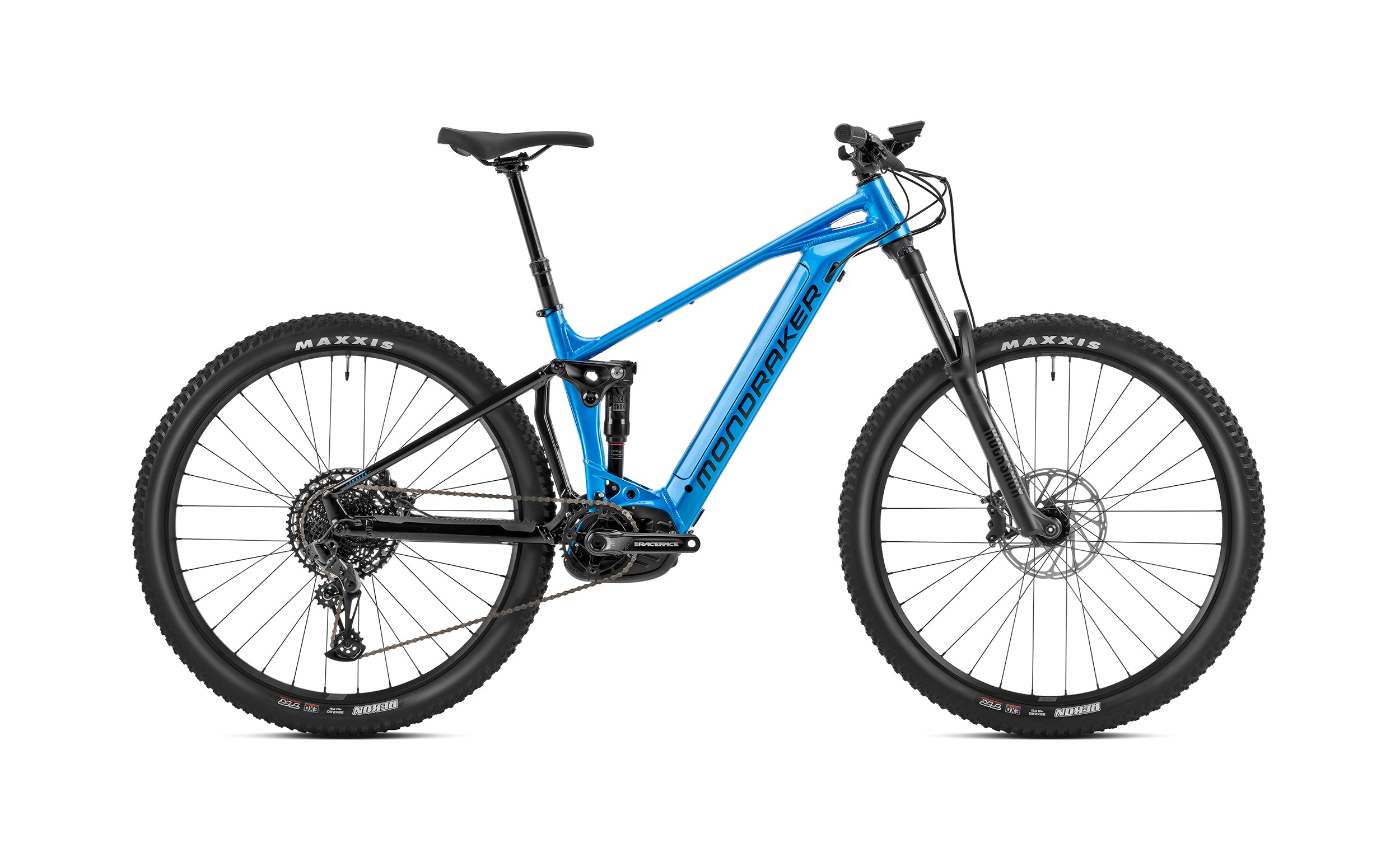

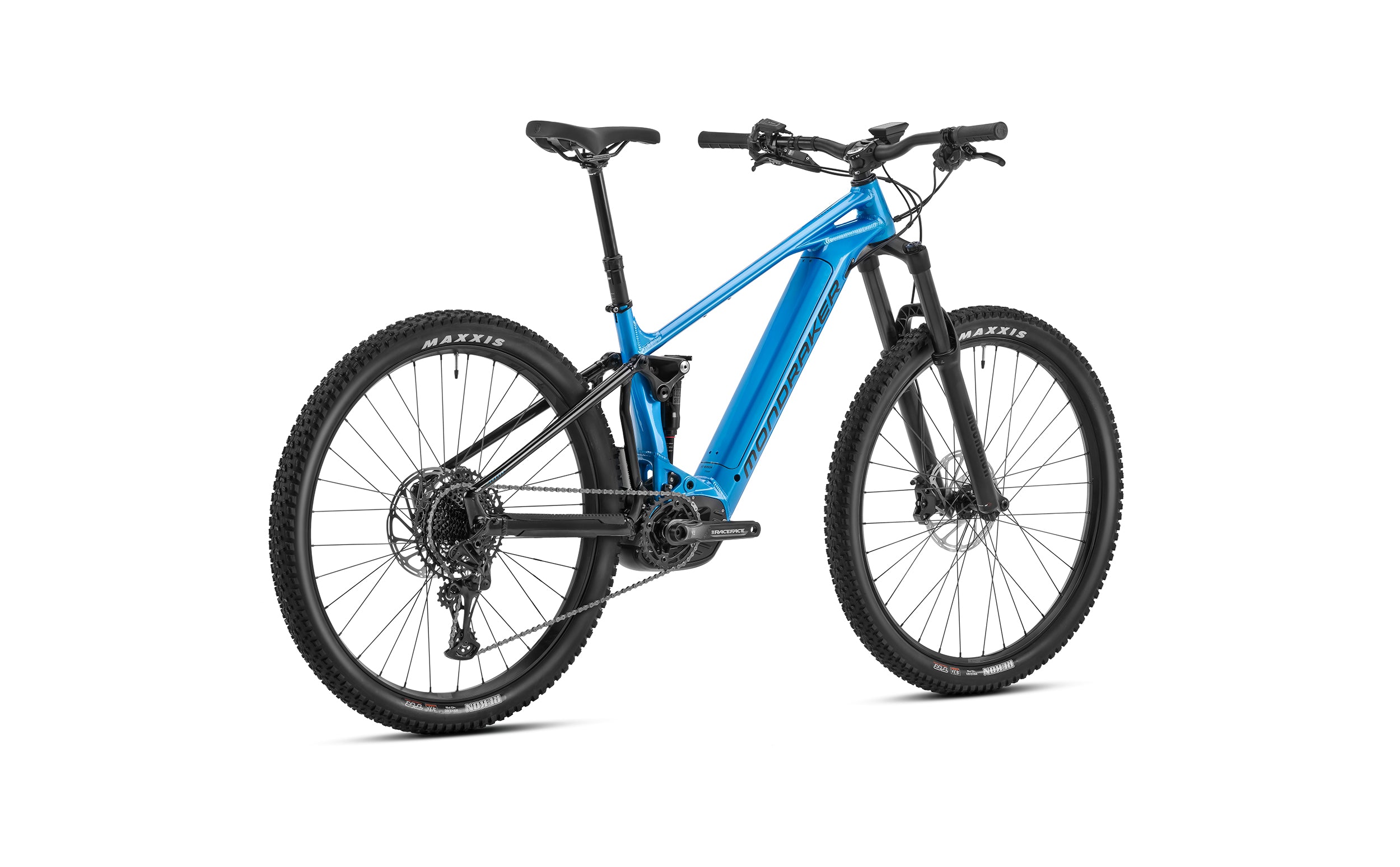

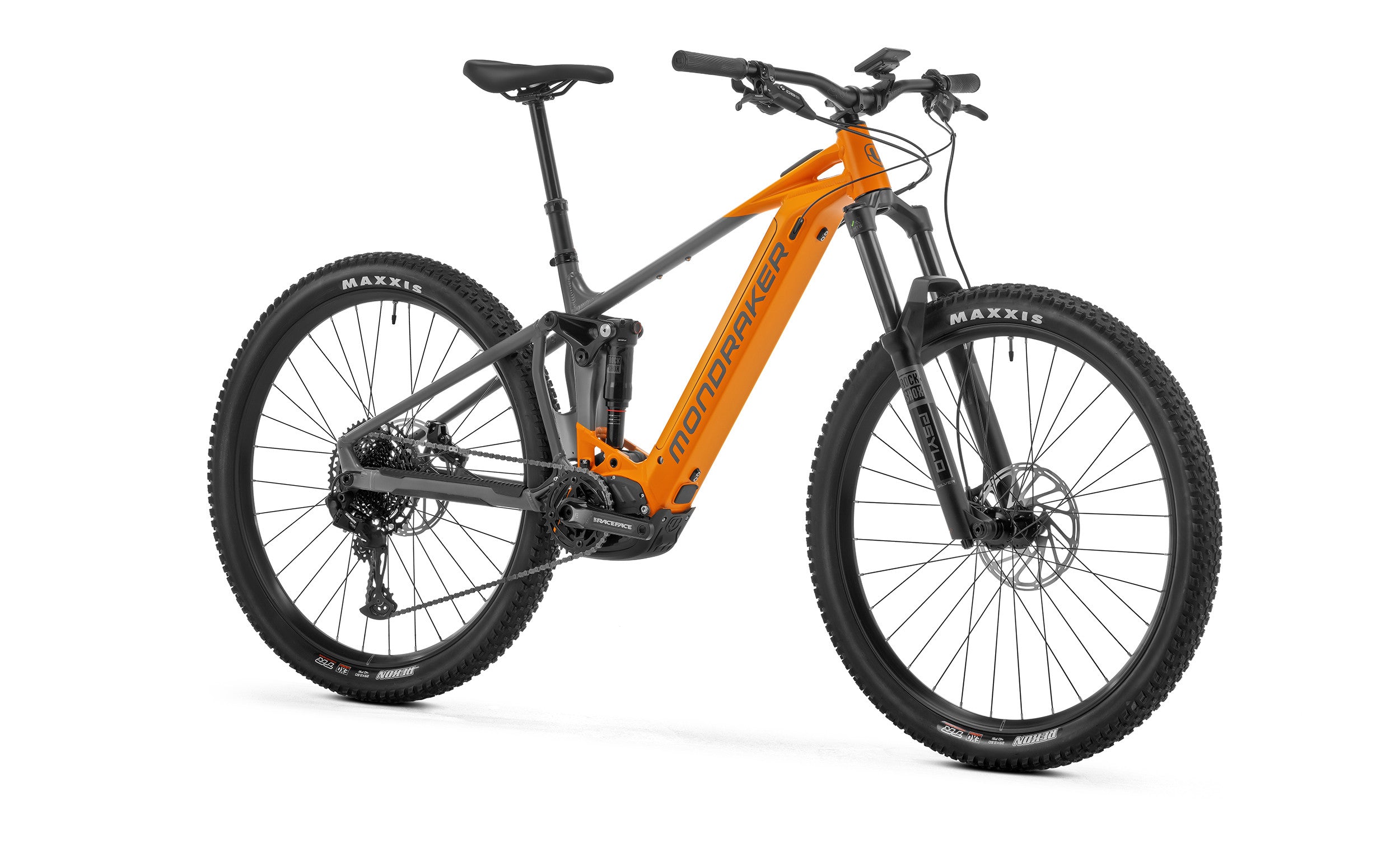

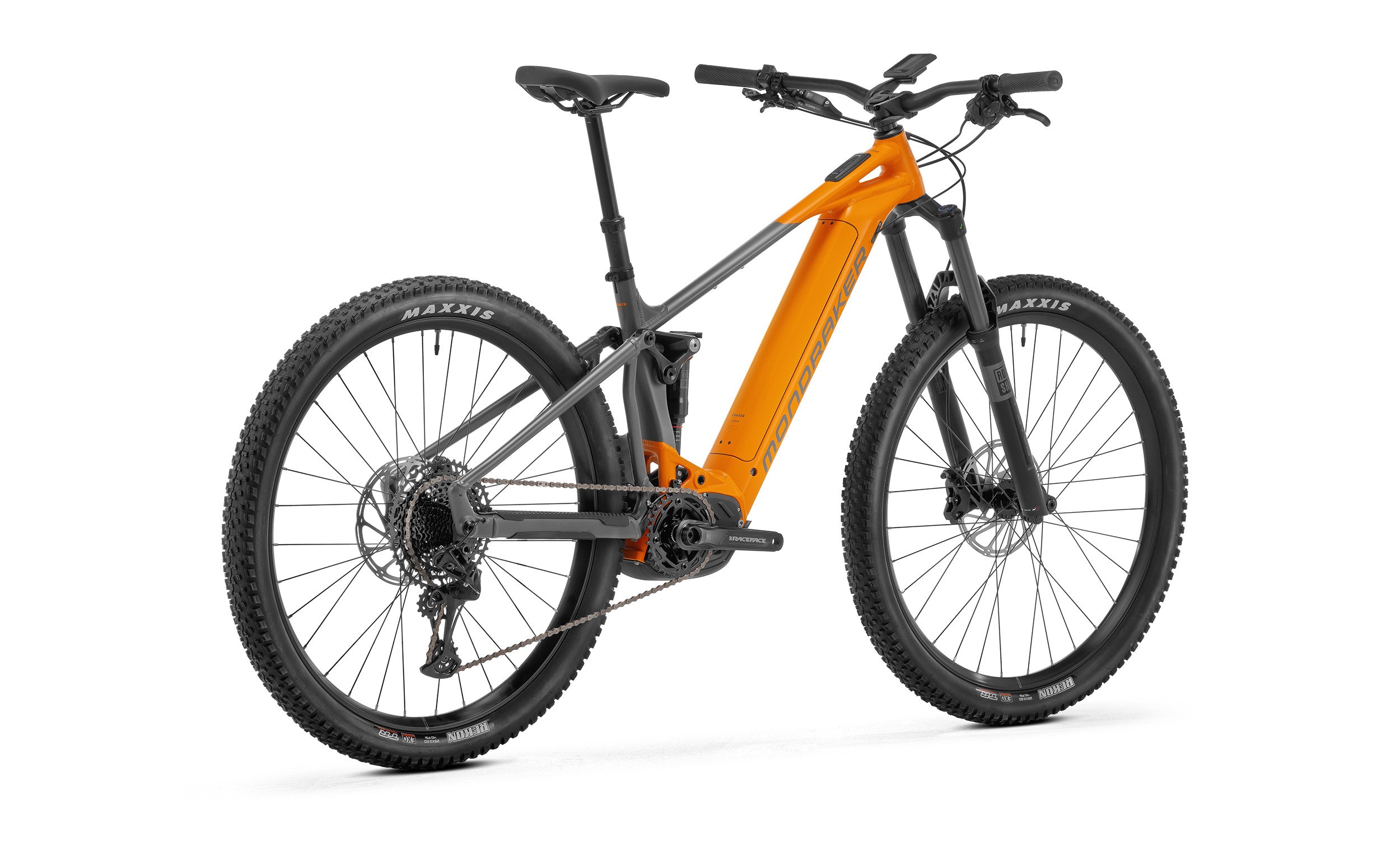

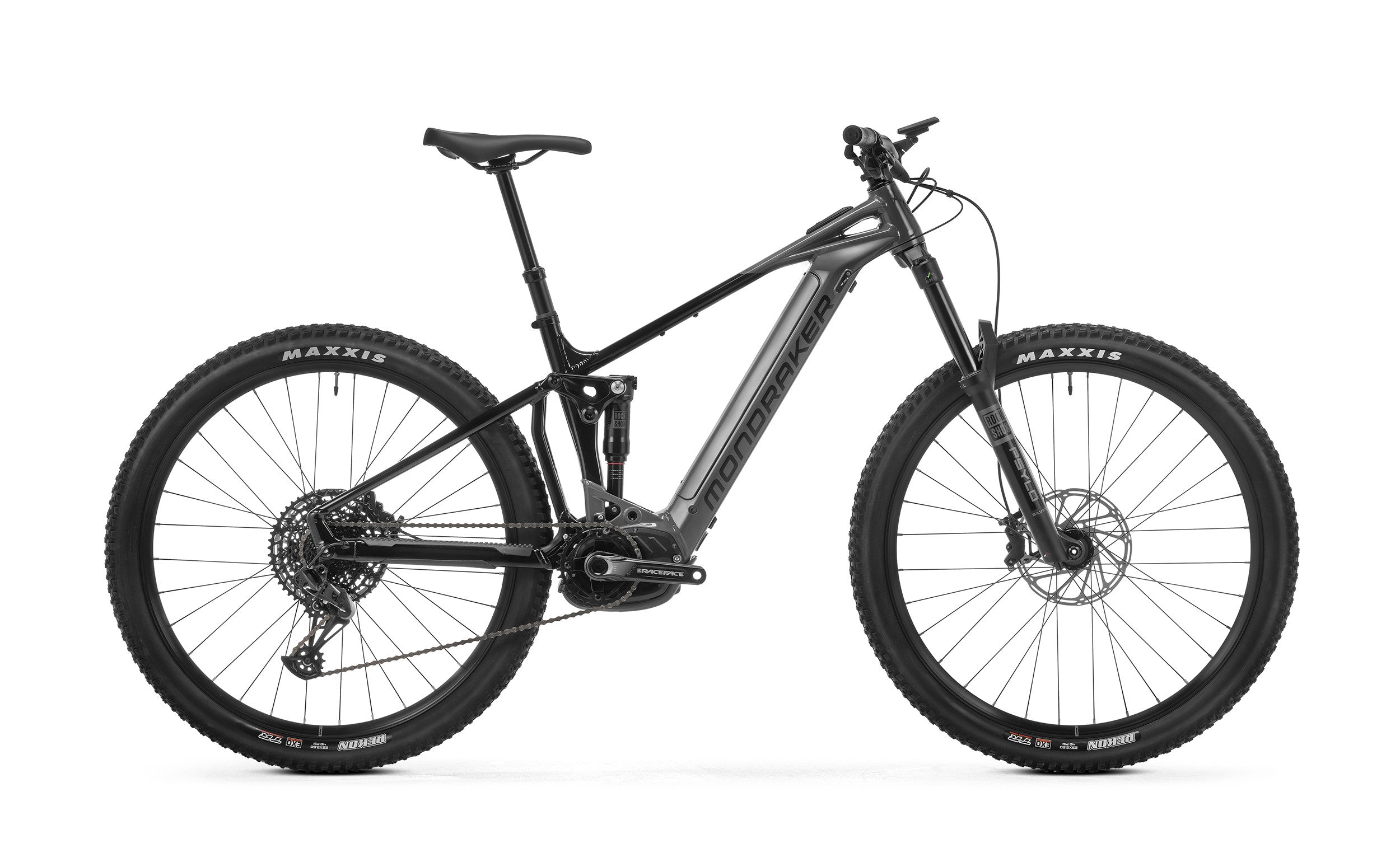

MONDRAKER CHASER R

Name: MONDRAKER CHASER R
Brand: Mondraker
SKU: 010.23300
Price: 5299.0 GBP
Availability: OutOfStock

£5,299.00

By Mondraker

Size

This product is unavailable

THE CHASER R IS OUR BEST VALUE EBIKE IF YOU’RE LOOKING FOR A COMPETITIVE, EFFICIENT RIDE ROCKING MONDRAKER’S MARKET LEADING TECH

The Chaser R is our best value ebike if you’re looking for a competitive, efficient ride rocking Mondraker’s market leading tech. The frame’s been optimized so that it’s up for anything. Trails and more trails, ascents and descents, technical trails or gnarr, the CHASER R won’t be the one holding you back if you’re thinking of sending it. The ZERO suspension system, FORWARD GEOMETRY and STEALTH ALLOY EVO make it a benchmark, technologically speaking. If we add in to the mix the optimization of the kinematics of the rear suspension you just couldn’t ask for more. For 2023, in addition to the Mini Remote control and integrated System Controller, it features Bosch’s elegant Intuvia 100 display. The CHASER R is a Mondraker thoroughbred at a very reasonable price point.

Frame

Chaser 6061 Alloy Stealth Evo, Zero Suspension System optimizada para ebike, 150mm de recorrido, Forward Geometry, batería interna no extraíble, eje trasero 12x148mm Boost, tubo de dirección perfilado, bieleta superior Monobloc de una pieza, sistema de cableado interno HHG, rodamientos sellados Enduro MAX, ejes de 17mm sobredimensionados, sensor de velocidad integrado en la puntera, tapas de motor de plástico exclusivas, guardabarros de amortiguador.

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear shock

Fox Float DPS Performance, 205x65mm. Ajustes: palanca de ajuste de compresión en 3 posiciones, rebote en baja, precarga por aire. Anclaje superior Trunnion, casquillos inferiores de 25x10mm.

Shock settings

Compresión media, rebote medio, 0.4 Token
Fork

Fox 36 29 Float FIT GRIP EVOL Rhythm, 160mm, optimizada para e-bike, tubo de dirección perfilado, eje Boost de 15x110mm, 44mm offset. Ajustes: compresión con “sweep”, rebote en baja, precarga por aire

Headset

ONOFF Saturn perfilada para tubo de 1-1/8” a 1-1/2”, rodamientos sellados ACB, superior 41x30,2x7x45ºx45º, inferior 51,9x40x8x45ºx45º
Stem

ONOFF Sulfur FG 30mm 0º, aleación 6061 forjada, para manillar de 31,8mm

Handlebar

ONOFF Sulfur 1.0 biconificado aleación 6061, altura: 20mm, ancho: 800mm, 9º backsweep, 5º upsweep, diámetro 31,8mm
Grips

ONOFF Twin, 1 lock-on, 135mm

Seatpost

ONOFF Pija cableado interno, diámetro 31,6mm, talla S: 405x95-125mm, M: 458x120-150mm, L: 498x140-170mm, XL: 498x140-170mm
Saddle

MDK negro para ebike

Front brake

SRAM DB8, pinza de 4 pistones, disco Centerline de 200mm IS de 6 tornillos de una pieza, pastillas orgánicas de chapa de acero
Rear brake

SRAM DB8, pinza de 4 pistones, disco Centerline de 200mm IS de 6 tornillos de una pieza, pastillas orgánicas de chapa de acero

Brake lever

SRAM DB8, ajuste de alcance sin herramientas
Rims

Mavic E-Deemax 29, 30mm ancho interno, soldado, PFP, tubeless, 28 radios

Spokes

Mavic biconificados, radiado sin contacto entre radios
Front hub

Mavic, Boost 15x110mm, IS 6 tornillos

Rear hub

Mavic, Boost 12x148mm, nucleo con tecnología ID360, IS 6 tornillos
Front tire

Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, carcasa EXO+, 120TPI, aro plegable

Rear tire

Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, carcasa EXO+, 120TPI, aro plegable
Crankset

Race Face Aeffect ebike, 165mm

Rings

SRAM X-SYNC 2 Eagle 34, de acero, Narrow/Wide, 104 BCD
Chain

SRAM SX Eagle, 12v, Powerlock

Rear derrailleur

SRAM GX Eagle, Type 3 embrague con rodamientos de aguja, bloqueo de caja, 1x12v, X-ACTUATION 1:1
Shift levers

SRAM Trigger SX Eagle, 12v, X-ACTUATION 1:1

Casette

SRAM PG-1210, 11-50T, 12v
Derailleur hanger

Mondraker M068

Weight

24,7 kg
Display

Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller

Motor

Bosch Performance Line CX Cruise (25Km/h), Smart System
Battery

Bosch Powertube 750Wh
