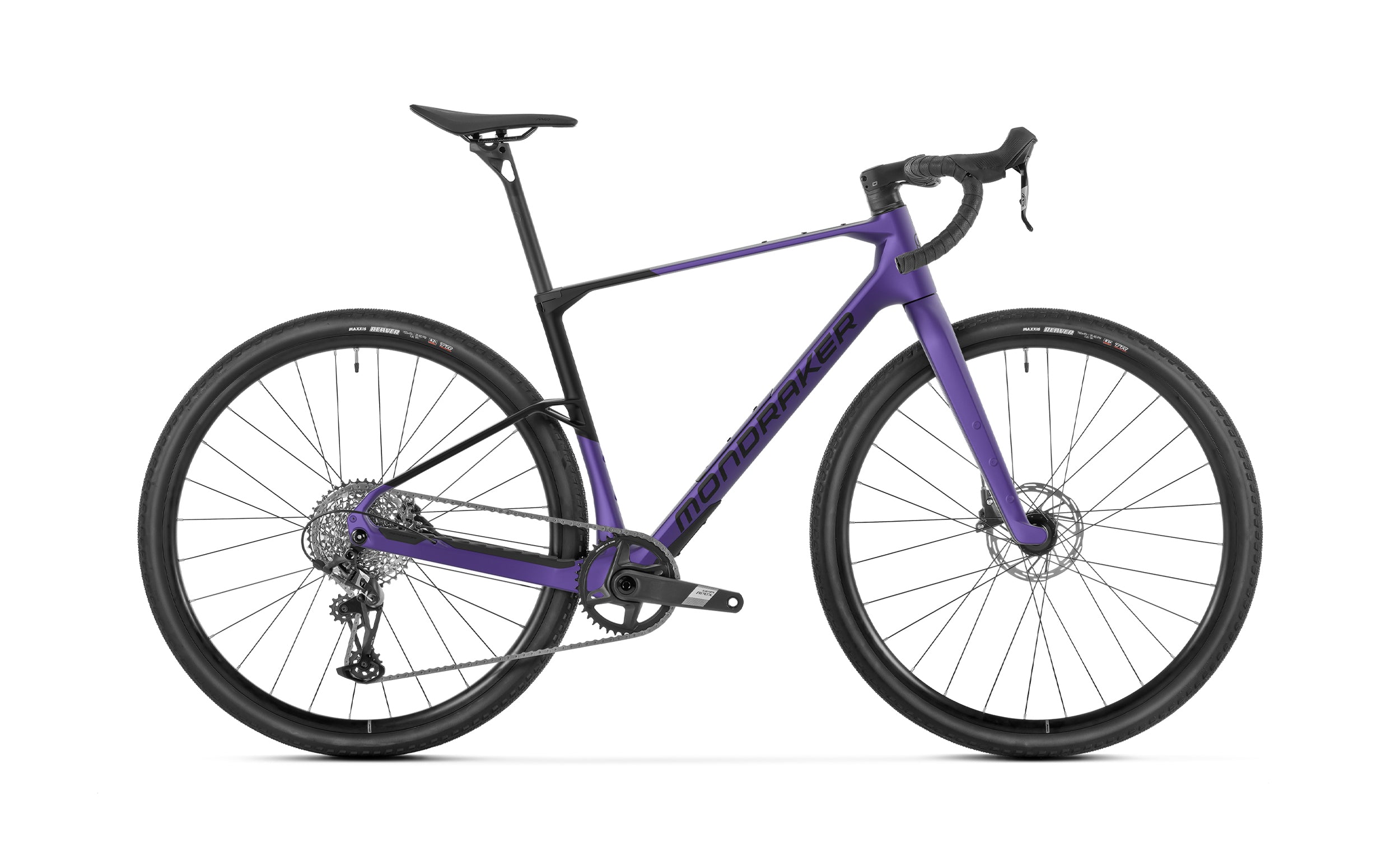

The full Arid Carbon range with its four builds: S, R, RR and RR SL complete with the spec updates, is now available in four striking new colours: Aura Blue, Ultraviolet, Mirage Silver, and Superblack. Four colourways which have been meticulously selected by our Blue Lab paint department to elevate the Arid Carbon’s aesthetics and exclusivity for the new season.
How will you spec yours!?
Arid Carbon S -
-
700
Carbon
Carbon
- Rings · Sram X-Sync Eagle 40T
- Rear derrailleur · Sram Apex XPLR
- Casette · Sram PG-1231 11-44, 12s
Components
Technical specs
-
Frame
Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.

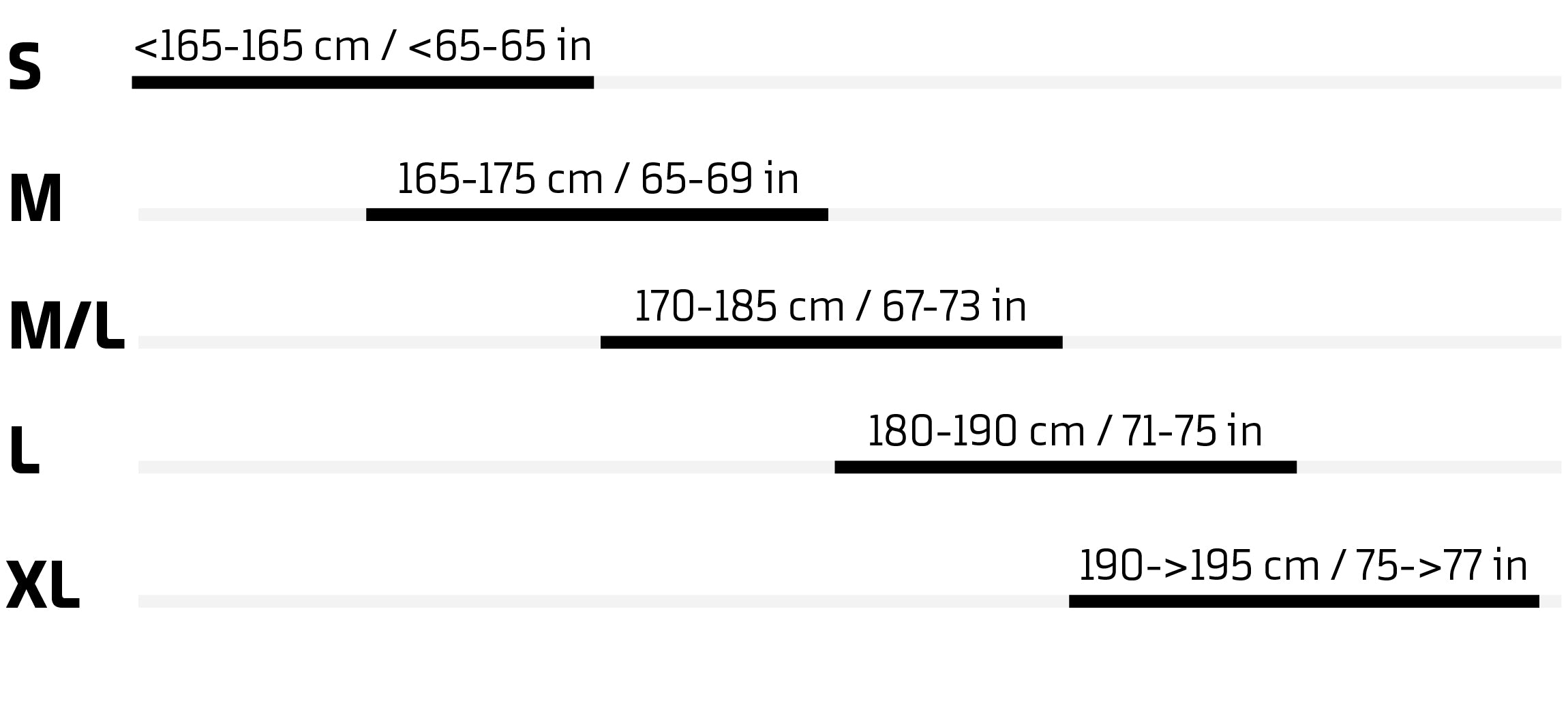

Sizes
S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
-
Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
-
Stem
Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar
Onoff S3 GR 16º bar flare. Width sizes S size: 420mm M size: 420mm ML size: 440mm L size: 460mm XL size: 460mm
-
Grips
Onoff HEX Bartape
Seatpost
Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
-
Saddle
Fizik Vento Argo X5 140mm
Front brake
Sram Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
-
Rear brake
Sram Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever
Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers
-
Rims
Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear
Spokes
Mavic Steel double butted flat spokes
-
Front hub
Mavic, 12x100mm, IS 6 bolts
Rear hub
Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, HG Freehub
-
Front tire
Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Rear tire
Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
-
Crankset
Sram Apex 1 Wide, S size: 165mm M size: 165mm ML size: 170mm L size: 172,5mm XL size: 172,5mm, CL 47,5
Rings
Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
-
Bottom bracket
Sram DUB T47 BSA, sealed bearings, 85,5mm
Chain
Sram Apex, 12s, Powerlock
-
Rear derrailleur
Sram Apex XPLR 12s
Shift levers
Sram Apex D1 12s, X-Actuation
-
Casette
Sram PG-1231 11-44, 12s
Derailleur hanger
Sram UDH
-
Weight
9,7 kg
