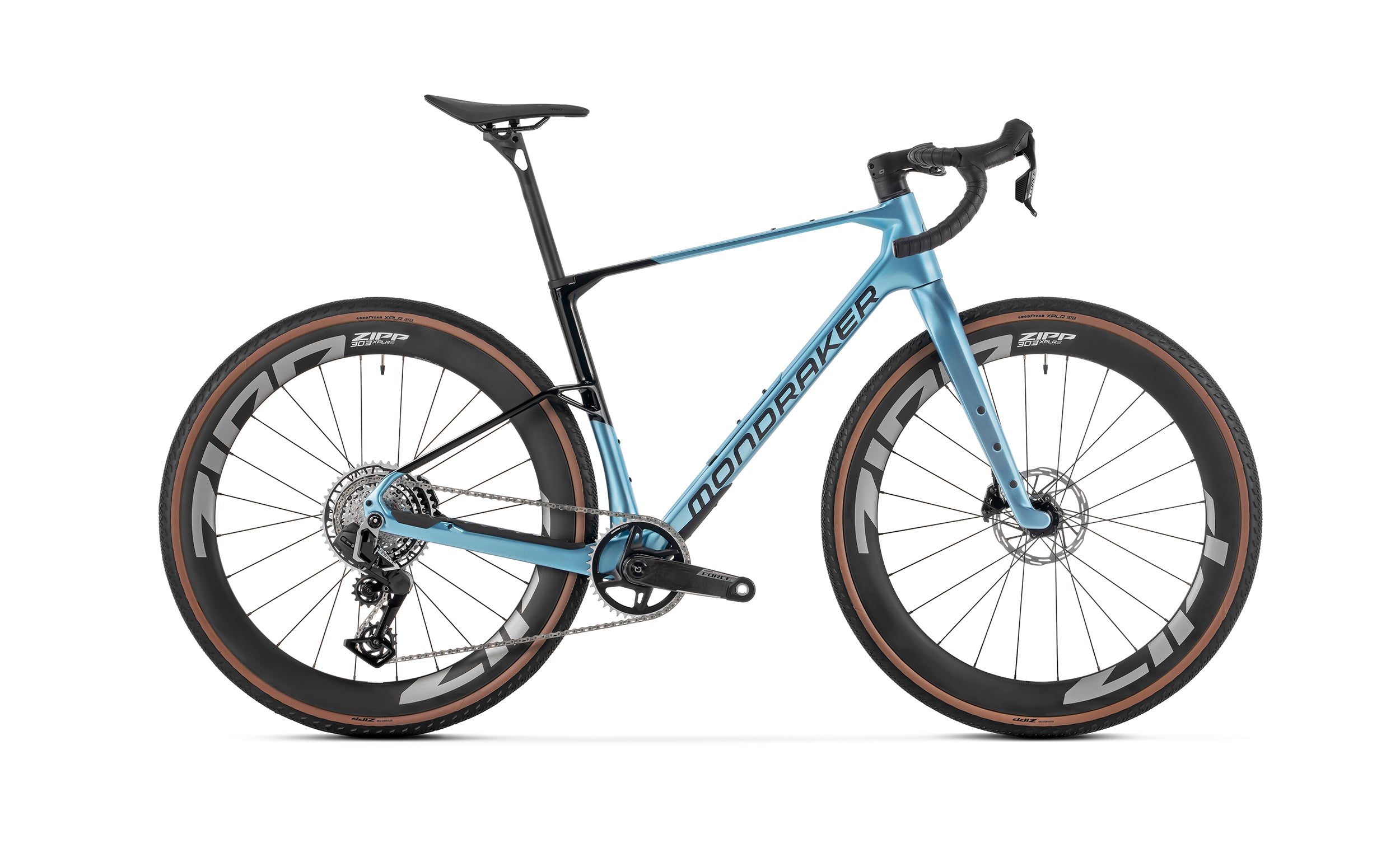

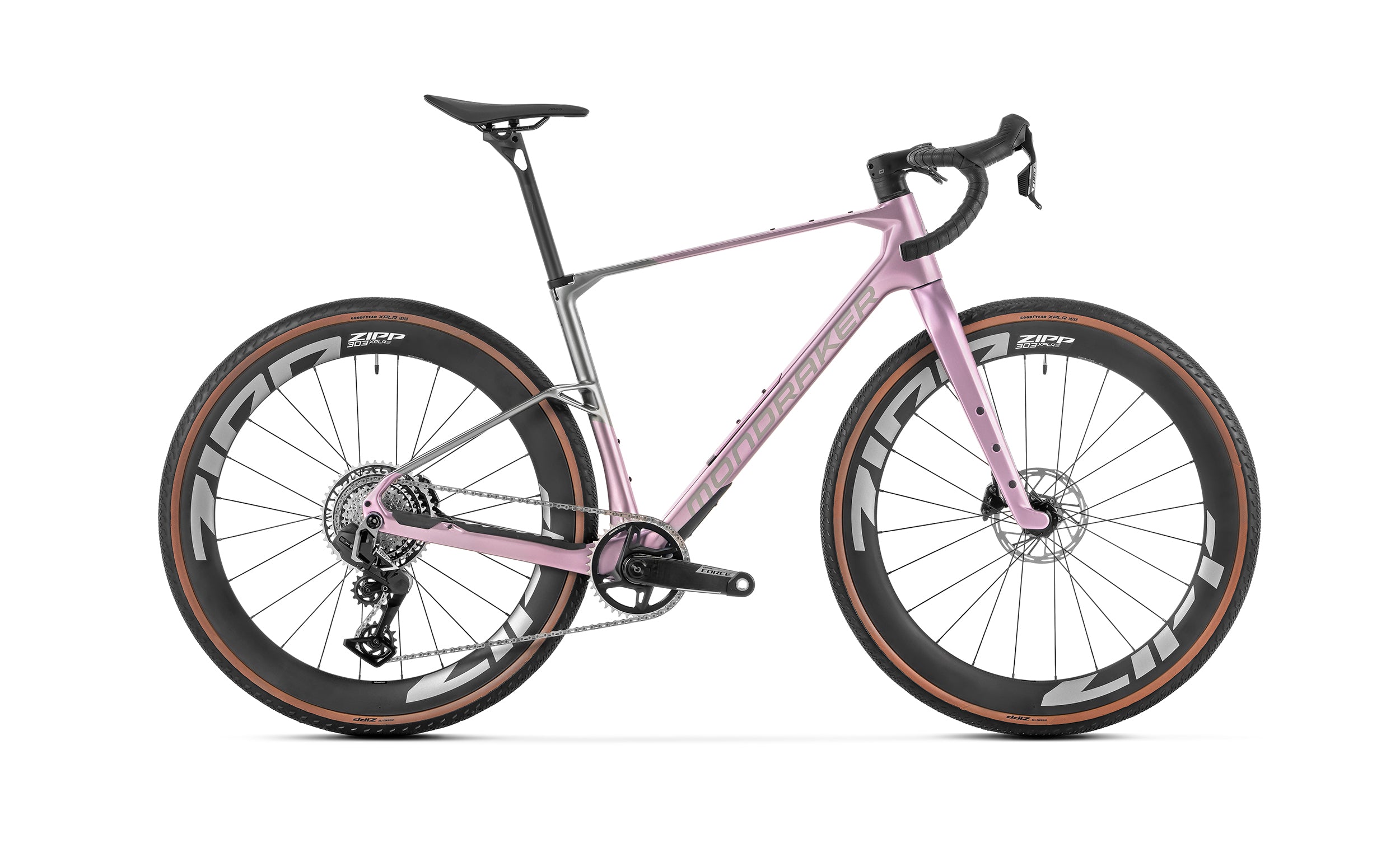

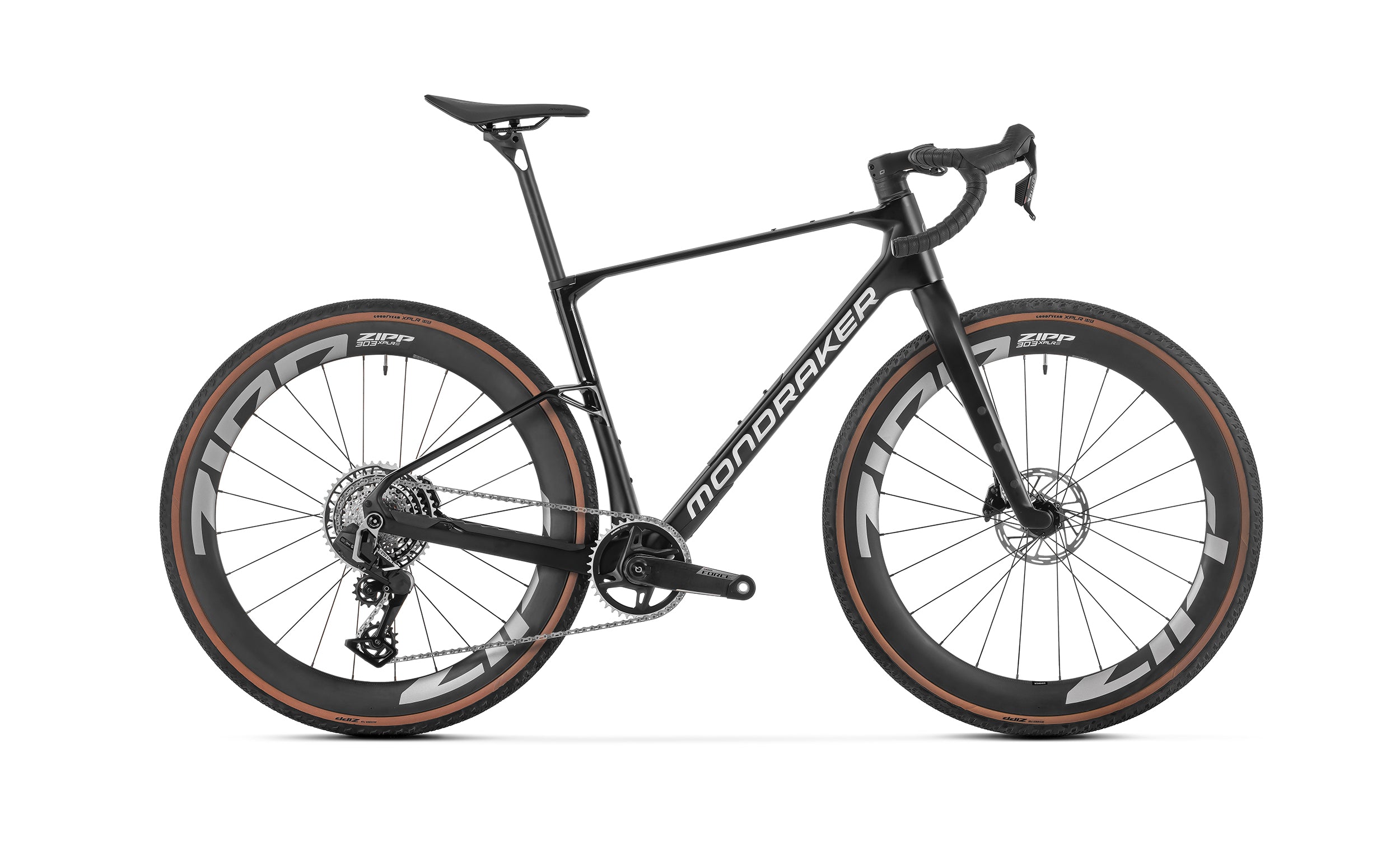

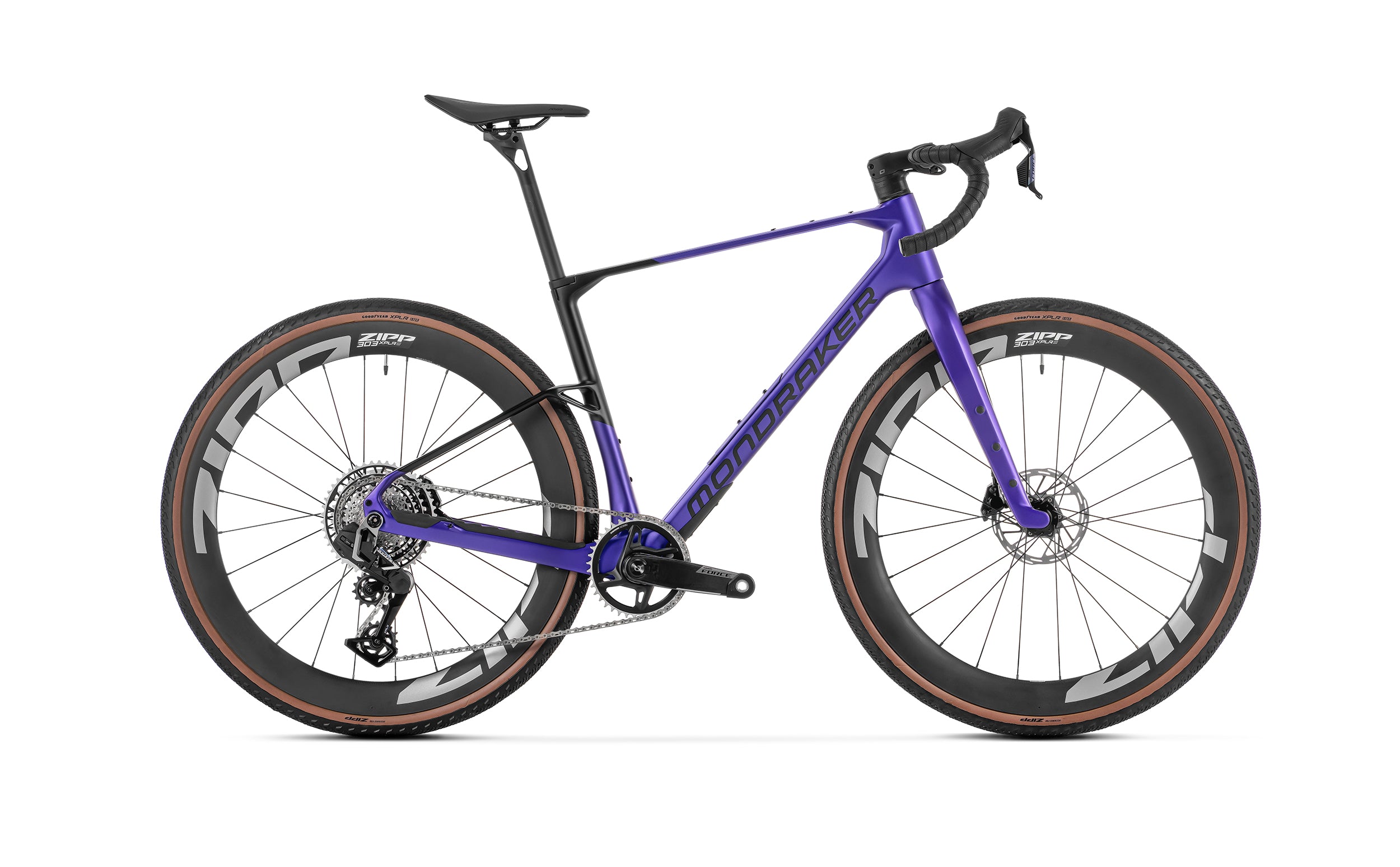

The full Arid Carbon range with its four builds: S, R, RR and RR SL complete with the spec updates, is now available in four striking new colours: Aura Blue, Ultraviolet, Mirage Silver, and Superblack. Four colourways which have been meticulously selected by our Blue Lab paint department to elevate the Arid Carbon’s aesthetics and exclusivity for the new season.
How will you spec yours!?
Arid Carbon RR -
- Rims · Zipp 303 XPLR S, carbon
- Rings · Sram 40T
- Rear derrailleur · Sram Force XPLR AXS, 13s
- Casette · Sram XG-1371, 10-46T, 13s
- Weight · 8,8 kg
Technical specs
-
Frame
Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.
Sizes
S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
-
Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset
Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
-
Stem
Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar
Onoff S9 GR CARBON 16º bar flare. Width sizes S size: 420mm M size: 420mm ML size: 440mm L size: 460mm XL size: 460mm
-
Grips
Onoff HEX Bartape
Seatpost
Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
-
Saddle
Fizik Vento Argo X5 140mm
Front brake
Sram Force AXS HRD 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
-
Rear brake
Sram Force AXS HRD, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad
Brake lever
Sram Force, eTap shift logic, Bonus button ANT+, tooled reach adjust, carbon brake lever
-
Rims
Zipp 303 XPLR S, carbon, 32mm internal width, 54mm rim depth, hookless, 24 spokes
Spokes
CX-Sprint - Black
-
Front hub
76 Disc Brake, 12x100mm,Centerlock
Rear hub
176 Disc Brake, 12x142mm, XDR 3 Pawls leaf springs, Centerlock. XDR Freehub
-
Front tire
Goodyear XPLR Inter 700x45
Rear tire
Goodyear XPLR Inter 700x45
-
Crankset
Sram Force XPLR AXS Carbon, Power meter, DUB WIDE axle, S size: 165mm M size: 165mm ML size: 170mm L size: 172,5mm XL size: 172,5mm, CL 47,5
Rings
Sram 40T Direct mount, alloy, narrow-wide,
-
Bottom bracket
Sram DUB T47 BSA, sealed bearings, 85,5mm
Chain
Sram Force, Flattop, 13s, Powerlock
-
Rear derrailleur
Sram Force XPLR AXS, 13s
Shift levers
Sram Force AXS HRD, 13s,
-
Casette
Sram XG-1371, 10-46T, 13s
Weight
8,8 kg
