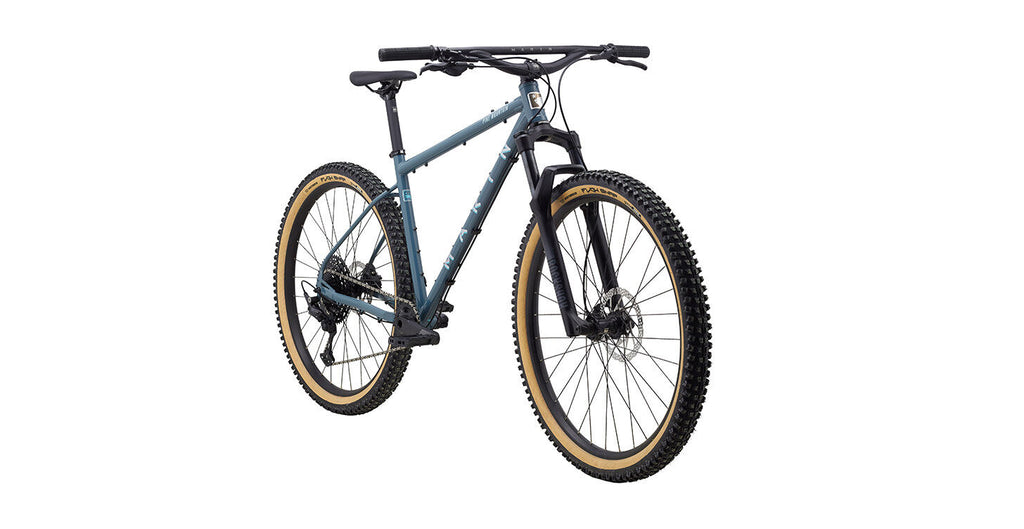

The Marin Pine Mountain adventure mountain bike is a fresh take on what an adventure trail bike should be capable of. The 2023 Series 2 and Series 3 CrMo frames have been constructed around 29x2.6” wheels/tyres, with geometry blending the stability and raucous fun of aggressive trail geometry with all day comfort and pedalability for a wide variety of trail. A plethora of eyelets on the frame and the Bedroll Bar let you customize your bike and gear to each and every adventure, and wide-range drivetrains and sturdy trail suspension forks make sure you can get out and back with a smile and a story worth telling.
-
FRAME
Series 2 Double Butted CrMo, 29" Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts
-
FRONT SUSPENSION
RockShox Recon RL, 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
-
RIMS
Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
-
HUB, REAR
Forged Alloy, 141x9mm, Disc, 32H
-
HUB, FRONT
Forged Alloy, 110x15mm, Disc, 32H
-
SPOKE, NIPPLES
14g Black Stainless Steel
-
TIRES
Vee Tire Flow Snap, 29x2.6", Wire Bead
-
DERAILLEUR, REAR
Shimano Deore 11-Speed
-
DERAILLEUR, FRONT
-
-
SHIFT LEVER
Shimano Deore 11-Speed
-
CRANKSET
Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, 76mm BCD
-
BOTTOM BRACKET
External Sealed Cartridge Bearings
-
CHAIN
KMC X11
-
CASSETTE
SunRace 11-Speed, 11-51T
-
BRAKE, FRONT
Shimano MT420, 4-Piston, Hydraulic Disc, 180mm Rotor
-
BRAKE, REAR
Shimano MT400, 2-Piston, Hydraulic Disc, 160mm Rotor
-
BRAKE LEVERS
Shimano MT400 Hydraulic
-
HANDLEBAR
Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep
-
STEM
Marin 3D Forged Alloy, 35mm
-
GRIPS
Marin Bear Paw Locking
-
HEADSET
FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
-
SEATPOST
Marin Alloy, 30.9mm
-
SADDLE
Marin Pine Mountain Trail
-
PEDALS
Nylon Platform
