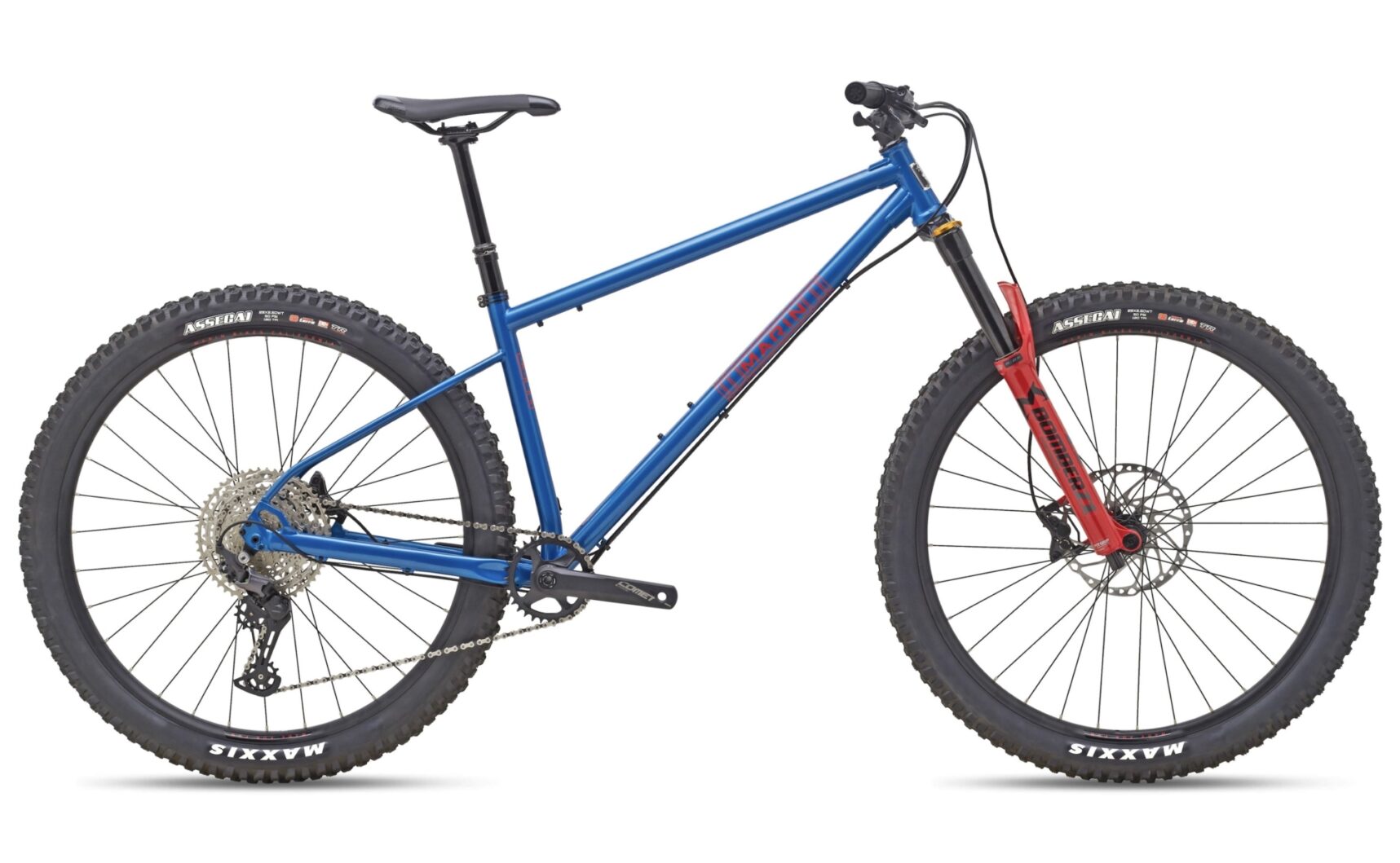

EL ROY
The classic robust yet forgiving character of chromoly steel meets modern day long and slack geometry, a match as perfect as mountain biking and post-ride burritos. This new 29” wheel trail slayer was purpose built for silly fun days in the woods, no matter the conditions. Use it as a back-to-the-roots, all-in-one trail slayer, or as that perfect “n+1 bike,” on days when the full suspension bike stays at home in the shed. Named in honour of our favourite post-ride taqueria, the El Roy is overflowing in solid spec choices, all wrapped up with a stout Series 3 double butted and formed CrMo frameset. Grab one of two frame sizes, Regular or Grande, and enjoy the delicious goodness that we’ve cooked up.
INTENDED USE
Downhill trails
Enduro
Slashing berms
All trails, all conditions
-
FRAME
Series 3 Double Butted and Formed CrMo tubing, Integrated Drop-In Headset, External Rear Derailleur and Brake Housing, Internal Dropper Post Routing, 148x12mm Boost Rear Spacing, Post Mount Brake Mounts
-
FRONT SUSPENSION
Marzocchi Z1, 140mm Travel, EVOL Air Spring, GRIP Damper w/ Sweep Adjust, Kabolt 110 Axle, 44mm Offset
-
RIMS
Marin, Double Wall Alloy, 29mm Inner, Welded Joint, Disc Specific, 32H, Tubeless Compatible
-
HUB, REAR
Shimano HB-MT410B, 148x12mm, Disc, Microspline Freehub Body
-
HUB, FRONT
Shimano HF-MT410B, 110x15mm, Disc
-
SPOKE, NIPPLES
14g Black Stainless Steel
-
TIRES
Maxxis Assegai 29x2.5", 3C MAXX GRIP EXO+ Front, 3C MAXX TERRA Double Down Rear, Tubeless Compatible
-
DERAILLEUR, REAR
Shimano Deore, 12-Speed, SGS
-
DERAILLEUR, FRONT
-
-
SHIFT LEVER
Shimano Deore, M6100, 12-Speed
-
CRANKSET
FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
-
BOTTOM BRACKET
Mego EXO 73mm BSA
-
CHAIN
KMC X-12 Silver and Black
-
CASSETTE
Shimano, Deore 12-Speed, 10-51T
-
BRAKE, FRONT
Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor
-
BRAKE, REAR
Shimano BR-MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor
-
BRAKE LEVERS
Shimano BL-M4100 Hydraulic Lever, I-Spec EV Compatible
-
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
-
STEM
Marin 3D Forged Alloy, 35mm
-
GRIPS
Marin Grizzly, Lock On
-
HEADSET
FSA Orbit 40 No.42 ACB
-
SEATPOST
X Fusion Manic, Regular = 150mm Travel, Grande = 170mm Travel
-
SADDLE
Marin Speed Concept
-
PEDALS
-
-
EXTRAS
Bolt-On Thru-Axle
