HARDTAIL TRAIL RIDING
AGGRESSIVE SINGLETRACK
The Bobcat Trail is a capable mountain bike with modern trail geometry build for exploring singletrack trail systems. Best-in-class frames and solid, serviceable spec make the Bobcat Trail a solid choice for the recreational rider looking to step up to modern geo and step deeper into mountain biking, and for the experienced rider in search of an update that doesn’t break the bank.
Key upgrades over the Bolinas Ridge 2:
- Series 2 aluminum frame w/double butted tubing & internal cable routing
- SR Suntour XCM HLO fork w/120mm travel & hydraulic lockout
- Tektro hydraulic disc brakes
-

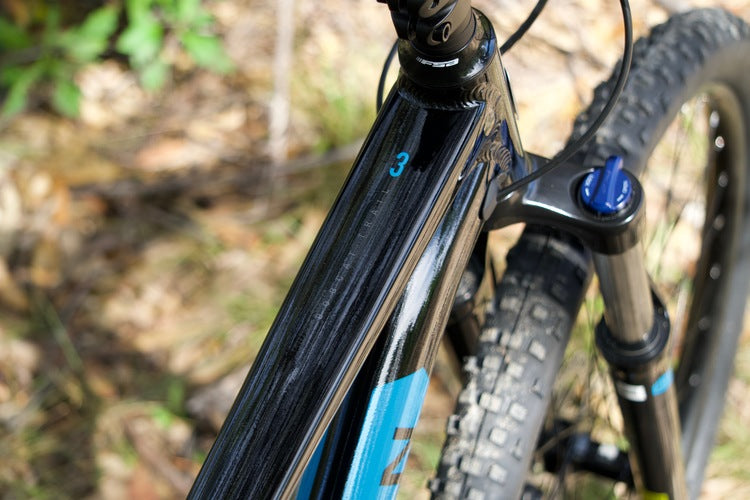

FRAME
Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
-

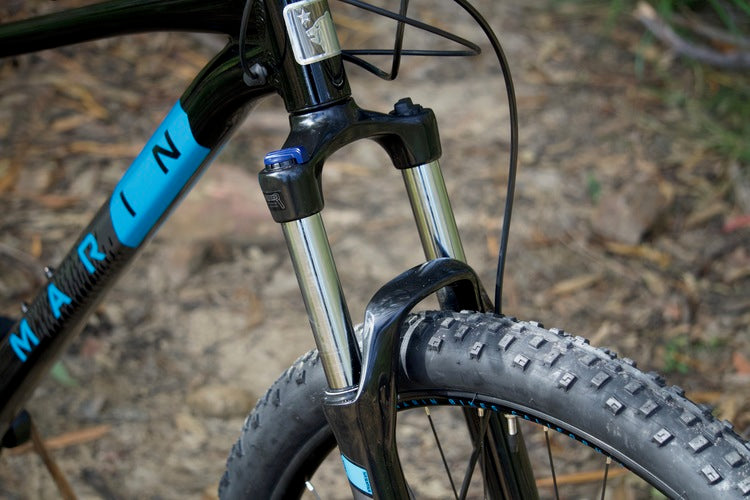

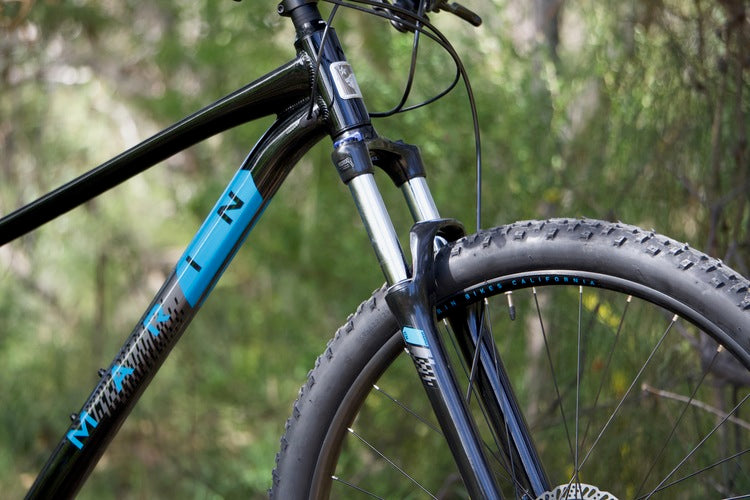

FRONT SUSPENSION
SR Suntour XCM HLO DS, 120mm Travel, Hydraulic Lockout, 46mm Offset
-
RIMS
Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
-
HUB, REAR
Forged Alloy, 32H
-
HUB, FRONT
Forged Alloy, 32H
-
SPOKE, NIPPLES
14g Black Stainless Steel
-
TIRES
MTB, 27.5/29x2.25"
-

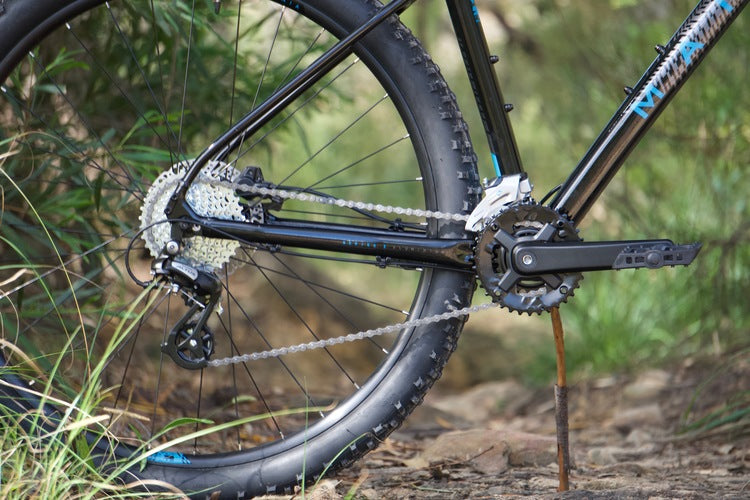

DERAILLEUR, REAR
Shimano Altus, 8-Speed
-
DERAILLEUR, FRONT
Altus Double
-
SHIFT LEVER
Shimano Altus 2x8
-
CRANKSET
Alloy Crank, Steel Chainrings, 36/22T
-
BOTTOM BRACKET
Sealed Cartridge Bearings, Square Taper
-
CHAIN
KMC Z-8.3
-
CASSETTE
SunRace 8-Speed, 11-34T
-
BRAKE, FRONT
Tektro HD-M275 Hydraulic Disc, 160mm Rotor
-

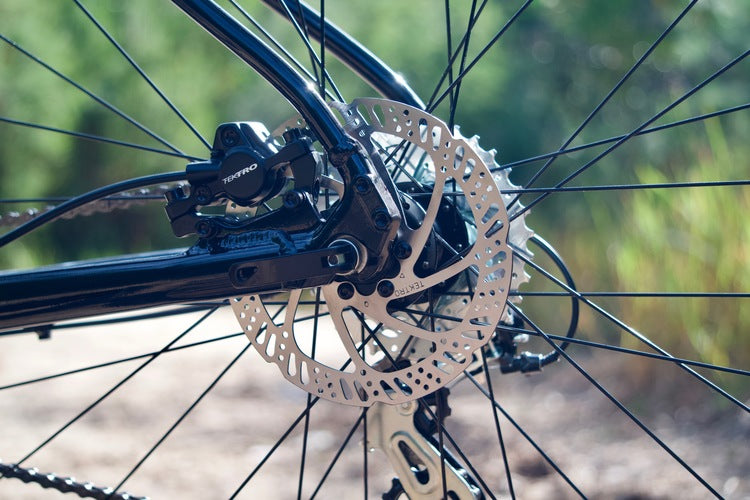

BRAKE, REAR
Tektro HD-M275 Hydraulic Disc, 160mm Rotor
-
BRAKE LEVERS
Tektro M275 Hydraulic Disc
-
HANDLEBAR
Marin 31.8 Riser, 12mm Rise, 780mm Width
-
STEM
Marin Alloy, 31.8mm Clamp, 45mm
-
GRIPS
Marin MTB, Closed End
-
HEADSET
FSA No.10-P
-
SEATPOST
Marin Alloy, 30.9
-

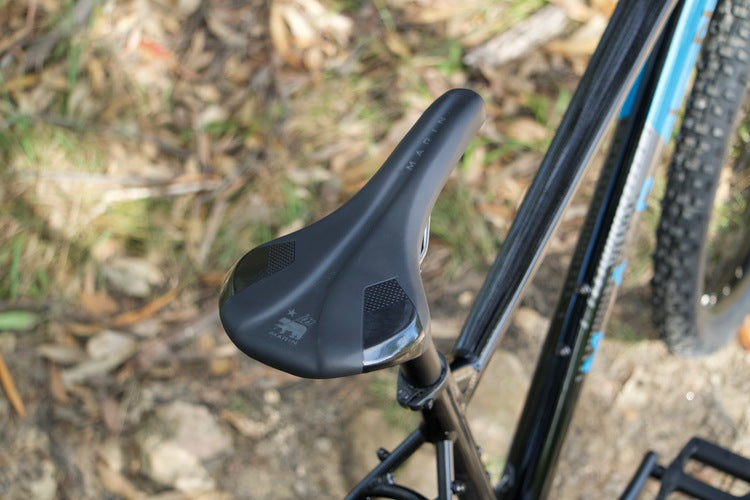

SADDLE
Marin MTB
-
PEDALS
Nylon Platform
