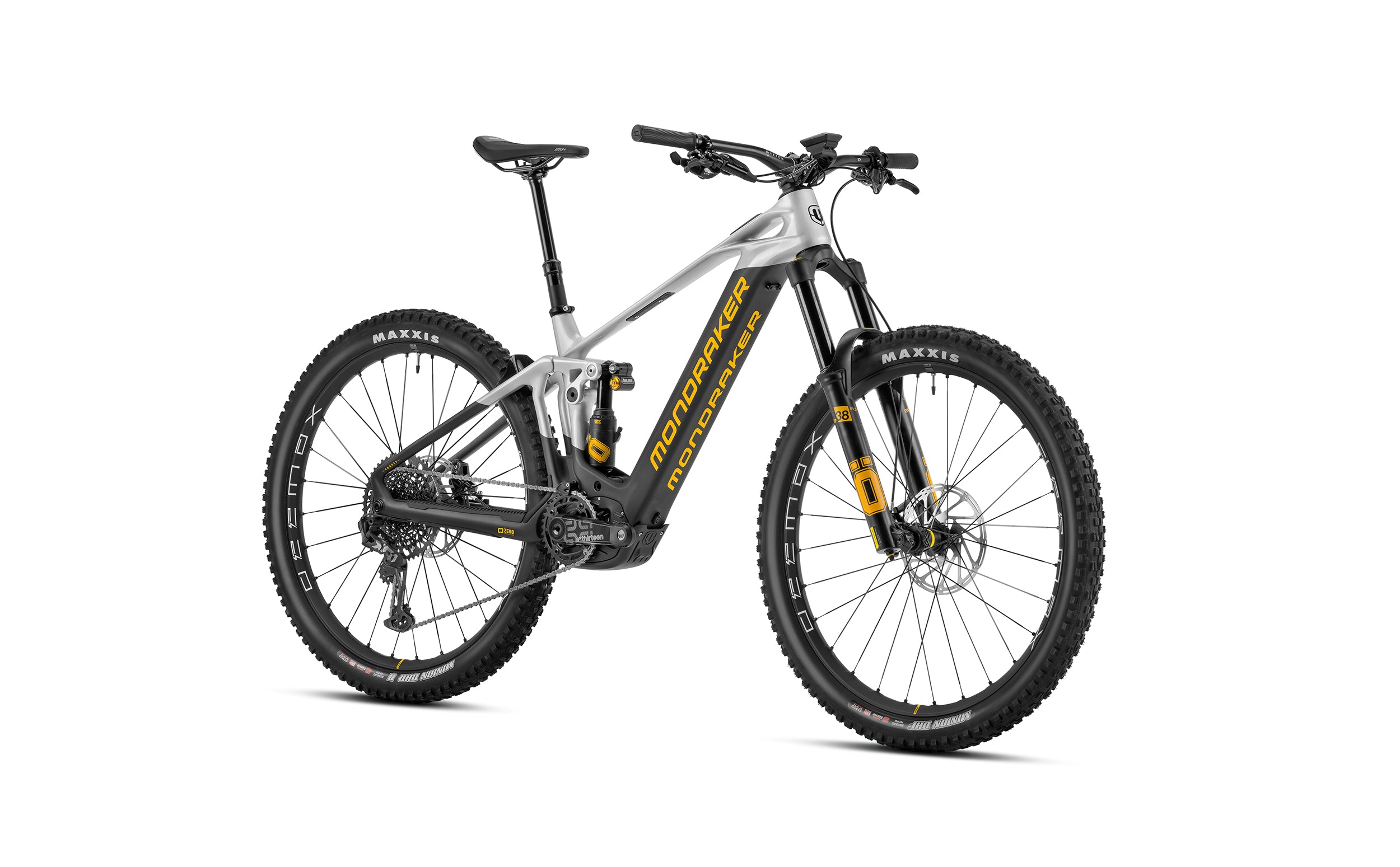

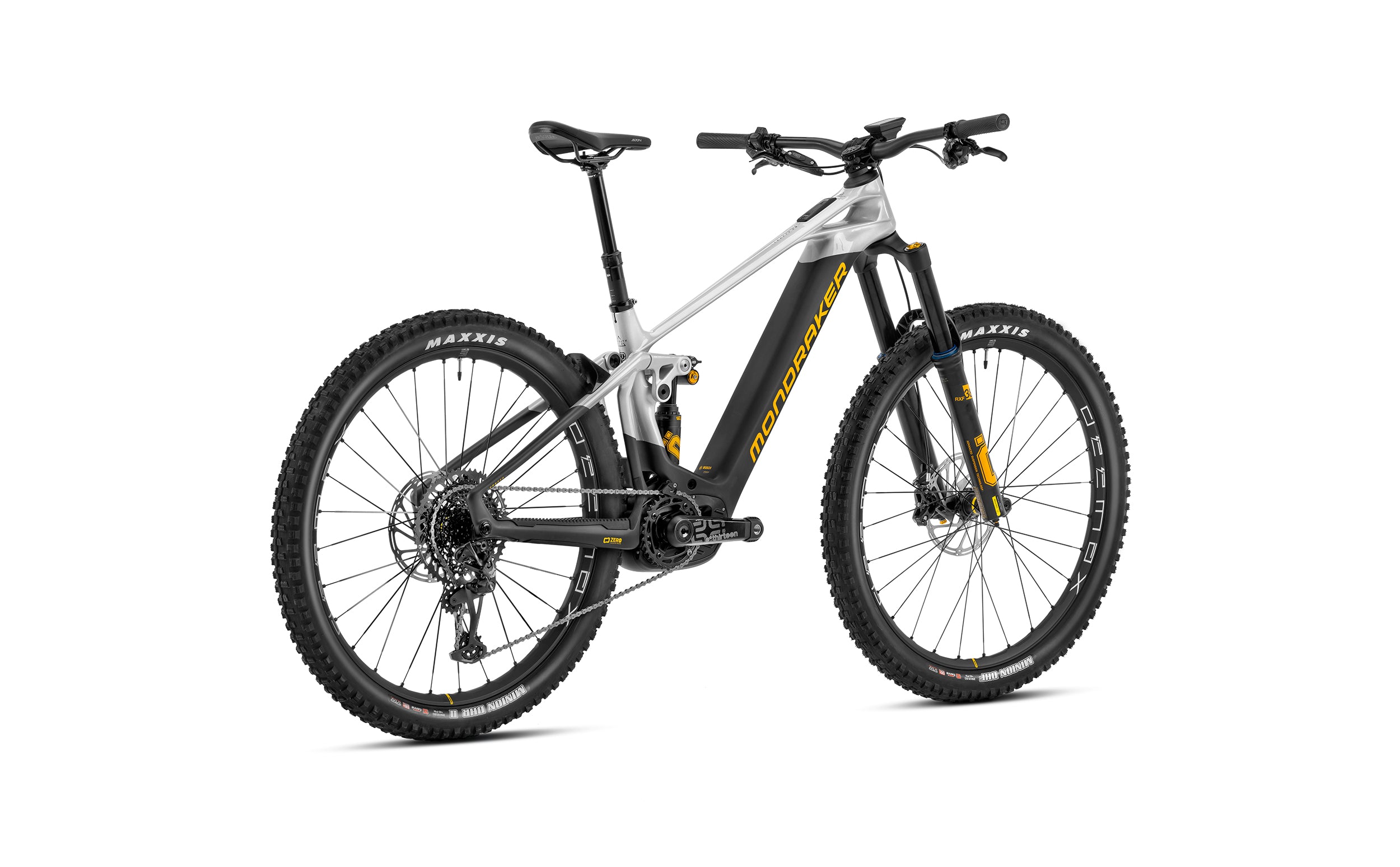

MONDRAKER CRAFTY CARBON XR

$12,239.00
This product is unavailable

THE XR IS THE MOST RADICAL OF THE CRAFTY CARBON FAMILY


The prestigious Öhlins suspension fitted front and rear, with effectiveness in mind and a clear focus on enduro. 170mm and 150mm of front and rear travel, will allow you to face any technical section with the maximum confidence. Its Bosch Performance Line CX GEN4 Smart System motor, with a tremendously natural pedaling feeling, comes with the wireless Mini Remote and the System Controller installed on the top tube, to allow easy control over all aspects of the motor. In addition, the 750 Wh battery, will allow you to pedal further than ever without fear of running out of autonomy on your most demanding trails. Equipped with our inhouse telemetry system MIND, which allows you to precisely adjust the suspension and much more. Without a doubt, the XR is a very special CRAFTY CARBON which will make you feel like a real pro.
  • Frame

    Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.Optional MIND System (EU only)

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

    Rear shock

    Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

    Shock settings

    C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)

    Fork

    Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

    Headset

    Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

    Stem

    ONOFF Krypton FG 30mm, CNC, 31.8mm barbore

    Handlebar

    ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

    Grips

    ONOFF Desert, 1lock-on, 135mm

    Seatpost

    ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

    Saddle

    FIZIK Terra Aidon X5 145mm

    Front brake

    Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    Rear brake

    Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    Brake lever

    Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

    Rims

    Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes

    Spokes

    Mavic straight-pull double butted, contactless lacing

  • Front hub

    Mavic, Boost 15x110mm, IS 6 bolts

    Rear hub

    Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub

    Front tire

    Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    Rear tire

    Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    Crankset

    E.13 TRS Race carbon ebike, 165mm

    Rings

    Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

    Chain

    Sram NX Eagle, 12s, Powerlock

    Rear derrailleur

    Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

    Shift levers

    Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click

    Casette

    Sram XG-1275, 10-52T, 12s

    Derailleur hanger

    SRAM UDH

    Weight

    23,3 kg

    Display

    Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller

    Motor

    Bosch Performance Line CX Cruise (25Km/h) Smart System

    Battery

    Bosch Powertube 750Wh
