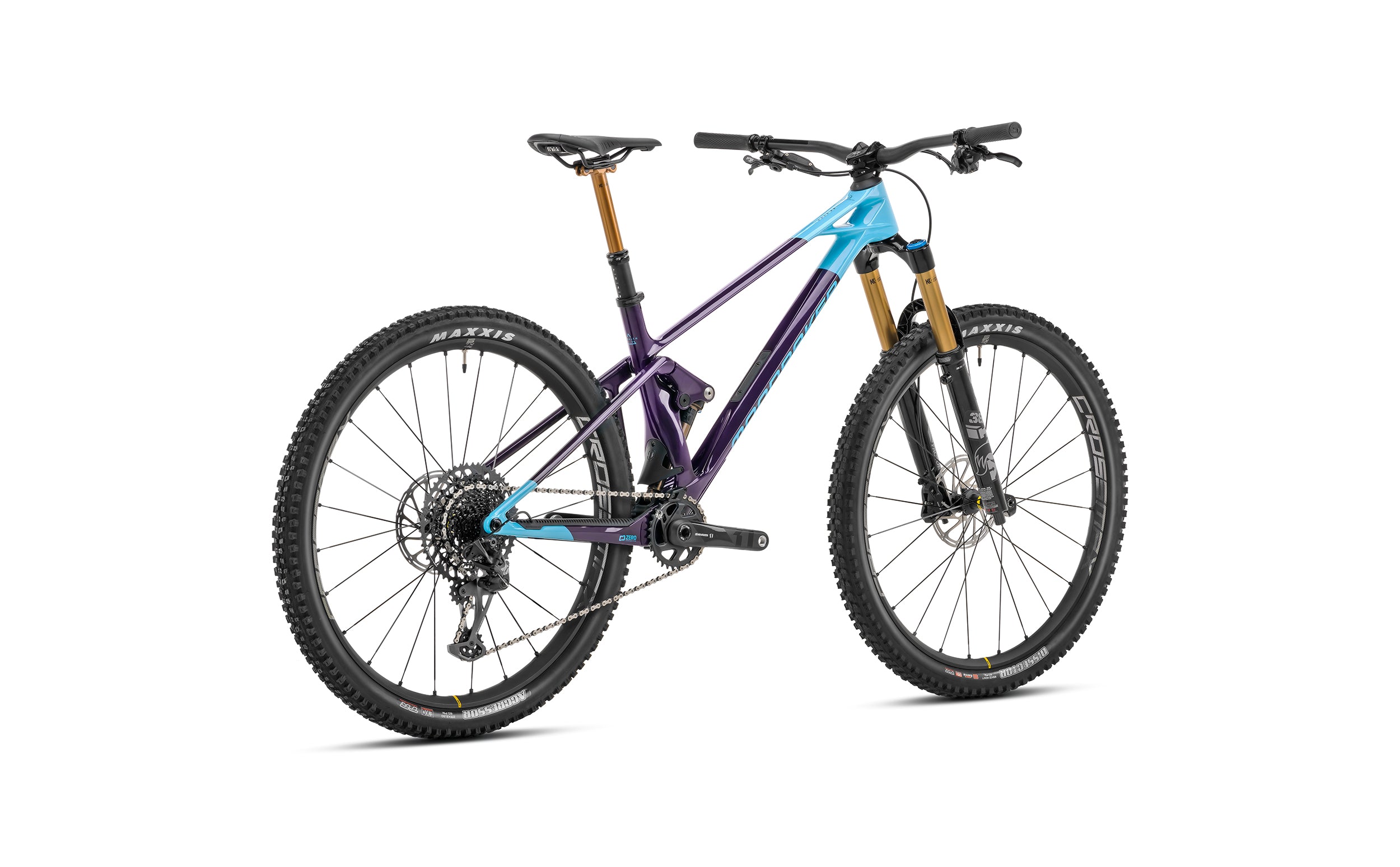

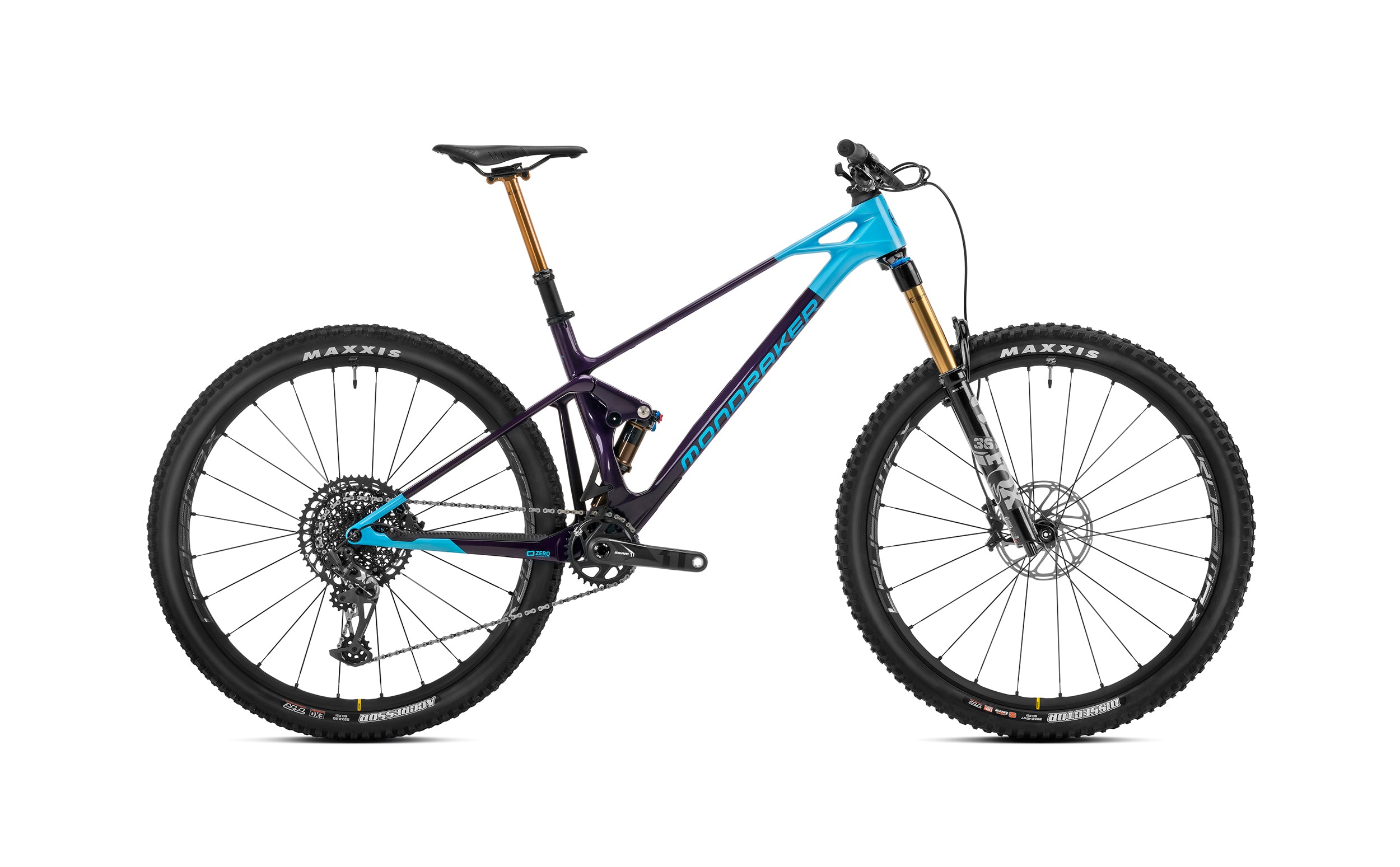

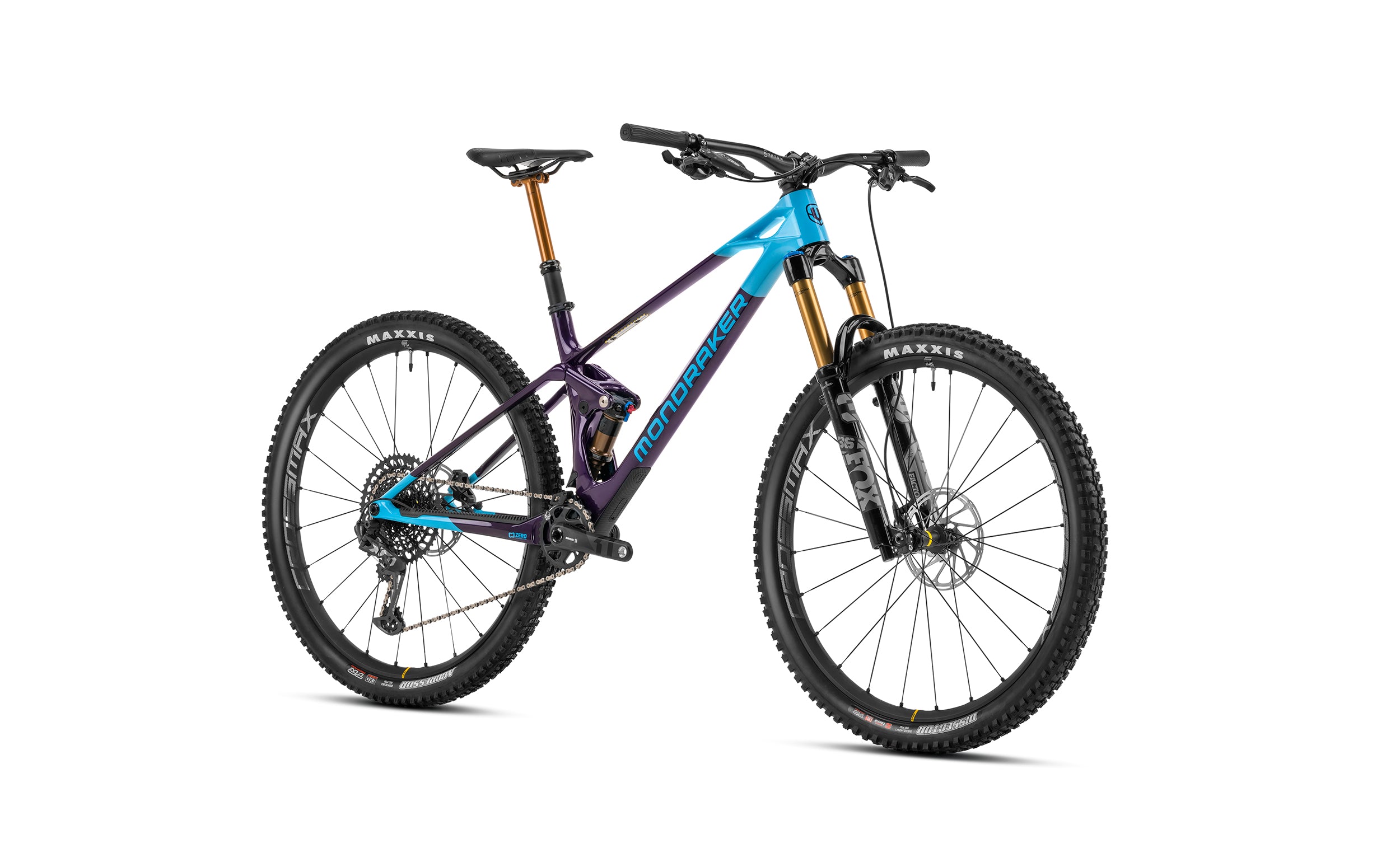

MONDRAKER RAZE CARBON RR

£7,999.00
By Mondraker
This product is unavailable

  • AT MONDRAKER WE’RE CLEAR ABOUT OUR PHILOSOPHY: MOUNTAIN BIKES ARE FOR FUN!

    For most people they need to be able to go both up as well as down. RAZE is our Trail model for riders who want it all, a sure bet yet spectacularly light weight trail rocket with 150mm of front wheel travel and 130mm at the rear. The RAZE is no ordinary trail bike because we believe that the definition of a trail bike shouldn’t be about its suspension travel but its functionality. What’s more, for 2023 the RAZE range is complemented by two aluminium models, both for riders who simply prefer alloy frames and also for those who prefer a more economical option. The RAZE is still THE TRAIL MASTER. Not surprisingly the RAZE CARBON RR model was given the best trail bike of 2022 award by the prestigious UK bike magazine MBR, which just about says it all.

        • Frame

          Raze 29 Stealth Air full Carbon, Zero Suspension System, 130mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. Optional MIND System (EU only)

          Sizes

          S: 380mm / M: 420mm / L: 450mm / XL: 500mm

          Rear shock

          Fox Float DPS Factory Kashima EVOL LV, 205x57.5mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings

          Shock settings

          Light compression, light rebound, air volume spacer 0.6

          Fork

          Fox 36 29 Float GRIP2 Factory Kashima, 150mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

          Headset

          Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

          Stem

          ONOFF Krypton FG 30mm, CNC, 31.8mm barbore

          Handlebar

          ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

          Grips

          ONOFF Desert, 1lock-on, 135mm

          Seatpost

          Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm

          Saddle

          Fizik Antares R7

          Front brake

          Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

          Rear brake

          Sram G2 RS, 4-piston caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pads

          Brake lever

          Sram G2 RS, SwingLink, tool-free reach adjust

          Rims

          Mavic CrossMax XL S, 29 Boost 30mm internal width, hookless, tubeless ready, 24 spokes

        • Spokes

          24 straight-pull double butted spokes

          Front hub

          Infinity hub, Boost 15x110mm, IS 6 bolts

          Rear hub

          Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts

          Front tire

          Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

          Rear tire

          Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

          Crankset

          Sram X1 Carbon Eagle, Boost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

          Rings

          32T, CNC-machined alloy, X-SYNC 2

          Bottom bracket

          Sram DUB BSA, sealed bearings, 73mm

          Chain

          Sram GX Eagle, 12s, Powerlock

          Rear derrailleur

          Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

          Shift levers

          Sram Trigger GX Eagle, 12s, X-Actuation 1:1

          Casette

          Sram XG-1275, 10-52T, 12s

          Derailleur hanger

          Sram UDH

          Weight

          13,1 kg
