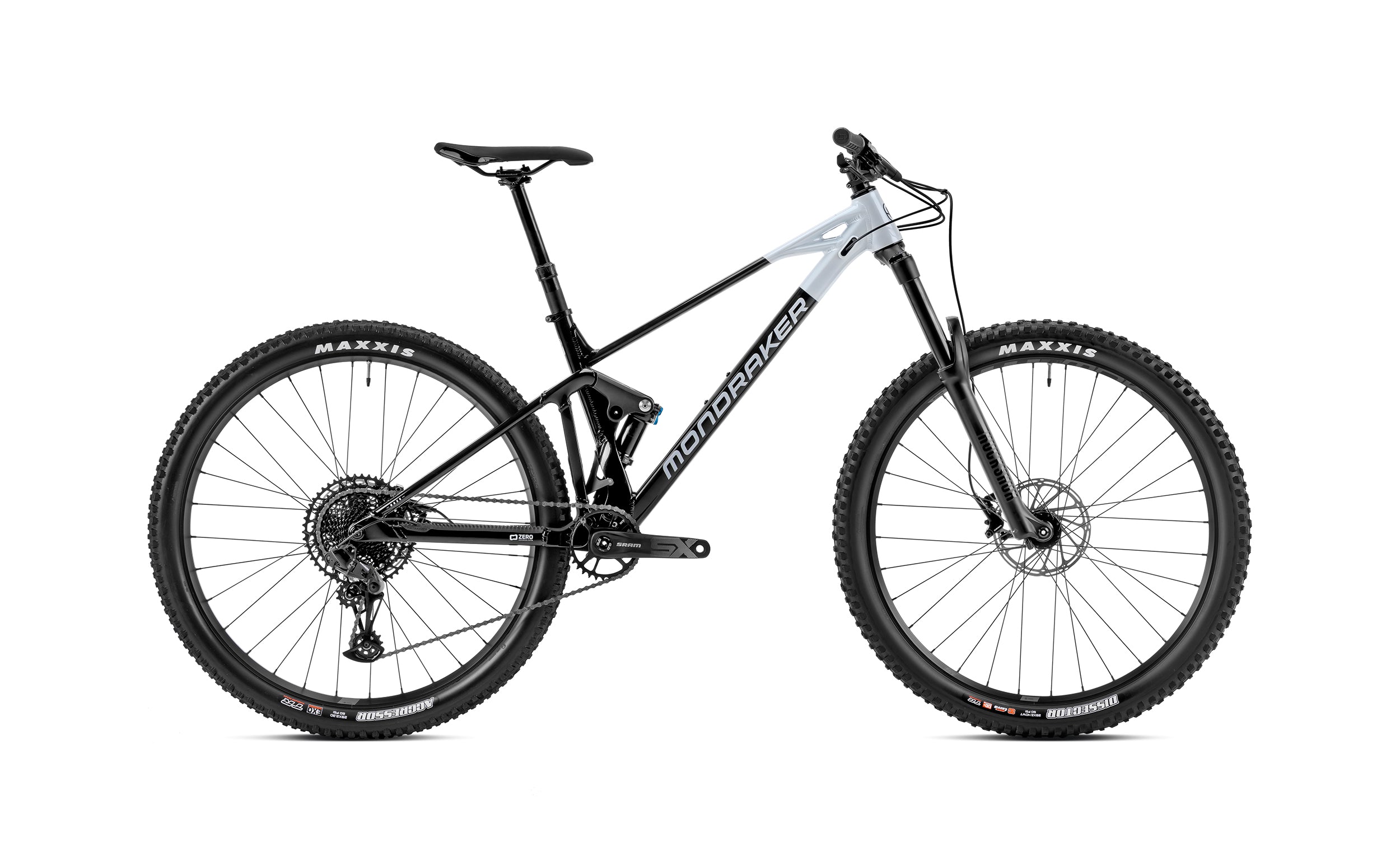

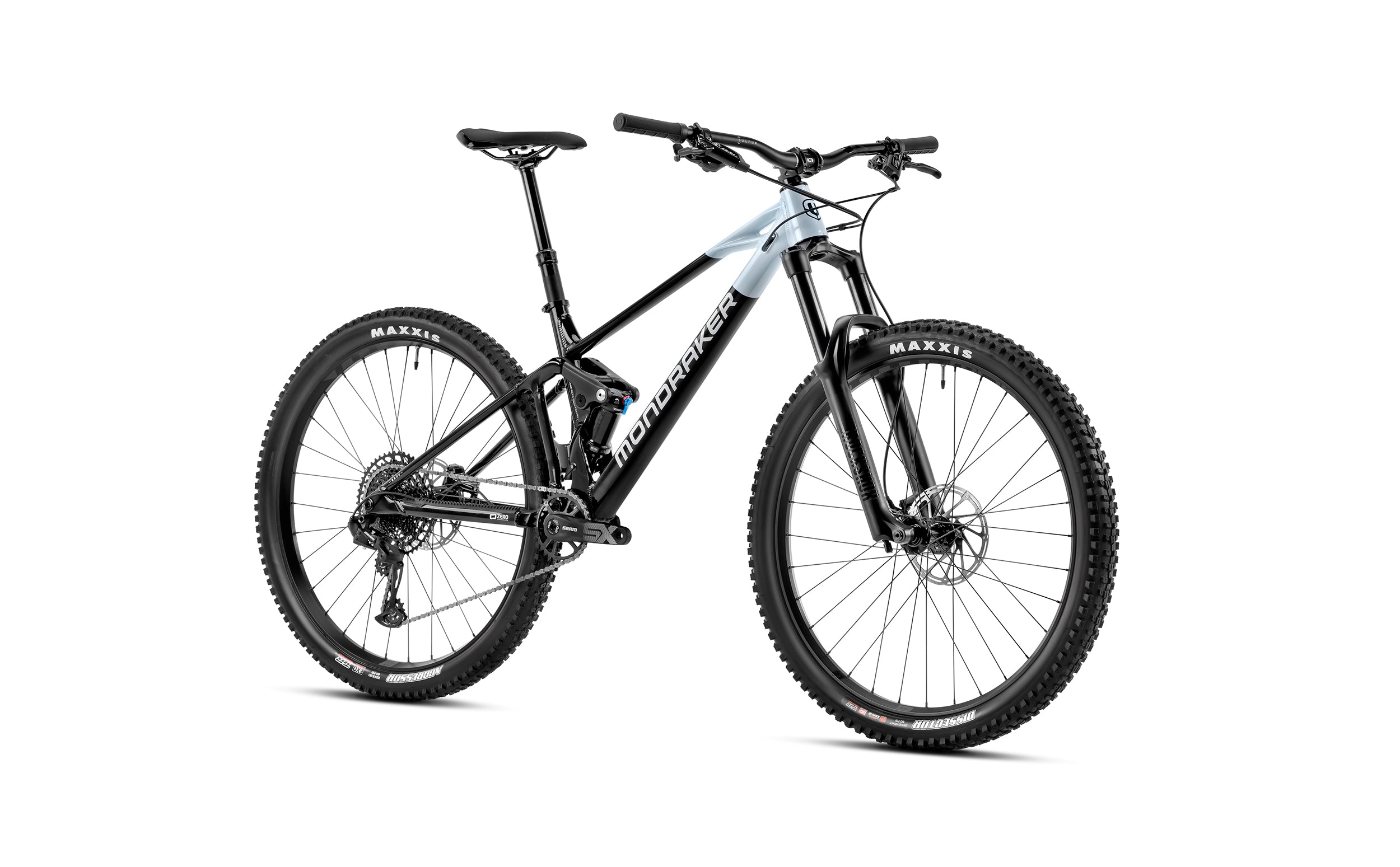

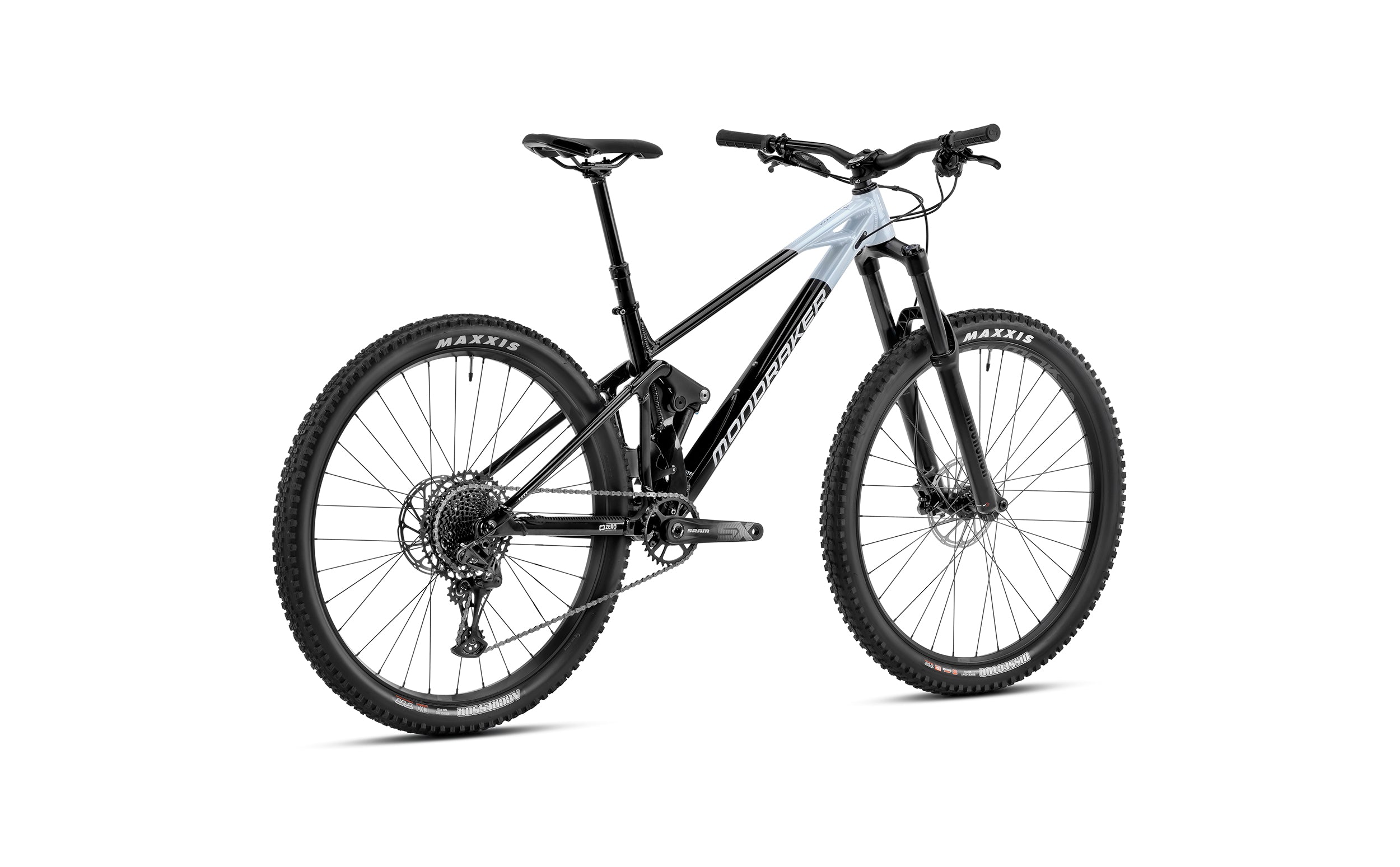

MONDRAKER RAZE

£3,199.00
By Mondraker
This product is unavailable

  • AT MONDRAKER WE’RE CLEAR ABOUT OUR PHILOSOPHY: MOUNTAIN BIKES ARE FOR FUN!

    For most people they need to be able to go both up as well as down. RAZE is our Trail model for riders who want it all, a sure bet yet spectacularly light weight trail rocket with 150mm of front wheel travel and 130mm at the rear. The RAZE is no ordinary trail bike because we believe that the definition of a trail bike shouldn’t be about its suspension travel but its functionality. What’s more, for 2023 the RAZE range is complemented by two aluminium models, both for riders who simply prefer alloy frames and also for those who prefer a more economical option. The RAZE is still THE TRAIL MASTER. Not surprisingly the RAZE CARBON RR model was given the best trail bike of 2022 award by the prestigious UK bike magazine MBR, which just about says it all.

    • Frame

      Raze 29 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, Forward Geometry, one piece Monoblock upper link, Boost 12x148mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, telescopic seatpost internal routing, MAX capacity sealed bearings, ISCG 05

      Sizes

      S: 380mm / M: 420mm / L: 470mm / XL: 510mm

      Rear shock

      Fox Float DPS LV EVOL Performance, 205x57.5mm. Settings: rebound, 3-position compression adjustment (Open/Mid/Lock), air preload. Trunnion top mount, 30x8mm bottom bushings

      Shock settings

      Light compression, light rebound, air volume spacer 0.6

      Fork

      RockShox 35 Gold 29 RL, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

      Headset

      ONOFF Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º

      Stem

      ONOFF Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore

      Handlebar

      ONOFF Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

      Grips

      ONOFF Twin, 1lock-on, 135mm

      Seatpost

      ONOFF Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm

      Saddle

      MDK series PU 2023

      Front brake

      Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

      Rear brake

      Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad

      Brake lever

      Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings

      Rims

      MDK-EP1 29, 30mm internal width, tubeless ready, 32 spokes

    • Spokes

      CN round stainless steel

      Front hub

      Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts

      Rear hub

      Formula DHT148 Boost 12x148mm, sealed bearings, IS 6 bolts

      Front tire

      Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead

      Rear tire

      Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead

      Crankset

      Sram SX Eagle, Boost, DUB axle, Direct Mount chain ring, S/M size: 170mm, L/XL size: 175mm

      Rings

      32T, steel, X-Sync 2

      Bottom bracket

      Sram DUB BSA, sealed bearings, 73mm

      Chain

      Sram SX Eagle, 12s, Powerlock

      Rear derrailleur

      Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1

      Shift levers

      Sram Trigger SX Eagle, 12s, X-Actuation 1:1

      Casette

      Sram PG-1210, 11-50T, 12s

      Derailleur hanger

      Sram UDH

      Weight

      TBD
