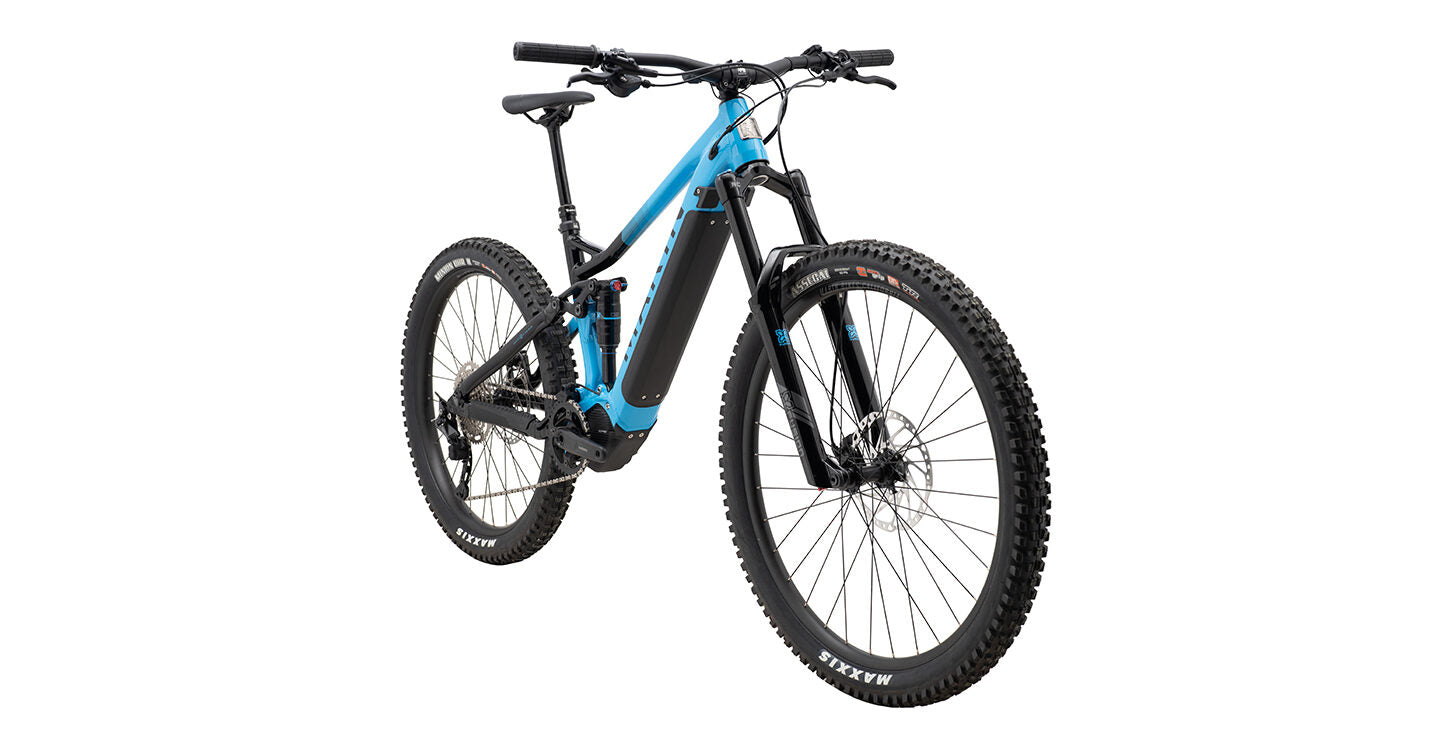

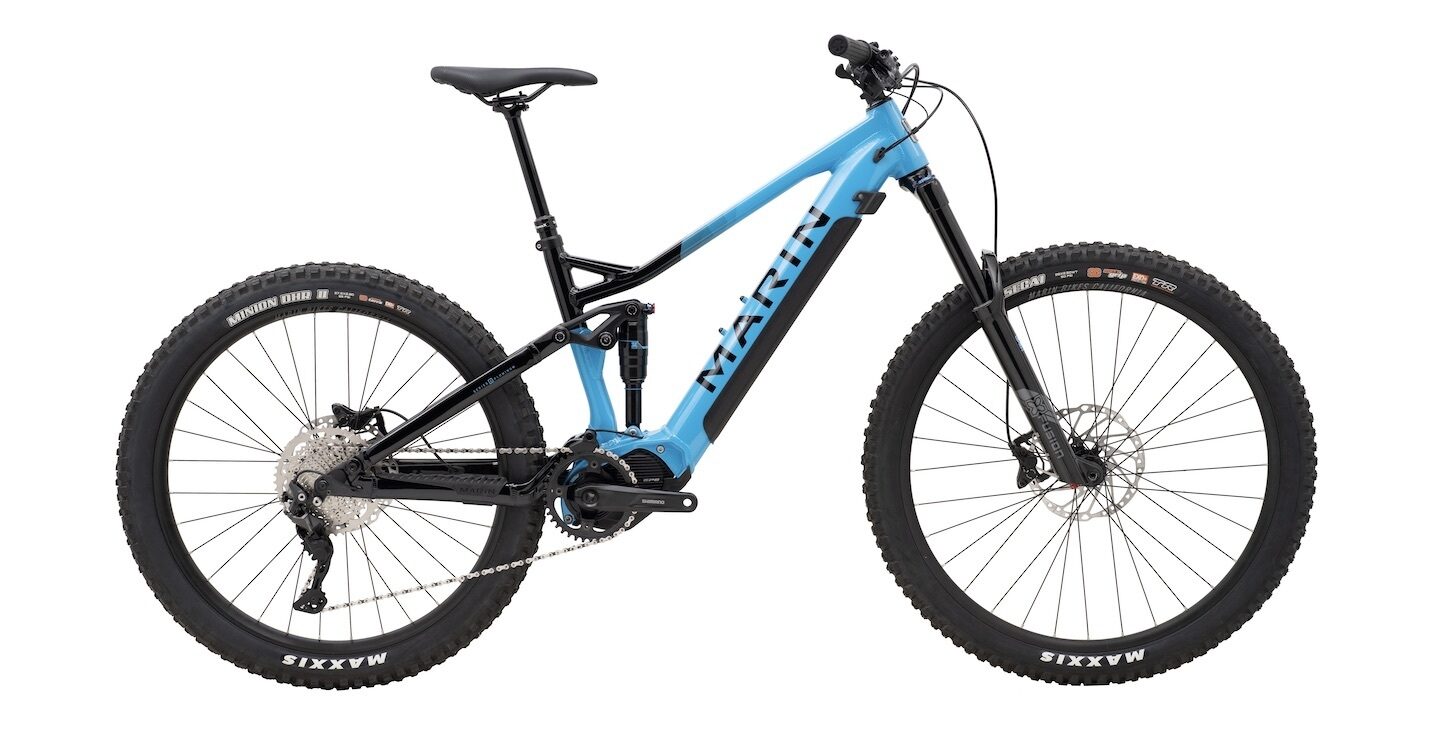

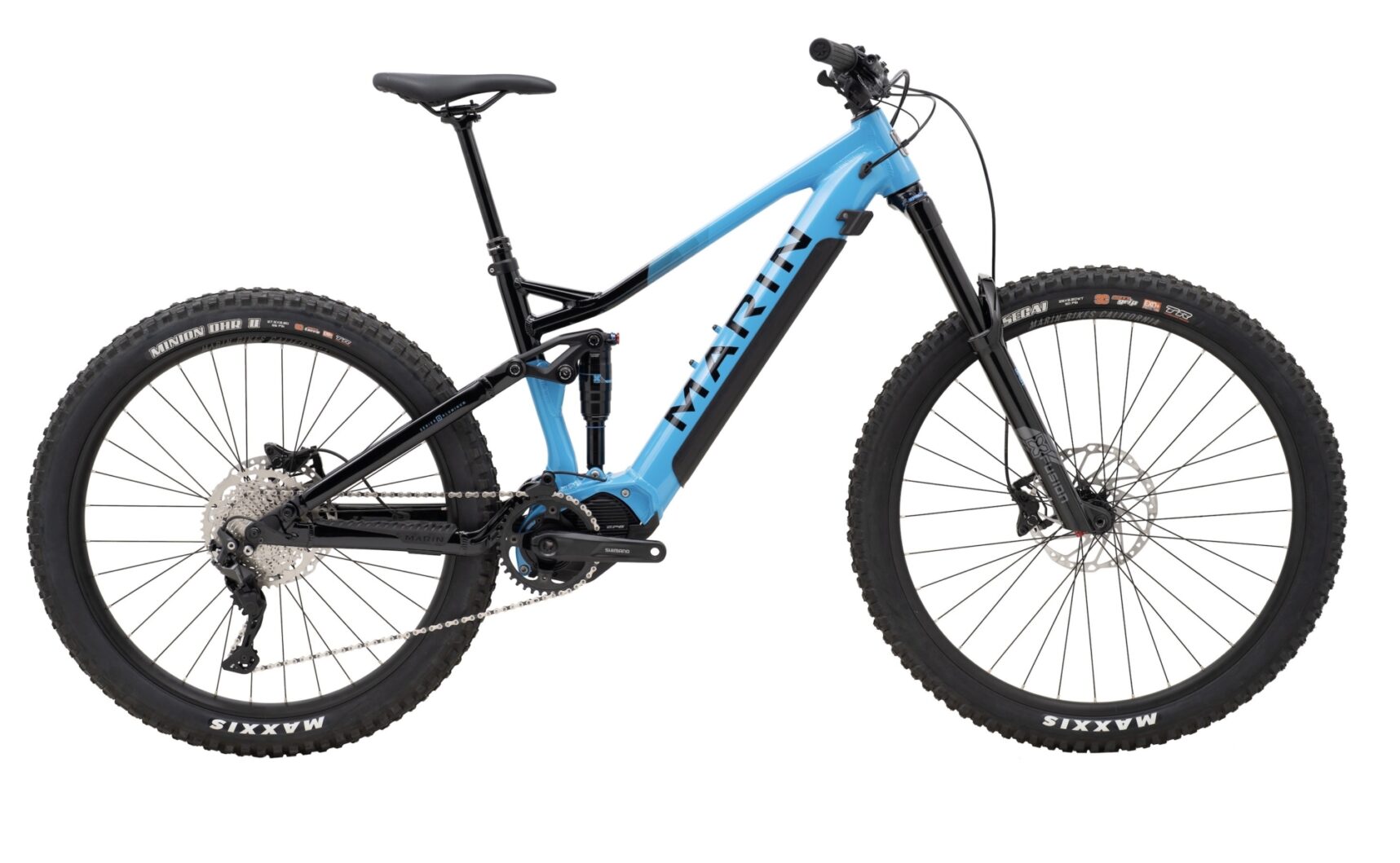

The Marin Alpine Trail E puts the fun and freedom of eMTB at a super-friendly price, because why should only the richest of riders get the good times?
We’ve created a big-mountain-capable eMTB that’s probably the best value eMTB on the planet and packed in the awesome Shimano EP6 drive unit, X-Fusion suspension, 10-speed Shimano drivetrain, Vee Tire Co. rubber, plenty of kick-ass Marin components and a long-lasting internal 504Wh battery. Rounding out all this goodness are powerful 4-piston TRP brakes with 203mm rotors.
*Please note some sizes may be in our remote warehouse
SPECIFICATIONS
-
FRAME
Series 4 Alloy Frame, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
-
FRONT SUSPENSION
X-Fusion Trace 36 RC, 160mm Travel, 29", 110x15mm Bolt-On Axle, 44mm Offset
-
REAR SUSPENSION
X-Fusion 02 PRO RXC, Compression and Rebound Adjustment, Custom Tune, 205x65 Trunnion Upper Mount, 25xM8 Lower Mount
-
RIMS
Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
-
HUB REAR
Forged Aluminum, 148x12mm, Disc, 32H
-
HUB FRONT
Forged Aluminum, 110x15mm, Disc, 32H
-
SPOKE, NIPPLES
14g Black Stainless Steel
-
TIRES
Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible Rear: Vee Tire Co. Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible
-
DERAILLEUR, REAR
Shimano CUES 10-Speed
-
SHIFT LEVER
Shimano Deore, 10-Speed, I-Spec EV
-
CRANKSET
Shimano EM600, 160mm Length, 38t Chainring
-
MOTOR
Shimano Steps EP6 Drive Unit, 250W, 85Nm
-
CHAIN
KMC X-10E, Silver
-
CASSETTE
Shimano Deore 10-speed 11-46T
-
BRAKE, FRONT
Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor
-
BRAKE, REAR
Shimano MT420, 4-Piston Hydraulic Disc Brake, Metallic Pads, 203mm Rotor w/ Speed Sensor
-
BRAKE LEVERS
Shimano MT4100 Hydraulic
-
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
-
STEM
Marin 3D Forged Alloy, 35mm
-
GRIPS
Marin Grizzly Lock On
-
HEADSET
FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
-
SEATPOST
TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm
-
SADDLE
Marin eMTB Saddle
-
PEDALS
Marin MTB Plastic
-
BATTERY
BT-8035L, Internal 504Wh
-
DISPLAY
SC-E600 Display
-
SWITCH
SW-EN600L Left Hand Switch for Assist Mode Change
-
EXTRAS
Shimano CS-EM800
-
EXTRAS
Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide
Specifications, pricing, and availability are subject to change without notice.
GEOMETRY
S | M | L | XL | |
---|---|---|---|---|
STACK | 613 | 622 | 631 | 640 |
REACH | 445 | 465 | 485 | 505 |
HEADTUBE ANGLE | 63° | 63° | 63° | 63° |
HEADTUBE LENGTH | 100 | 110 | 120 | 130 |
SEATTUBE ANGLE | 78° | 78° | 78° | 78° |
SEATTUBE LENGTH | 390 | 400 | 425 | 430 |
TOPTUBE EFFECTIVE | 575 | 597 | 619 | 641 |
BB HEIGHT | 340.5 | 340.5 | 340.5 | 340.5 |
BB DROP | 28 | 28 | 28 | 28 |
CHAINSTAY | 435 | 435 | 435 | 435 |
WHEELBASE | 1215 | 1239 | 1264 | 1288 |
STANDOVER HEIGHT | 681.6 | 681.4 | 686.8 | 689.8 |
FORK OFFSET | 44 | 44 | 44 | 44 |
SEATPOST DIAMETER | 30.9 | 30.9 | 30.9 | 30.9 |
HANDLEBAR WIDTH | 780 | 780 | 780 | 780 |
STEM LENGTH | 35 | 35 | 35 | 35 |
CRANK LENGTH | 160 | 160 | 160 | 160 |
All lengths in millimeters
