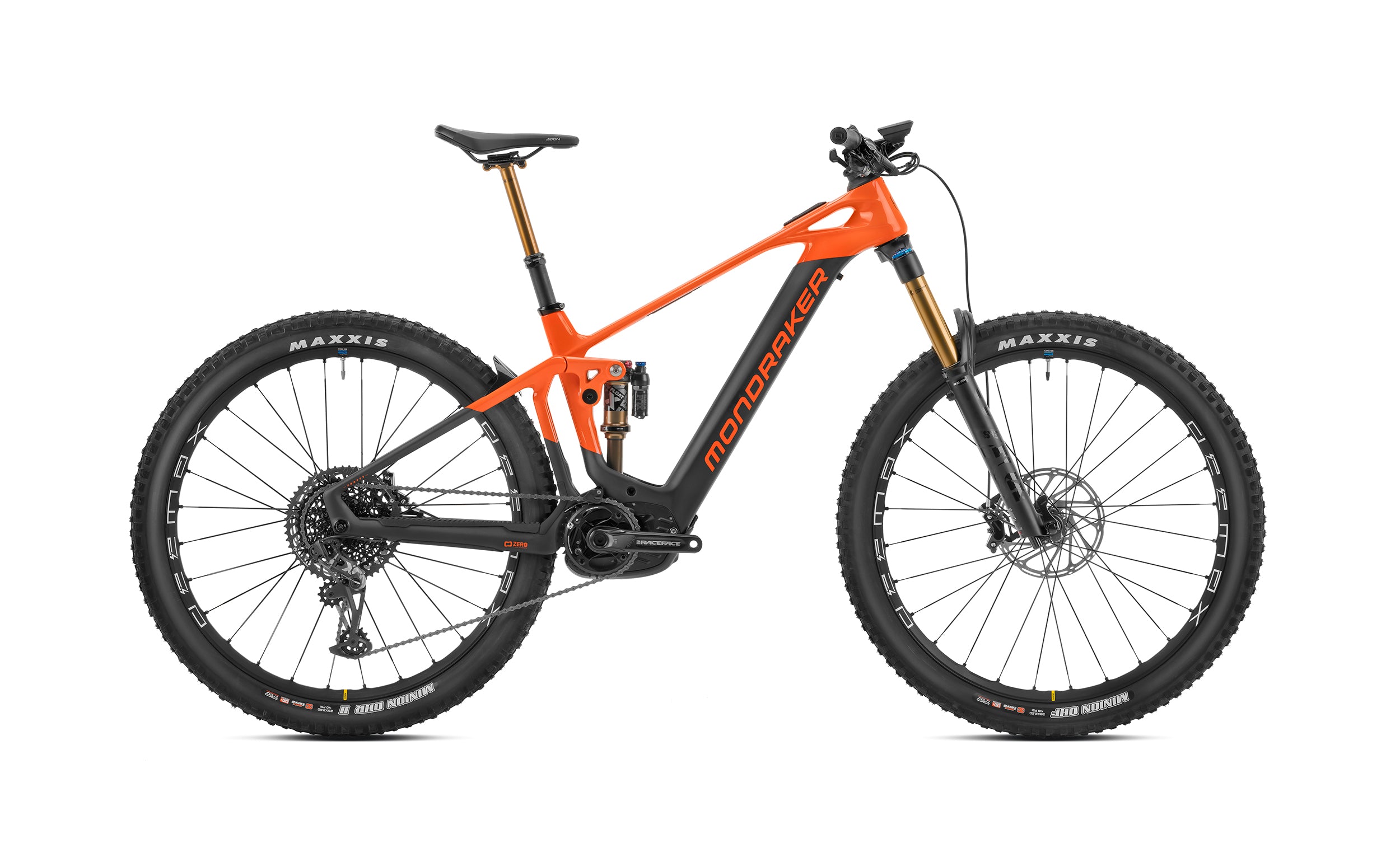

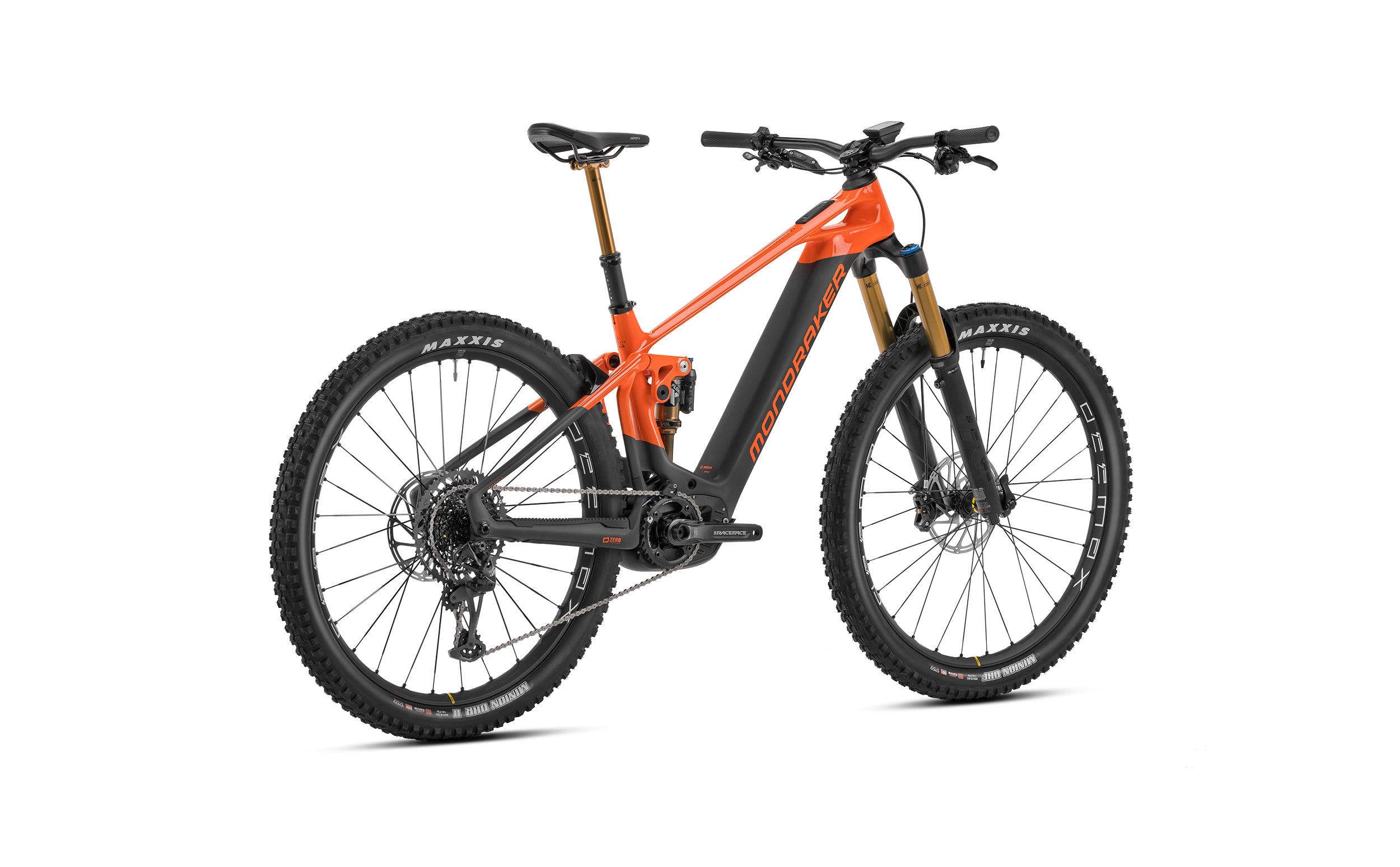

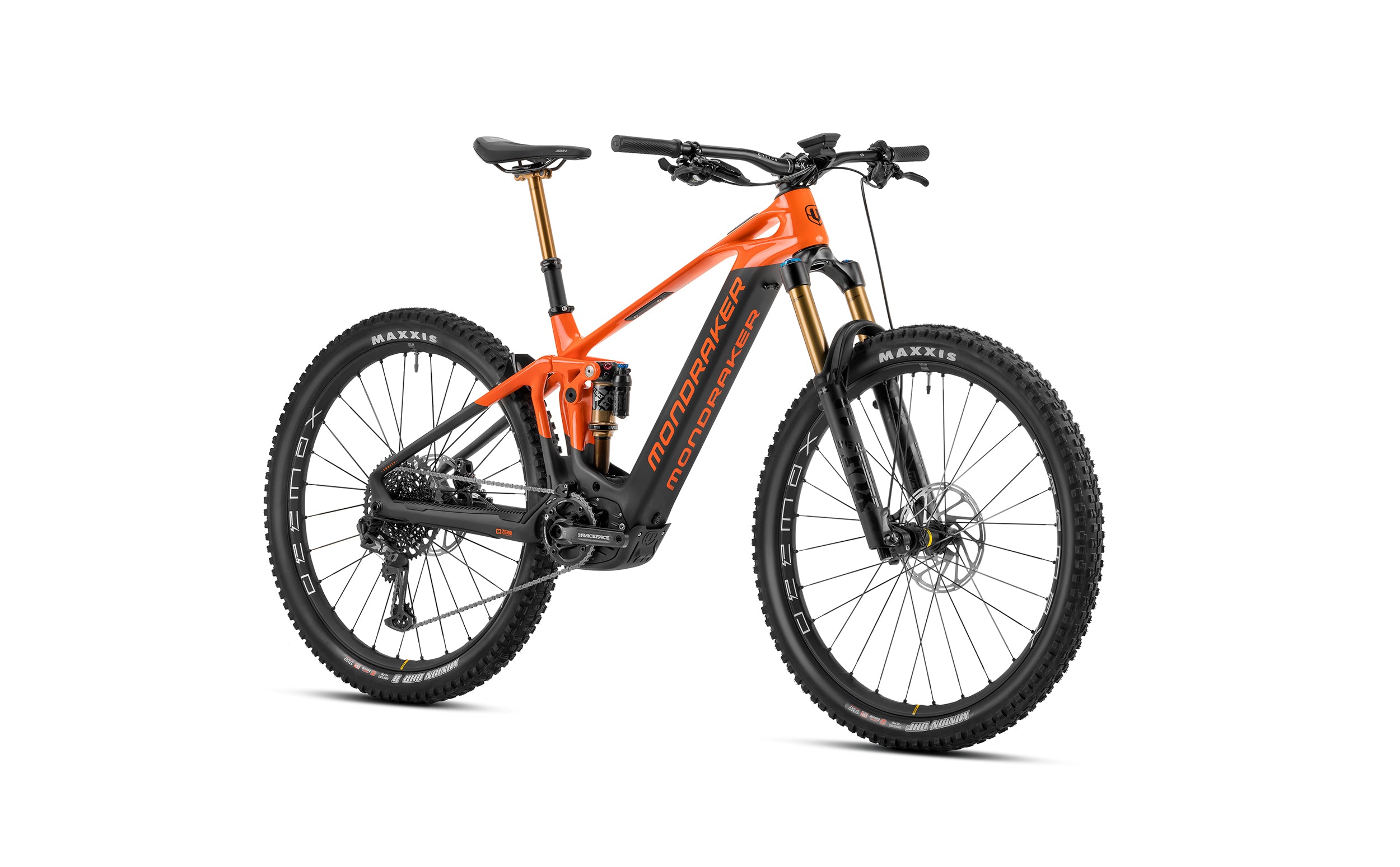

MONDRAKER CRAFTY CARBON RR

$11,617.00
This product is unavailable

THE CRAFTY CARBON RR IS ONE OF OUR BESTSELLERS WHEN IT COMES TO EBIKES


The CRAFTY CARBON RR is one of our bestsellers when it comes to ebikes. Offering a truly balanced setup it feels agile, reactive and efficient whether you’re riding uphill or down. The frame’s ZERO SUSPENSION SYSTEM is optimized for you to enjoy the trail whatever surprises it brings. You’ve got Bosch’s Smart System motor with its all-new wireless Mini Remote control and integrated System Controller to keep your cockpit clear. Then you’ve got a 750Wh battery to keep the trails flowing by without ever having to worry about range anxiety, and it comes fitted with our MIND telemetry system to let you set up your suspension like a pro mechanic without actually being one. It’s quite a package.
  • Frame

    Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. Optional MIND System (EU only)

    Sizes

    S: 380mm / M: 420mm / L: 450mm / XL: 490mm

    Rear shock

    Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

    Shock settings

    medium compression, medium rebound, air volume spacer 0.2

    Fork

    Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload

    Headset

    Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing

    Stem

    Onoff Krypton FG 30mm, CNC, 31.8mm barbore

    Handlebar

    Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore

    Grips

    Onoff Desert, 1lock-on, 135mm

    Seatpost

    Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x175mm

    Saddle

    FIZIK Terra Aidon X5 145mm

    Front brake

    Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    Rear brake

    Sram Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

    Brake lever

    Sram Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

    Rims

    Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes

    Spokes

    Mavic straight-pull double butted, contactless lacing

  • Front hub

    Mavic, Boost 15x110mm, IS 6 bolts

    Rear hub

    Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, XD freehub

    Front tire

    Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    Rear tire

    Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead

    Crankset

    Race Face Aeffect ebike, 165mm

    Rings

    Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD

    Chain

    Sram NX Eagle, 12s, Powerlock

    Rear derrailleur

    Sram X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

    Shift levers

    Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click

    Casette

    Sram XG-1275, 10-52T, 12s

    Derailleur hanger

    SRAM UDH

    Weight

    23,5 kg

    Display

    Bosch Kiox 300 / Bosch Mini Remote / Bosch System Controller

    Motor

    Bosch Performance Line CX Cruise (25Km/h) Smart System

    Battery

    Bosch Powertube 750Wh
