FAST PACED, EPIC RIDES
PUSHING THE ENVELOPE UP AND DOWN THE TRAIL
CHASING PERSONAL RECORDS

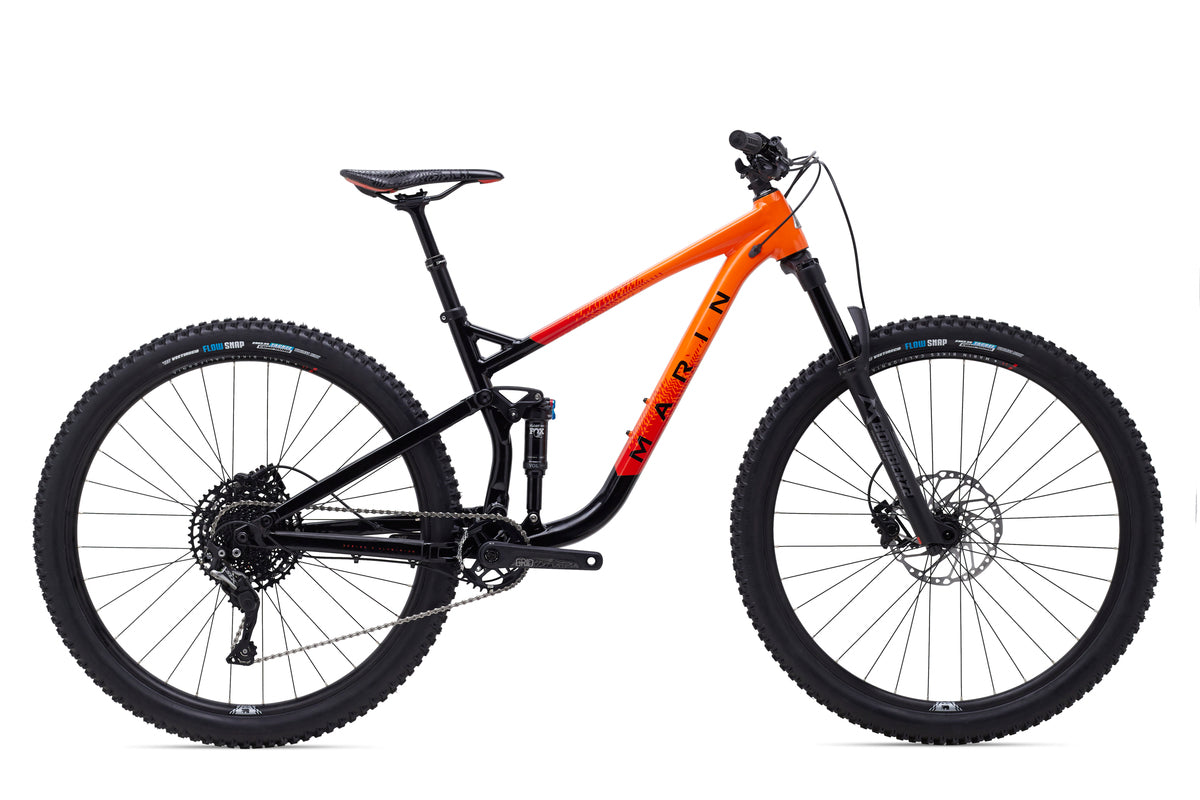

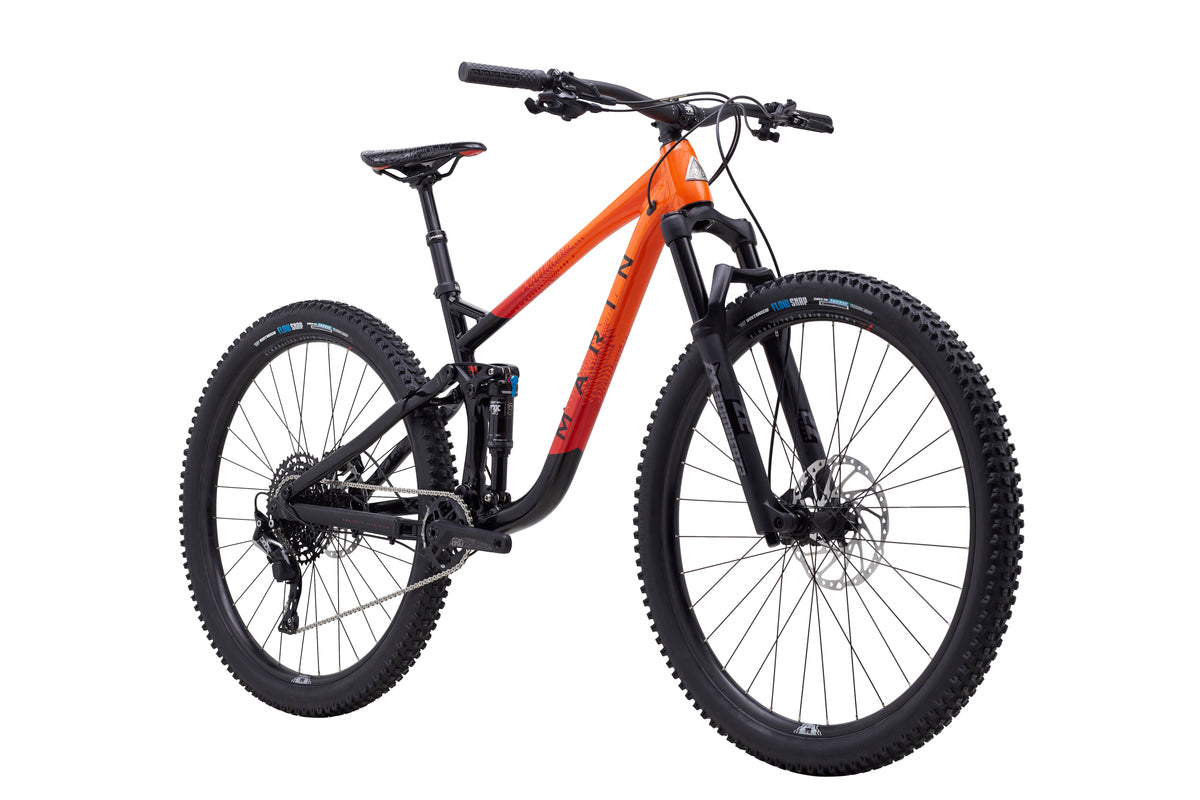

The Rift Zone is our most speed oriented MultiTrac mountain bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds.
Key upgrades from Rift Zone 29 2:
- Marzocchi Bomber/Fox Float DPS suspension
- Shimano SLX drivetrain
- Shimano M420 4-piston brakes
-
FRAME
Series 3 6061 Aluminum Frame, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
-
FRONT SUSPENSION
Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 130mm Travel, Kabolt Bolt-On Axle, 44mm Offset
-
REAR SUSPENSION
Fox Float DPS, Performance Series, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom
-
RIMS
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
-
HUB, REAR
Forged Alloy, 148x12mm, Quad Sealed Bearings, 32H, Standard Freehub Body
-
HUB, FRONT
Forged Alloy, 110x15mm, 32H
-
SPOKE, NIPPLES
14g Black Stainless Steel
-
TIRES
Vee Tire Co, Flow Snap, 29x2.35, Tackee Compound, 72 TPI, Tubeless Compatible
-
DERAILLEUR, REAR
Shimano SLX SGS, Direct Attachment, 12-Speed
-
DERAILLEUR, FRONT
-
-
SHIFT LEVER
Shimano SLX, 12-Speed, SL-6100IR
-
CRANKSET
FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
-
BOTTOM BRACKET
Mego EXO 73mm BSA
-
CHAIN
KMC X-12 Silver and Black
-
CASSETTE
SunRace, 12-Speed, 11-51T, ED Black
-
BRAKE, FRONT
Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor
-
BRAKE, REAR
Shimano MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor
-
BRAKE LEVERS
Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible
-
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
-
STEM
Marin 3D Forged Alloy, 35mm
-
GRIPS
Marin Single Clamp Locking
-
HEADSET
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
-
SEATPOST
X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
-
SADDLE
Marin Speed Concept
-
PEDALS
-
-
EXTRAS
Bolt-On Thru-Axle
