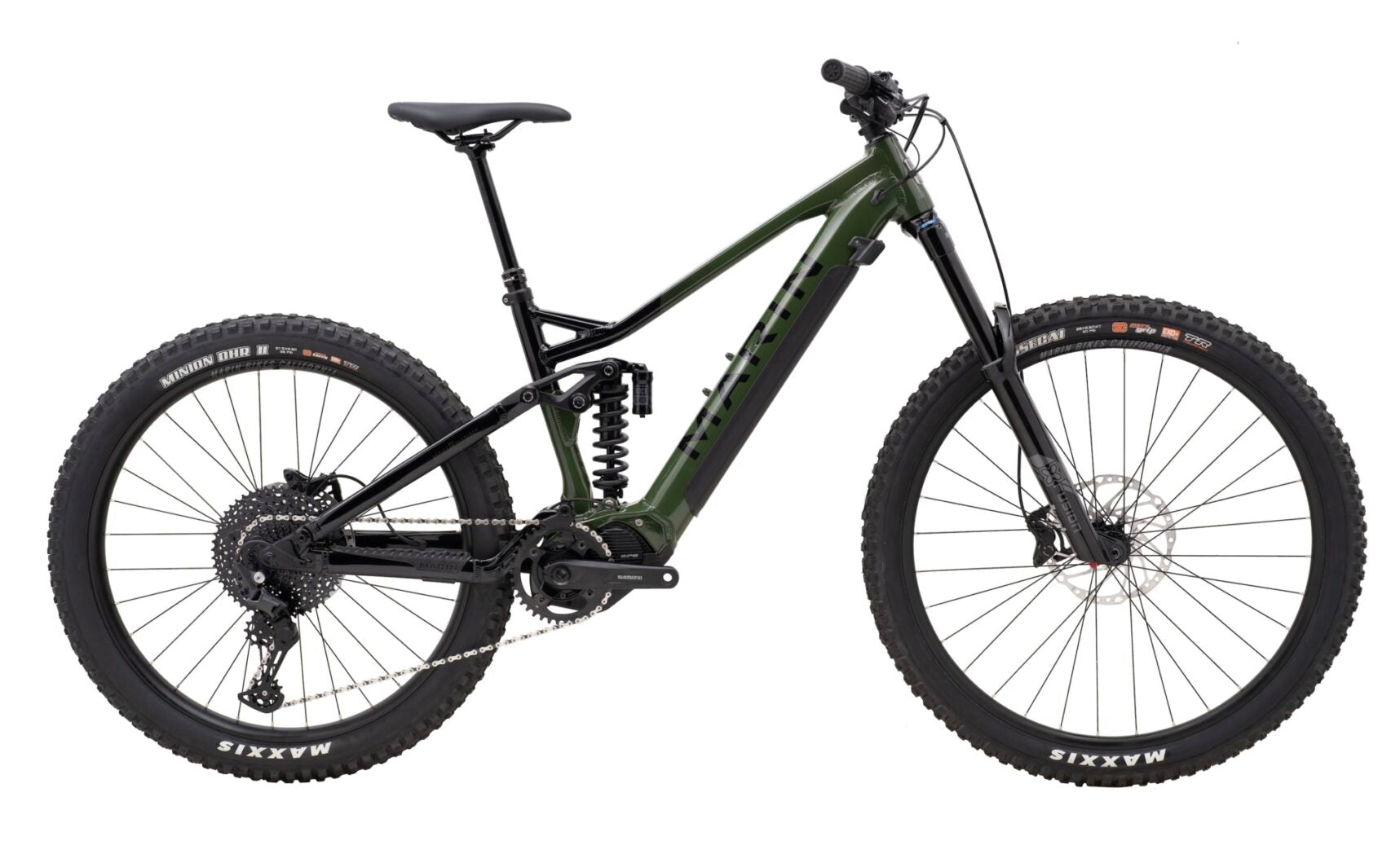

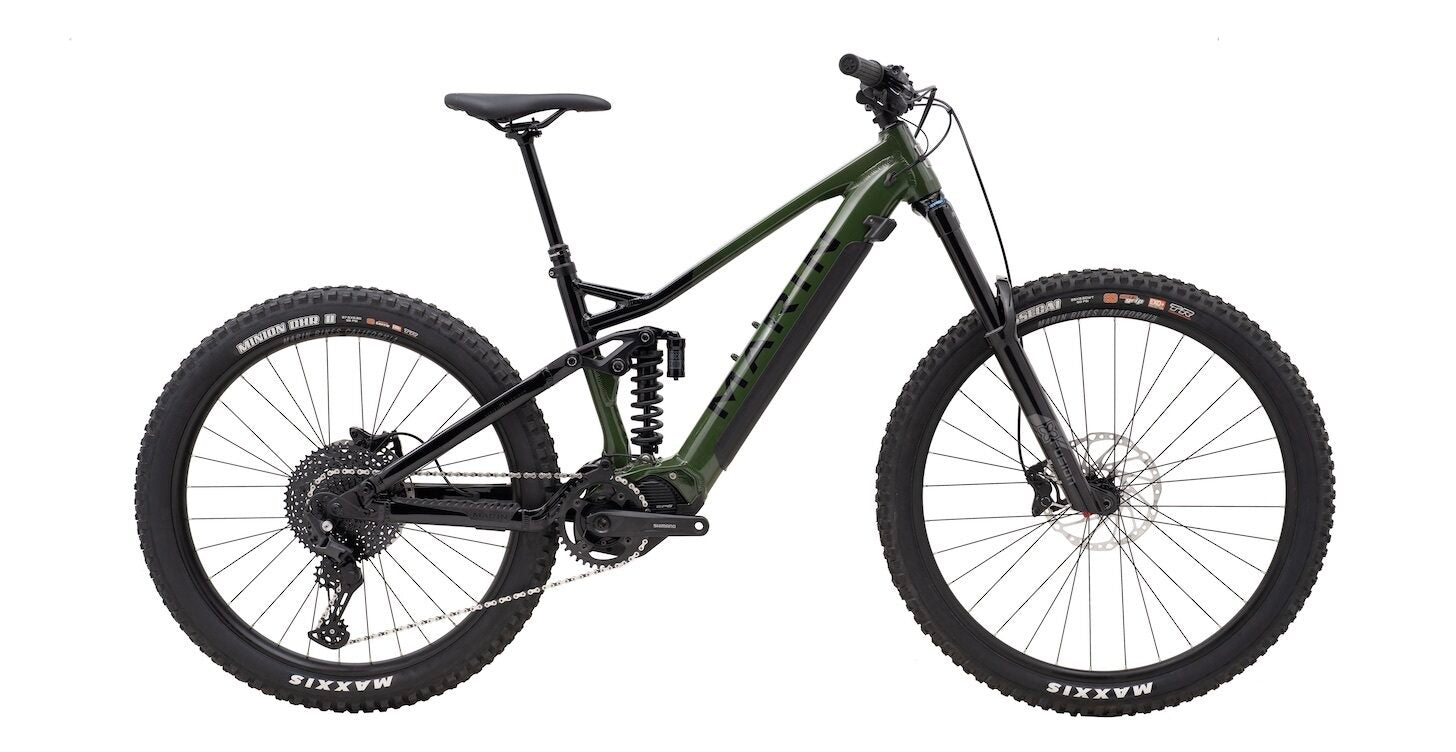

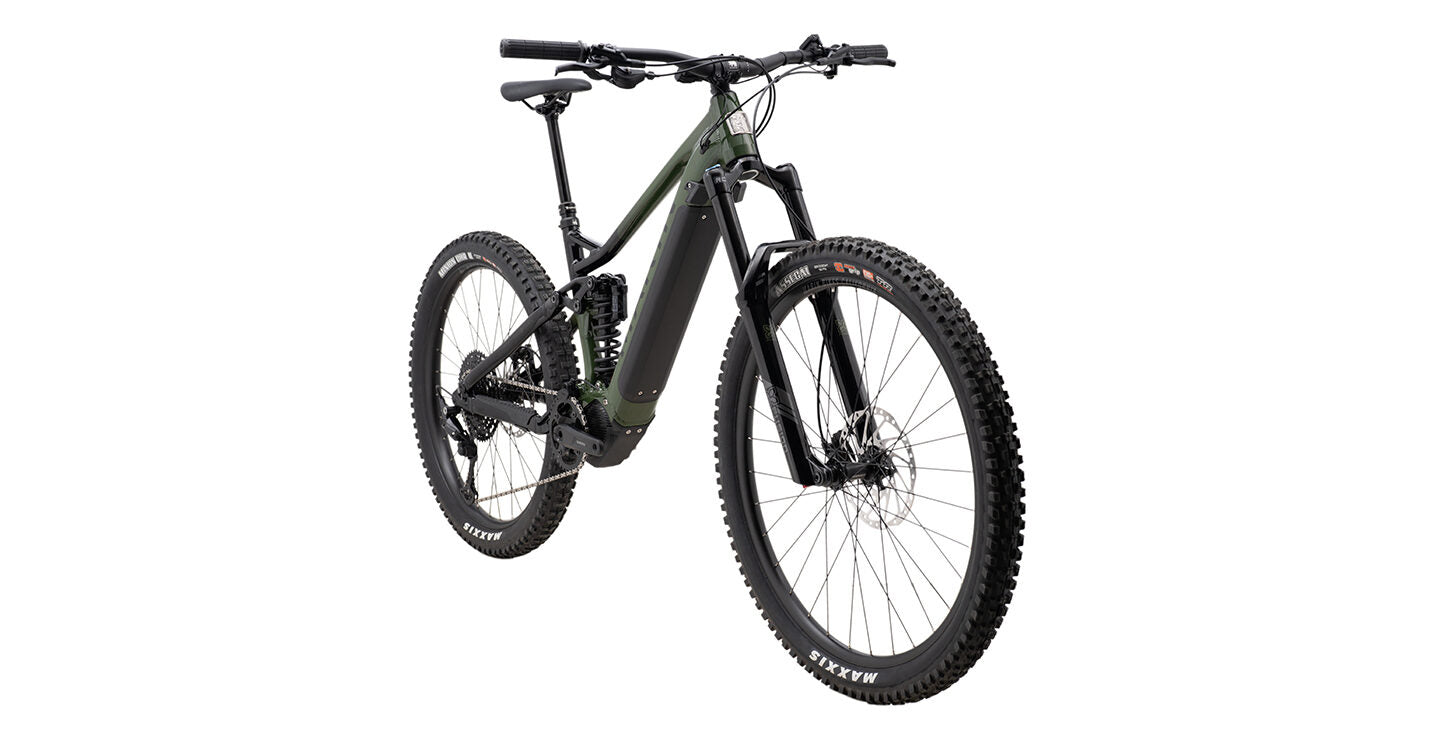

The Marin Alpine Trail E1 sits squarely in the middle of the Alpine Trail E bike family, packing performance and value in equal measure. Go E1 and you’ll get an upgrade to a 630Wh battery, X-Fusion Trace 36RC / RockShox Super Deluxe Coil R suspension and a long-lasting, tough and reliable Shimano 11-speed Deore drivetrain. Not to mention Cushcore tyre inserts!
#Note - some sizes may may be in our remote warehouse
Key upgrades from Alpine Trail E:
- Shimano 630Wh battery
- X-Fusion Trace 36RC / RockShox Super Deluxe Coil R suspension
- Shimano Deore 11-speed drivetrain w/11-51t cassette
SPECIFICATIONS
-
FRAME
Series 4 Alloy Frame, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
-
FORK
X-Fusion Trace 36 RC, 160mm Travel, 29", 110x15mm Bolt-On Axle, 44mm Offset
-
SHOCK
RockShock Super Deluxe Coil R, Rebound Adjustment, 205x65mm, 25mmxM8 Lower Hardware, S/M Spring Rate = 300lb, L/XL Spring Rate = 400lb
-
RIMS
Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
-
HUB REAR
Shimano HB-MT400B, 148x12mm, Centerlock, Standard Freehub Body
-
HUB FRONT
Shimano MT-410B, 110x15mm, centerlock Disc, 32H
-
SPOKES
14g Black Stainless Steel
-
TIRES
Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible, Rear: Vee Tire Co. Crown Gem, 27.5x2.8”, TACKEE Compound, Tubeless Compatible
-
DERAILLEUR REAR
Shimano Deore, Direct Attachment, 11-Speed, SGS
-
SHIFT LEVER
Shimano Deore, 11-Speed, I-Spec EV
-
CRANKSET
Shimano EM600, 160mm Length, 38t Chainring
-
MOTOR
Shimano Steps EP6 Drive Unit, 250W, 85Nm
-
CHAIN
KMC X-10E, Silver
-
CASSETTE
SunRace 11-Speed, 11-51T
-
BRAKES FRONT
Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor
-
BRAKES REAR
Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor w/ Speed Sensor
-
BRAKE LEVERS
Shimano MT4100 Hydraulic Lever
-
HANDLEBAR
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
-
STEM
Marin 3D Forged Alloy, 35mm
-
GRIPS
Marin Grizzly Lock On
-
HEADSET
FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
-
SEATPOST
TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
-
SADDLE
Marin eMTB Saddle
-
PEDALS
Marin MTB Plastic
-
BATTERY
BT-8036, Internal 630Wh
-
DISPLAY
Shimano SC-E600
-
SWITCH
SW-EN600L Left Hand Switch for Assist Mode Change
-
EXTRAS
Shimano Battery Charger EC-E6002, Shimano CS-EN800 Chainguide, CushCore, 29" Pro Front, Plus Rear, with CushCore Valve Stems, Marin Tire Sealant 250ml, Squeeze Top with Valve Core Removal Tool Cap
GEOMETRY
S M L XL STACK 613 622 631 640 REACH 445 465 485 505 HEADTUBE ANGLE 63° 63° 63° 63° HEADTUBE LENGTH 100 110 120 130 SEATTUBE ANGLE 78° 78° 78° 78° SEATTUBE LENGTH 390 400 425 430 TOPTUBE EFFECTIVE 575 597 619 641 BB HEIGHT 340.5 340.5 340.5 340.5 BB DROP 28 28 28 28 CHAINSTAY 435 435 435 435 WHEELBASE 1215 1239 1264 1288 STANDOVER HEIGHT 681.6 681.4 686.8 689.8 FORK OFFSET 44 44 44 44 SEATPOST DIAMETER 30.9 30.9 30.9 30.9 HANDLEBAR WIDTH 780 780 780 780 STEM LENGTH 35 35 35 35 CRANK LENGTH 160 160 160 160 All lengths in millimeters
